Dynapath Digital I/O Board 501-03855-00 m00822

$129.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

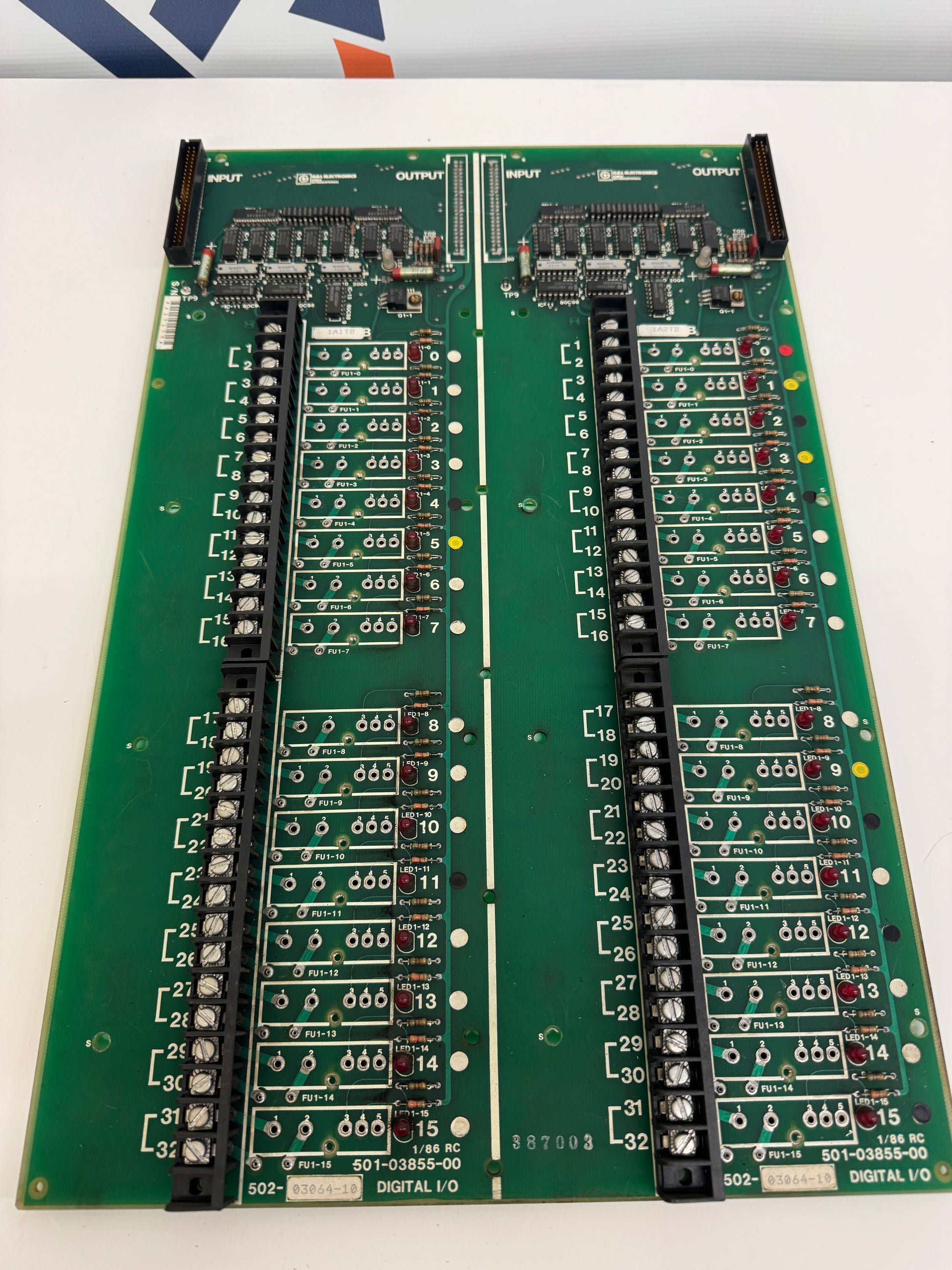

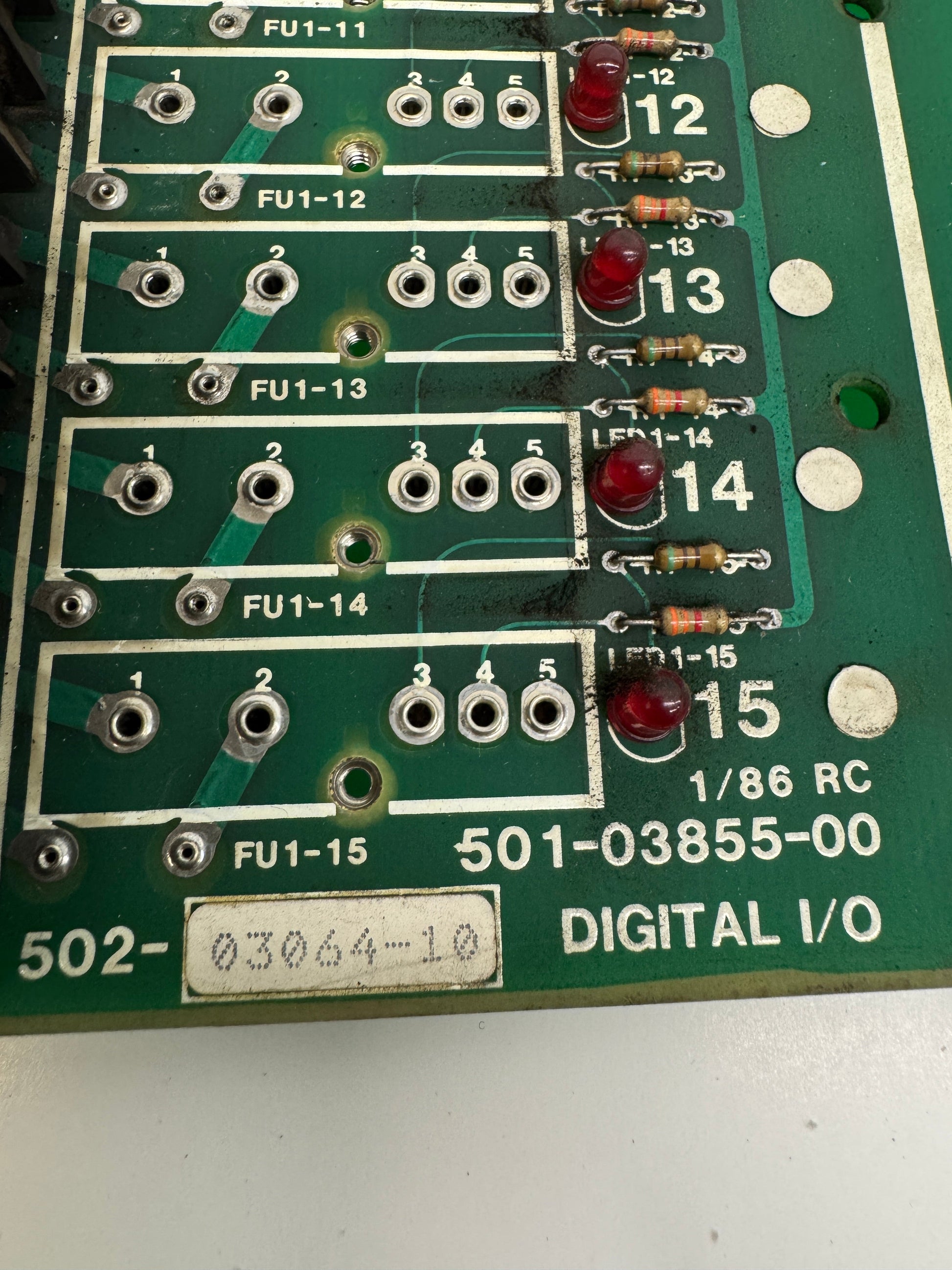

The Dynapath 501-03855-00 is a Digital I/O board designed for use in Dynapath CNC control systems. The board carries silkscreen designation "DIGITAL I/O" and is labeled with revision code 1/86 RC, indicating a January 1986 revision cycle. The assembly is configured as a dual-section board, with two mirrored I/O sections each labeled INPUT and OUTPUT, and each section numbered with 16 field wiring terminals along the left edge. Each section includes fuse positions labeled FU1-0 through FU1-15 and corresponding LED indicators LED1-0 through LED1-15, providing per-channel fault or status indication via red LEDs. The board uses through-hole construction throughout, with DIP ICs mounted near the top edge connector area of each section. Edge connectors at the top of each section interface with the CNC backplane. The PCB assembly number 502-03064-10 appears on a label in the lower portion of each section, and the board serial number 387003 is visible on the front face. The overall board dimensions are consistent with a full-length CNC control rack card. This part is associated with Dynapath Delta and System 10/20/30 series CNC controls. Compatible replacement sourcing should reference MPN 501-03855-00 and cross-reference assembly 502-03064-10.
