Eaton Disconnect Indicating Fuse Holder 38RBA4-IDH 38 Kv

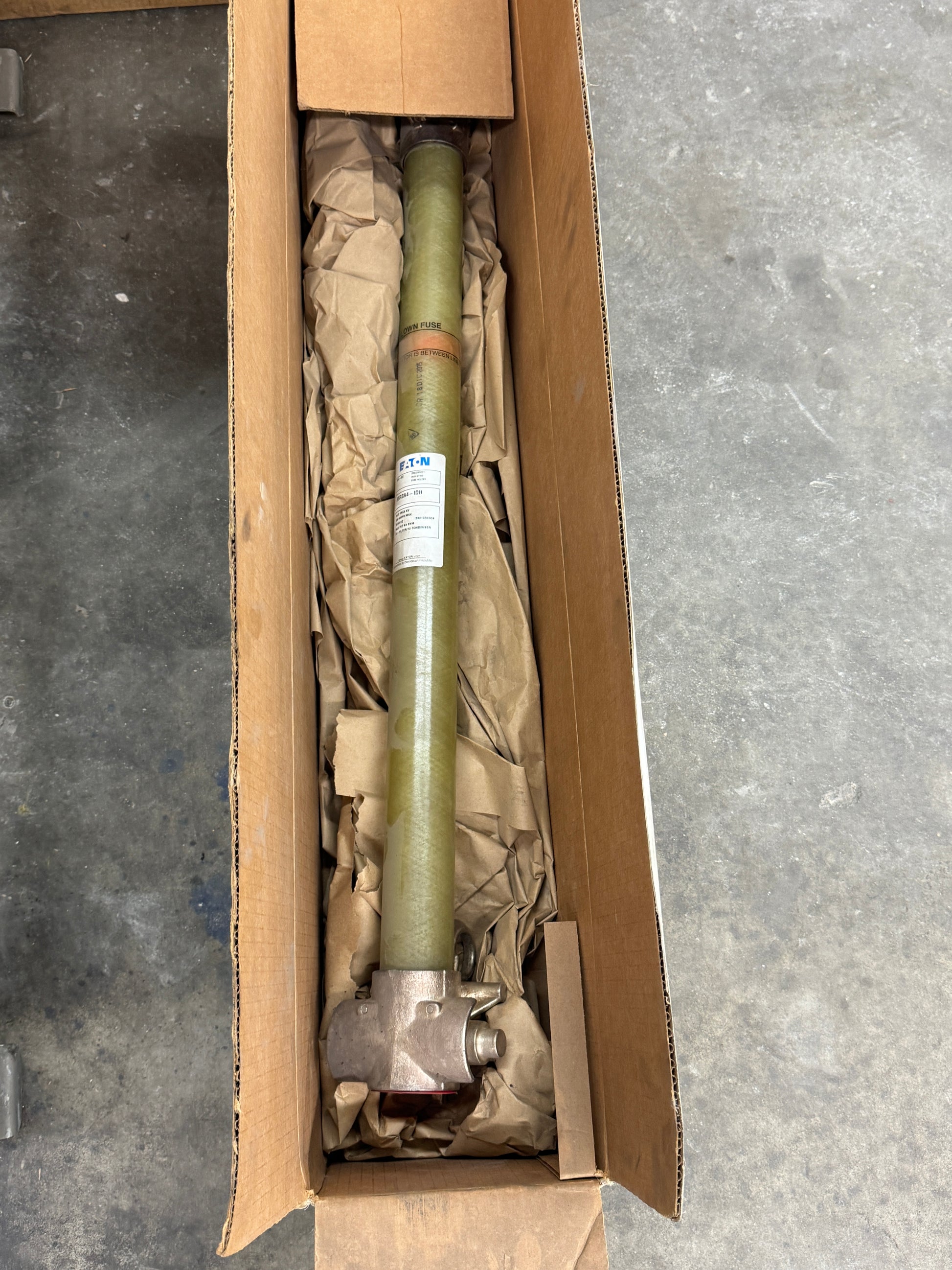

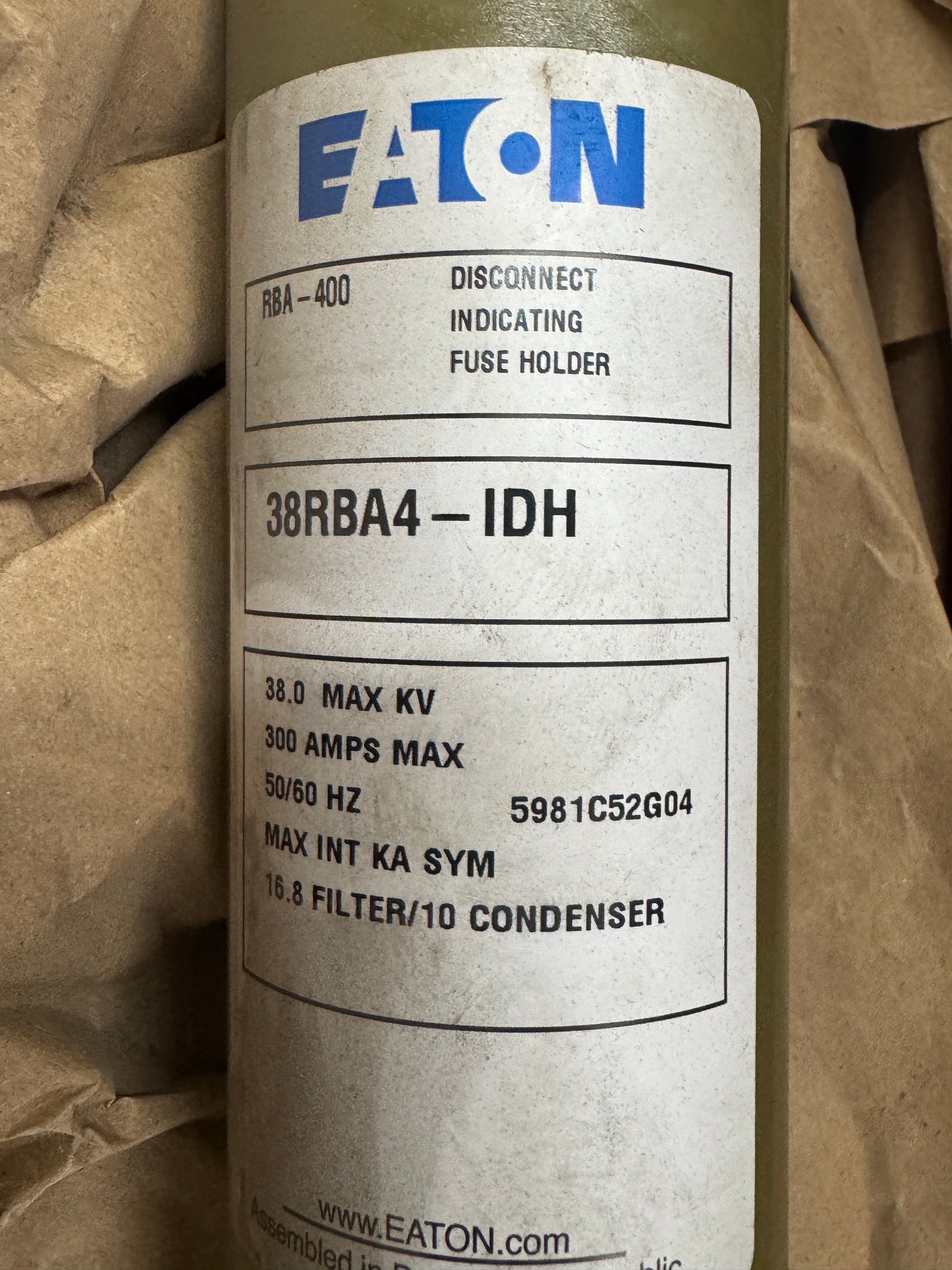

The Eaton 38RBA4-IDH is an RBA-400 series disconnect indicating fuse holder rated for 38.0 kV maximum and 300 amps maximum continuous current at 50/60 Hz. It carries style number 5981C52G04 as shown on the nameplate. The indicating function provides visual blown-fuse detection, which assists maintenance personnel in identifying a fault condition without requiring physical contact with the holder assembly. The disconnect feature allows the fuse holder to be mechanically separated from the circuit for safe fuse replacement procedures in medium-voltage distribution systems. This holder is designed for indoor enclosure use per the RBA product family designation and is rated for maximum interrupting capacity of 16.8 kA symmetrical in filter applications and 10 kA symmetrical in condenser applications, as indicated on the nameplate. Compatible fuse refills are of the Type RBA-400 family. The item is presented in its original cardboard shipping box with paper wrap intact, assembled in the Czech Republic as noted on the label. Applicable standards and system voltage ratings make this unit suitable for substation, utility, and industrial distribution switchgear applications where a combination of load interruption, fault indication, and visual status are required at the 34.5 kV nominal system voltage class.

Stock # 0526-02510
