Eaton General Duty Safety Switch DG223NGB 240V AC
Eaton General Duty Safety Switch DG223NGB 240V AC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: DG223NGB
Stock #: 0226-00796

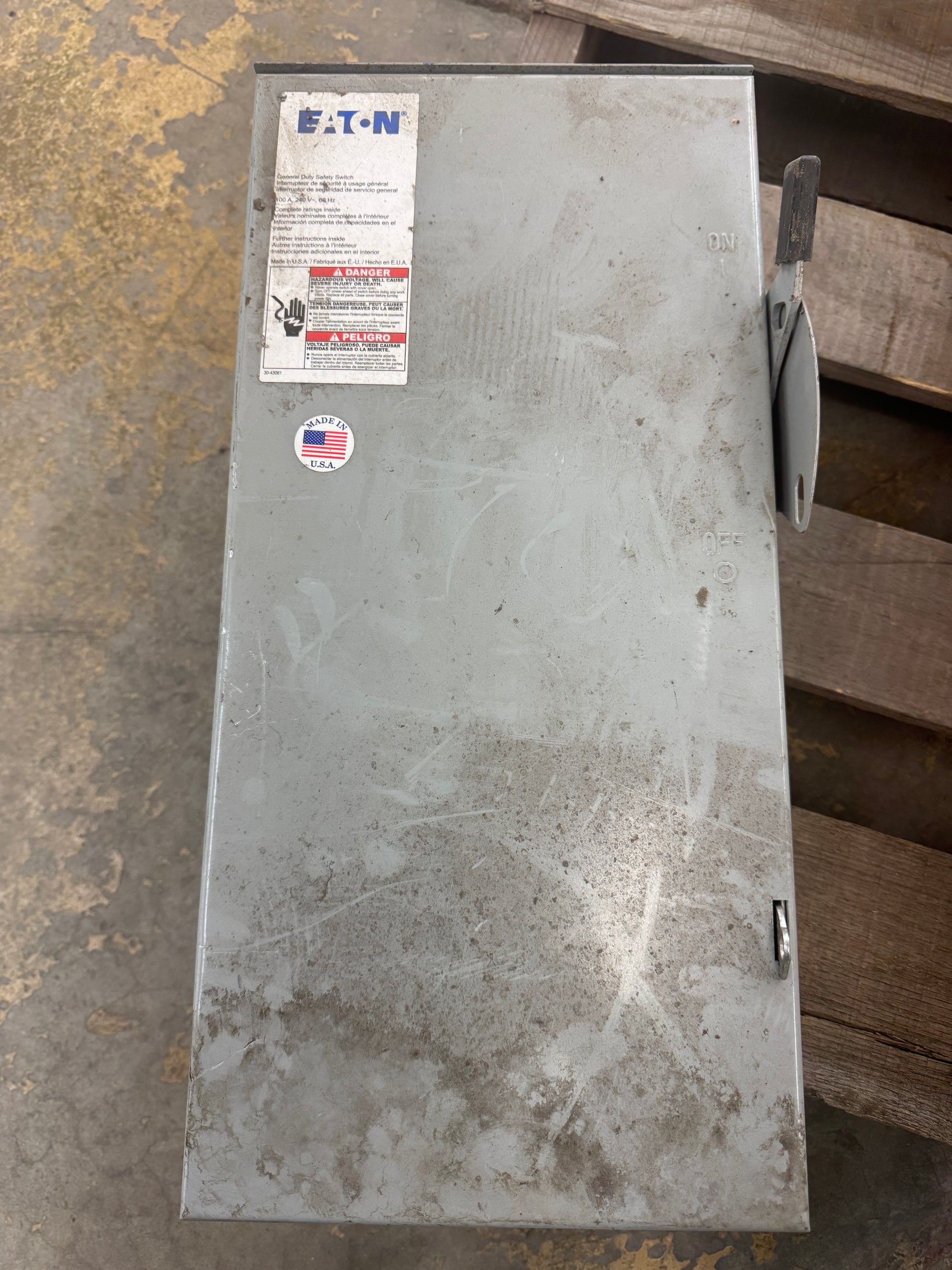

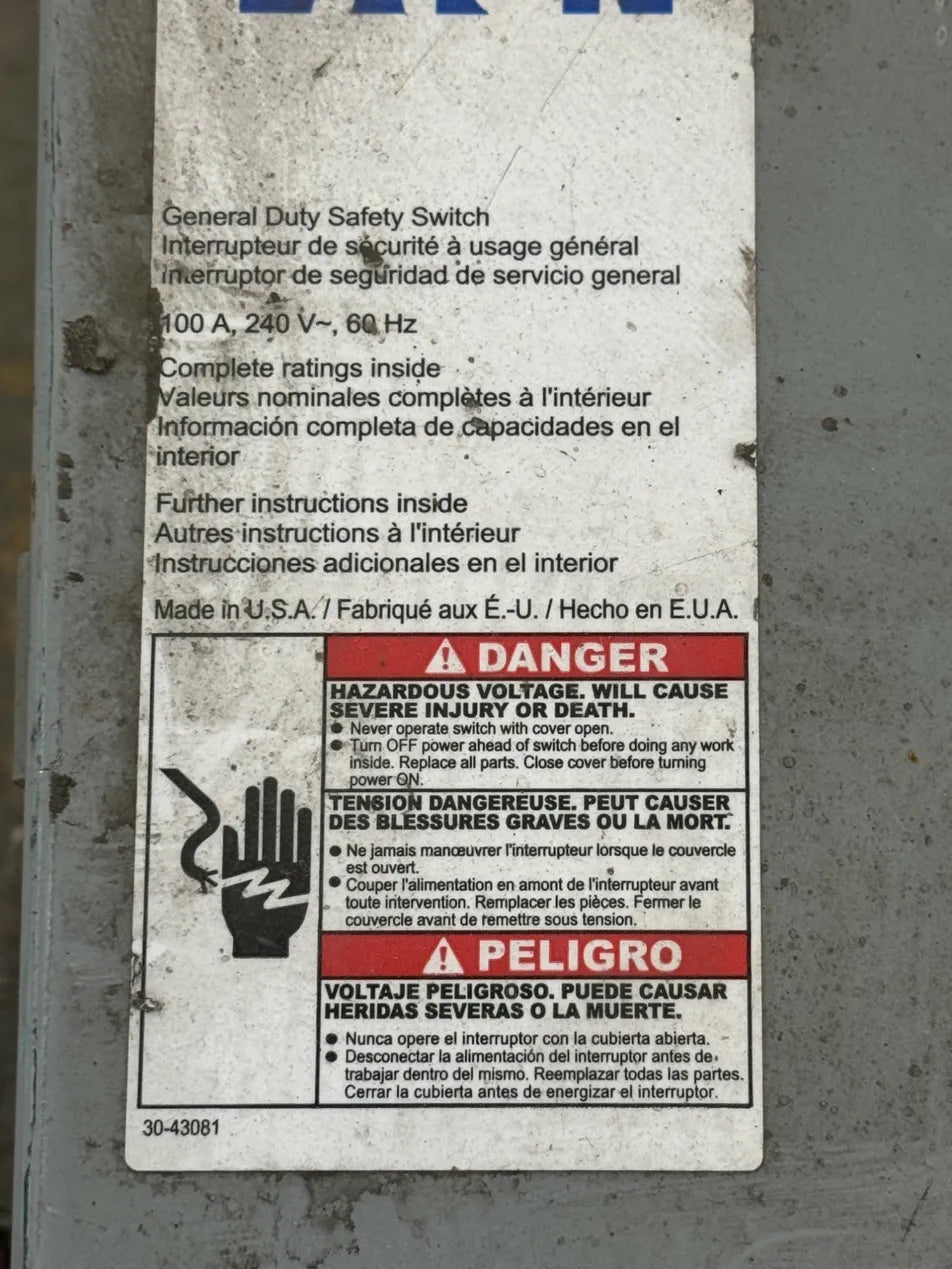

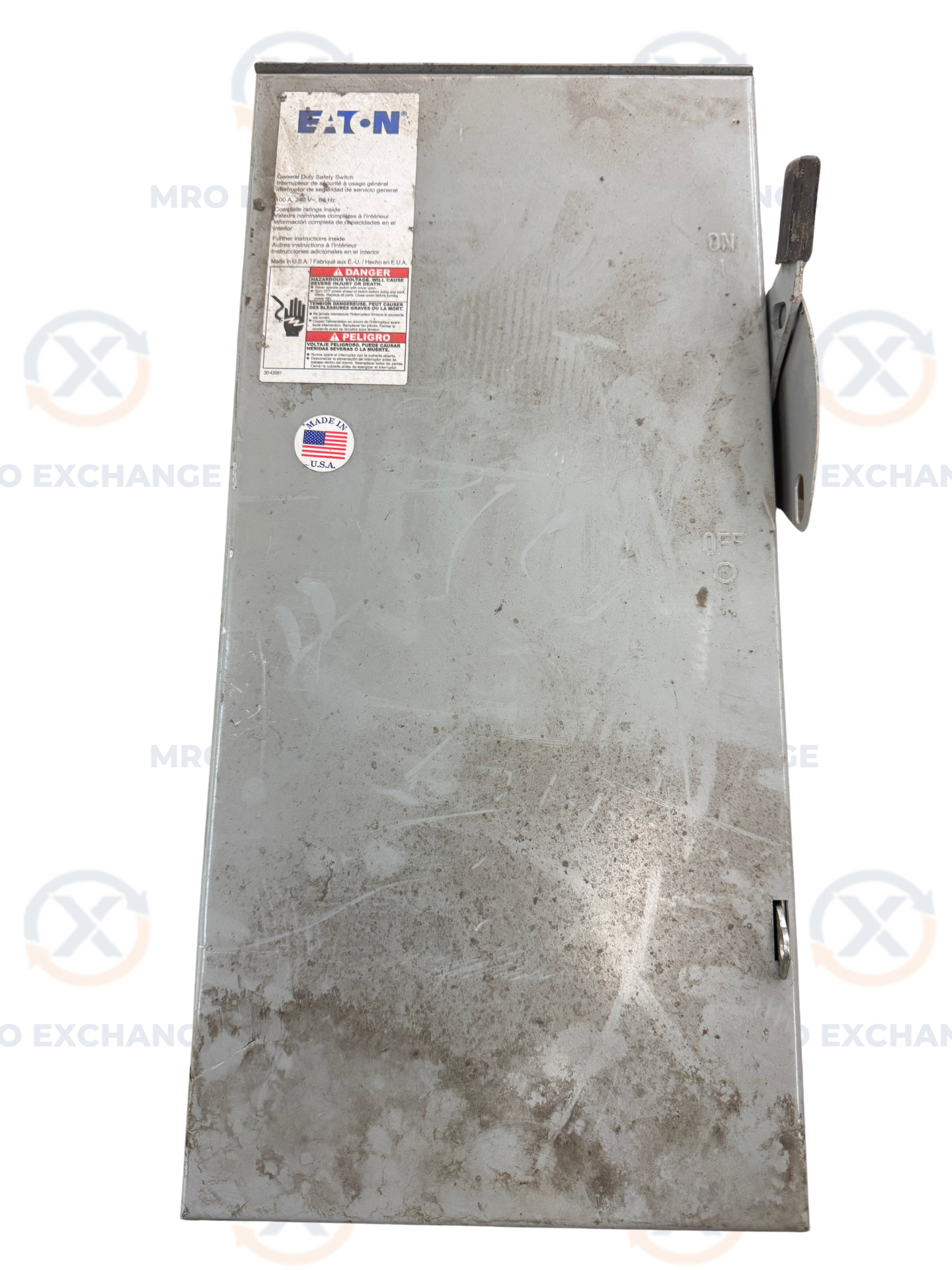

Used in residential, commercial, and light industrial electrical systems, the Eaton DG223NGB is a general duty fusible safety switch rated at 100 amperes and 240 volts AC. The enclosure is NEMA 1 painted steel construction, suitable for indoor surface-mount installations. The switch is two-pole, three-wire configuration with a solid neutral and accepts Class H cartridge fuses. Published specifications from Eaton indicate motor load ratings of 7.5 to 15 HP at 240V single-phase and 15 to 30 HP at 240V three-phase when dual element fuses are used. The unit features a mechanically interlocked cover that prevents internal access when the switch is in the ON position, a visible double-break rotary blade mechanism, and is UL listed. Enclosure dimensions per manufacturer data are 18.81 in. H x 9.13 in. W x 4.23 in. D. The DG223NGB is also marketed under the Cutler-Hammer brand name and carries UPC 782113144245. This switch is compatible with FRN-R and FLNR series fuse types per Eaton published specifications. The item is manufactured in the USA as indicated on the enclosure label.
Stock # 0226-796
