Condition: Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: V48M28T30EE Stock #: Stock # 0626-01803
Product Specifications
Manufacturer: Eaton
MPN / Model: V48M28T30EE
Product Type: Dry Type Distribution Transformer
Type: DT-3, Three Phase
Power Rating: 30 KVA
Primary Voltage: 480 Delta
Secondary Voltage: 208Y/120
Frequency: 60 Hz
Class: AA
Impedance: 4.57 at 170 C
Temperature Rise: 150 C
Insulation System: Class 220
Frame: 912B
Design No: V30E001
Weight: 292 LBS
Serial Number: J12D0073R

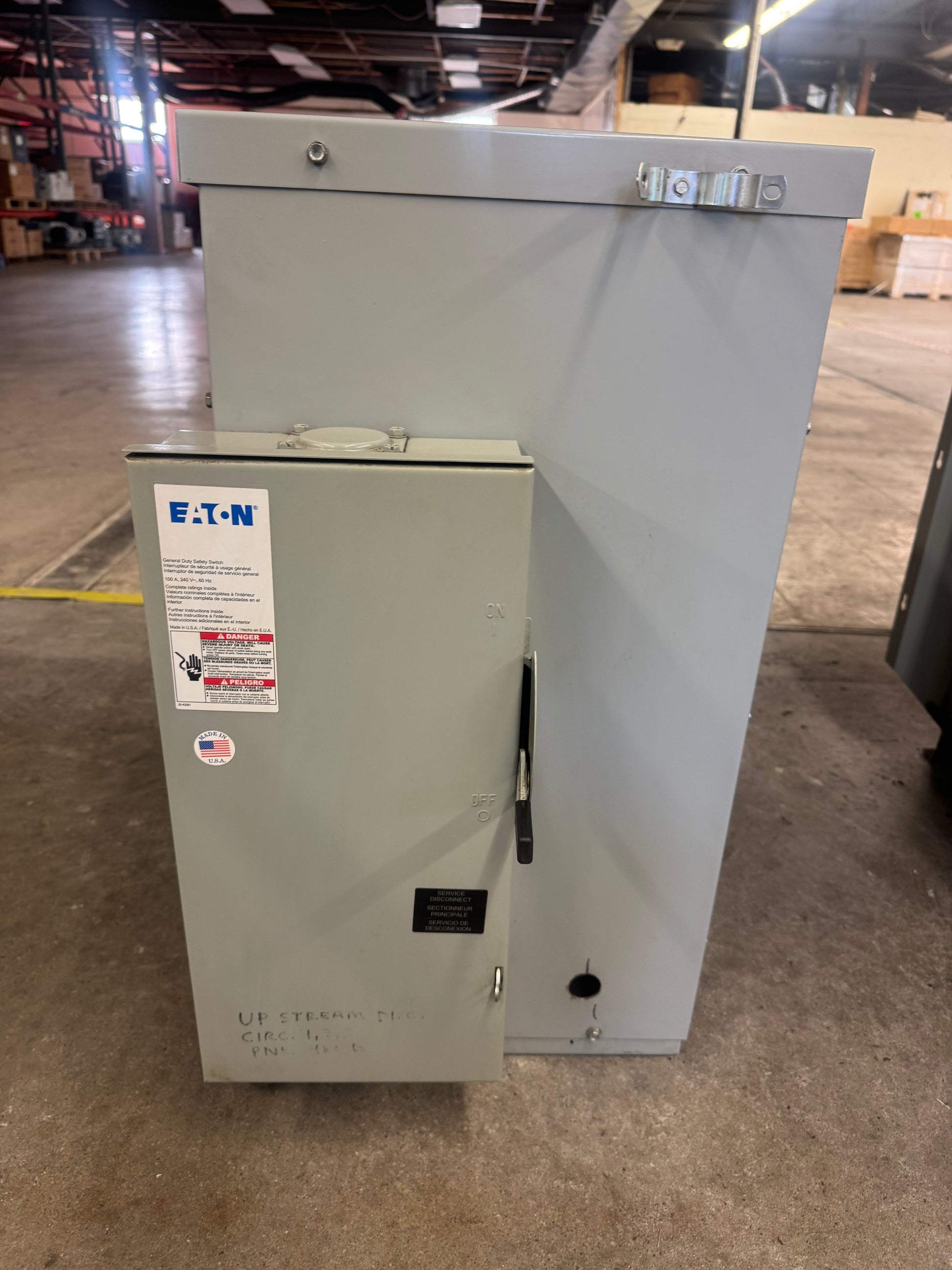

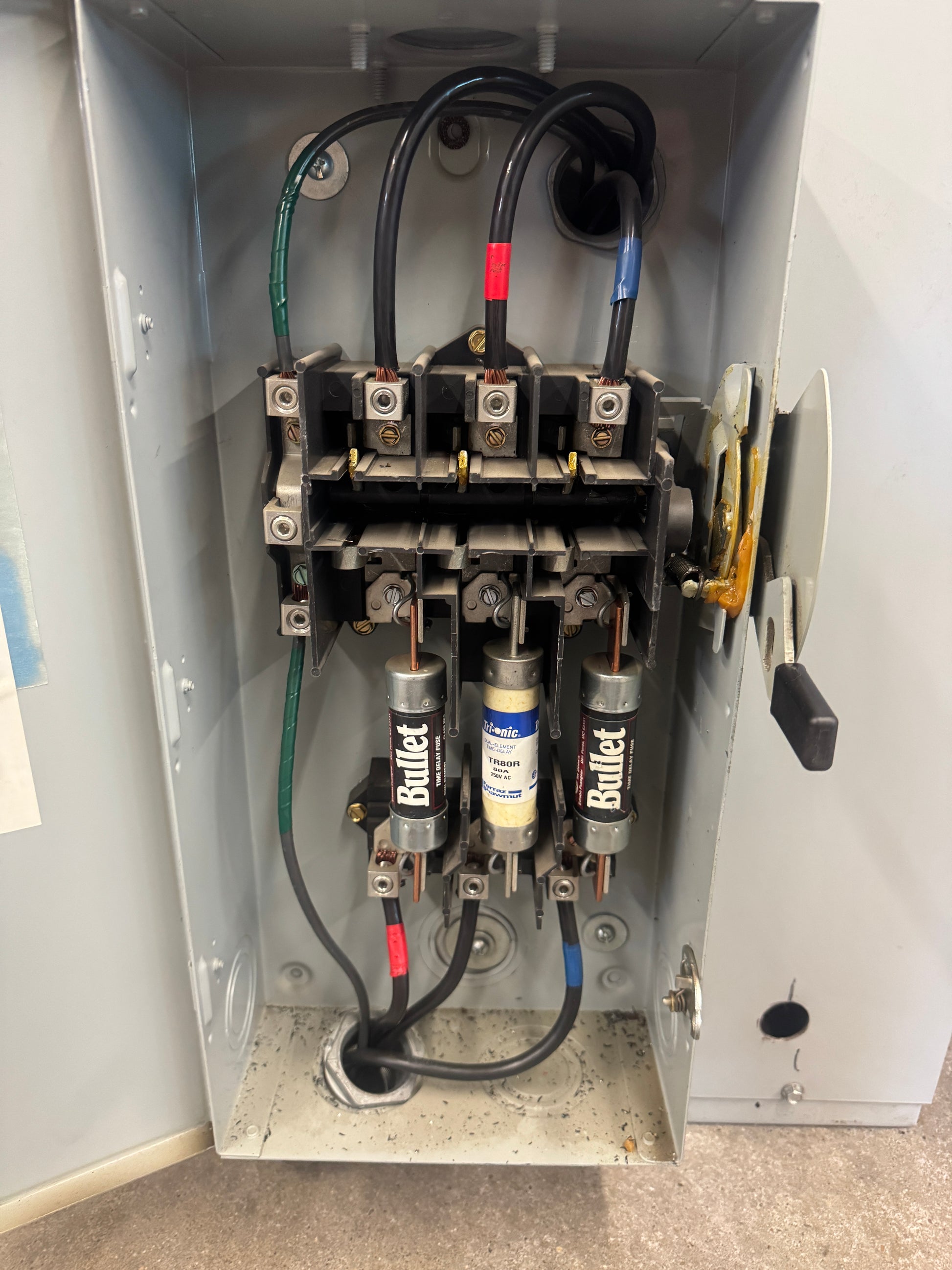

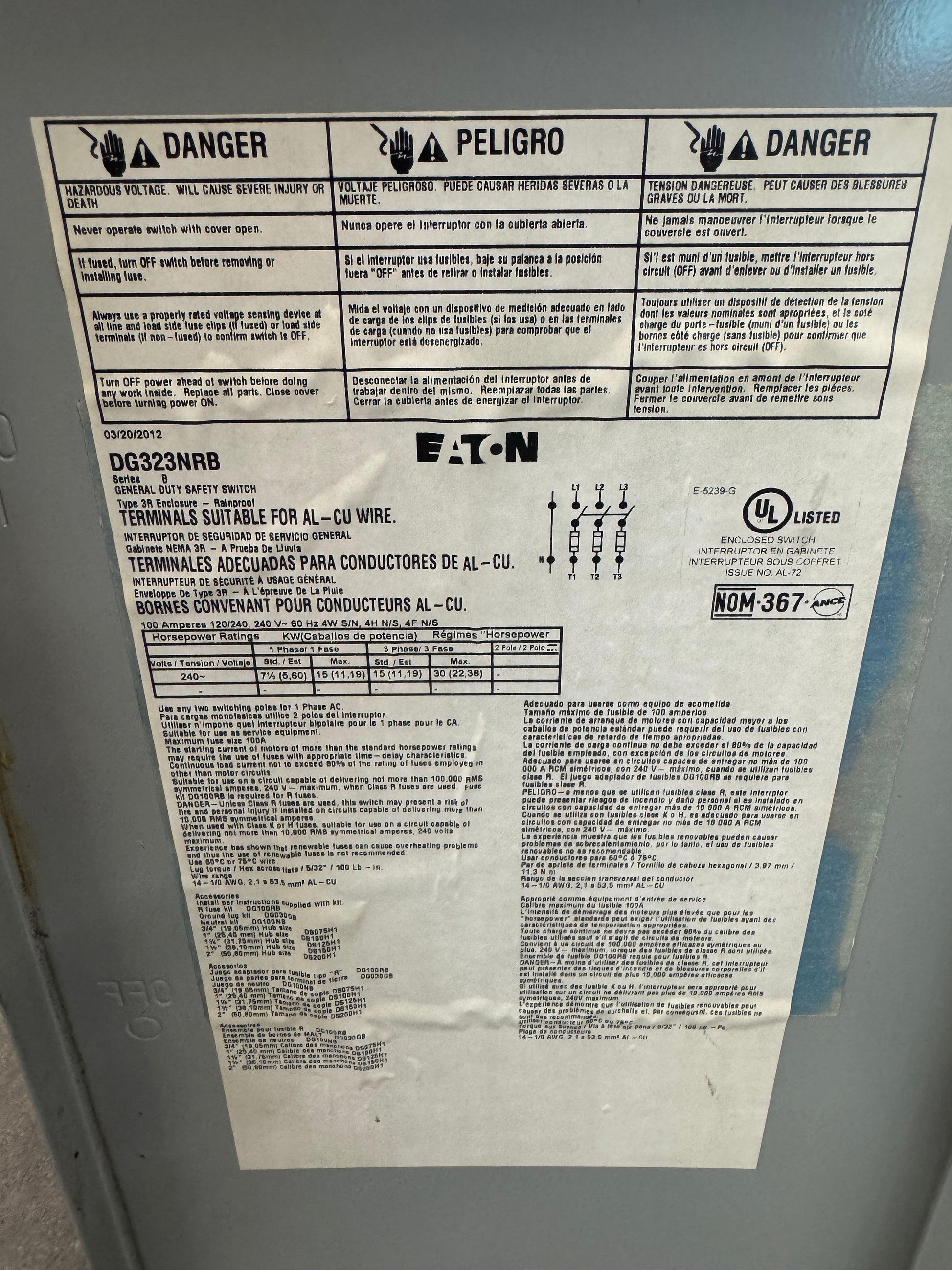

Included Disconnect: Eaton DG323NRB 100A 240V General Duty Safety Switch, Type 3R
Product Description

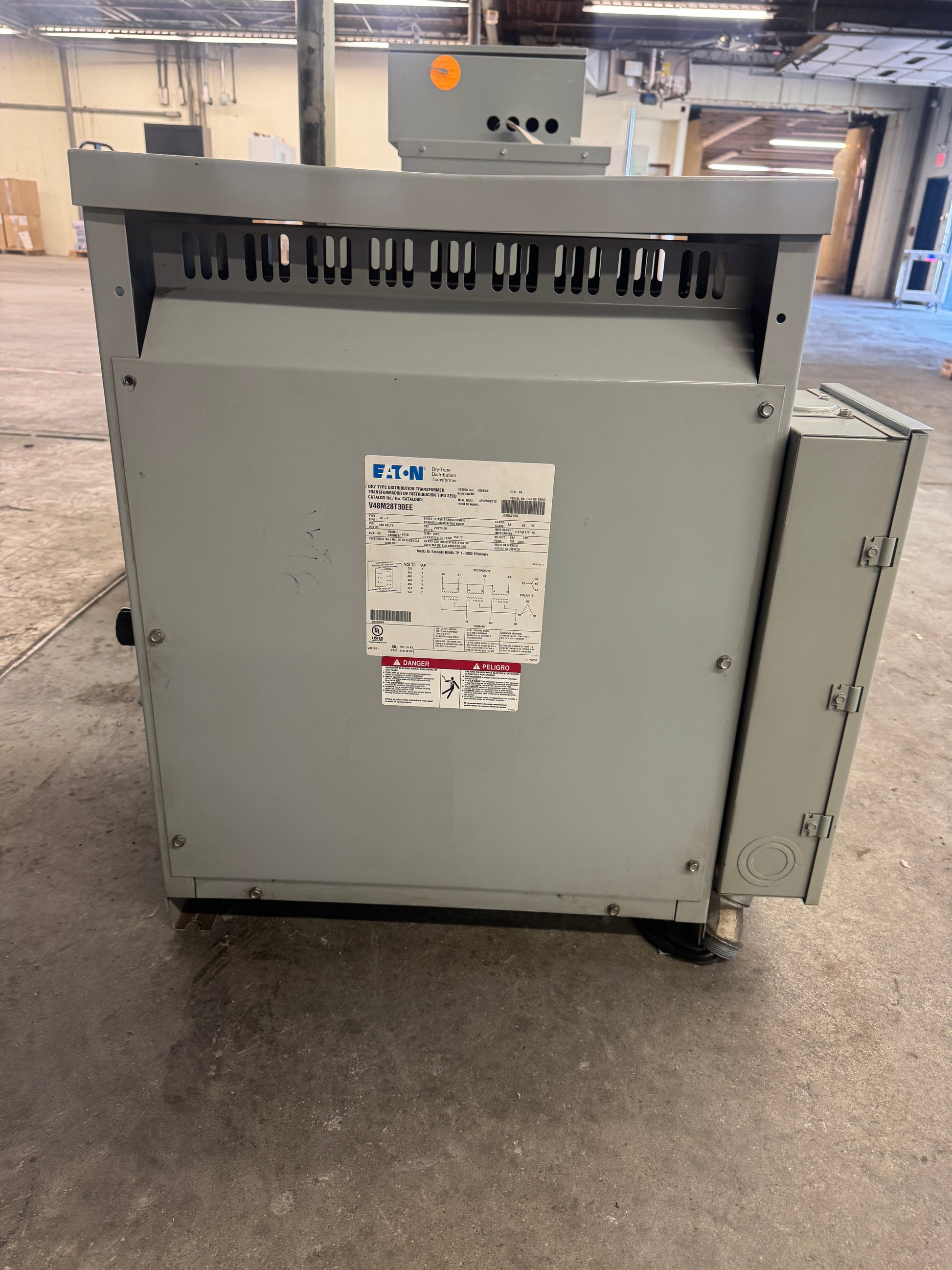

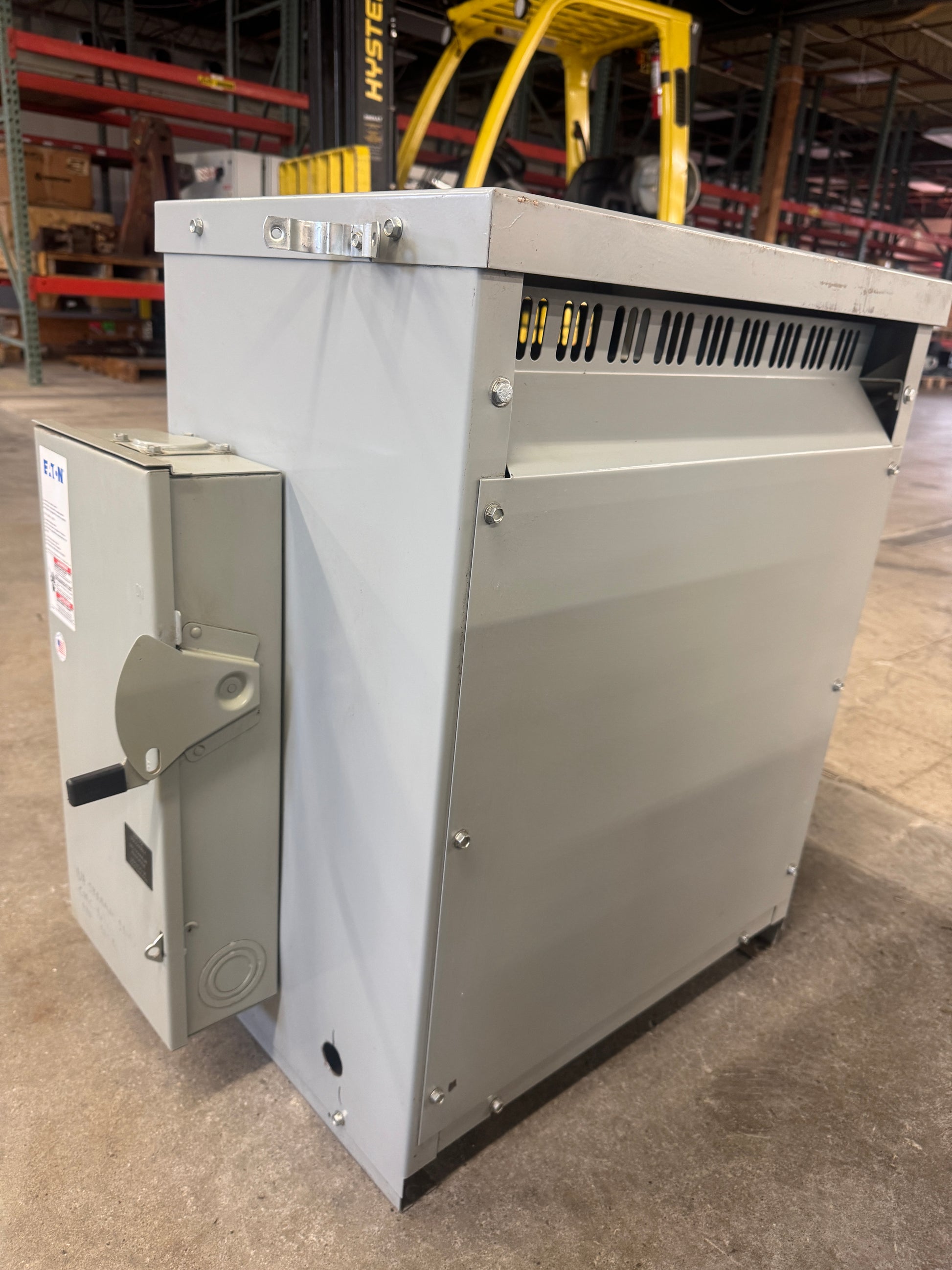

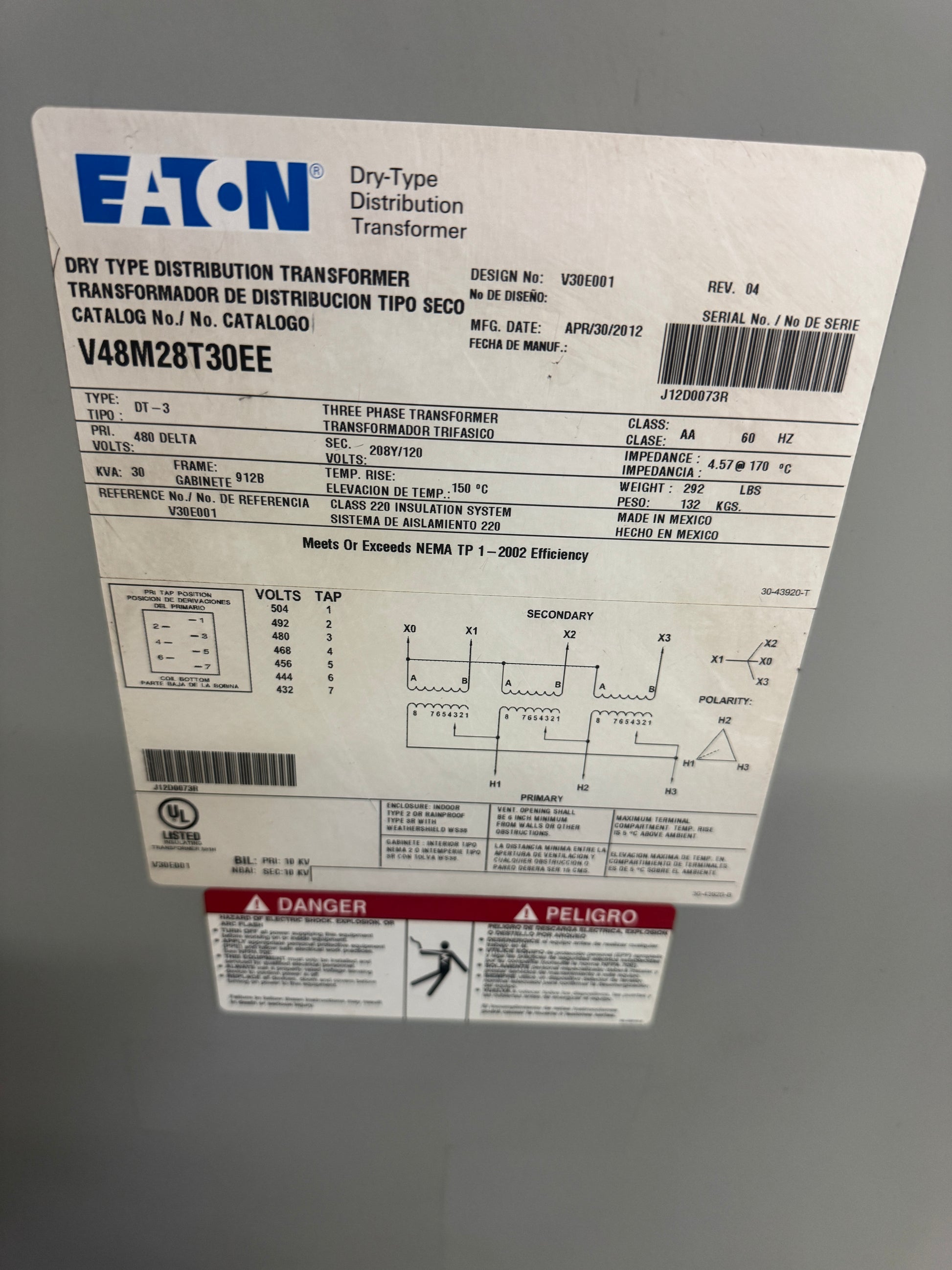

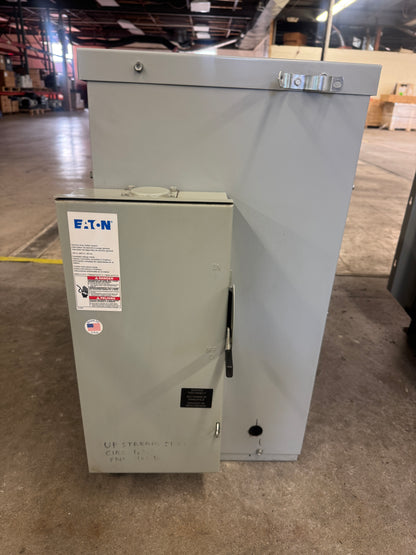

Eaton V48M28T30EE is a Type DT-3 three phase dry type distribution transformer rated at 30 KVA, with a 480 Delta primary and a 208Y/120 secondary at 60 Hz. The nameplate lists Class AA, a 150 C temperature rise, a Class 220 insulation system, 912B frame, design number V30E001, and serial number J12D0073R. This unit ships together with an attached Eaton DG323NRB 100 Amp, 240 Volt three phase General Duty Safety Switch in a Type 3R enclosure, providing an integrated fused disconnect. Buyers matching the exact Eaton catalog number V48M28T30EE for replacement, spare inventory, or maintenance sourcing can use the nameplate identifiers and the included disconnect catalog number DG323NRB to confirm the combination against their existing equipment.
