Condition: Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: Rebel 80 Stock #: 0326-00793

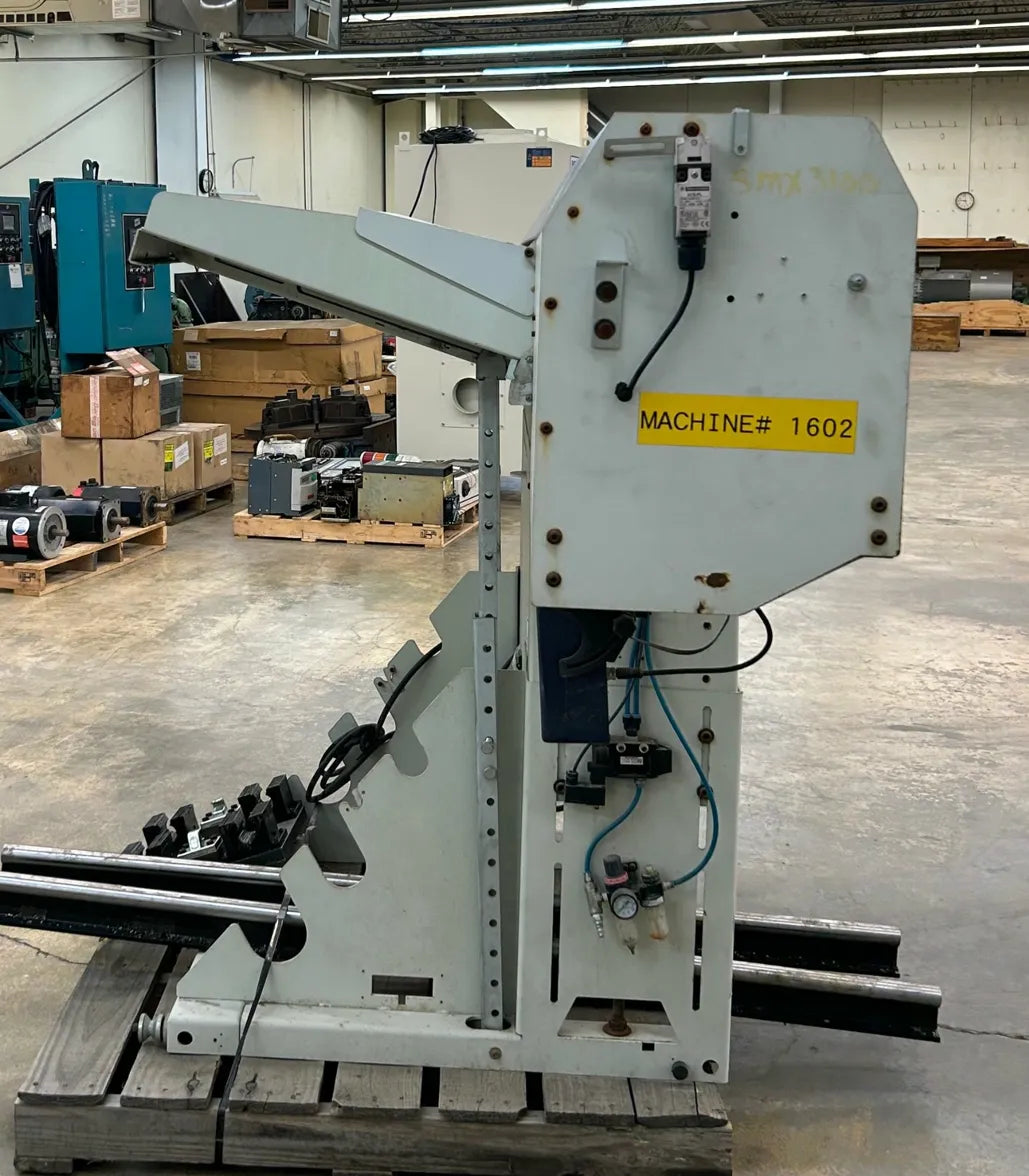

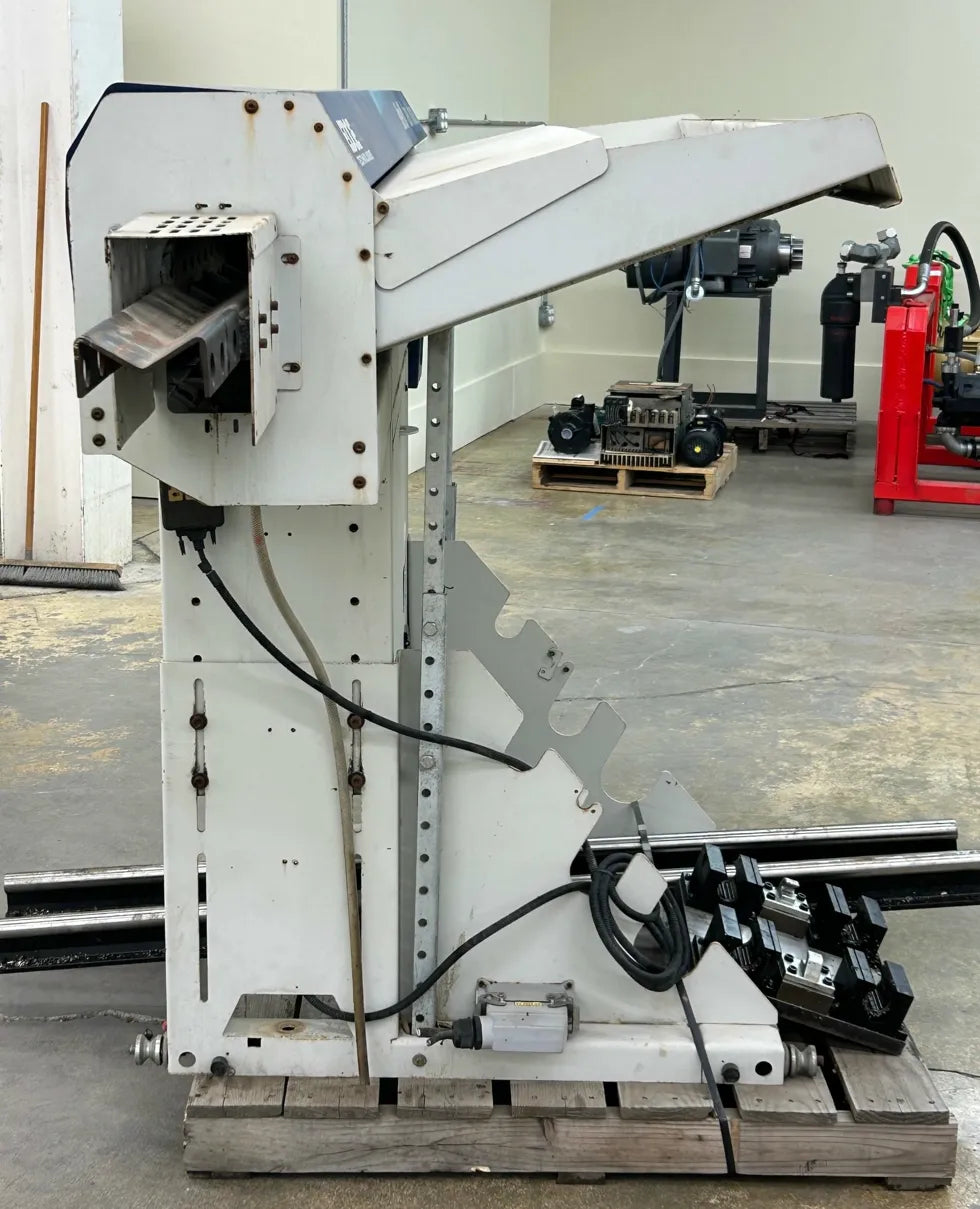

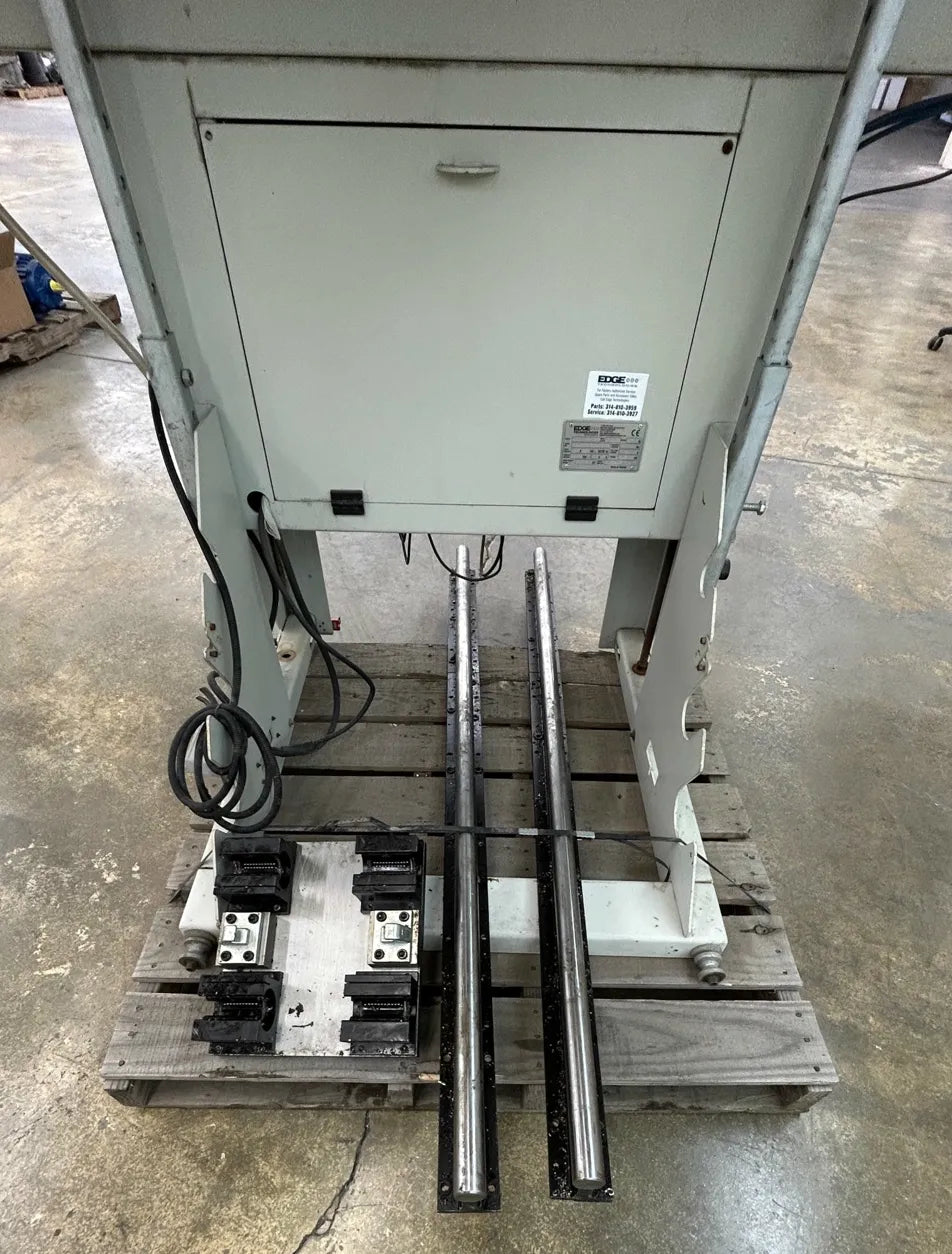

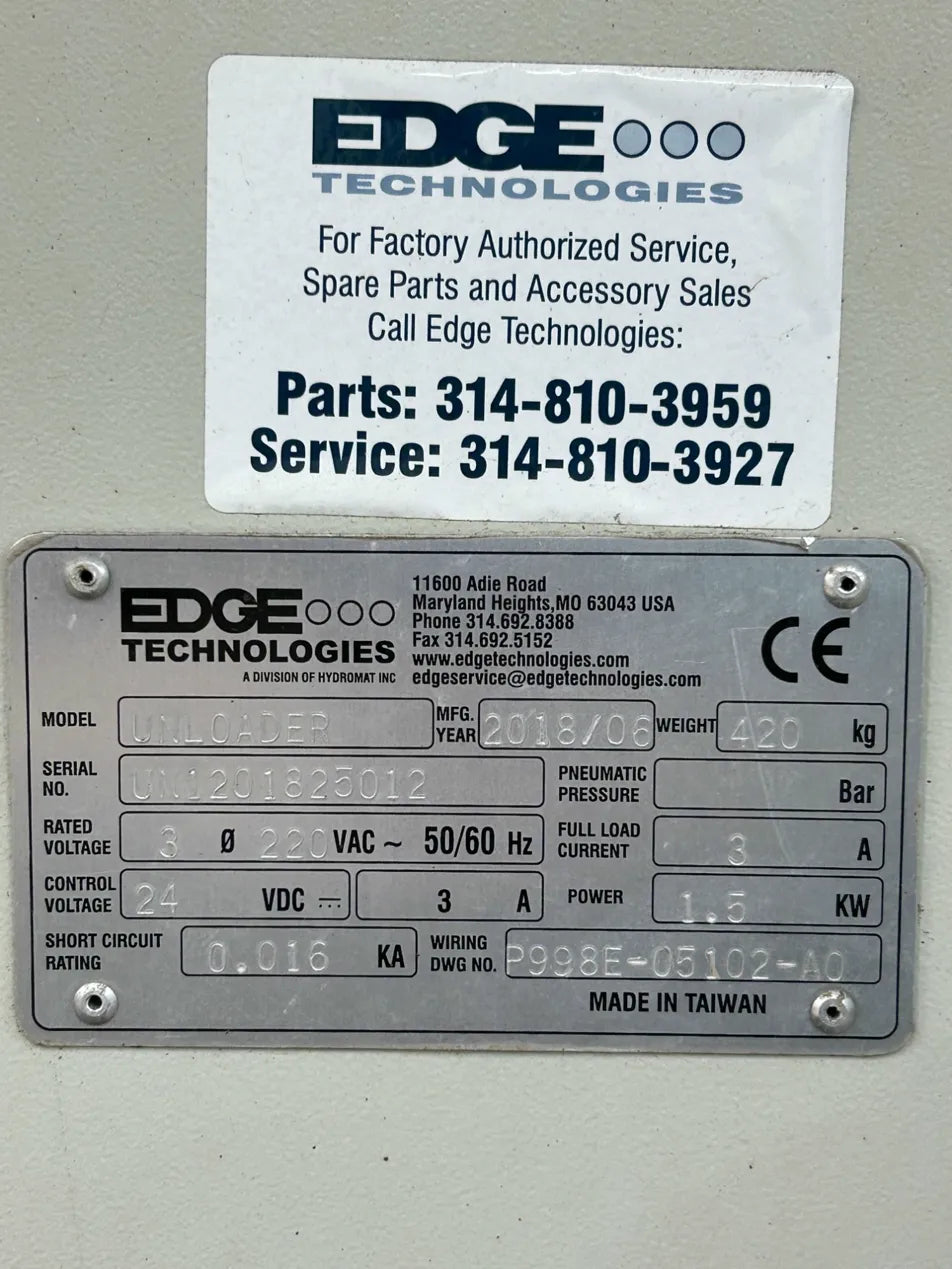

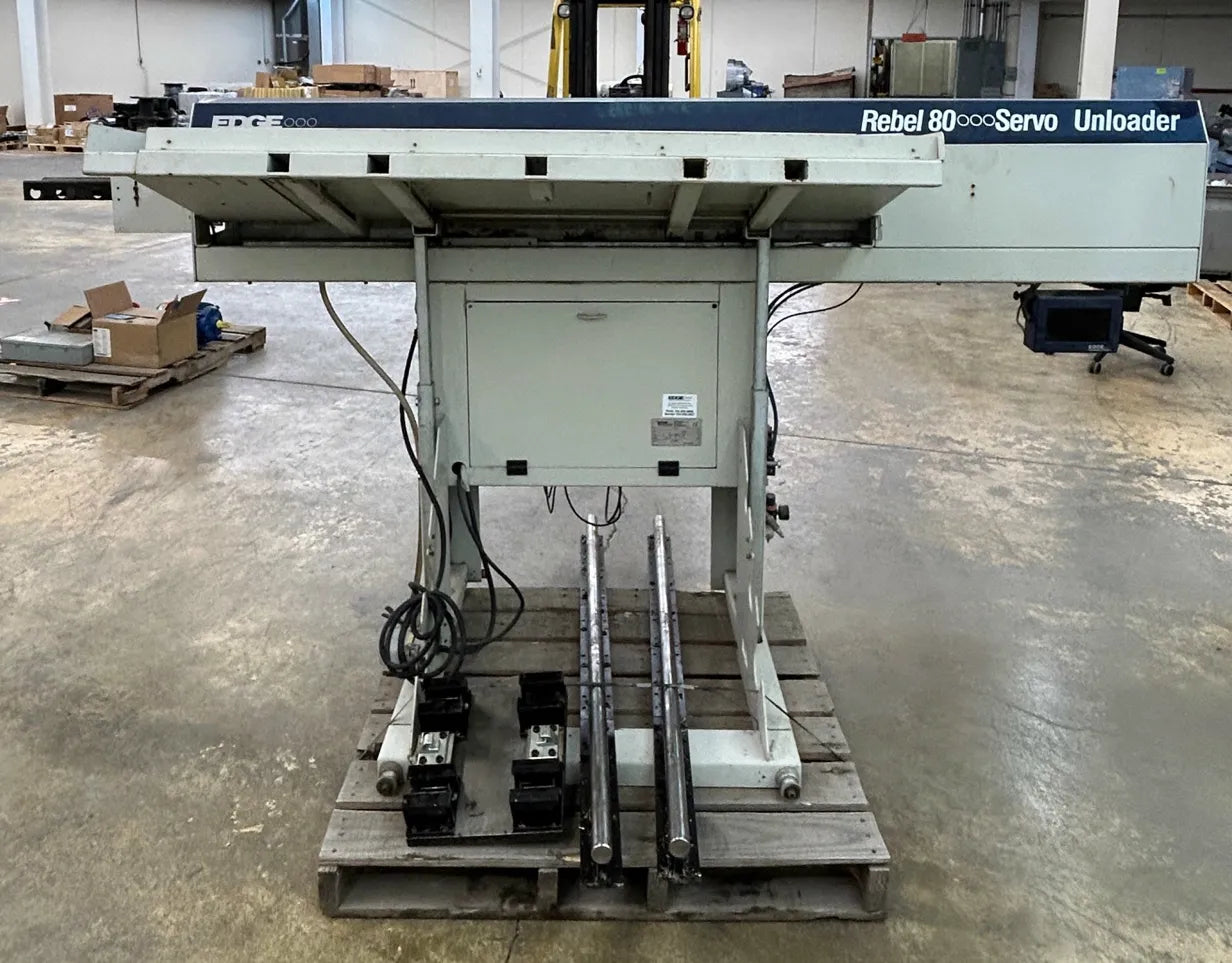

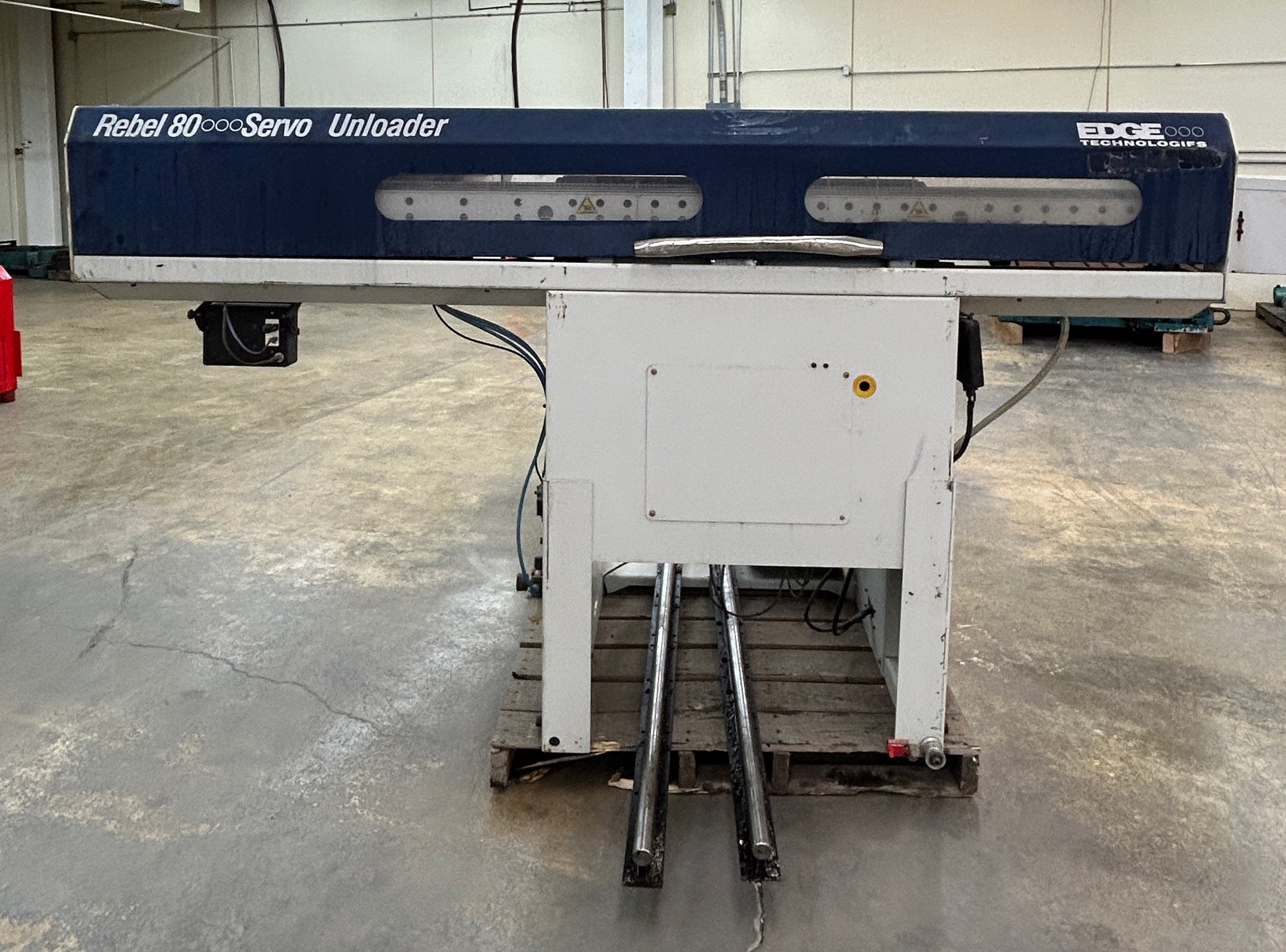

Used in CNC turning cells equipped with sub-spindle lathes, the Edge Technologies Rebel 80 Servo Unloader is a compact, servo-driven part extraction and conveyance system designed to automatically remove finished parts from the sub-spindle of single-spindle CNC lathes. The unit accepts parts ranging from 8 mm to 80 mm (0.315 in. to 3.150 in.) in diameter and handles part lengths from 152 mm to 915 mm (6 in. to 36 in.). Rapid return rate is rated at 1,300 mm per second (4 ft/sec), with an unload cycle time of 5 to 20 seconds depending on part configuration. Centerline height adjusts from 950 mm to 1,350 mm (38 in. to 53.1 in.) to accommodate a range of lathe configurations. The unit operates on 3-phase 220 VAC at 50/60 Hz with a control voltage of 24 VDC and a power consumption of 1.5 kW. A large-capacity magazine supports extended unattended operation. Serial number UN1201825012 per nameplate. Manufactured in June 2018 by Edge Technologies, a division of Hydromat Inc., located in Maryland Heights, Missouri. Wiring drawing number P998E-05102-A0 is noted on the nameplate. The Rebel 80 Servo Unloader is a well-established model in the Edge Technologies product line, supported by factory-authorized service and spare parts through Edge Technologies directly.
