FANUC A03B-0819-C156 (AOD32D1) 12/24V DC I/O Output Module
FANUC A03B-0819-C156 (AOD32D1) 12/24V DC I/O Output Module
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
The Fanuc AOD32D1, part number A03B-0819-C156, is a 32 point digital DC output module used within Fanuc I/O Unit MODEL A racks for CNC and factory automation systems. Each output channel is rated for 12/24V DC at 0.3A per point, with positive common (source type) wiring configuration. The module mounts into a Fanuc I/O Unit base rack alongside other input, output, and analog modules, communicating with the host CNC or PLC through the rack backplane.

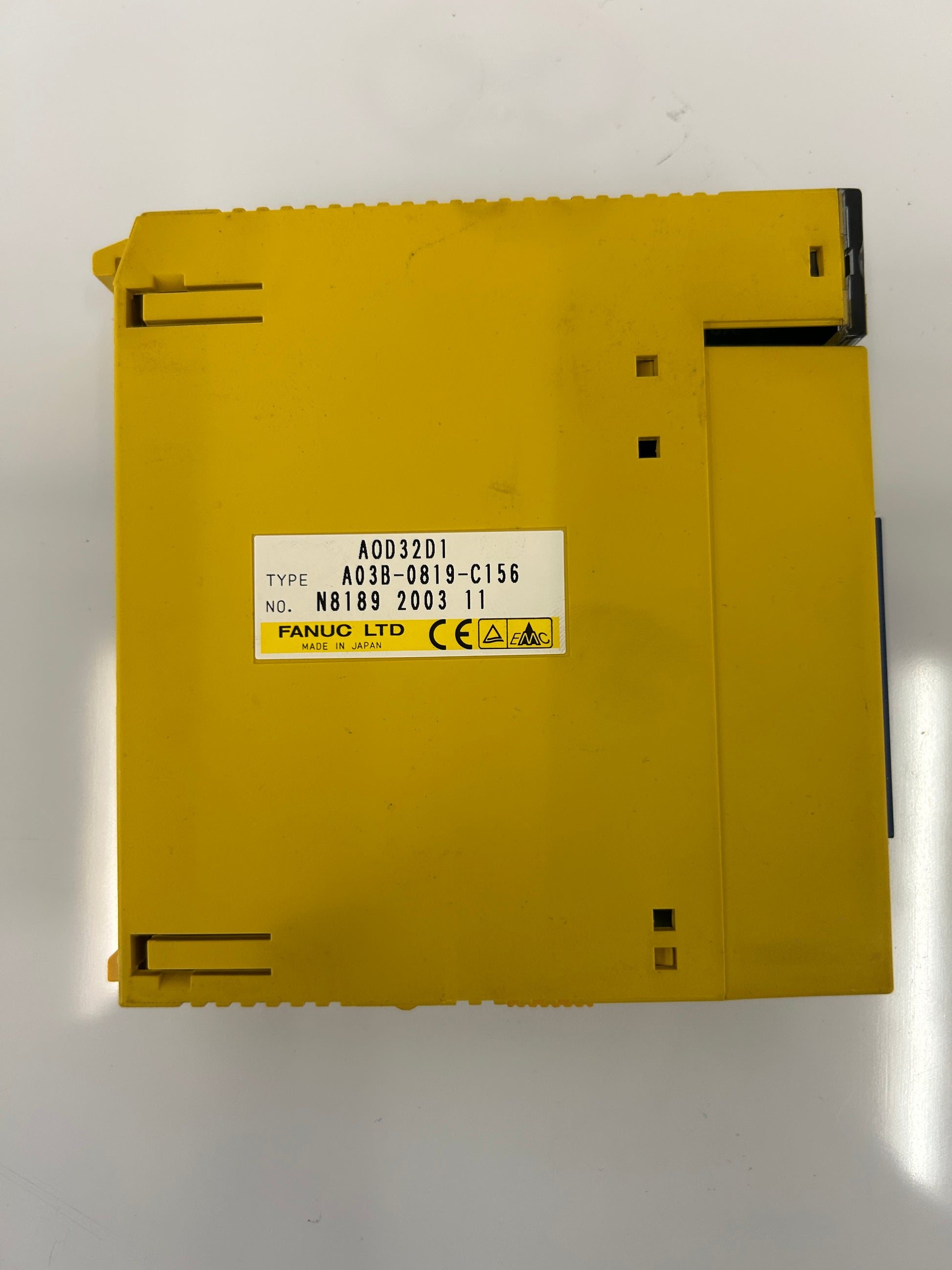

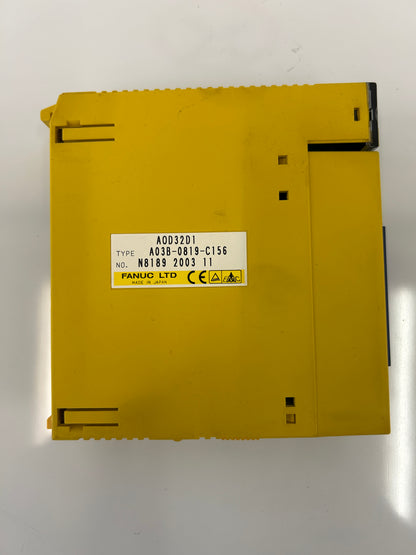

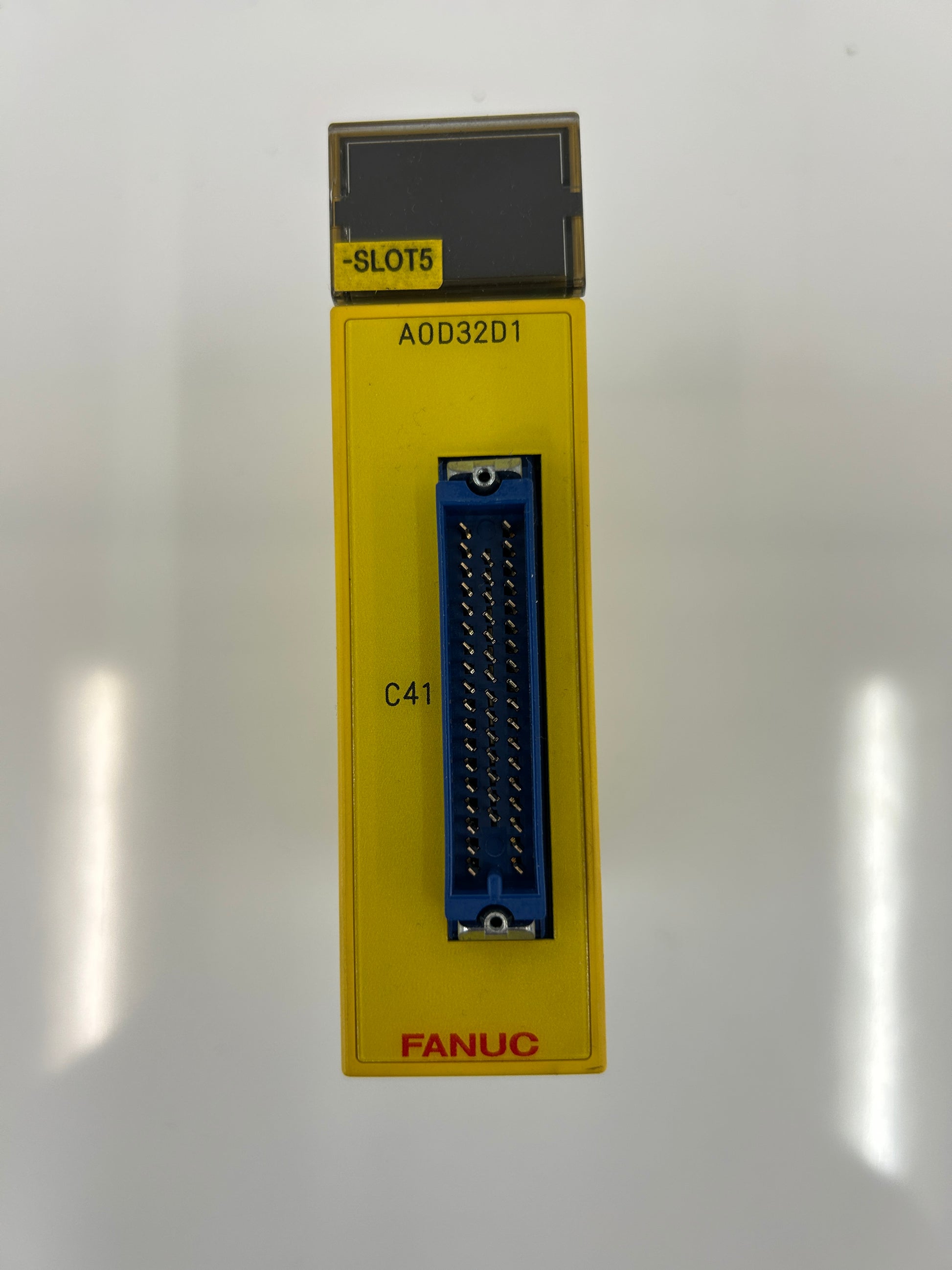

Nameplate data on this unit reads TYPE A03B-0819-C156, model AOD32D1, lot number N8189, manufactured in 2003, week 11. The module carries CE marking and is built by Fanuc Ltd. in Japan. The yellow plastic housing is the standard form factor for Fanuc I/O Unit MODEL A output cards and uses a front facing connector for field wiring to the connected load devices.
This 32 point format provides high channel density for compact rack configurations and is commonly deployed on Fanuc Series 16i, 18i, 21i, 30i, 31i, and 32i CNC controls, as well as Power Mate and robotics controllers that use the I/O Unit MODEL A platform. The C156 variant within the A03B 0819 product series specifically identifies the 32 point DC output, 0.3A per point, positive common configuration. Compatible adjacent components include the A03B-0819-C001 base unit, the A03B-0819-C002 5 slot expansion unit, and various input modules in the same series.
Stock # 0226-032
