Elektrim AC Motor 20NFM-3-5-36 - 5 HP 3600 RPM
Elektrim AC Motor 20NFM-3-5-36 - 5 HP 3600 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods

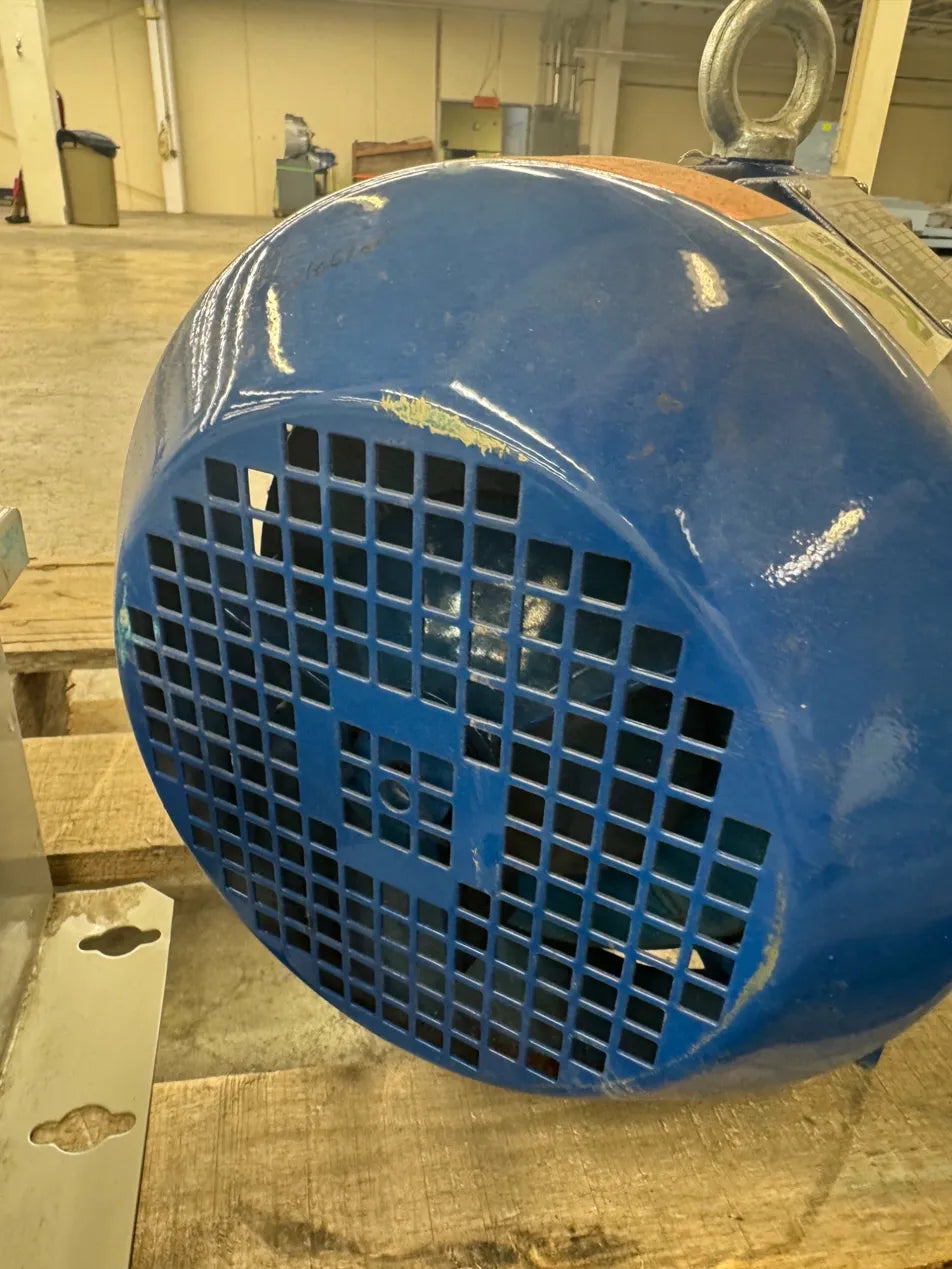

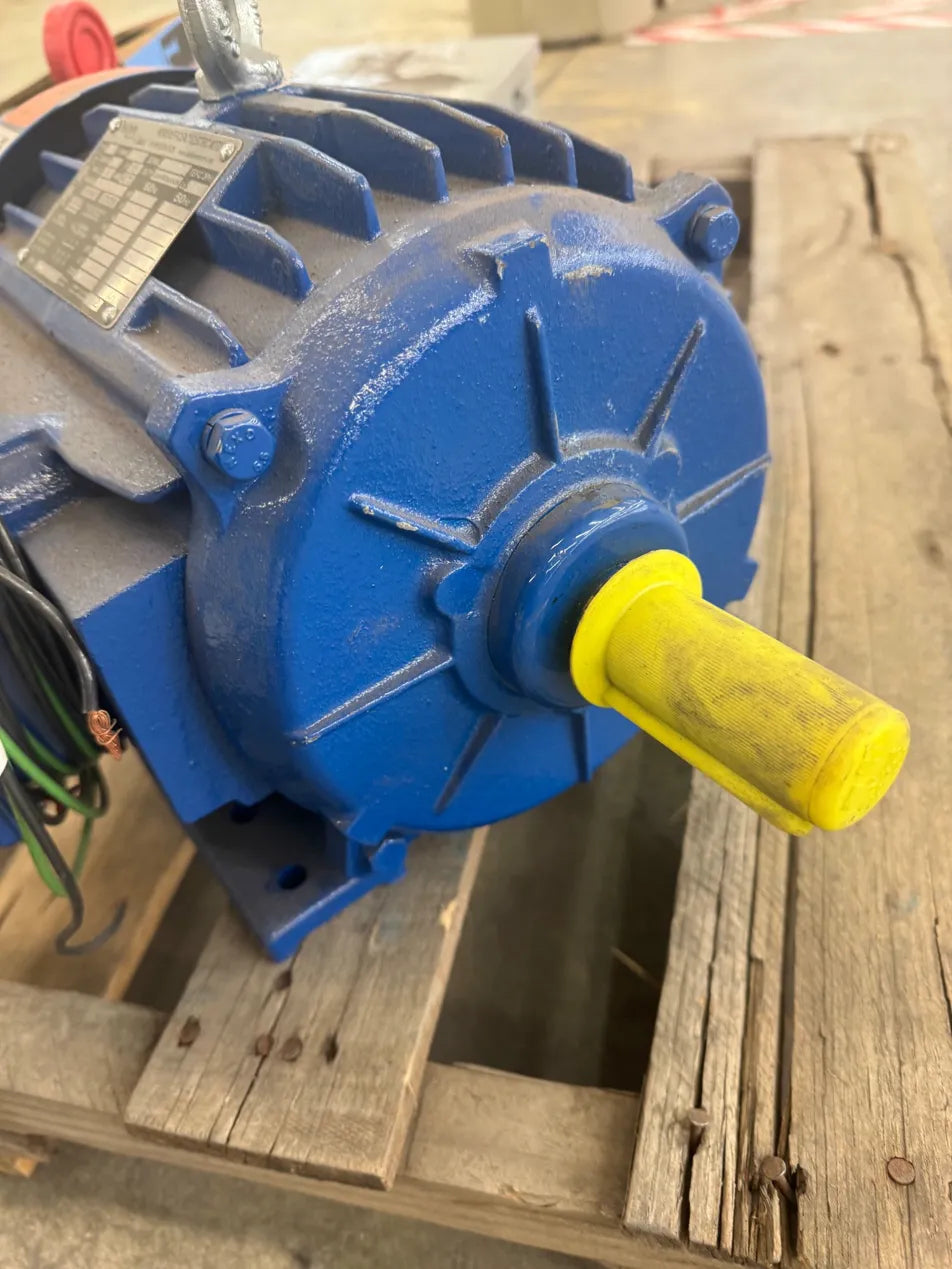

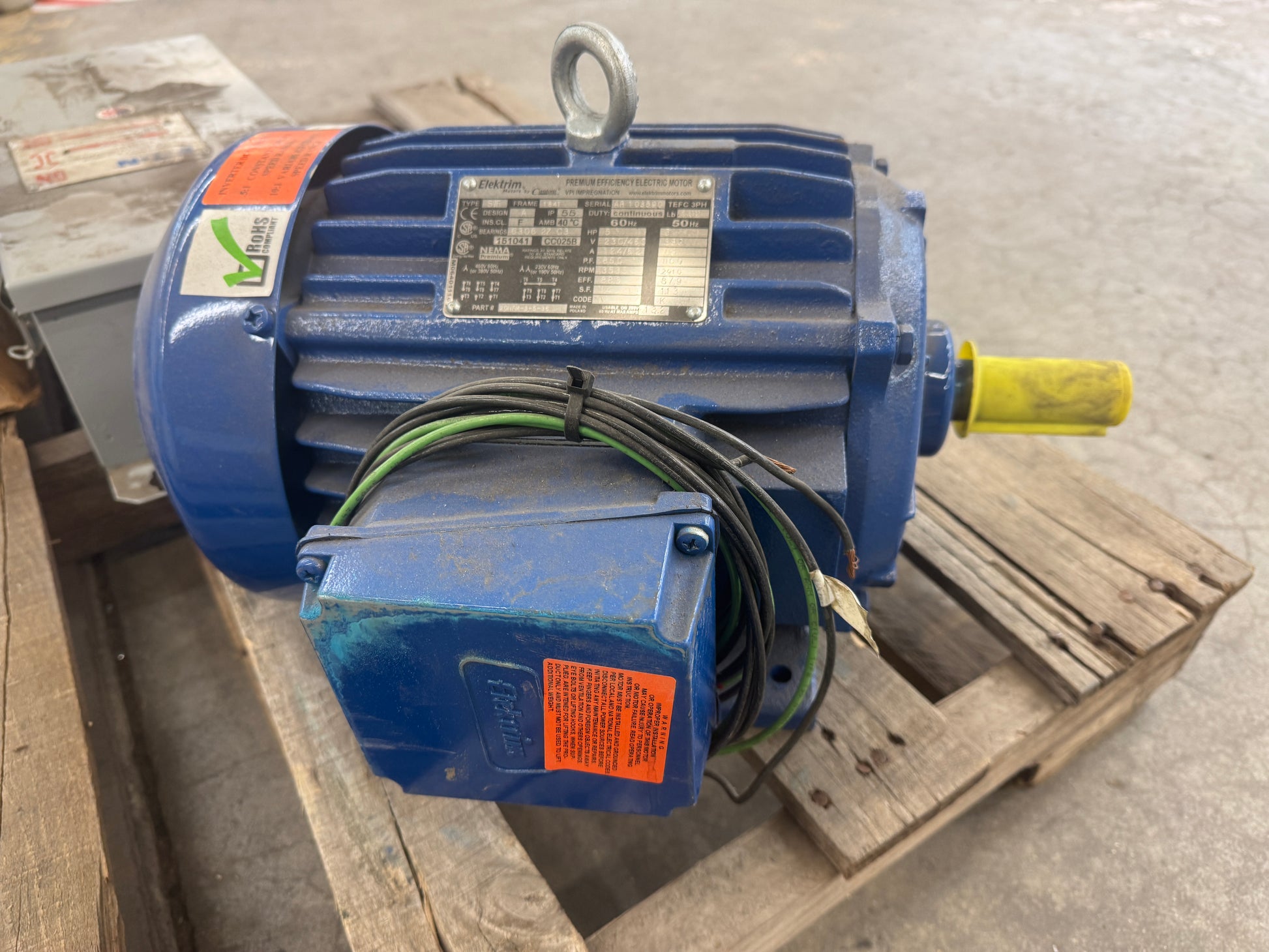

Condition: Surplus inventory. Photos show current condition and details.

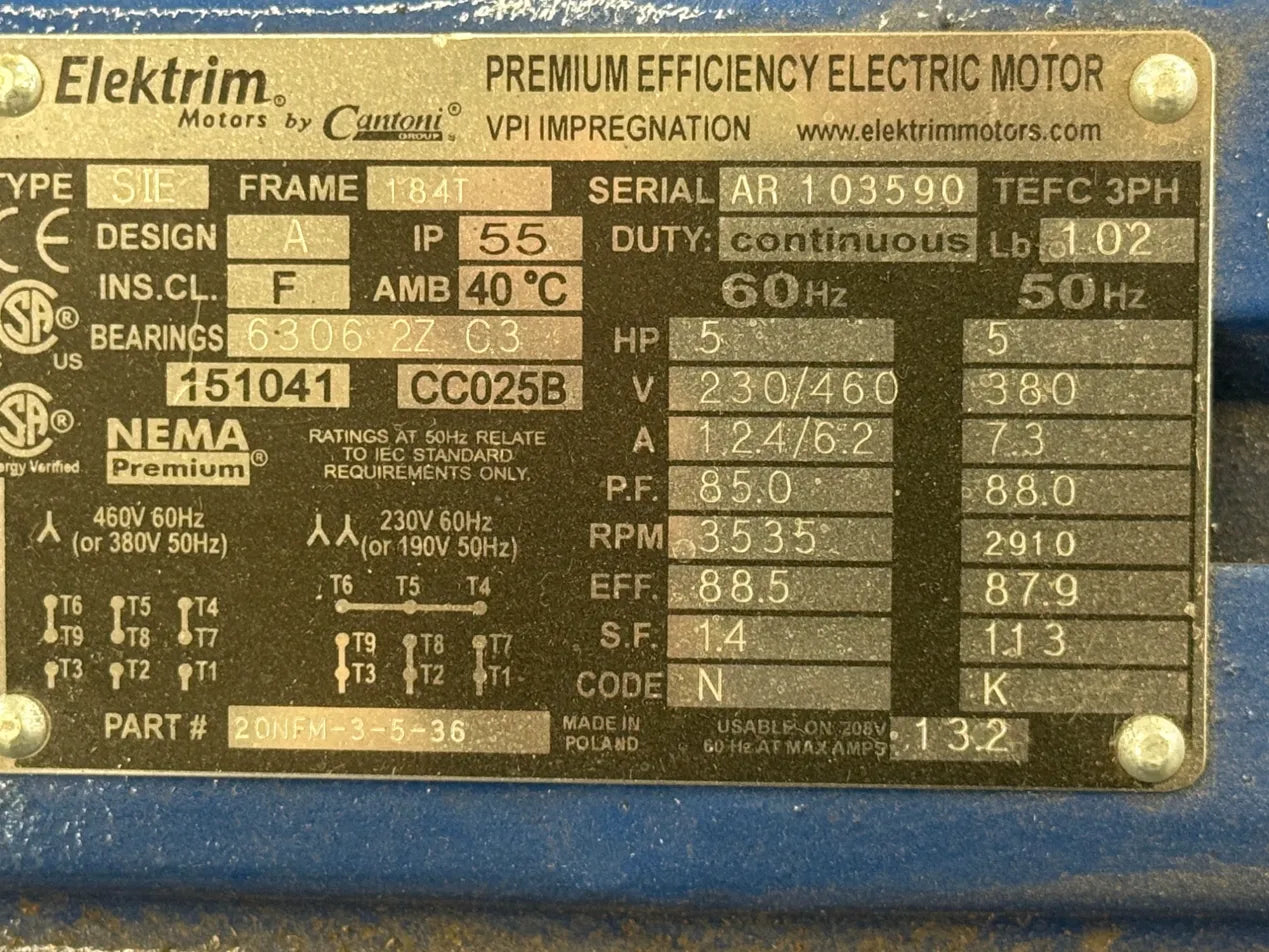

Used in pumps, compressors, fans, and general industrial machinery, the Elektrim 20NFM-3-5-36 is a 5 HP NEMA Premium Efficiency three-phase AC motor built on a 184T frame. Manufactured in Poland by the Cantoni Group under the Elektrim brand, this motor carries a TEFC (Totally Enclosed Fan Cooled) enclosure with an IP55 rating, making it suitable for environments with exposure to dust and moisture. Nameplate data confirms operation at 60Hz with a rated speed of 3535 RPM, dual voltage capability at 230/460V, and full load amperage of 12.4/6.2A. The motor also carries 50Hz ratings of 2910 RPM at 380V. Insulation class is F with a maximum ambient temperature of 40 degrees C. The service factor is rated at 1.4 at 60Hz, a standout specification for this series. Design is NEMA Design A, continuous duty. Bearings are specified on the nameplate as 6306 2Z C3. The motor is equipped with VPI (Vacuum Pressure Impregnation) of the windings and carries both CSA and UL listings. Part number 20NFM-3-5-36 is the OEM designation as shown on the nameplate. The 184T frame follows standard NEMA mounting dimensions for direct replacement compatibility.
Stock # 0226-794
Surplus inventory sold as described. Please review photos, specifications, and compatibility details carefully before purchase. Reach out with any questions prior to ordering.
