Emerson SolaHD DIN Rail Power Supply SDN 10-24-100C
Emerson SolaHD DIN Rail Power Supply SDN 10-24-100C
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:

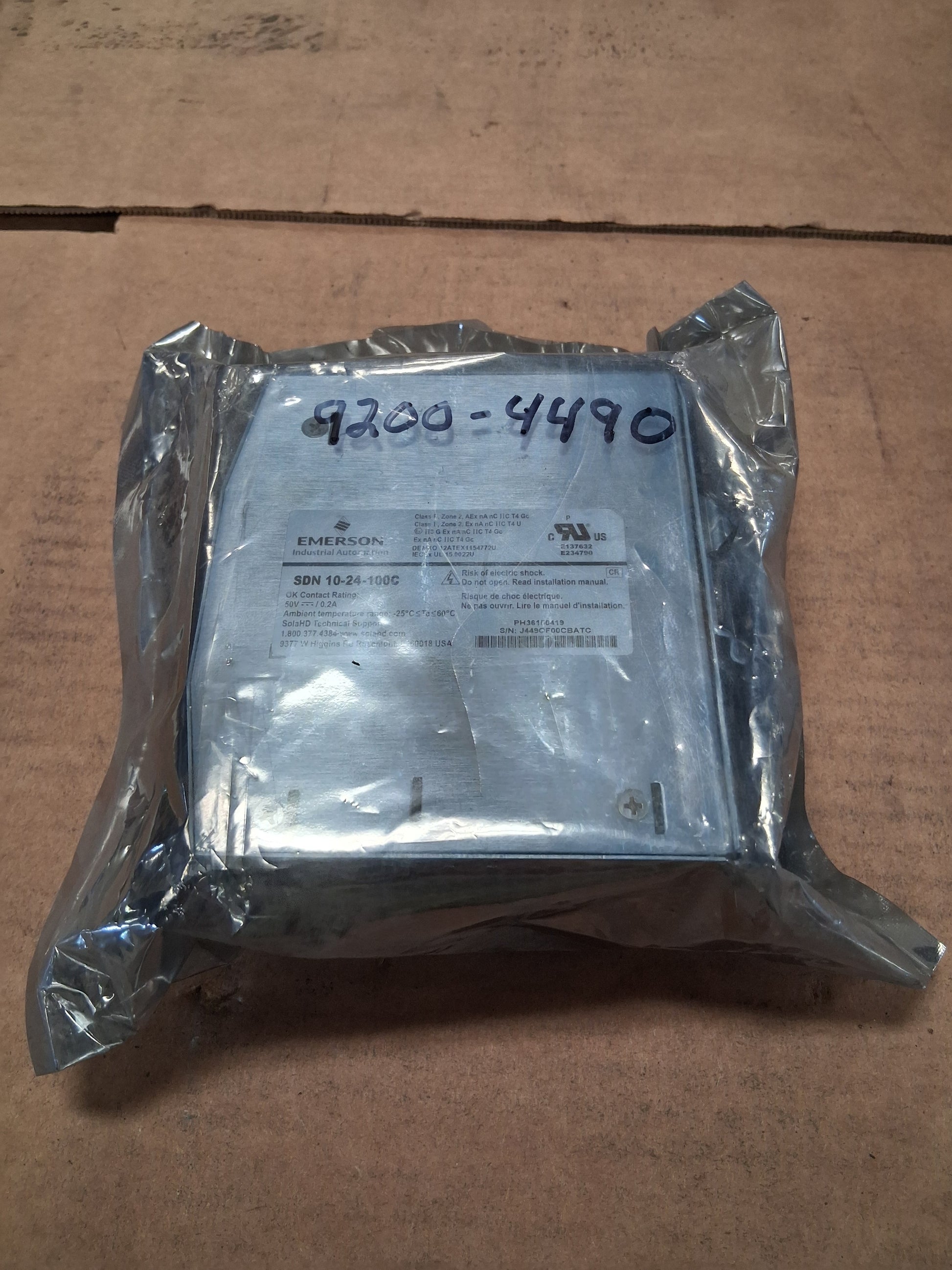

Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

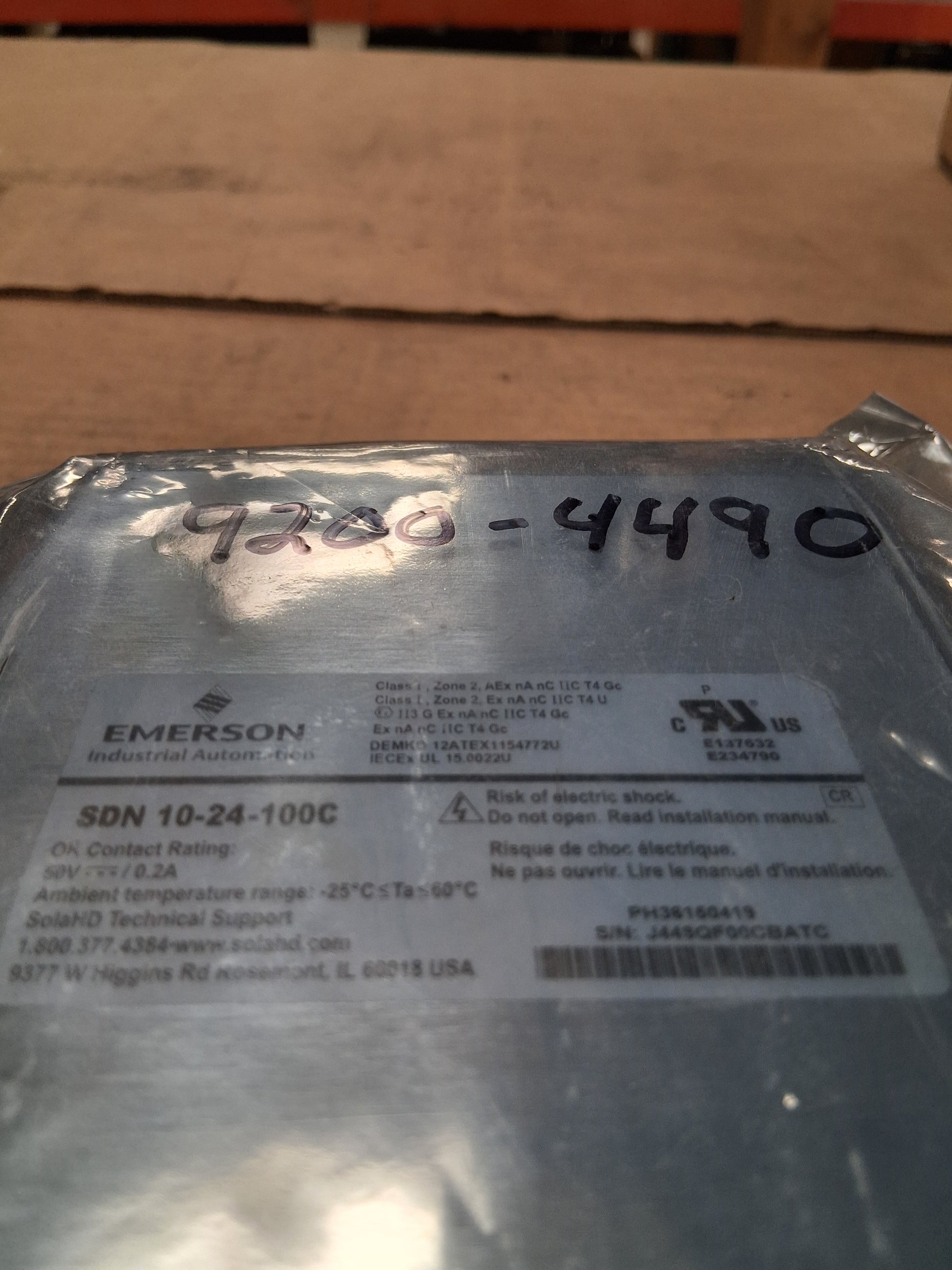

The Emerson SolaHD SDN 10-24-100C is an AC to DC DIN rail power supply from the SDN C Compact Series, designed for industrial control panel applications. Rated for 100 to 240 VAC universal input at 50/60 Hz and providing 24 VDC at 10 A continuous output (240 W total), this unit supports parallel operation for N+1 redundancy when used with compatible SolaHD redundancy modules. The enclosed metal case construction includes a patented DIN rail mounting clip for space critical panel layouts. The unit carries hazardous location certifications including Class I, Zone 2, AEx nA nC IIC T4 Gc and Ex nA nC IIC T4 U, with DEMKO 12ATEX1154772U and IECEx UL 15.0022U markings, plus cULus E137632 and E234790 certification. The ambient temperature operating range is listed on the nameplate as 25 degrees C to 60 degrees C. OK contact rating is 50 VDC at 0.2 A for signal monitoring. Features retained from the SDN series platform include sag immunity, power factor correction, and a wide universal voltage input. Visual diagnostic LEDs provide status indication for input and output. Output voltage is user adjustable through the front face for fine tuning to load requirements. Part number SDN 10-24-100C is the next generation replacement within the SolaHD SDN C lineup, suitable for general machine control, conveying equipment, packaging equipment, and material handling power applications. Manufactured at the SolaHD facility listed as 9377 W Higgins Rd, Rosemont, IL 60018 USA. Item is sealed in original factory shrink wrap. Serial number J449CF00CBATC visible on the nameplate.
Stock # 0526-02449
