Endress-Hauser Electromagnetic Flowmeter 5P3B15-9UJ8/0 27 USgal/min Max
Endress-Hauser Electromagnetic Flowmeter 5P3B15-9UJ8/0 27 USgal/min Max
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

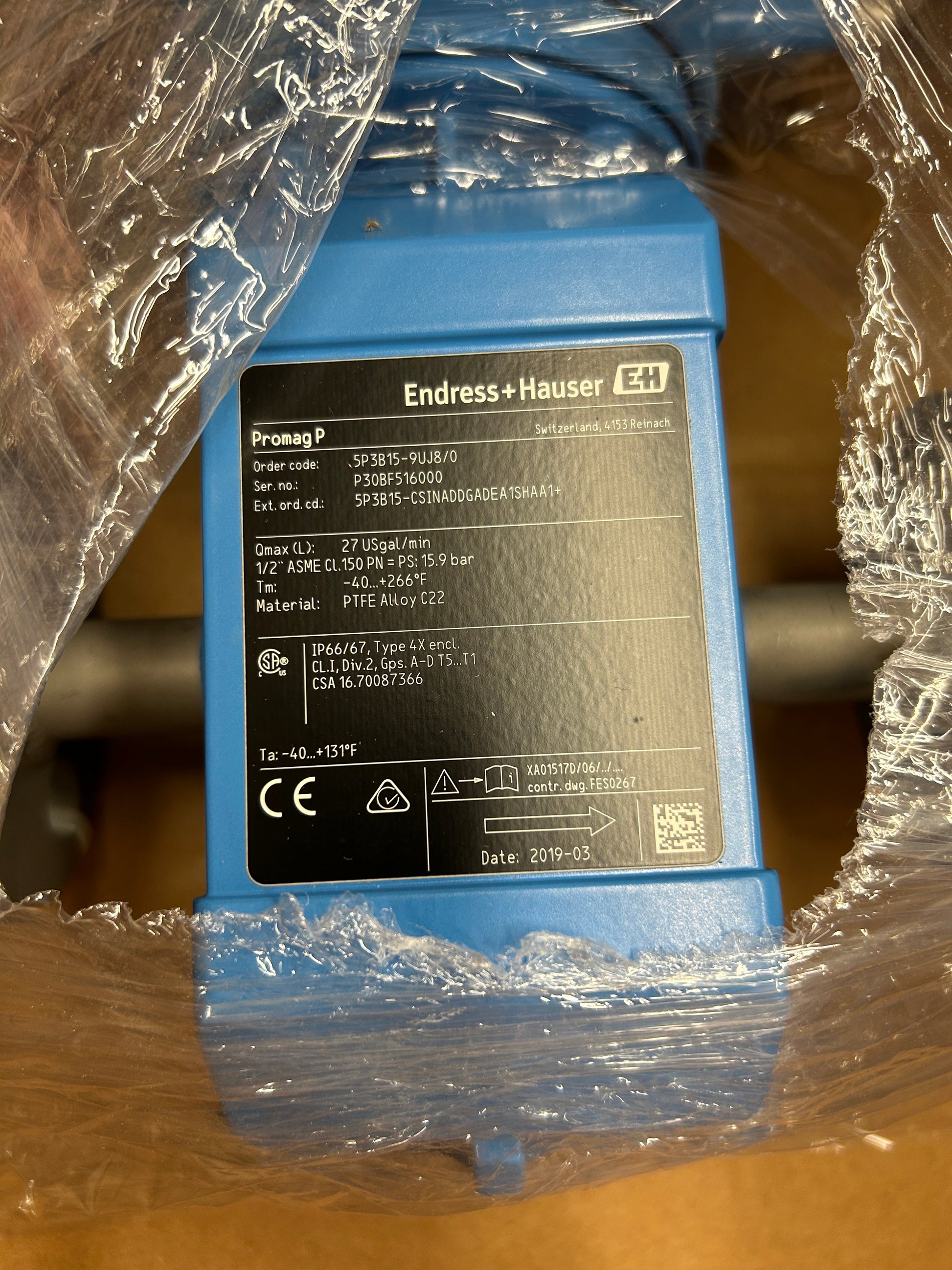

The Endress+Hauser Proline Promag P 300 is a 1/2 in. electromagnetic flowmeter engineered for chemical and process applications involving corrosive liquids and elevated medium temperatures. Order code 5P3B15-9UJ8/0, serial number P30BF516000, extended order code 5P3B15-CSINADDGADEA1SHAA1+. Internal reference number 4773898, order 3006211090-10, sourced through E+H Inc. (US).
The unit features a PTFE liner with Alloy C22 electrodes, rated for process temperatures from -40 to +266 degrees F and a maximum flow rate of 27 USgal/min. Process connection is 1/2 in. ASME CL.150 flange with a maximum process pressure of 15.9 bar. The enclosure is rated IP66/67, Type 4X, and carries CSA certification (CSA 16.70087366) for Class I, Division 2, Groups A through D, temperature class T5 through T1. Ambient temperature range is -40 to +131 degrees F.
The Promag P 300 operates on a bidirectional electromagnetic measuring principle independent of fluid pressure, density, and viscosity. With no moving parts, the design is maintenance-free and produces no pressure drop due to flow restriction. The compact transmitter provides access from one side and supports multiple I/O and fieldbus configurations.

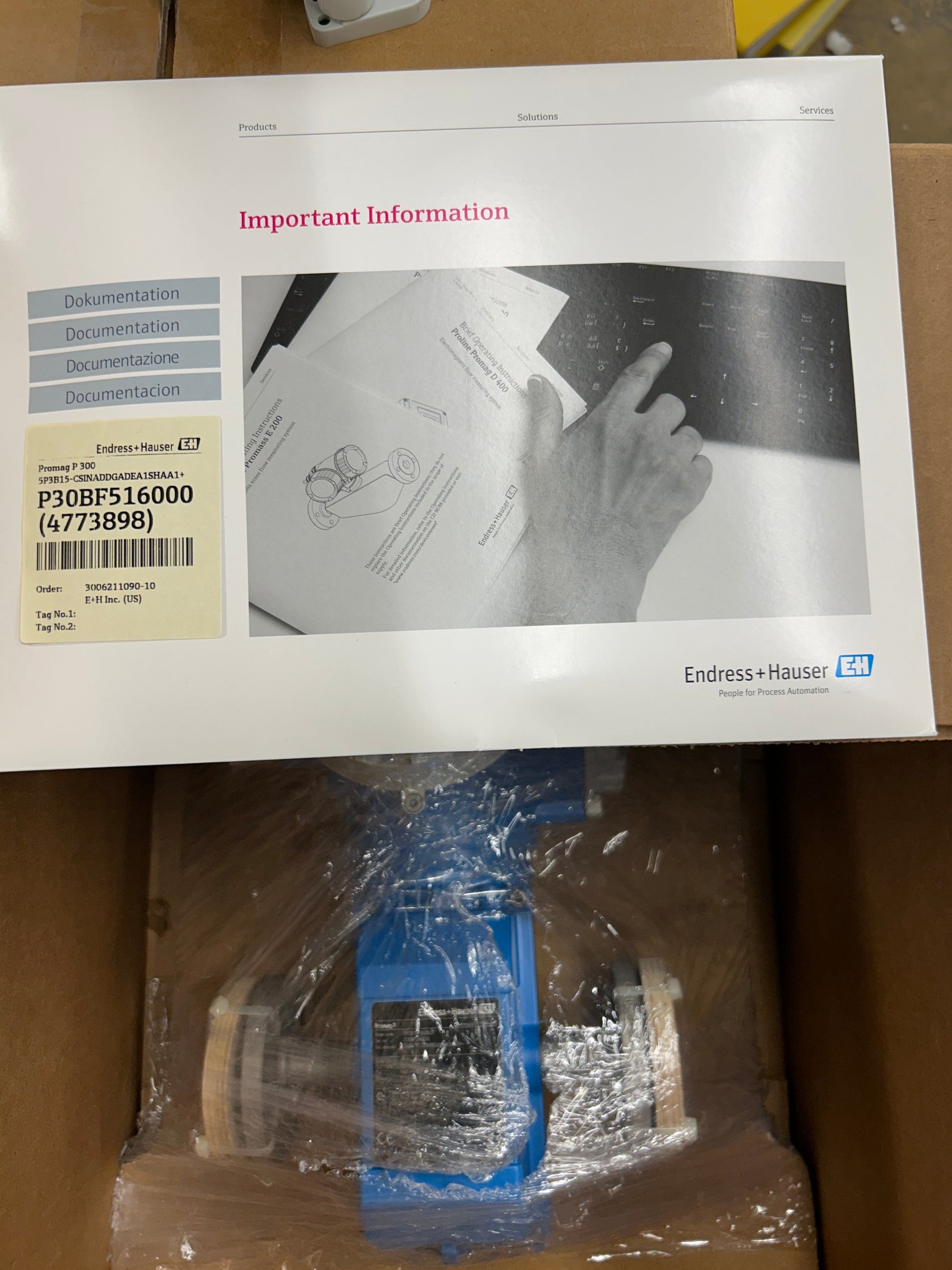

Manufactured in Switzerland (Reinach, 4153). Date code 2019-03. Original documentation included. CE marked. Compliant with contr. dwg. FES0267 per nameplate markings.
Stock # 0326-1136
