Eppinger Live Tool Holder 7-071-753 | VDI40

$599.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: 7-071-753
Stock #: 0426-01200

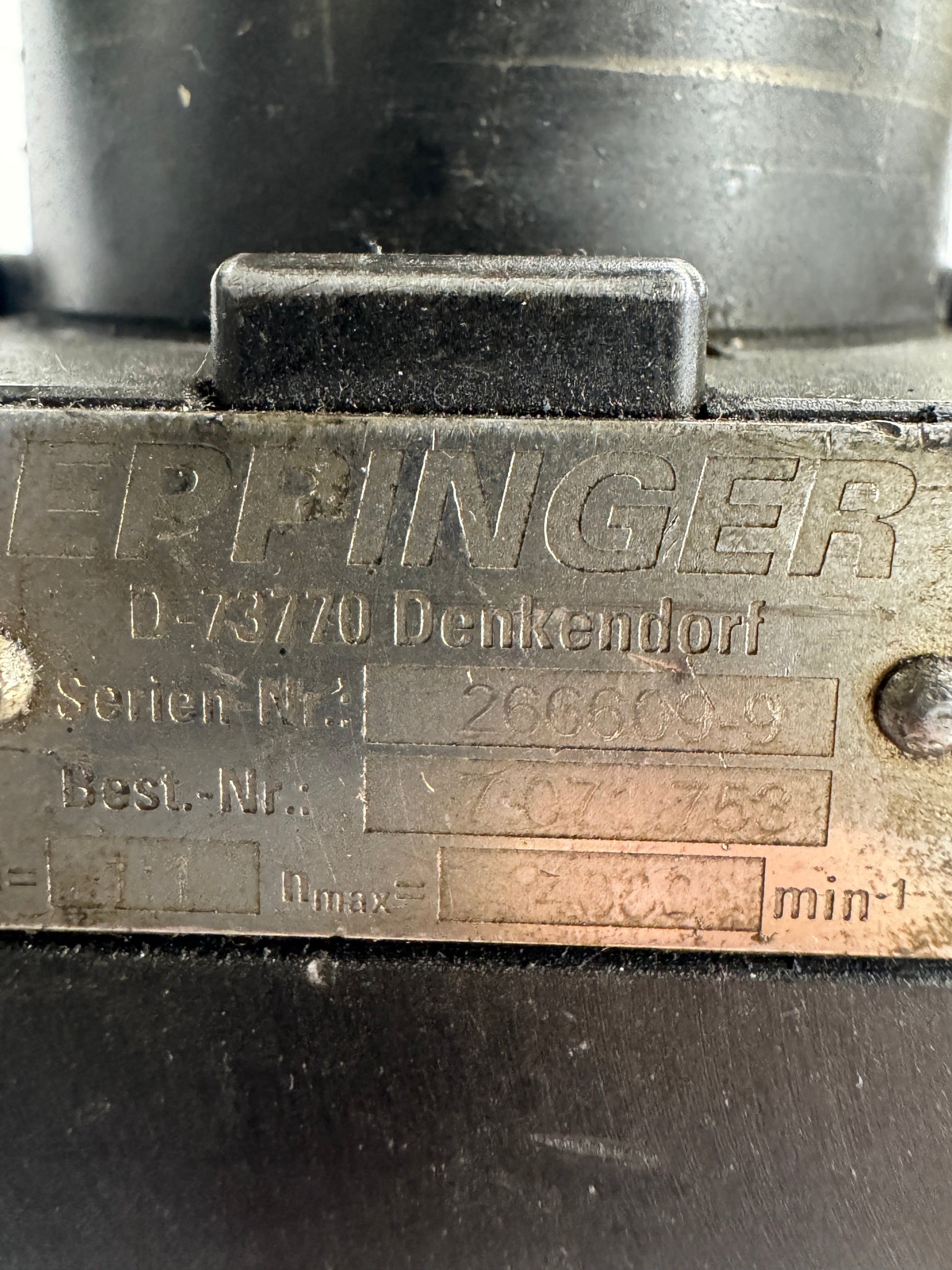

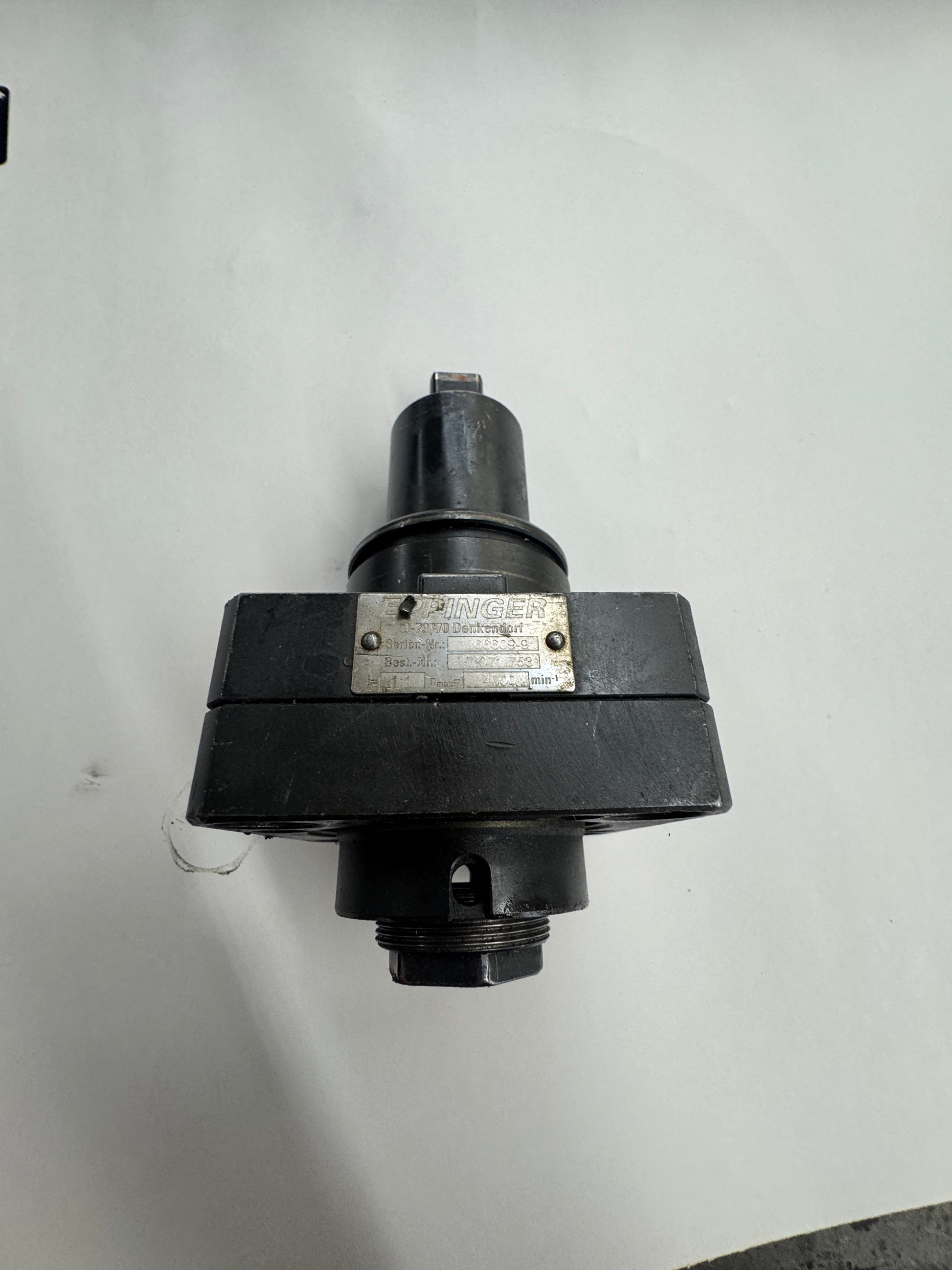

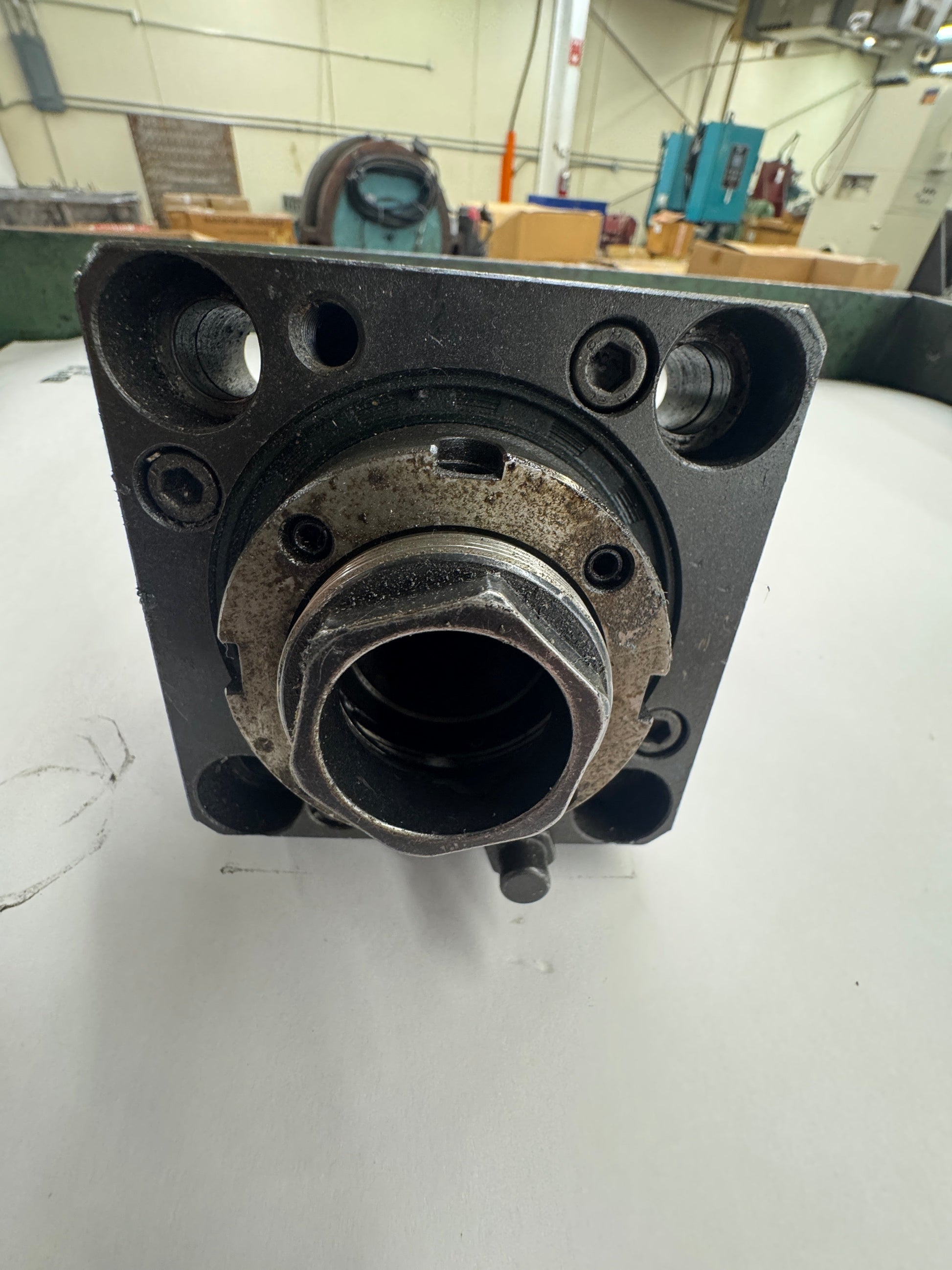

Used in CNC turning centers requiring axial live tooling, the Eppinger Preci-Flex live tool holder part number 7-071-753 is a straight drilling and milling head manufactured by Eppinger at D-73770 Denkendorf, Germany. The nameplate confirms a 1:1 gear ratio (i=1:1) and a maximum spindle speed of 2,000 RPM (nmax=2000 min⁻¹). Serial number 266600-9 is stamped on the nameplate plate. The VDI40 mounting interface is consistent with the 7.071 series designation per Eppinger catalog documentation and is not directly confirmed on the visible nameplate. The square flange body with central driven collet pocket is characteristic of Eppinger axial live tool heads used on a wide range of CNC lathes with VDI turret systems. Eppinger is a premium German manufacturer of live and static tool holders, recognized for high accuracy and rigidity through the use of back-to-back tapered roller bearing configurations. The Preci-Flex system supports standard ER collets in addition to Preci-Flex modular adapters. Collet size is not confirmed from visible nameplate markings. The unit shows surface wear consistent with prior machine use.

Stock # 0426-01200
