Eppinger Live Tool Holder R786 / Serien-Nr. 261194-7 | Orientation: Radial

$1,099.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

MPN: R786
Stock #: 0426-01204

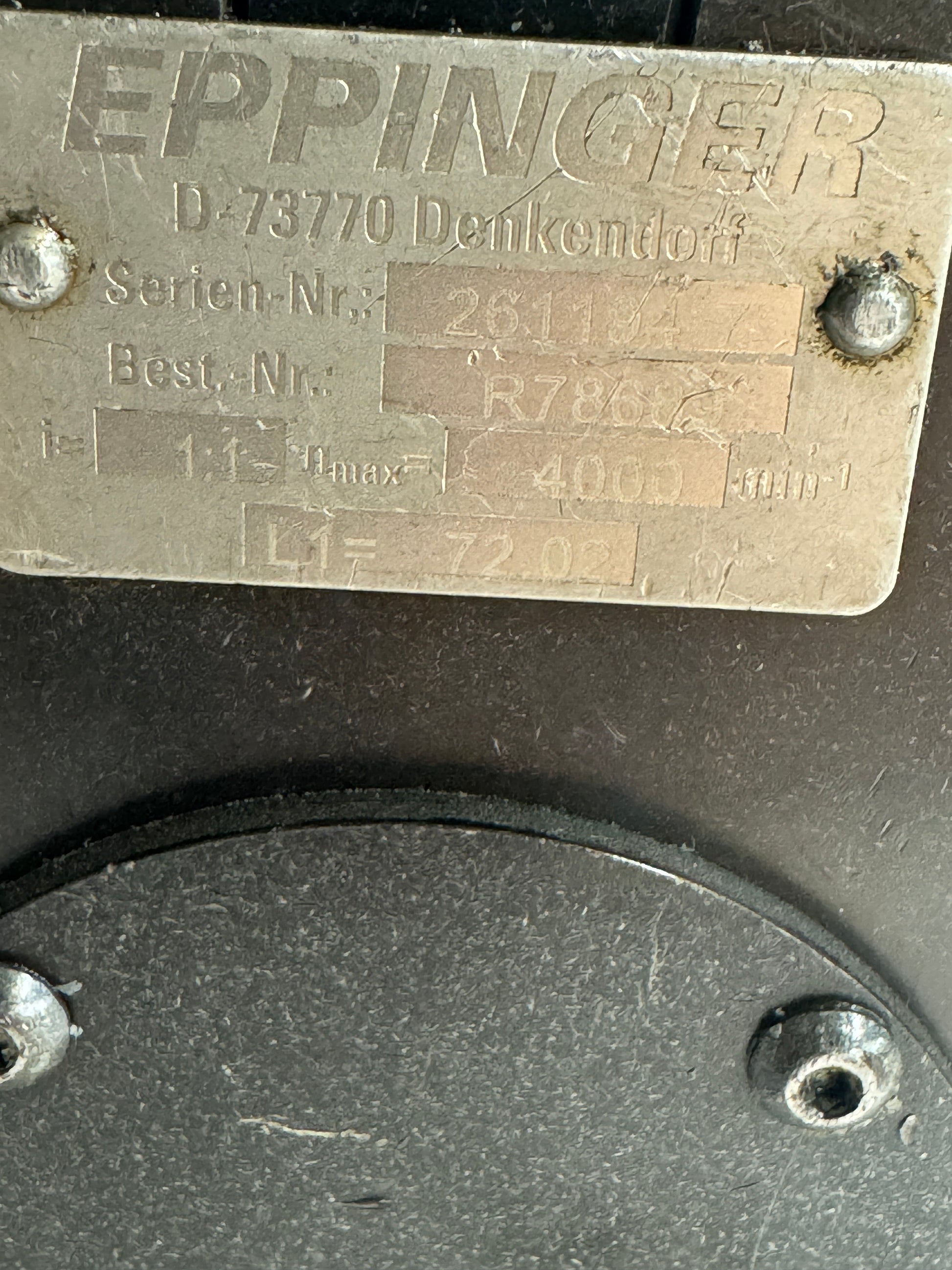

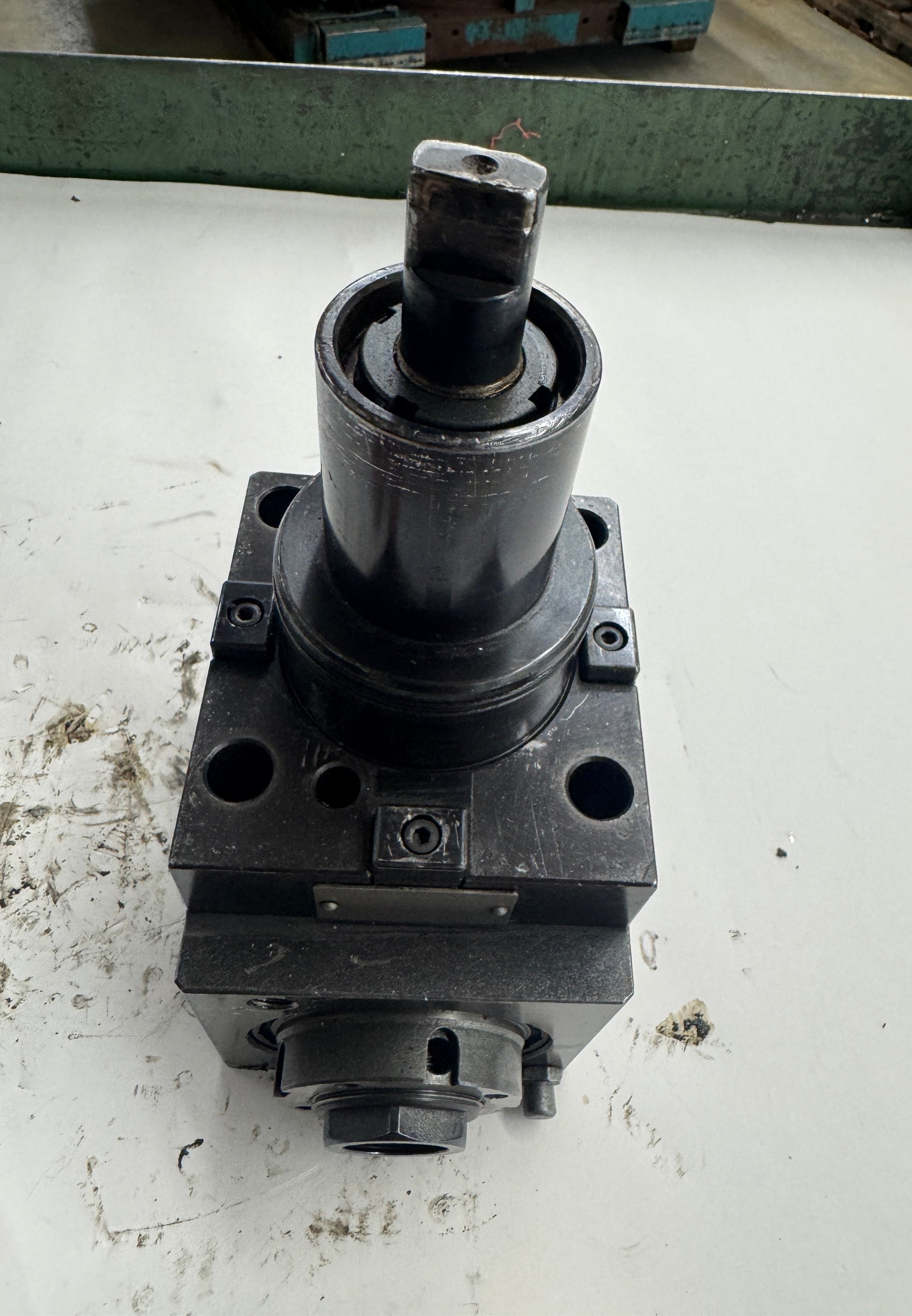

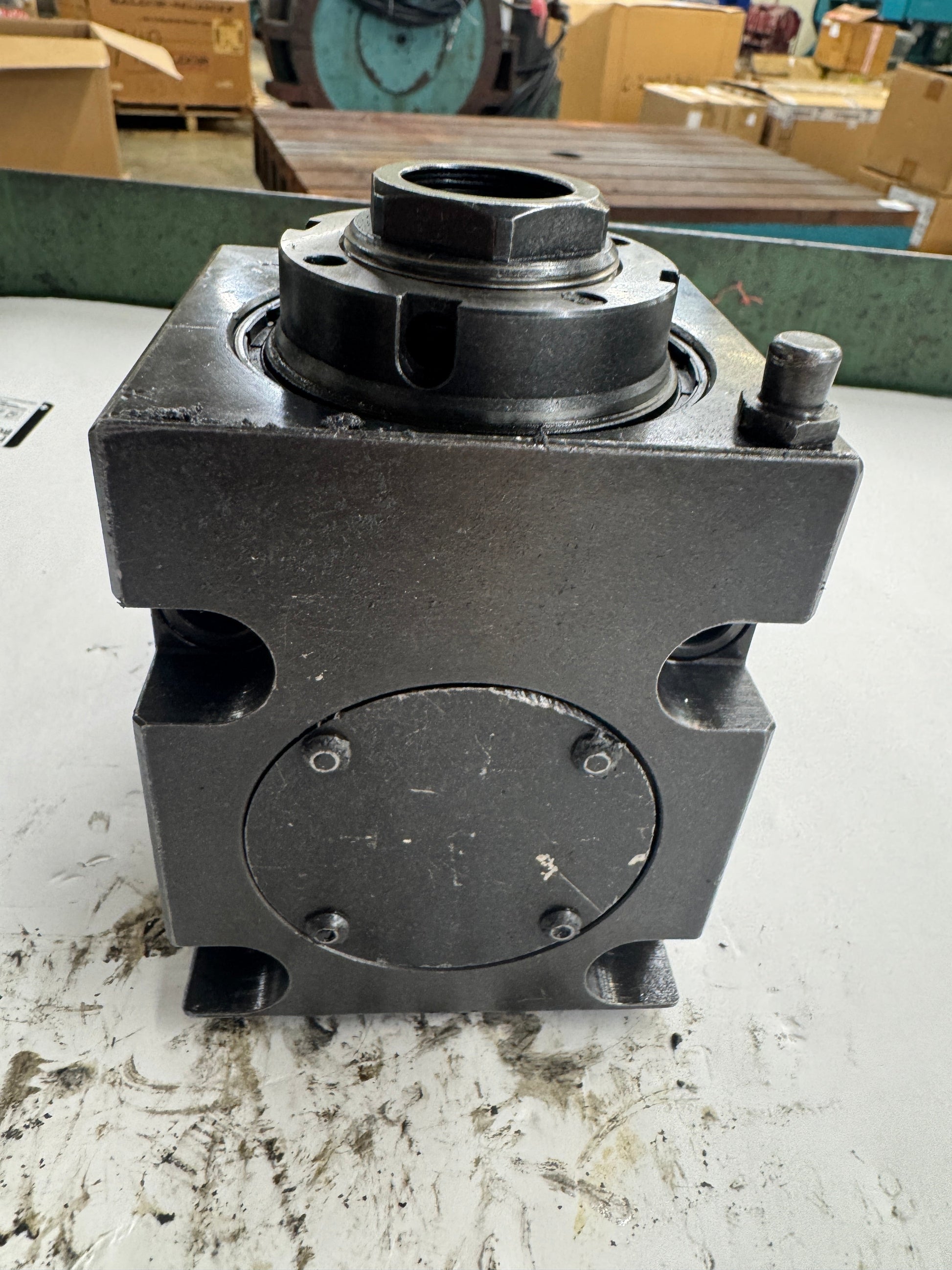

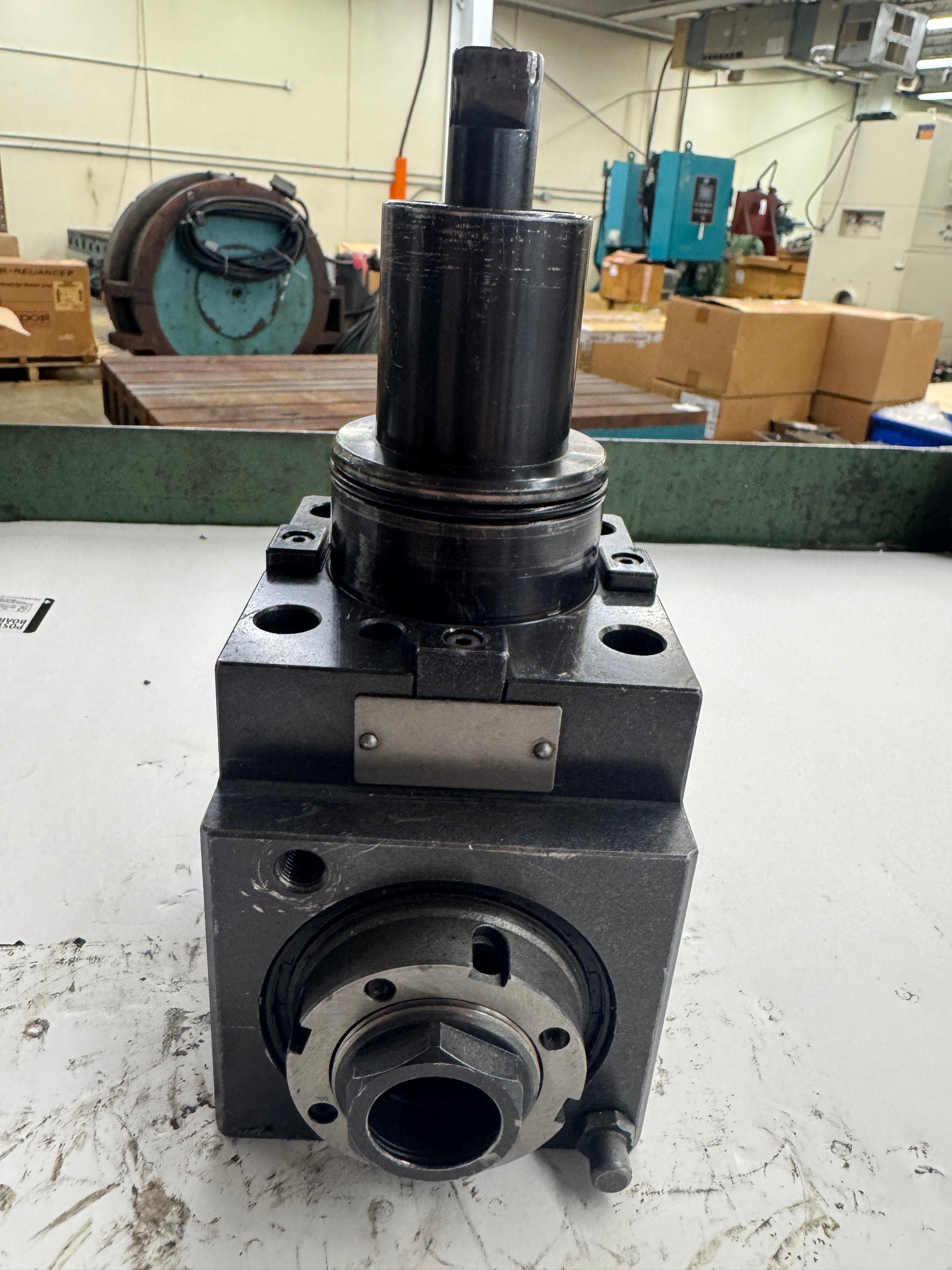

Used in CNC turning centers and turn-mill machines, this Eppinger Preci-Flex right-angle 90-degree drilling and milling head provides driven live tooling capability for radial milling, drilling, and contouring operations performed on the lathe turret. Eppinger, headquartered in Denkendorf, Germany (D-73770), is recognized in the US market as a premium manufacturer of live tool holders with precision-ground bevel gearing, high-radial-load bearing systems, and one-piece hardened steel housing construction. The unit carries serial number 261194-7 and best number R786 (last digit partially obscured on nameplate). The nameplate confirms a 1:1 gear ratio (i=1:1), a maximum speed of 4,000 RPM (nmax=4000 min-1), and a centerline dimension of L1=72.02. The physical construction shows a square block housing, a machined drive shaft input at top, and collet chuck outputs oriented at 90 degrees from the input axis. The mounting interface style is consistent with flat-face BMT-type turret mounting; specific BMT size was not confirmed from visible markings. Collet size at output was also not confirmed from available photos or nameplate text. Buyers should verify the mounting interface and collet specification against their machine's turret before purchase. The unit is offered as removed from service without testing or warranty.

Stock # 0426-01204
