Eppinger Radial Live Tool Holder IR78884 | VDI40 | 6,000 RPM Max, 1:1 Ratio | Orientation: Radial
Eppinger Radial Live Tool Holder IR78884 | VDI40 | 6,000 RPM Max, 1:1 Ratio | Orientation: Radial
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: IR78884
Stock #: 0426-01211

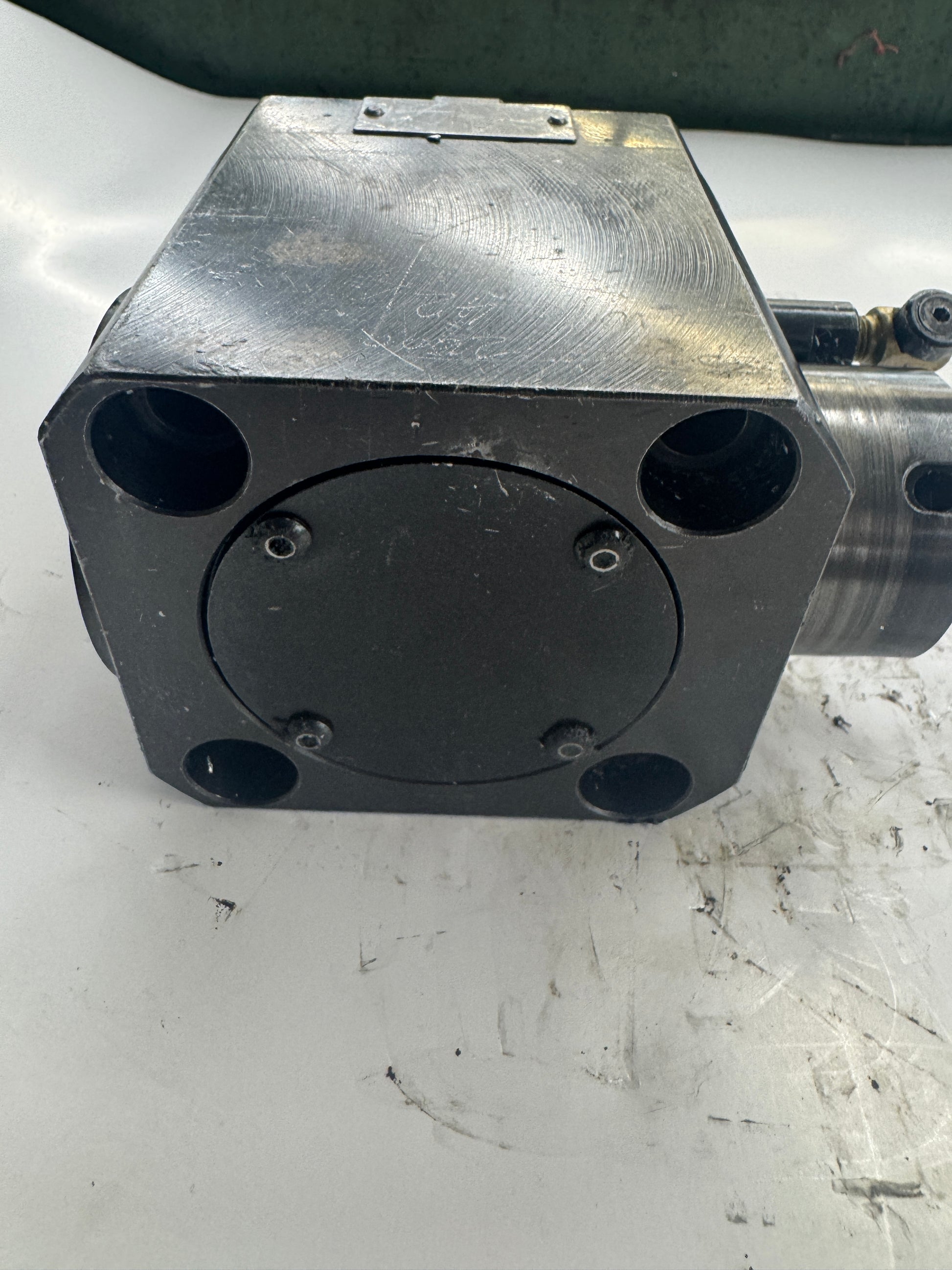

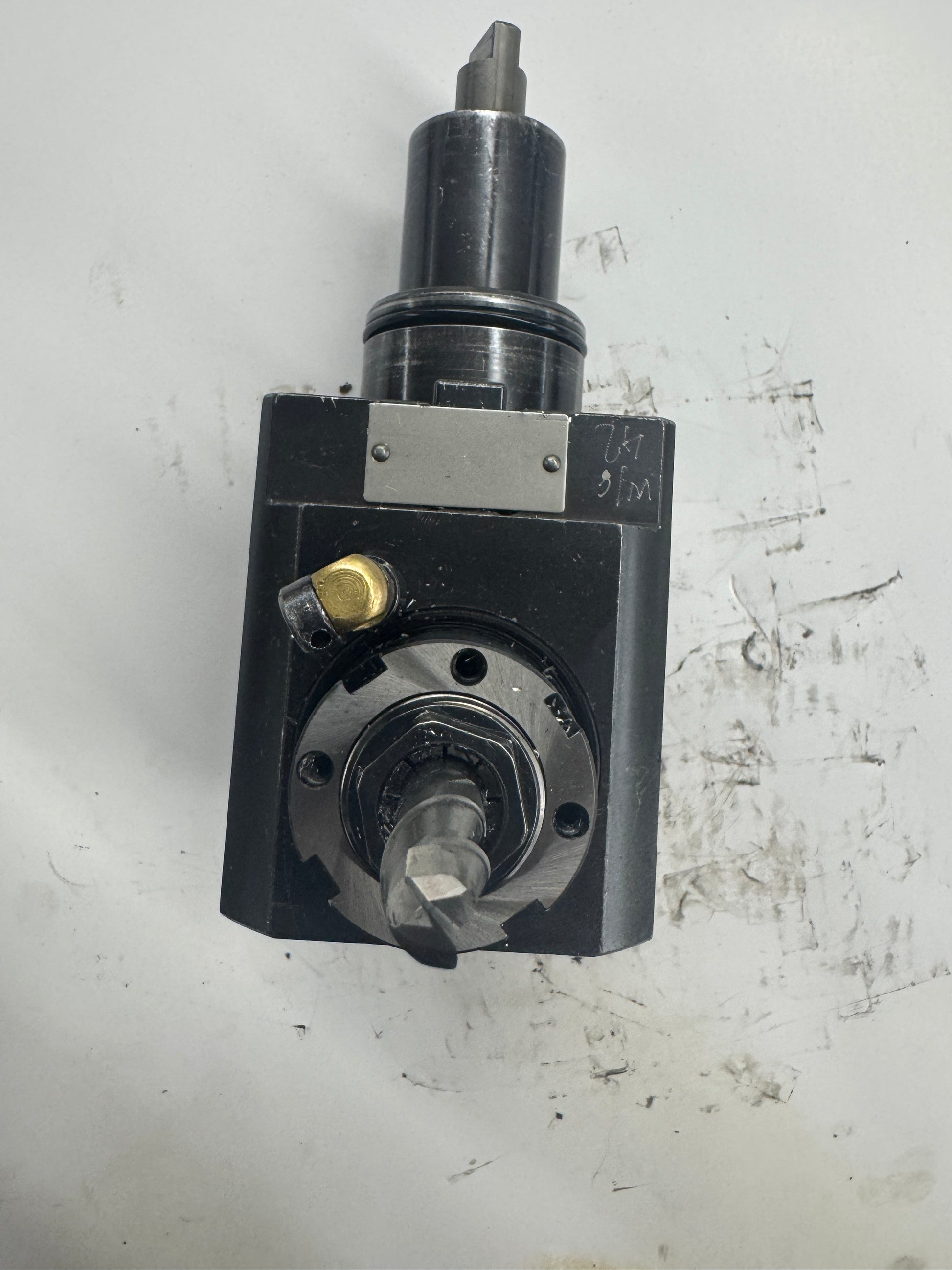

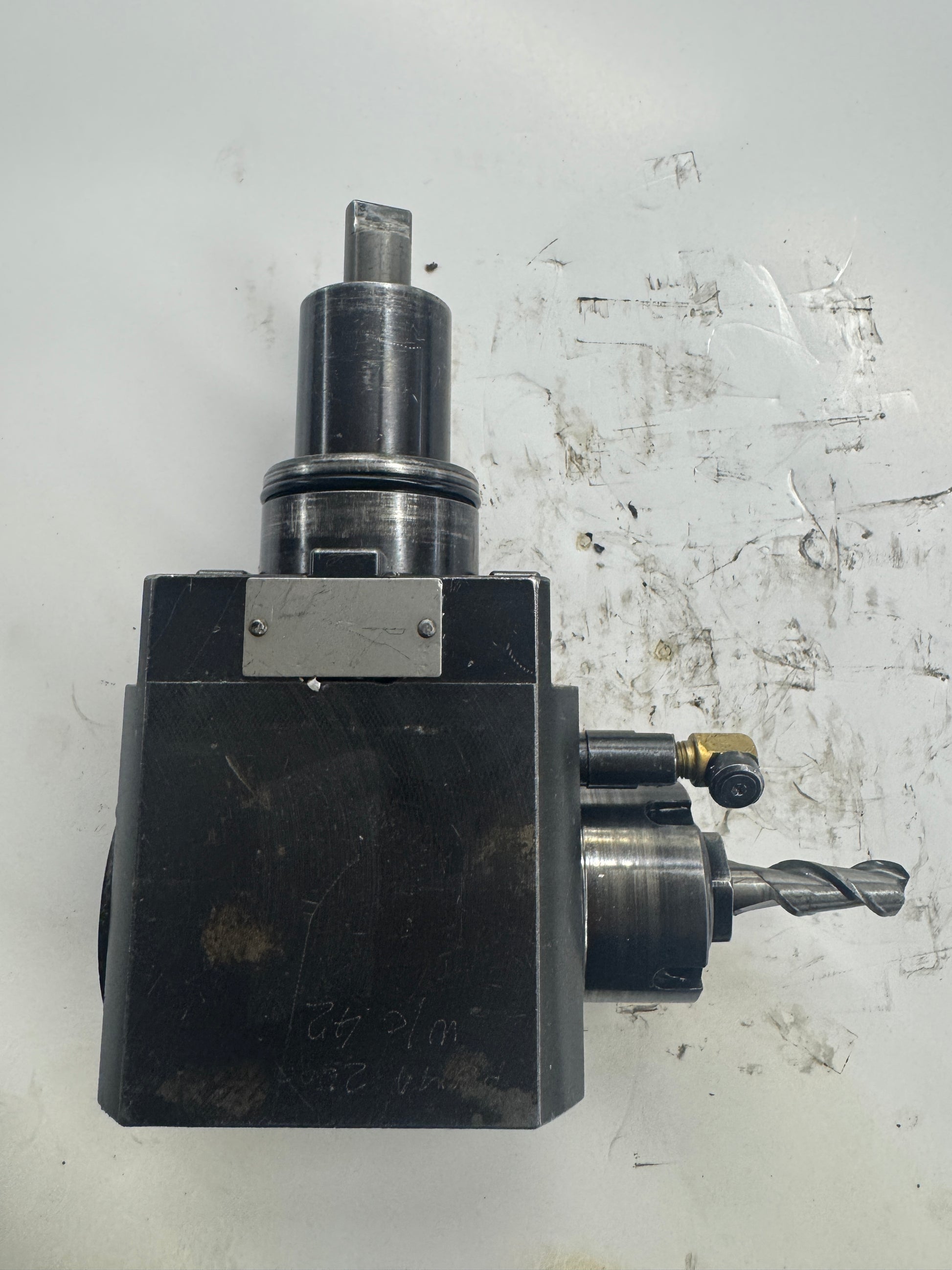

Used in CNC turning centers equipped with VDI40 turrets, this Eppinger radial live tool holder is a 90-degree driven unit manufactured at the company's facility in D-73770 Denkendorf, Germany. The nameplate identifies the order number as IR78884 and serial number 1268775-9. The gear ratio is confirmed at 1:1 and maximum spindle speed is rated at 6,000 RPM (6,000 min-1 per nameplate). The unit features a VDI40 drive interface with a square key input shaft and a radial output spindle oriented at 90 degrees to the turret drive axis. A brass grease fitting is visible on the body. An end mill is currently installed in the front collet chuck, though the collet system designation is not confirmed from the nameplate alone. Eppinger is a German manufacturer known for precision-ground VDI interfaces and engineered bearing selection in their live tooling product line. This holder is suited for radial milling, drilling, and similar driven operations on CNC lathes and turn-mill centers accepting VDI40 tooling. Serial number 1268775-9 is preserved here for buyer traceability and cross-reference with machine configuration records.
Stock # 0426-01211
