Product Specifications
- Manufacturer: Euchner
- MPN / Model: CET1-AR-CRA-CH-50F-SG-110241
- ID Number: 110241
- Serial Number: 000836
- Product Type: Transponder-Coded Safety Switch with Guard Locking
- Product Series: CET
- Supply Voltage (UB): 24 VDC, 80 mA
- Output Voltage (UCM): 24 VDC, 480 mA
- Locking Force (Fzh): 5000 N
- Duty Cycle: 100% ED
- Firmware Version: V1.4.1
- Enclosure Rating: IP67
- Standard: EN 60947-5-3
- Connector Type: M12 (2 connectors)
- Country of Origin: Germany
- Condition: Untested Surplus
Product Description

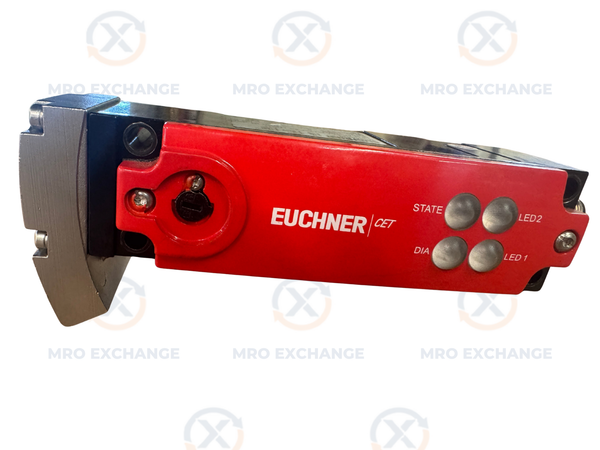

The Euchner CET1-AR-CRA-CH-50F-SG-110241 is a transponder-coded safety switch with integrated guard locking, identified by manufacturer part number CET1-AR-CRA-CH-50F-SG-110241 and Euchner ID number 110241. The unit carries serial number 000836 and firmware version V1.4.1. It is offered as untested surplus; no electrical testing or functional verification has been performed by the seller.

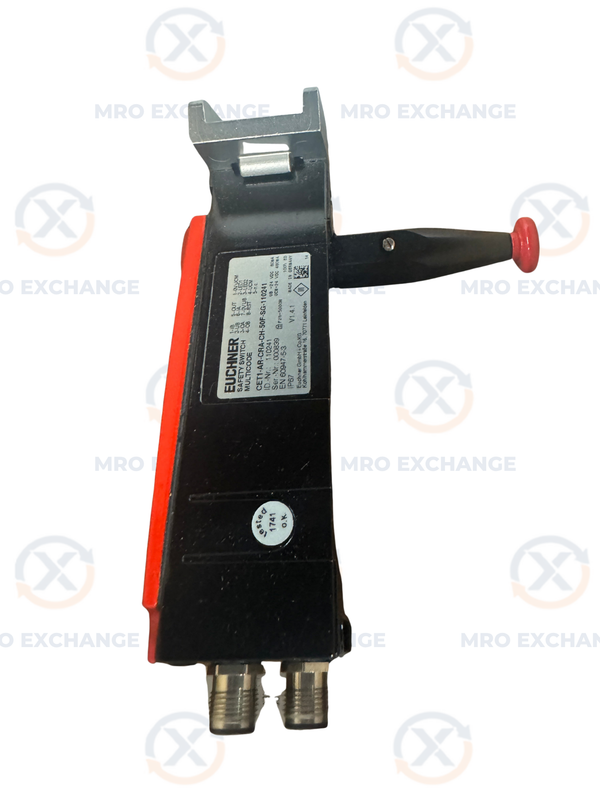

Nameplate data confirms a 24 VDC supply voltage at 80 mA, a monitoring output (UCM) rated at 24 VDC and 480 mA, a locking force of 5000 N, and a 100% ED duty cycle rating. The enclosure is rated IP67 and the switch is certified to EN 60947-5-3. Two M12 plug connectors are provided for connection. The unit is manufactured in Germany by Euchner GmbH + Co. KG and belongs to the CET safety switch series.
Buyers matching this exact Euchner catalog number for guard door safety applications should use the full MPN CET1-AR-CRA-CH-50F-SG-110241 and Euchner ID 110241 to confirm compatibility with their existing installation. Note that the actuator is not included and must be sourced separately. As a safety-rated device, this unit should be function-tested and validated by qualified personnel before being placed into service.
