FAG (Schaeffler) 22219-E1-C3 Spherical Roller Bearing 95 x 170 x 43 mm Open Box - Unused

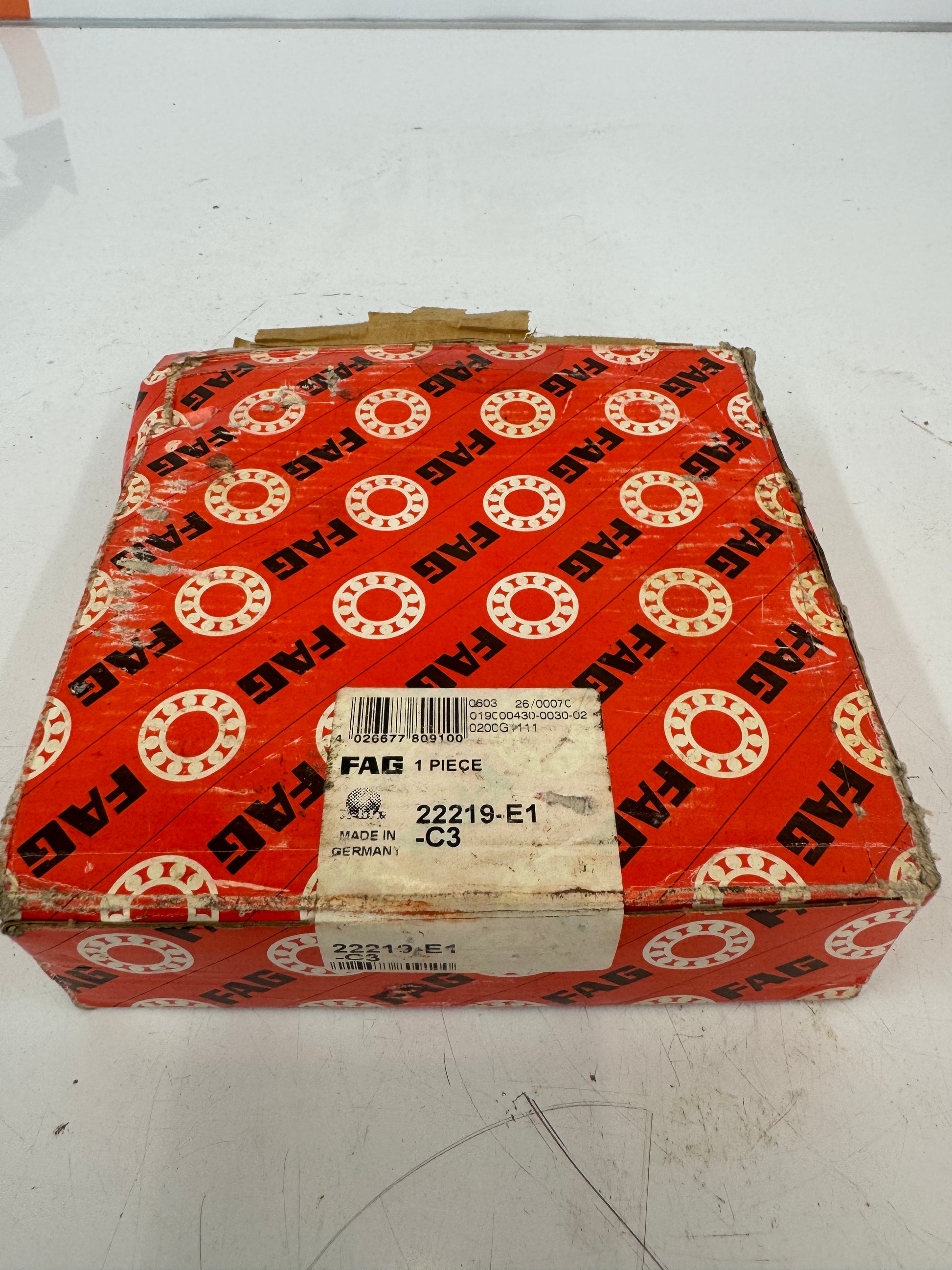

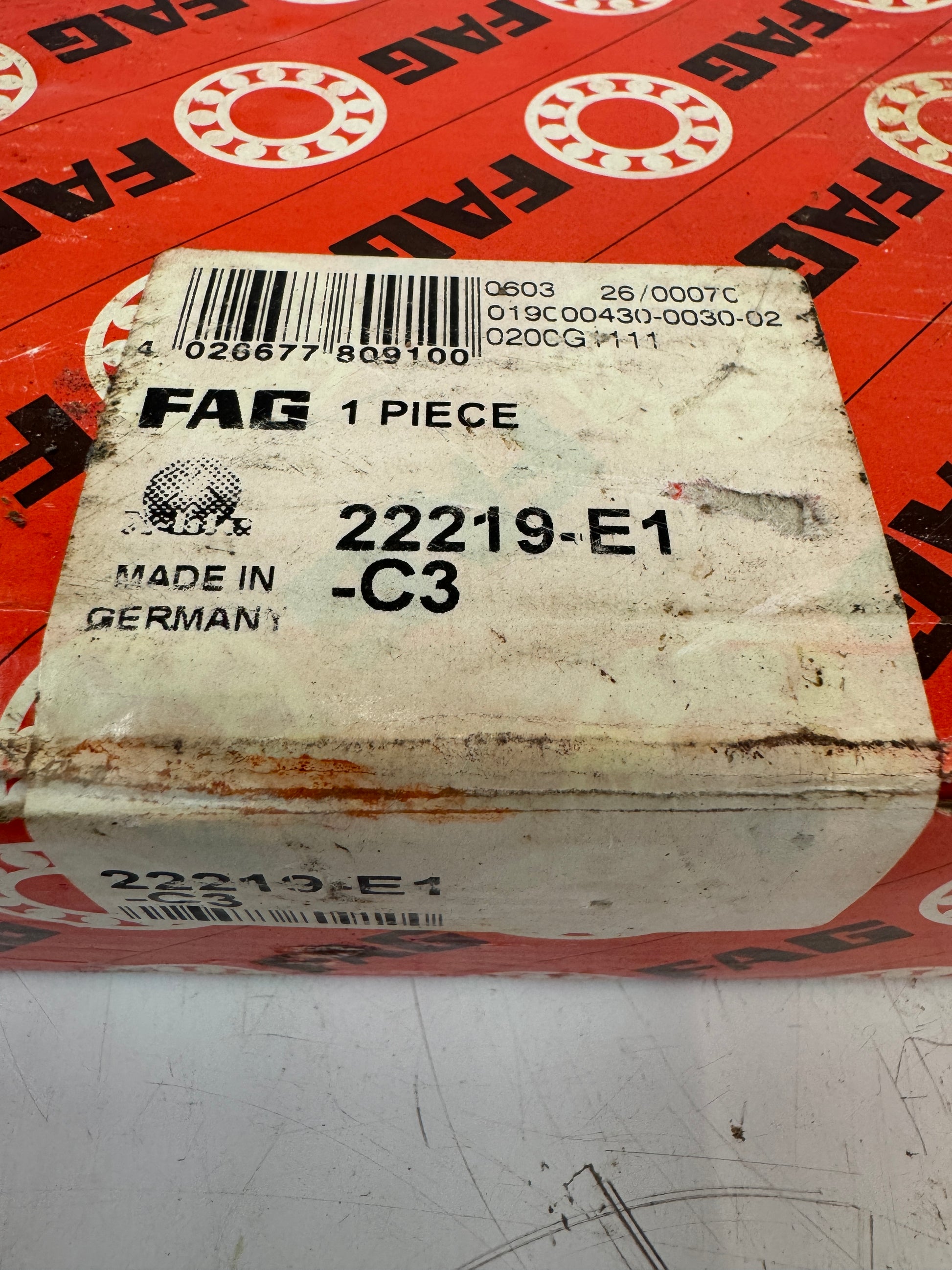

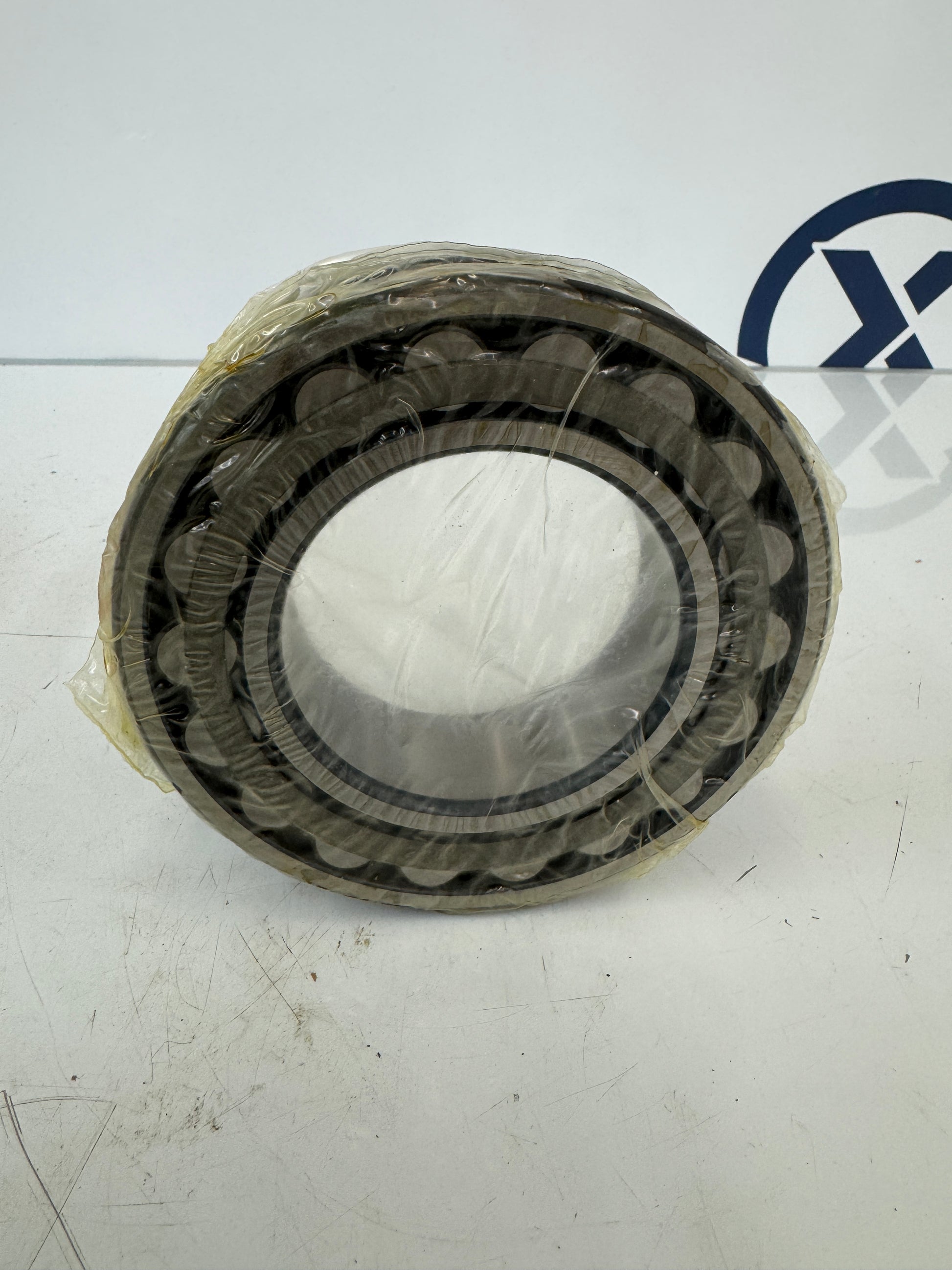

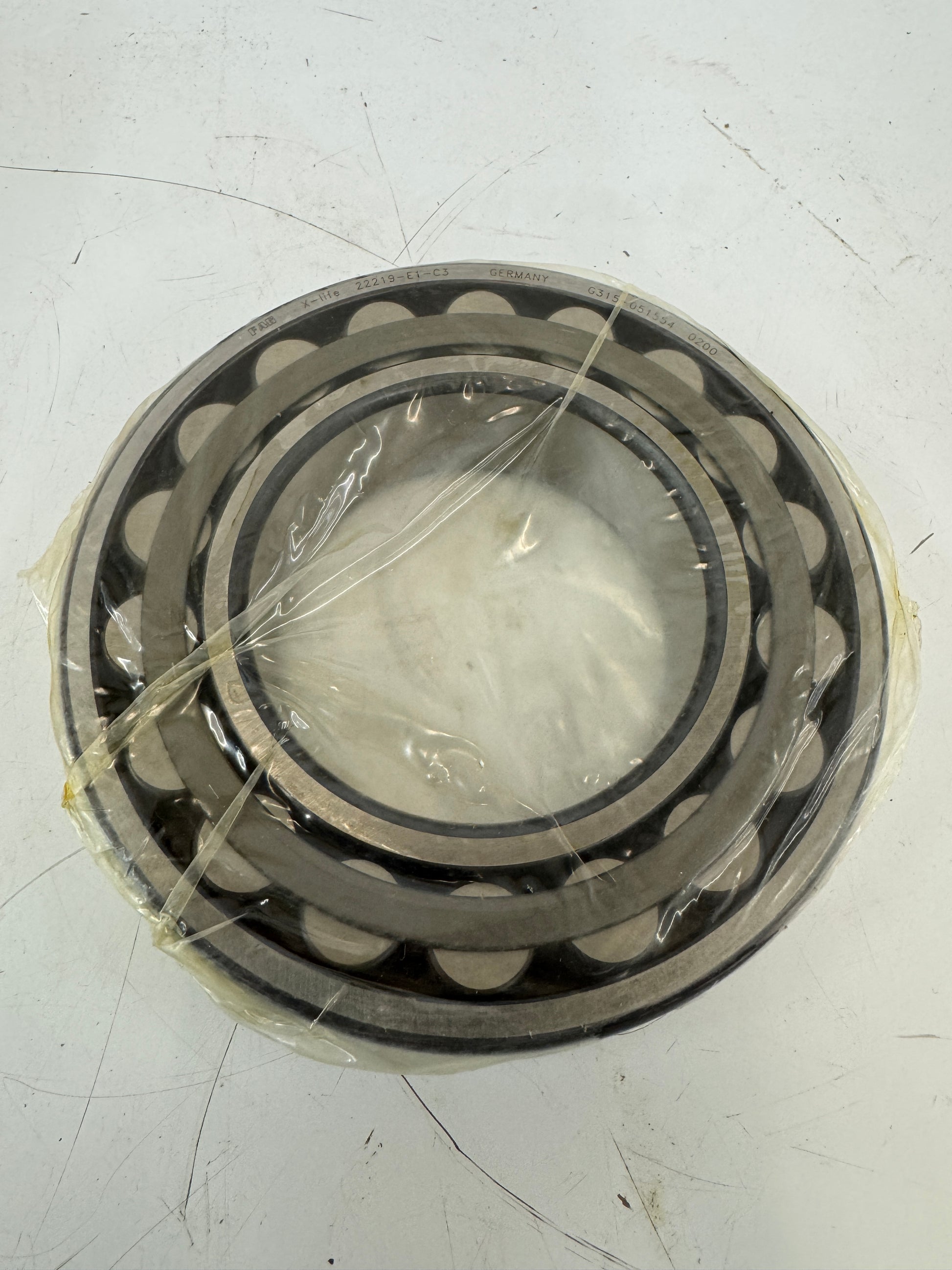

The FAG 22219-E1-C3 is a spherical roller bearing manufactured in Germany by Schaeffler Group under the FAG brand. It features an optimized E1 internal design for increased load capacity along with C3 radial internal clearance, which provides greater than normal internal play to accommodate thermal expansion, shaft misalignment, or interference fits encountered in heavy industrial service. The bearing measures 95 mm bore by 170 mm outside diameter by 43 mm width and is constructed with a cylindrical bore, steel cage, and double row of spherical rollers running against a common concave outer raceway. This geometry allows the bearing to compensate for static misalignment and shaft deflection while supporting high radial loads and moderate axial loads in both directions. The 22219-E1-C3 is used across a wide range of industrial applications including gearboxes, conveyors, fans, blowers, vibrating screens, pumps, paper machinery, mining equipment, crushers, and electric motor end shields. The unit is packaged in its original FAG box marked with barcode 4026677809100, batch code 0603 26/0007C, and reference 019C00430 0030 02 020CG 111. The product label confirms one piece, MPN 22219-E1-C3, Made in Germany. The outer carton shows surface soiling and minor staining consistent with shelf storage. The bearing itself remains sealed in the original manufacturer packaging. Cross reference equivalents from other manufacturers include SKF 22219 EK C3, Timken 22219 KEJW33, and NSK 22219 EAE4 C3.

Stock # 0226-194
