FAG 6311-2RSR-C3 Bearing – 55mm ID x 120mm OD x 29mm Width – New
FAG 6311-2RSR-C3 Bearing – 55mm ID x 120mm OD x 29mm Width – New
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:

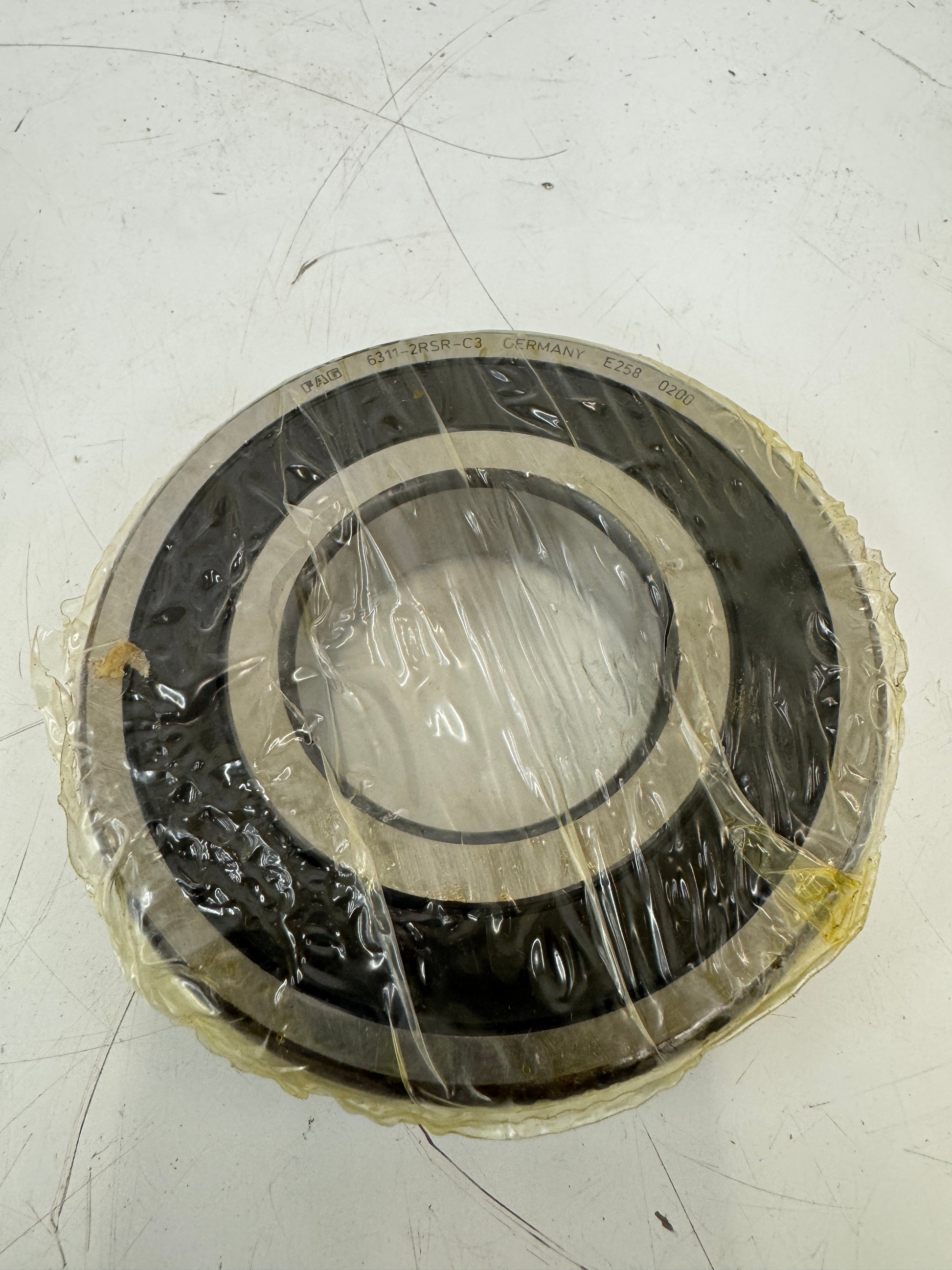

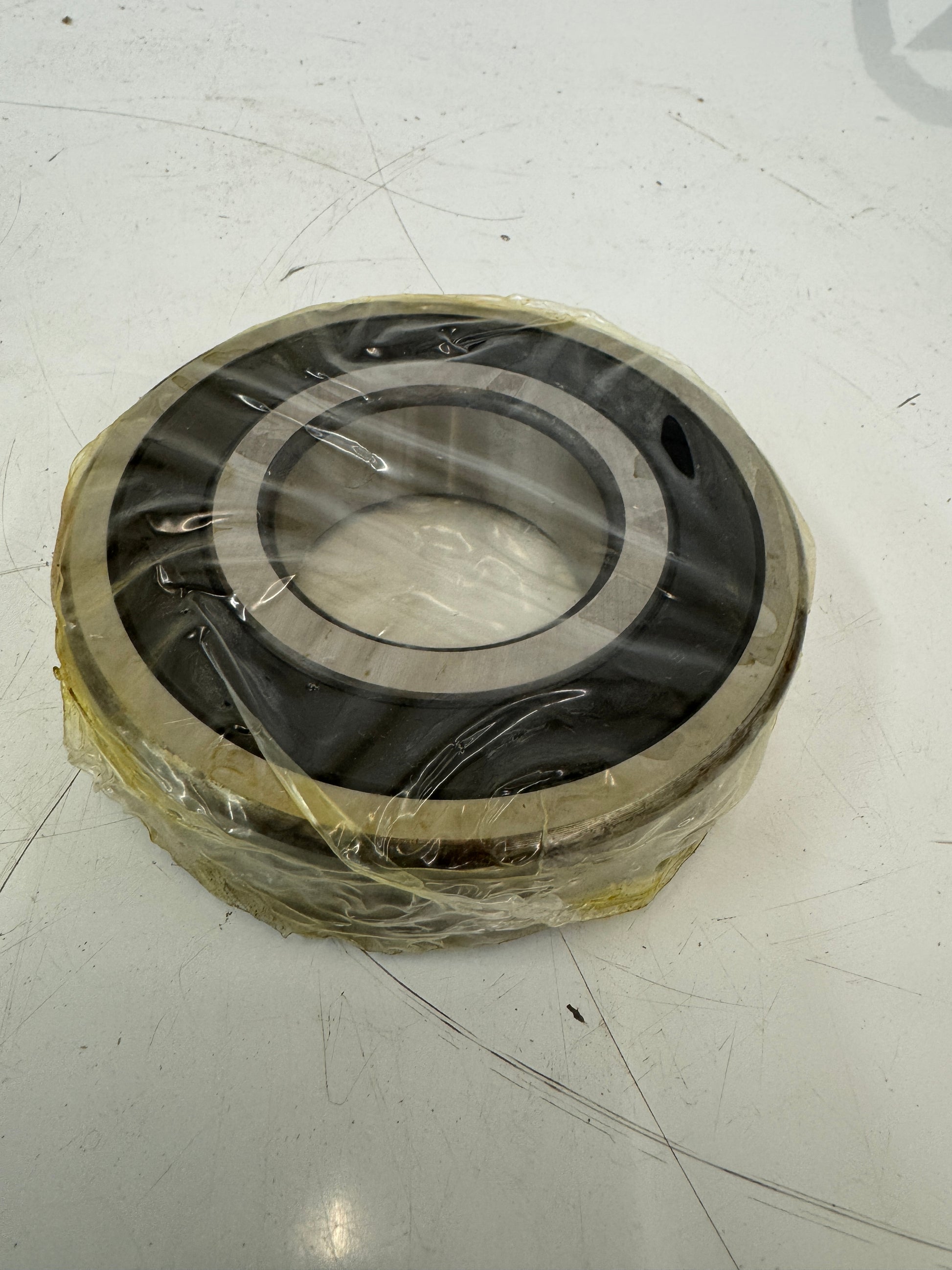

Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 6311-2RSR-C3
Stock #: 0226-00207

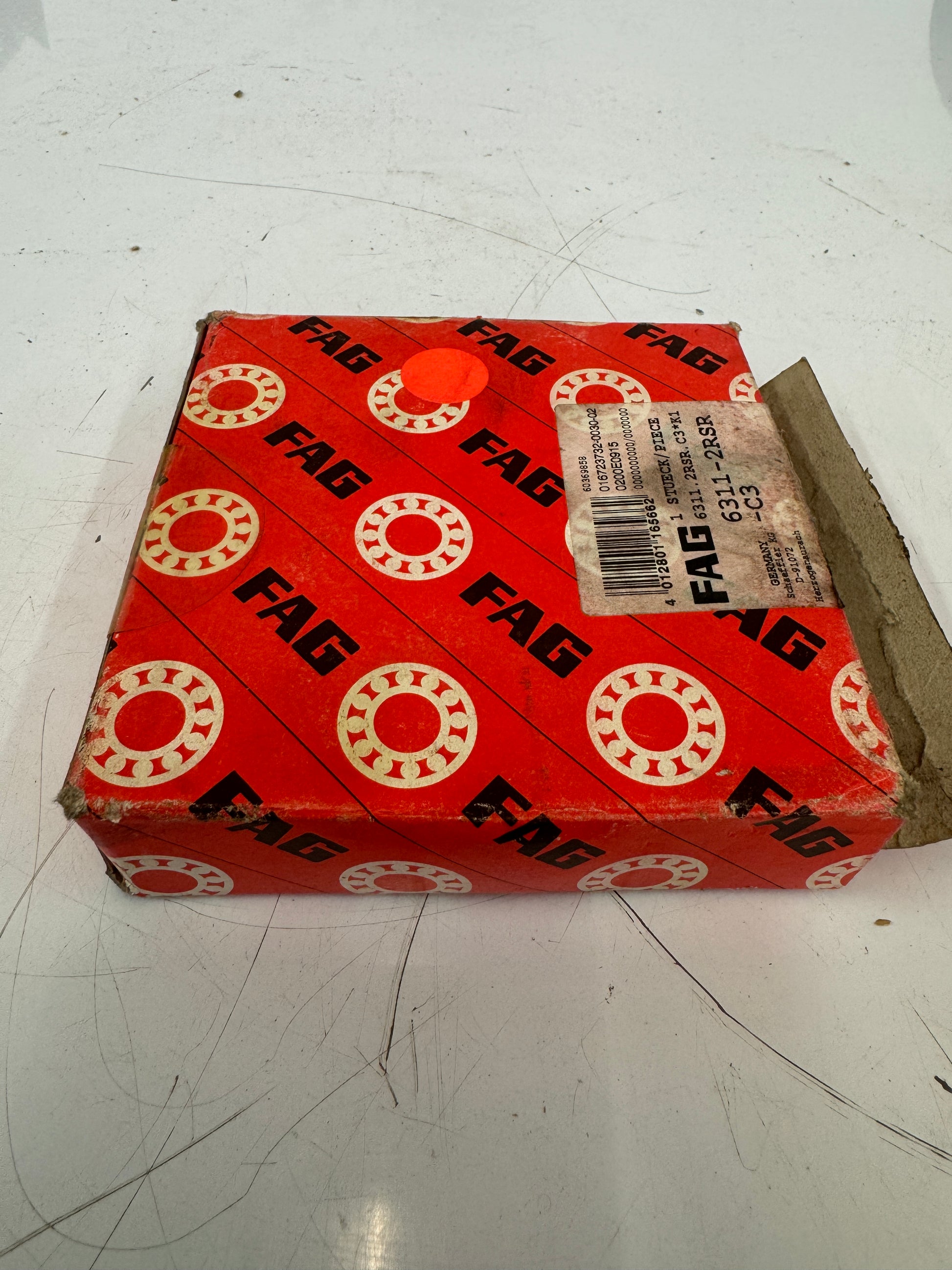

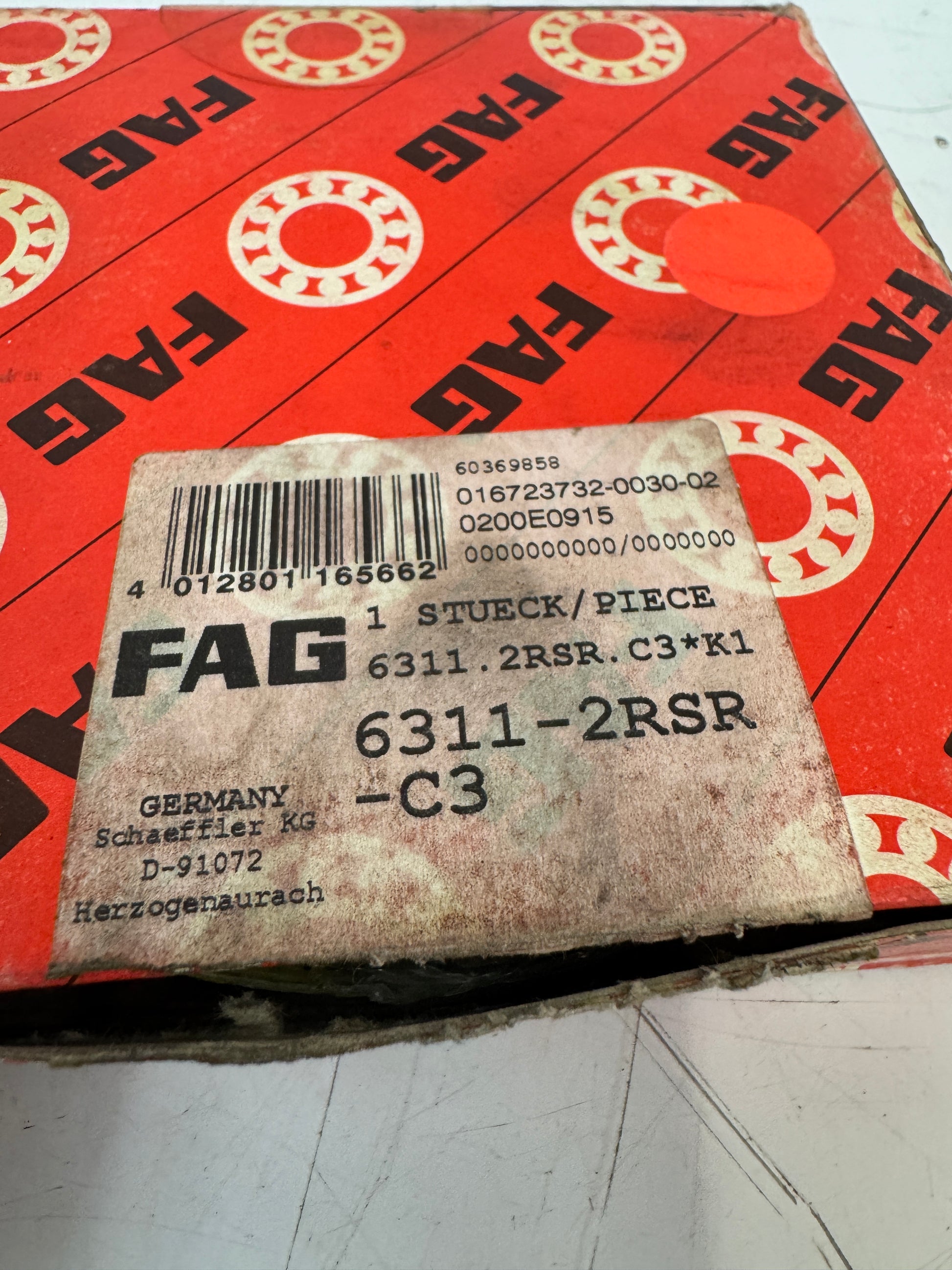

The FAG (Schaeffler) 6311 2RSR C3 is a single row deep groove ball bearing manufactured by Schaeffler KG in Herzogenaurach, Germany. The part number is 6311-2RSR-C3, also identified as 63112RSRC3. Per the original FAG packaging, this unit ships as one piece (1 Stueck/Piece). Barcode reference 4012801165662. Production identifiers visible on the label include 60369858 and 016723732-0030-02.
Dimensions per manufacturer specifications are 55 mm bore diameter, 120 mm outside diameter, and 29 mm width. The 2RSR designation indicates lip type rubber contact seals on both sides of the bearing, retaining grease lubrication and protecting against contamination. The C3 suffix denotes a radial internal clearance greater than the standard CN value, allowing for thermal expansion during continuous operation.
Construction features a sheet steel cage and through hardened chromium steel inner ring, outer ring, and ball complement. Manufacturer published ratings include 83,000 N dynamic load capacity, 47,500 N static load capacity, and a 3,150 N fatigue load limit. Maximum permissible rotational speed is rated at 3,550 rpm with grease lubrication. The bearing carries an ABEC 1 (ISO Class Normal) precision designation and is suitable for operating temperatures from minus 30 degrees C to plus 110 degrees C.
The 6311 size belongs to the 63 medium series and is used in electric motors, gearboxes, pumps, agricultural machinery, conveyors, and general industrial power transmission applications. Country of origin: Germany.
Stock # 0226-207
