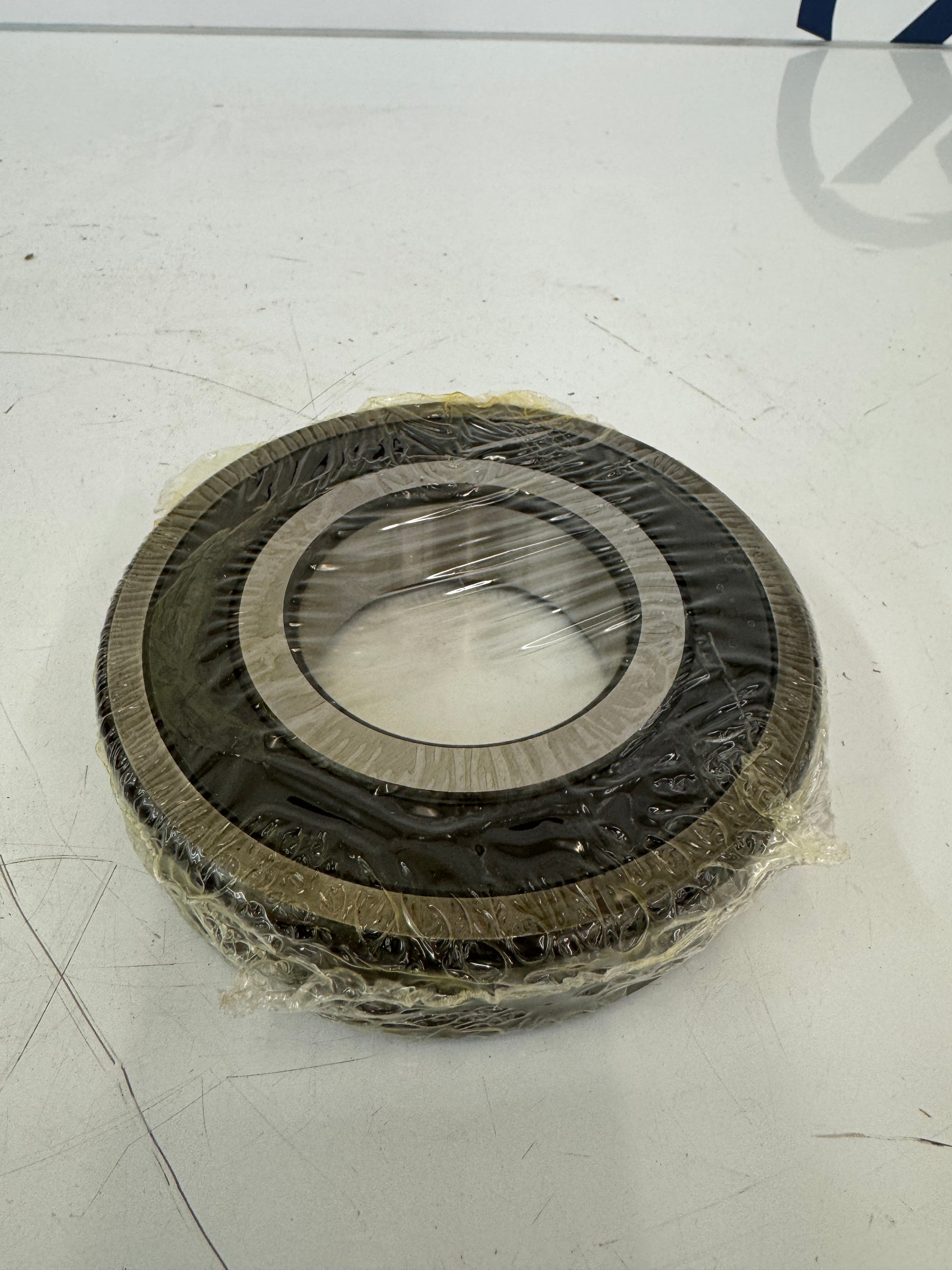

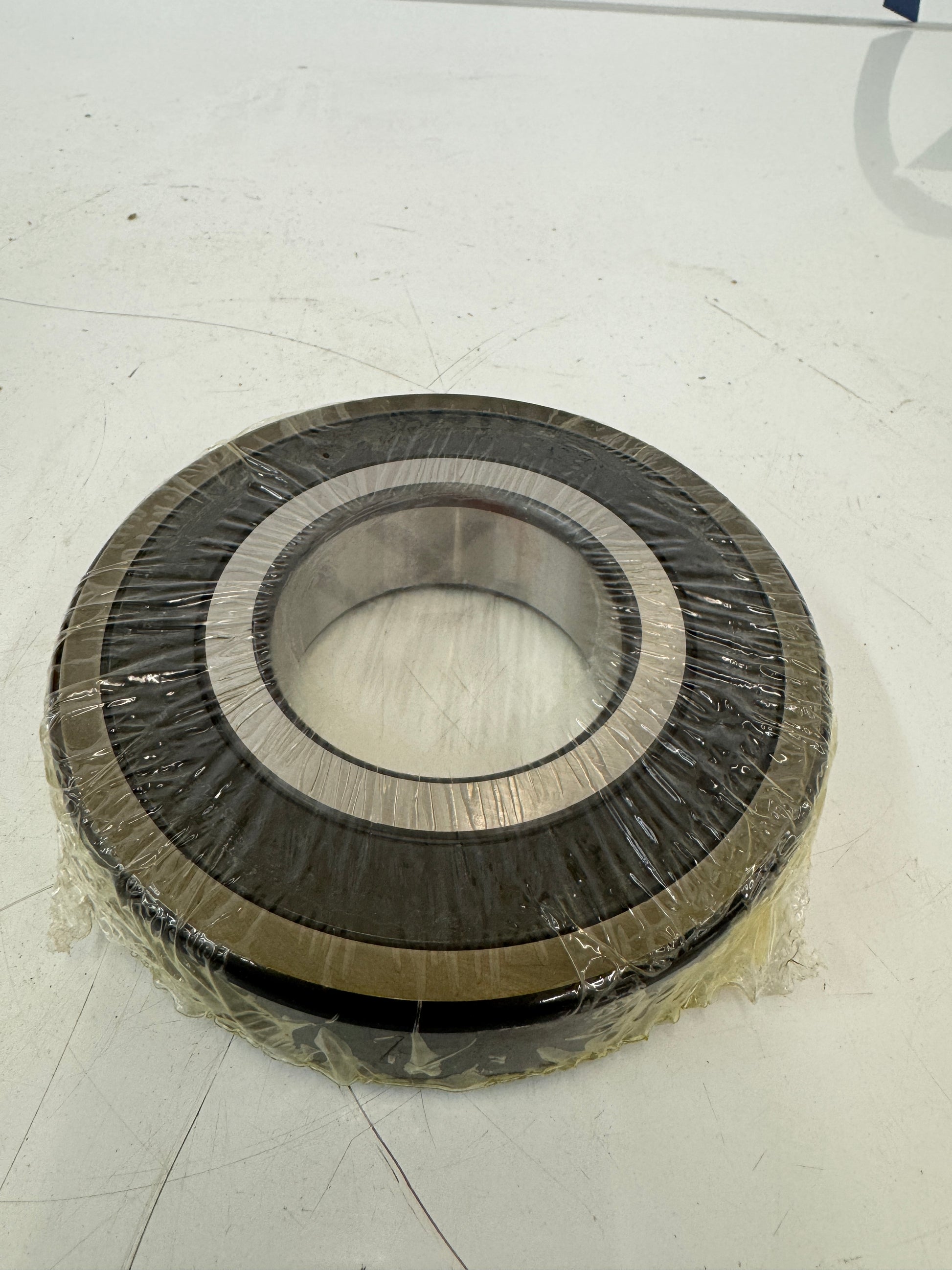

FAG (Schaeffler) 6314-2RSR-C3 Bearing 70 x 150 x 35 mm Open Box - Unused

$120.00 USD

Sale Sold out

ConditionOpen Box - Unused MPN6314-2RSR-C3 Stock #0226-00206

Photos reflect current condition. Items differing from description may be eligible for return or refund — see our condition guide.

Shipping Estimate

Estimated package weight: 10.0 lbs

Select your state above for a shipping estimate.

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

The FAG 6314-2RSR-C3 is a single row deep groove ball bearing manufactured in Germany by Schaeffler under the FAG brand. The bearing measures 70 mm bore diameter, 150 mm outer diameter, and 35 mm width, placing it in the 6300 medium series per DIN 625-1. The 2RSR designation indicates contact rubber lip seals on both sides, retaining factory lubrication and excluding contaminants. The C3 suffix denotes greater than standard radial internal clearance, accommodating thermal expansion in applications where the inner ring or shaft runs warmer than the housing.

Construction features through hardened chromium steel inner and outer rings and balls, with a sheet steel cage that evenly spaces the rolling elements. Published static load rating is 69 kN and dynamic load rating is 115 kN, with a limiting speed of 2800 rpm and a fatigue limit load of 4.45 kN. Typical maximum continuous operating temperature is 120 degrees C / 248 degrees F. Bearing weight is approximately 2.6 kg.

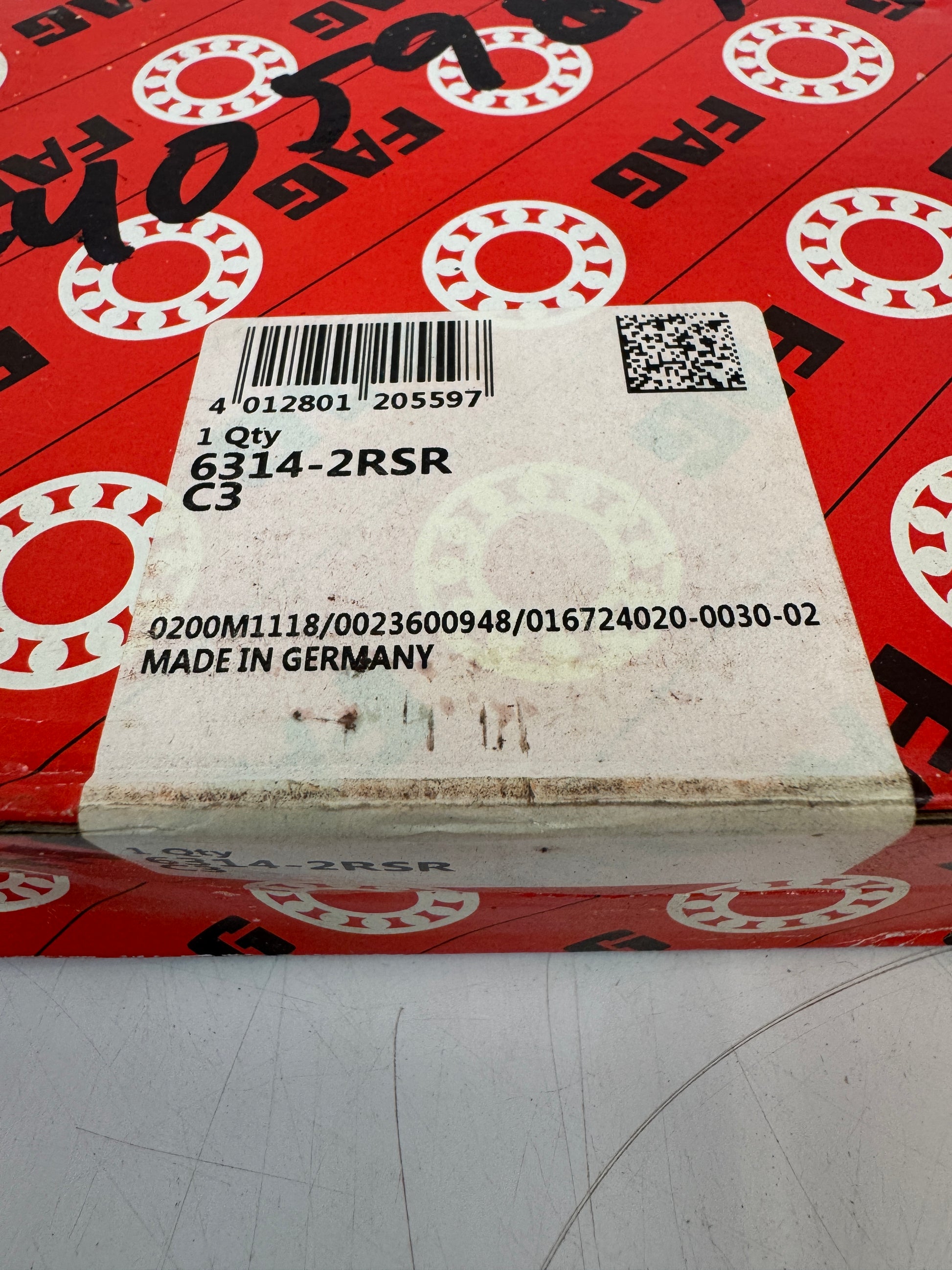

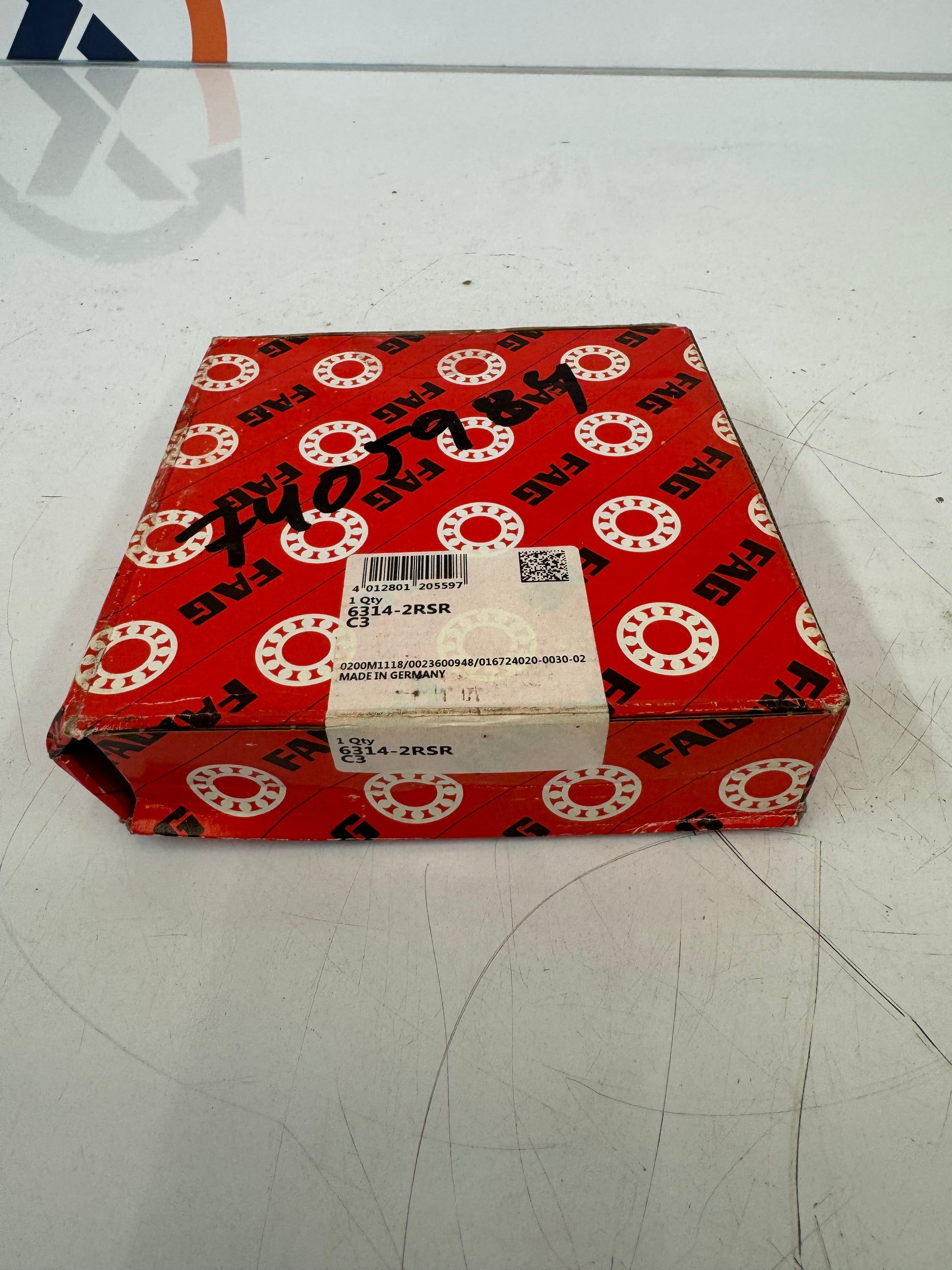

The unit is supplied in original FAG packaging. Barcode 4012801205597 and internal lot markings 0200M1118 / 0023600948 / 016724020 0030 02 are visible on the box label. Quantity marked as 1 on the carton.

Common applications include electric motors, gearboxes, pumps, fans, conveyors, agricultural machinery, and general industrial power transmission equipment requiring a sealed, medium duty radial ball bearing with elevated internal clearance. Cross reference designations include 6314 2RS C3, 6314-2RS1/C3, 6314DDUC3, 6314EEC3, and 6314LLUC3.

Stock # 0226-206
