FAG Single Row Angular Contact Ball Bearing 7308-B-XL-TVP-UO 40 x 90 x 23 mm
FAG Single Row Angular Contact Ball Bearing 7308-B-XL-TVP-UO 40 x 90 x 23 mm
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 7308-B-XL-TVP-UO
Stock #: 0426-01334

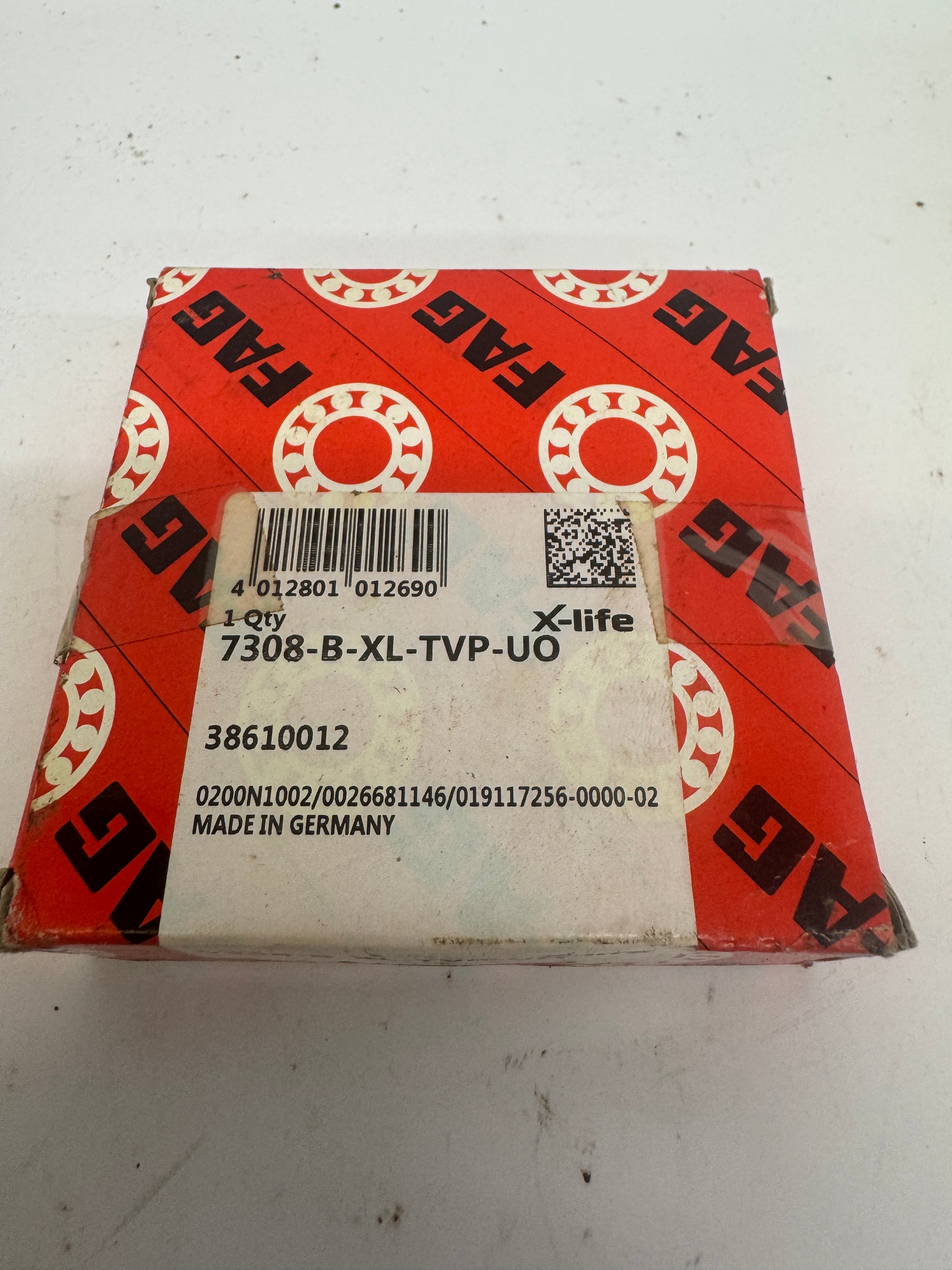

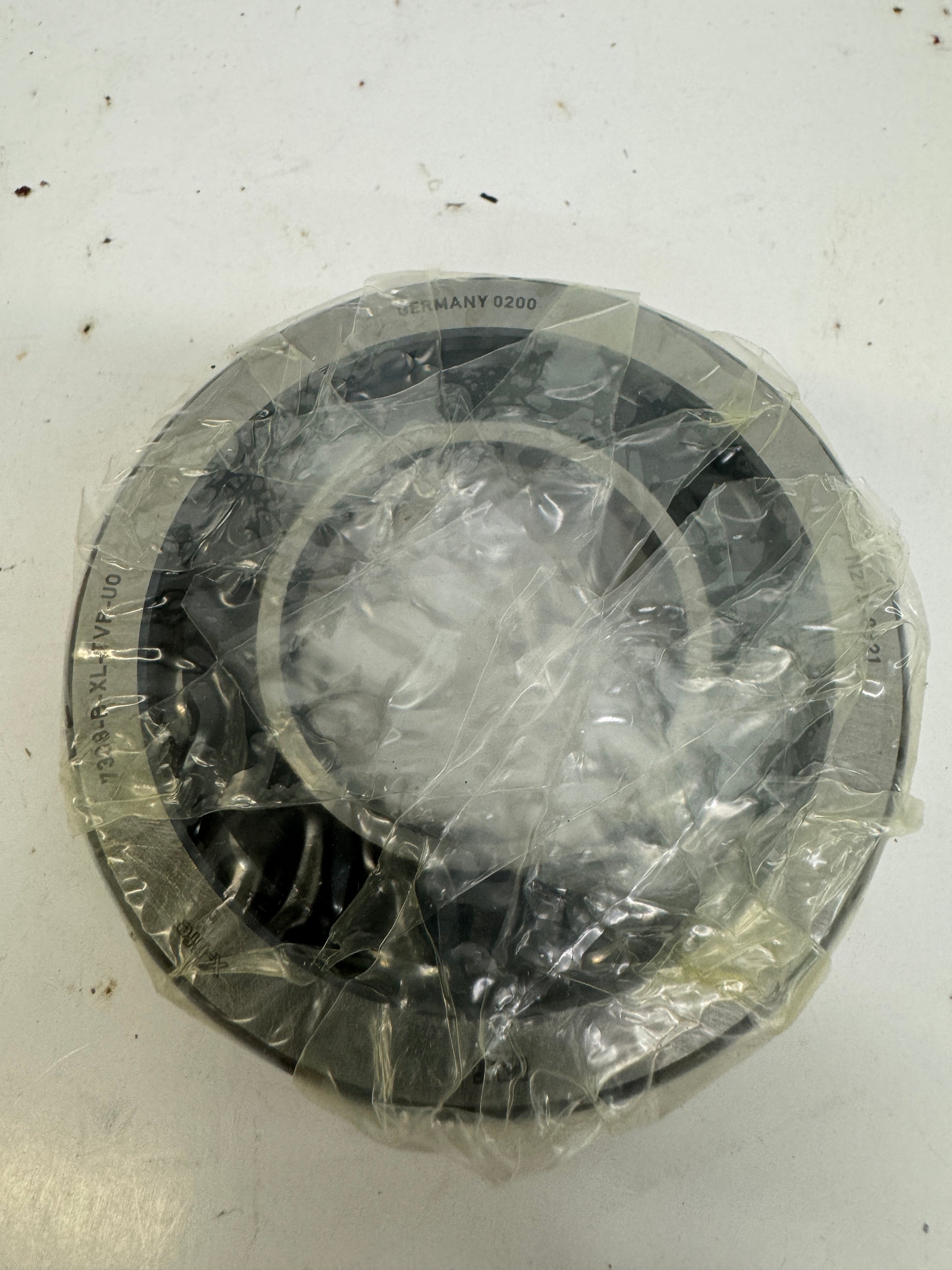

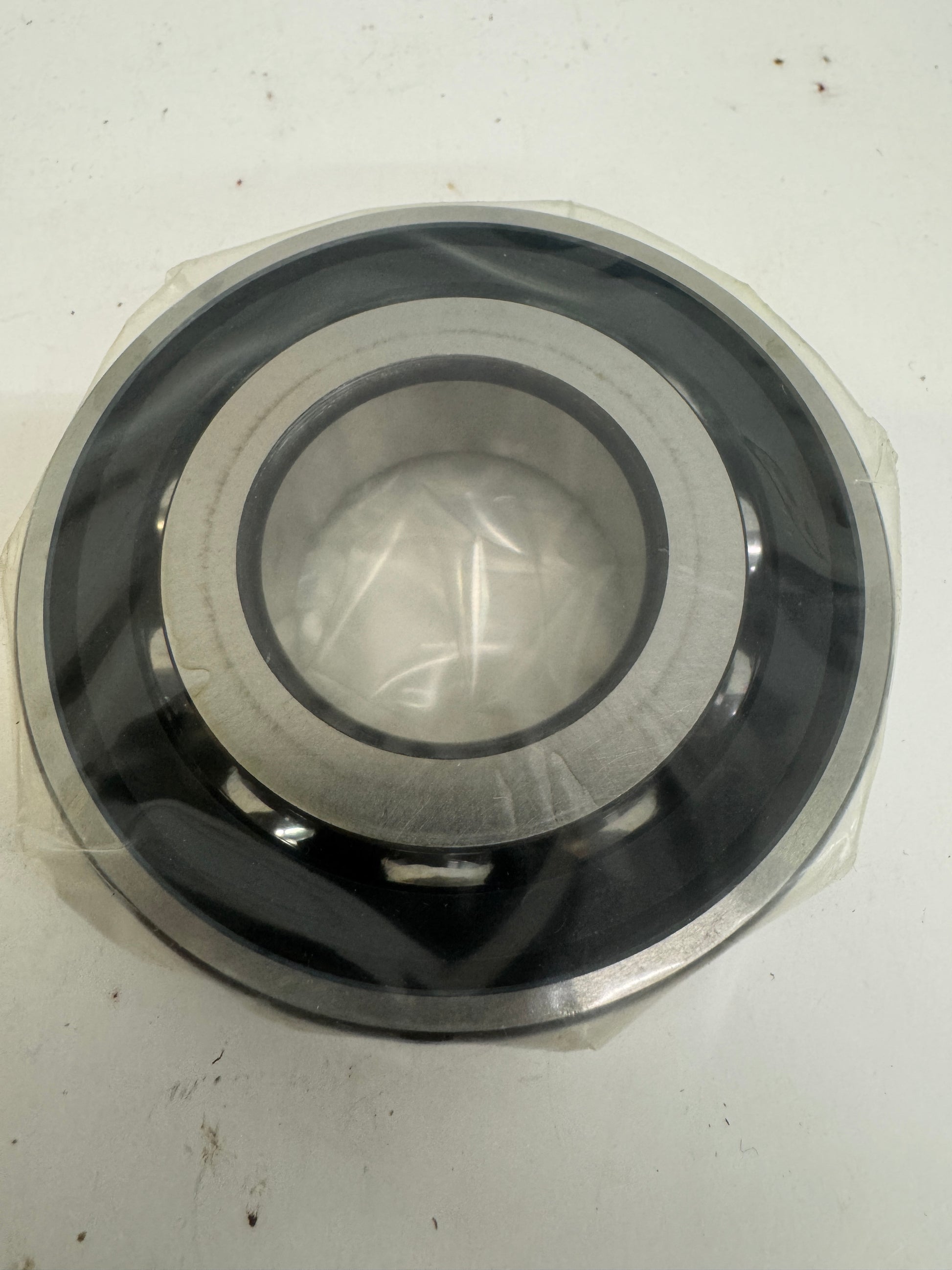

The FAG 7308-B-XL-TVP-UO is a single row angular contact ball bearing manufactured by Schaeffler in Germany. Part number 7308-B-XL-TVP-UO. Dimensions are 40 mm bore, 90 mm outer diameter, and 23 mm width. The XL designation indicates X-life construction, which utilizes enhanced surface quality, upgraded steel grade, and optimized rolling elements for increased load capacity compared to standard FAG angular contact bearings. The TVP cage designation indicates a glass fiber reinforced polyamide cage. The UO suffix indicates a universal arrangement design, meaning the bearing is clearance-free and can be paired with another UO bearing in either X or O arrangement. The contact angle is 40 degrees, a designation indicated by the B suffix in the part number, enabling the bearing to handle combined axial and radial loading with a high axial load component. Dynamic load rating is 53,000 N and static load rating is 34,500 N per published Schaeffler specifications. Maximum operating speed is 9,500 rpm under grease lubrication. The bearing is supplied in its original FAG packaging marked Made in Germany with date code 0200. Applications include machine tool spindles, pumps, compressors, and industrial gearboxes where axial and radial loads must be accommodated simultaneously.
Stock # 0426-01334
