FAG Deep Groove Ball Bearing 6305.2RSR.C3 25 x 62 x 17 mm
FAG Deep Groove Ball Bearing 6305.2RSR.C3 25 x 62 x 17 mm
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 6305.2RSR.C3
Stock #: 0426-01342

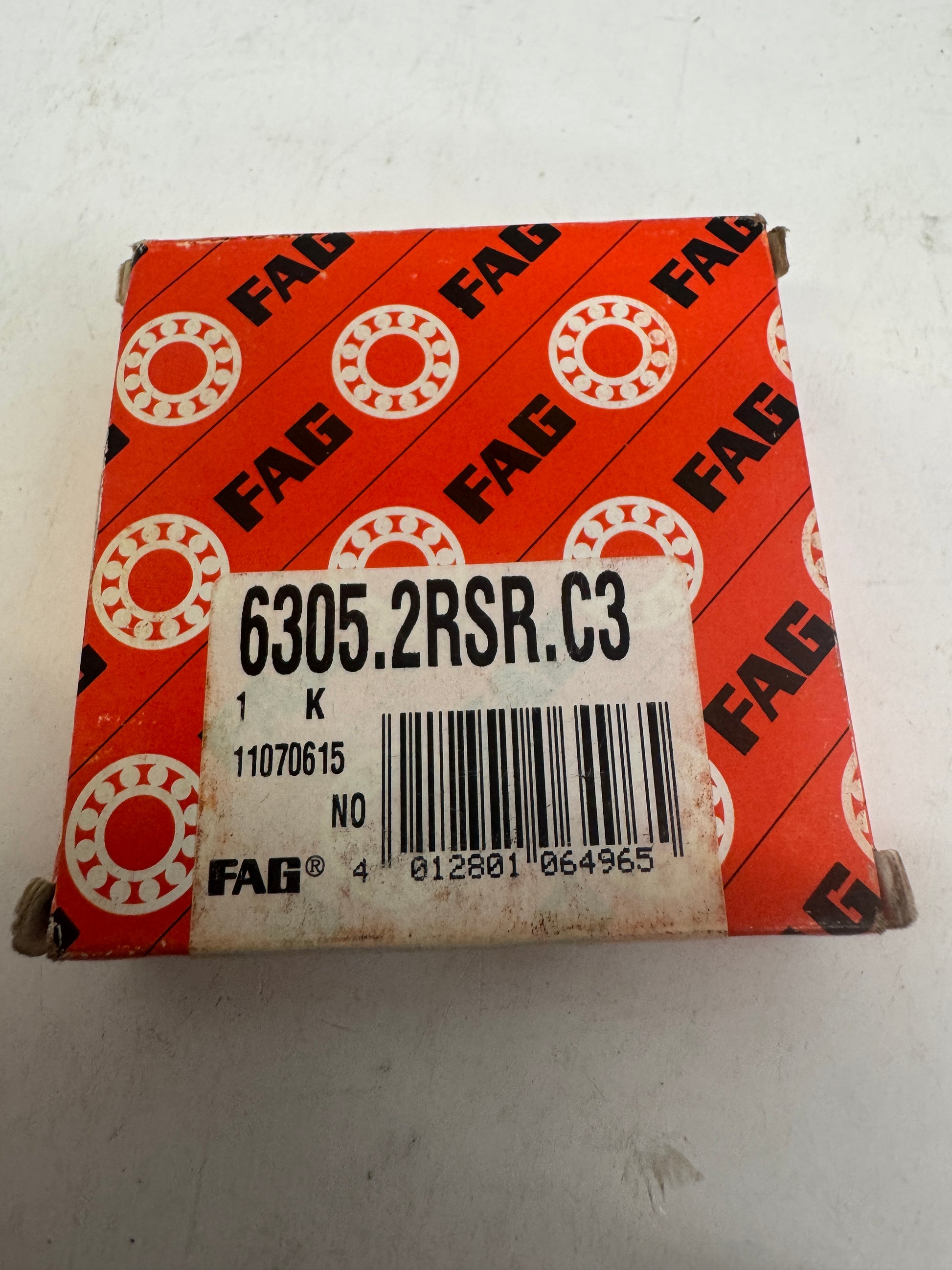

The FAG 6305.2RSR.C3 is a single-row deep groove ball bearing from Schaeffler's FAG brand, one of the most widely specified bearing manufacturers in industrial and OEM applications. The part number 6305.2RSR.C3 encodes its configuration: the 6305 designation indicates a medium-series deep groove geometry with a 25 mm bore, 62 mm outer diameter, and 17 mm width. The 2RSR suffix denotes rubber contact seals on both sides, providing protection against moisture and particulate ingress while retaining factory-applied grease lubrication for service life. The C3 suffix specifies greater-than-normal radial internal clearance per DIN 620-4 and ISO 5753, making this bearing suitable for applications involving elevated operating temperatures or higher rotational speeds where thermal expansion of the shaft or housing must be accommodated. Inner and outer rings are manufactured from through-hardened chromium steel per ISO 683-17. The bearing is retained in its original FAG packaging with label reading 6305.2RSR.C3, quantity 1 K, batch number 11070615. The 6305 frame size sees broad use across electric motors, gearboxes, pumps, fans, conveyor drives, and general industrial machinery. Compatible cross-references include 6305-2RS, 6305-2RSH, and 63052RSRC3 designations from other manufacturers.
Stock # 0426-01342
