FAG Deep Groove Ball Bearing 6306.2RSR.C3 30 x 72 x 19 mm
FAG Deep Groove Ball Bearing 6306.2RSR.C3 30 x 72 x 19 mm
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:

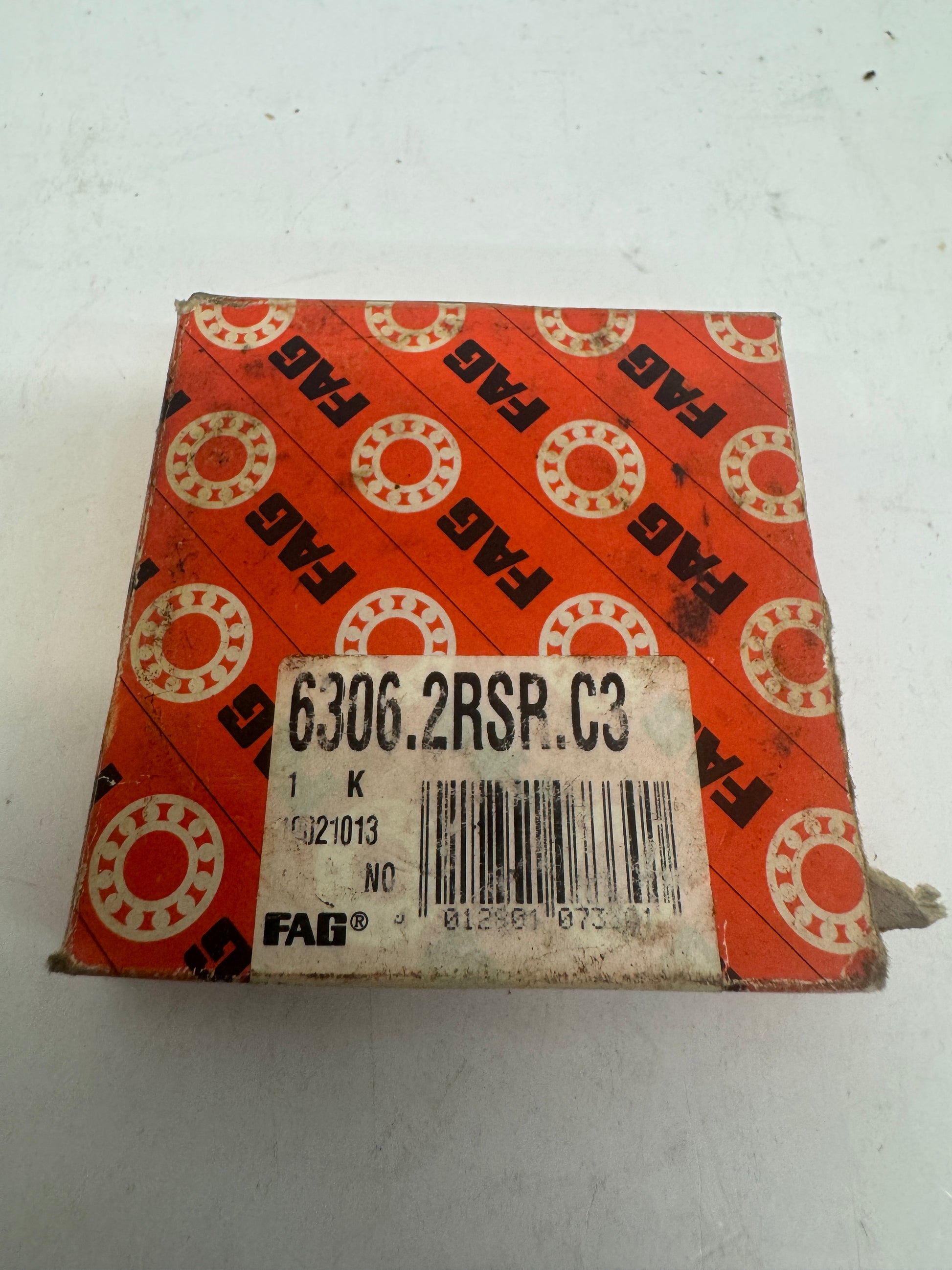

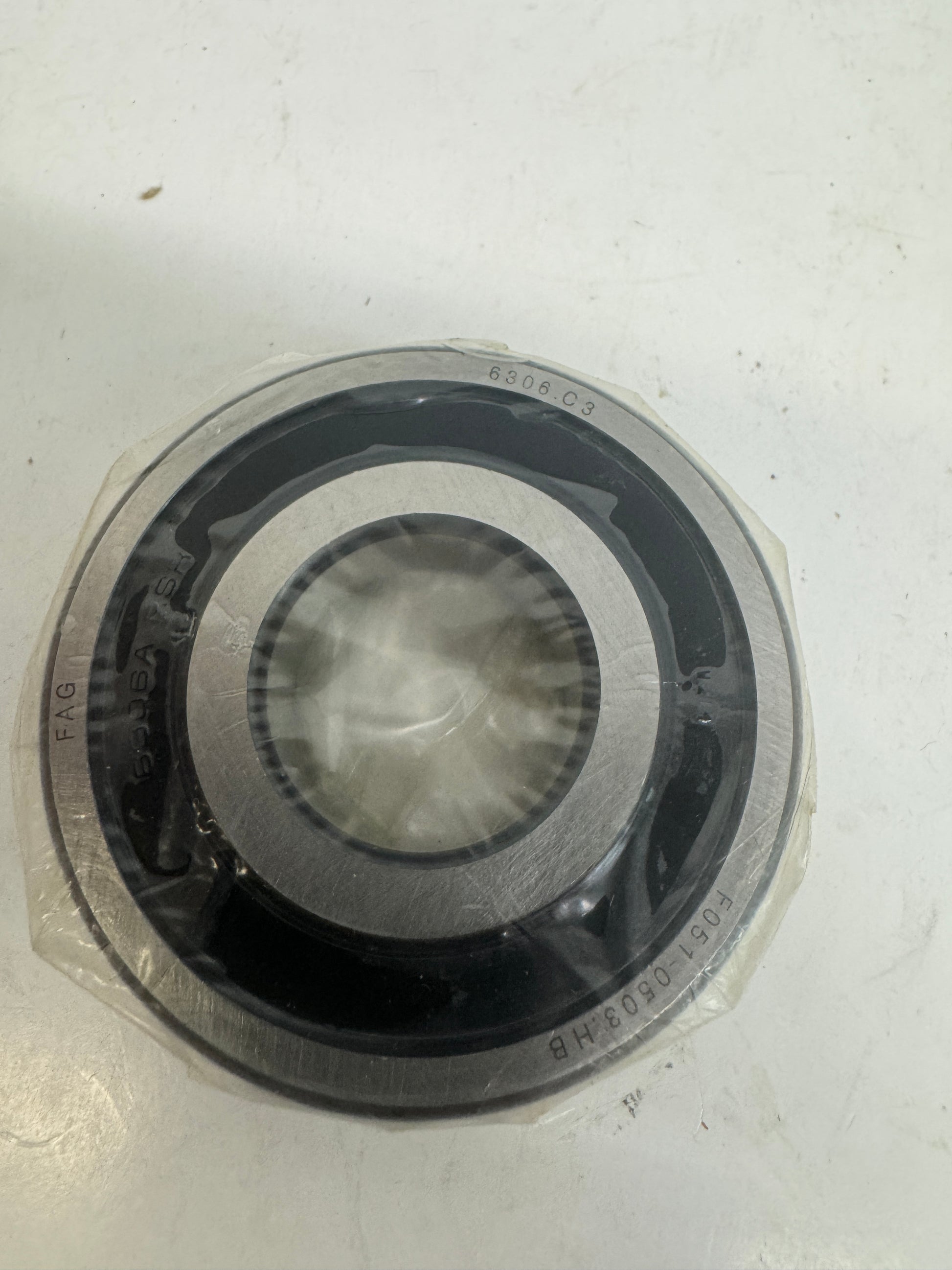

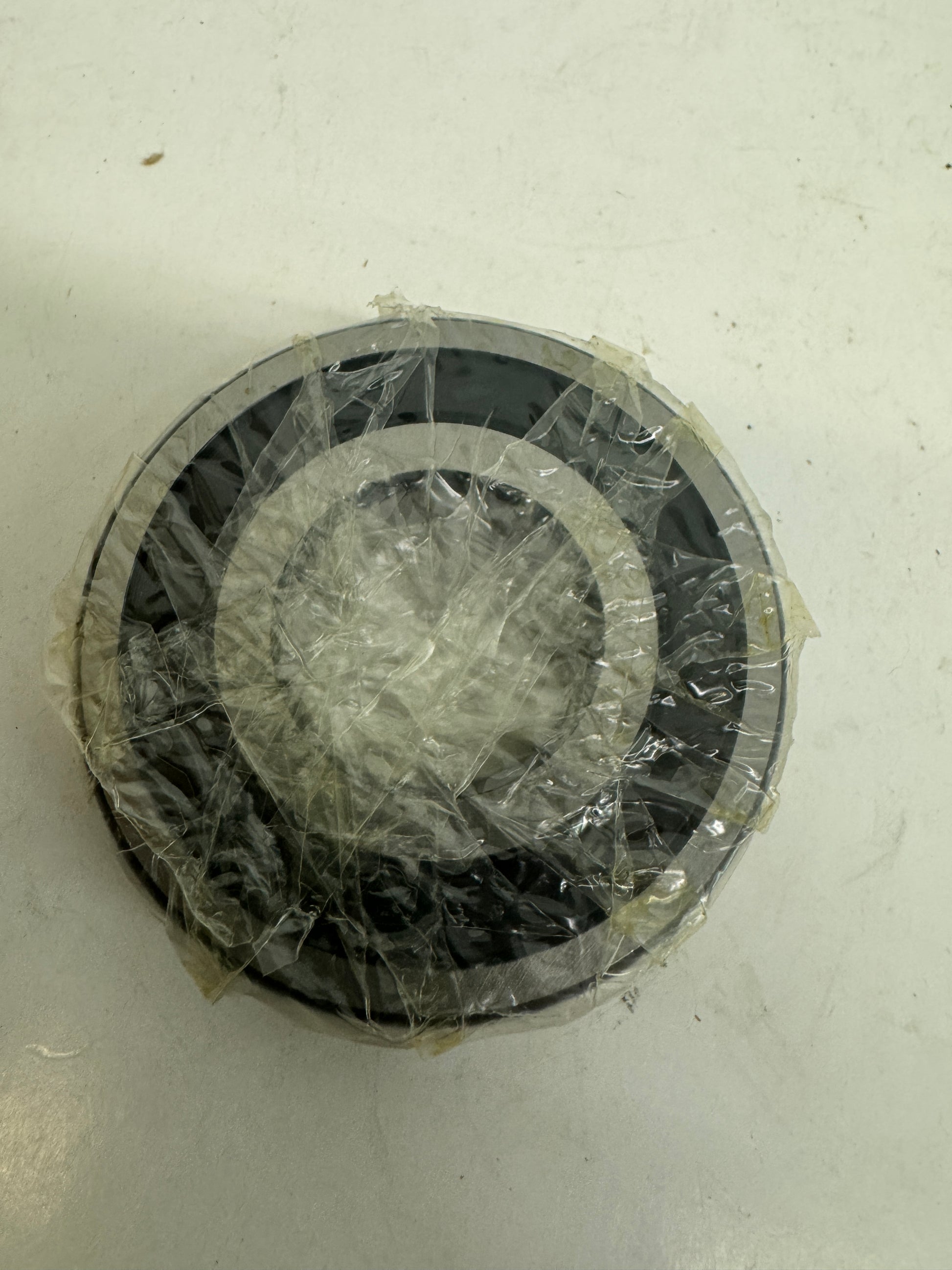

Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 6306.2RSR.C3
Stock #: 0426-01335
The FAG 6306.2RSR.C3 is a single-row deep groove ball bearing belonging to FAG's 6300 series, manufactured by Schaeffler. It carries dimensions of 30mm bore, 72mm outer diameter, and 19mm width. The 2RSR suffix denotes double-sided rubber contact seals, which protect the bearing interior against moisture and particulate contamination. Pre-greased and sealed for life, this bearing does not require relubrication in standard applications. The C3 internal clearance designation indicates a greater-than-normal radial play between the inner and outer rings, making it suitable for applications subject to elevated operating temperatures or higher rotational speeds where thermal expansion must be accommodated. FAG specifies a maximum rotational speed of 6,300 rpm for this bearing, with a dynamic load capacity of 6,550 lbf and a static load capacity of 3,650 lbf. The steel cage construction supports reliable ball separation under load. This bearing is a widely used metric-dimensioned component found in electric motors, gearboxes, pumps, compressors, agricultural machinery, and general industrial equipment. Part number 6306.2RSR.C3 is the standard FAG designation; cross-reference equivalents include SKF 6306-2RSH/C3 and Timken 6306-2RS-C3. Item is in original FAG packaging.
Stock # 0426-01335
