FAG 3212-BD-TVH-C3 Double Row Angular Contact Ball Bearing – 60mm ID x 110mm OD x 36.5mm Width – New
FAG 3212-BD-TVH-C3 Double Row Angular Contact Ball Bearing – 60mm ID x 110mm OD x 36.5mm Width – New
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 3212-BD-TVH-C3
Stock #: 0226-00168

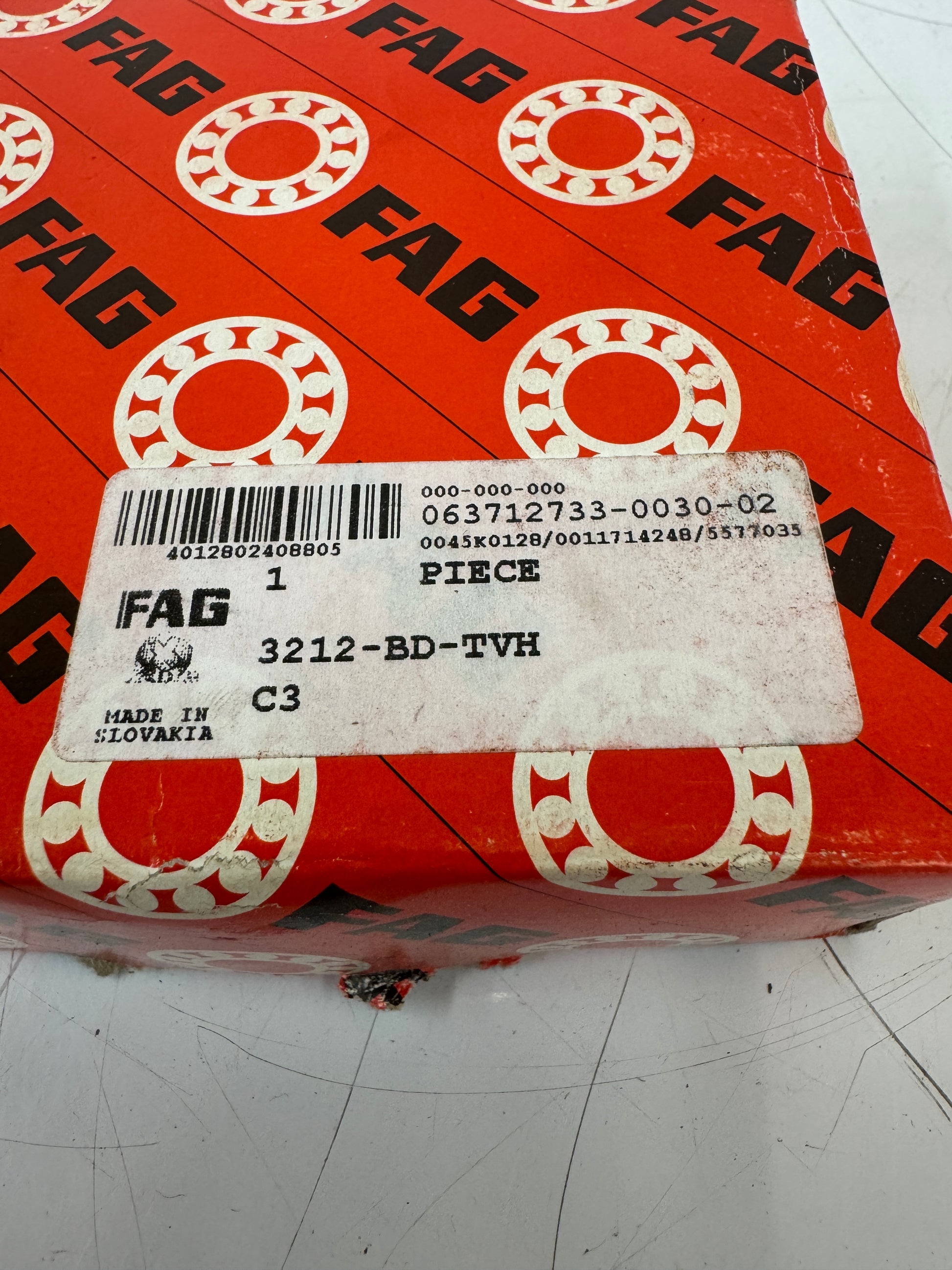

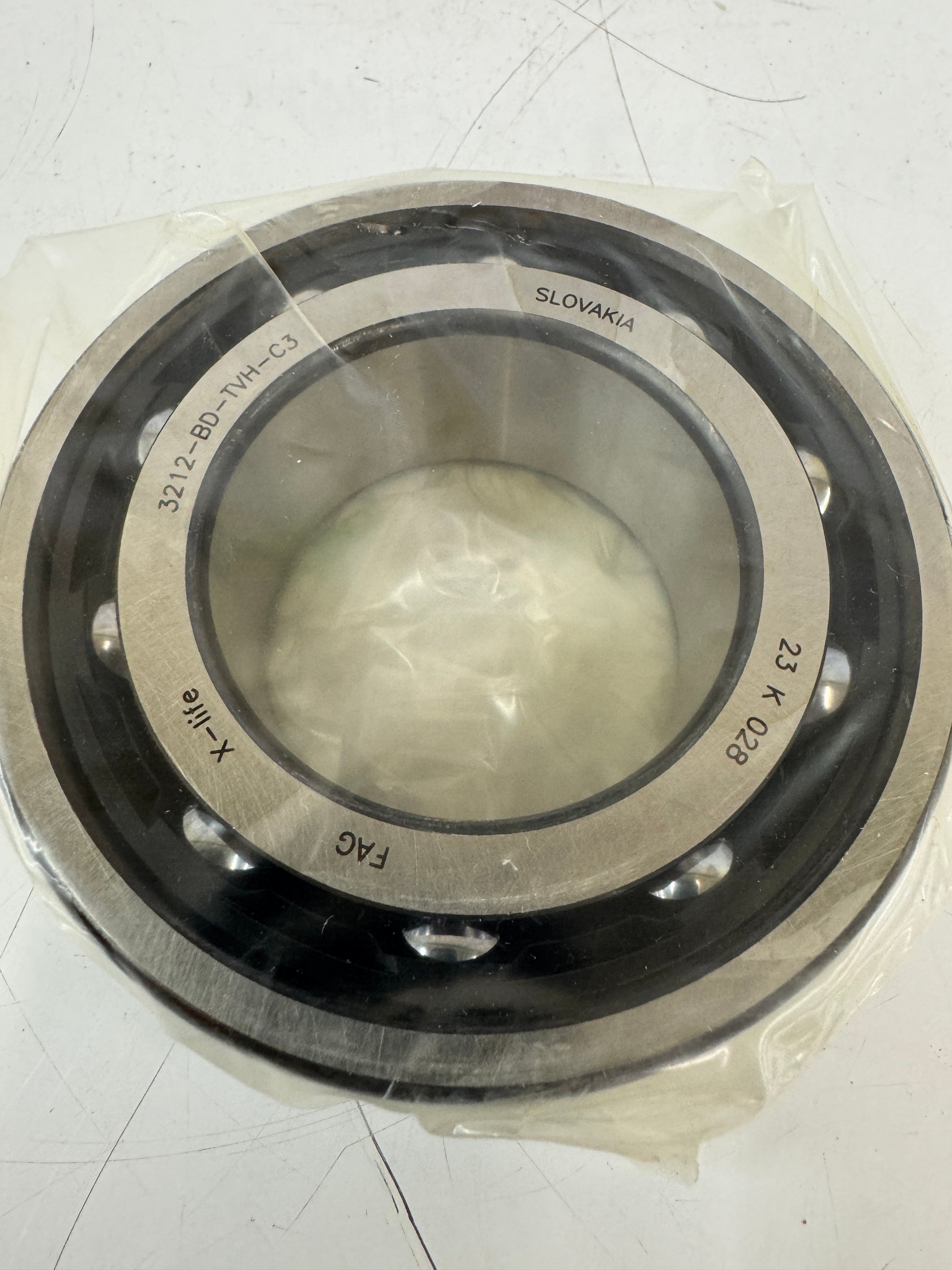

The FAG 3212-BD-TVH-C3 is a double row angular contact ball bearing manufactured by Schaeffler in Slovakia. Carton markings identify the part as 3212-BD-TVH with C3 internal clearance and a quantity of one piece. The bearing carries production tracking codes 063712733-0030-02 and 4012802408805, along with internal references 0045K0128/0011714248/5577035 printed on the carton label.
Per published Schaeffler specifications for the 32-BD series, this bearing has a 60 mm bore, 110 mm outer diameter, and 36.5 mm width. It uses two rows of balls in an O arrangement with a 30 degree contact angle, supporting combined radial and axial loads in both directions. The TVH suffix designates a moulded polyamide snap type cage that is rolling element riding. The C3 designation indicates internal radial clearance greater than standard CN, suited to applications running at elevated speeds or with thermal expansion at the inner ring.

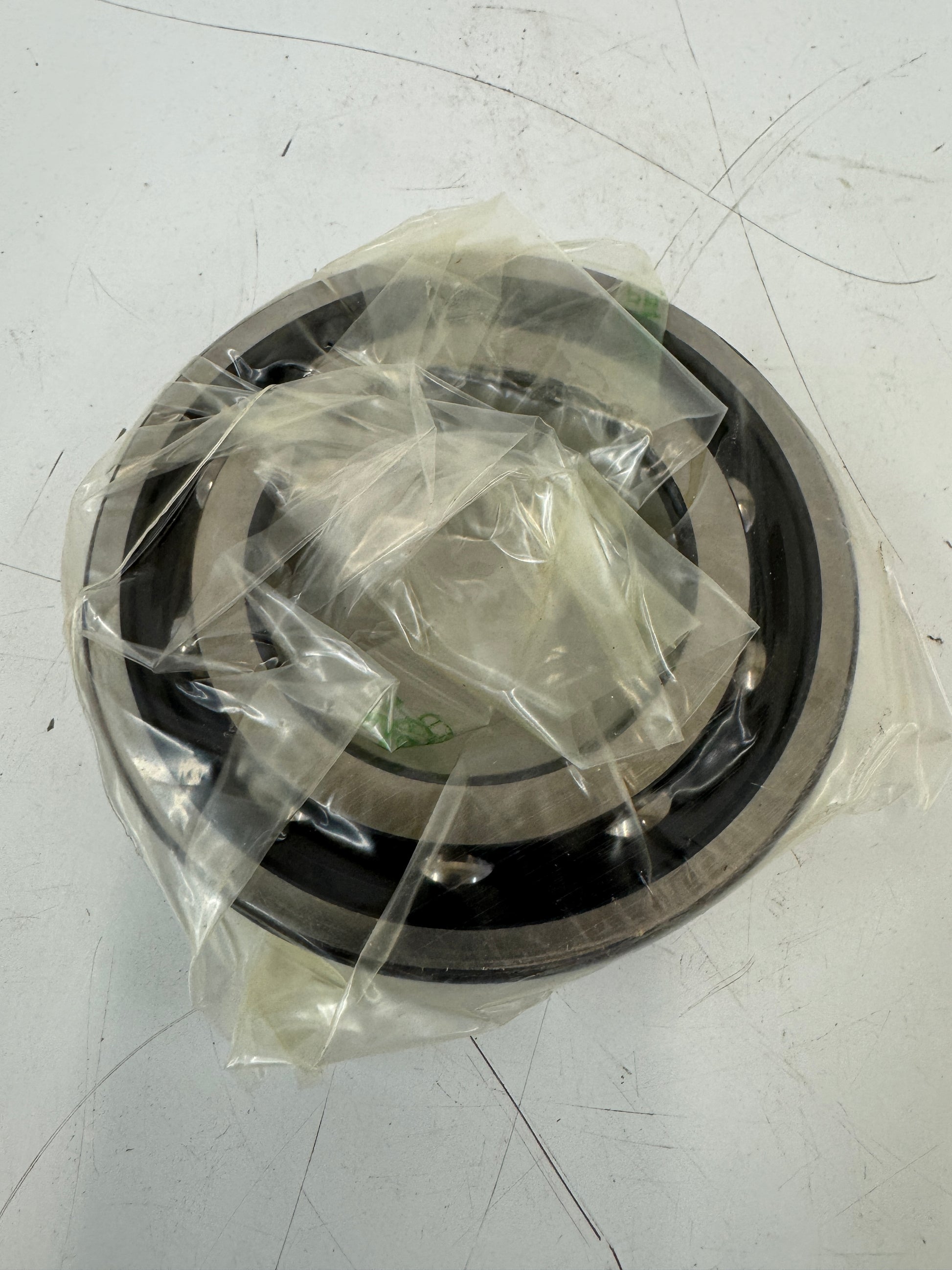

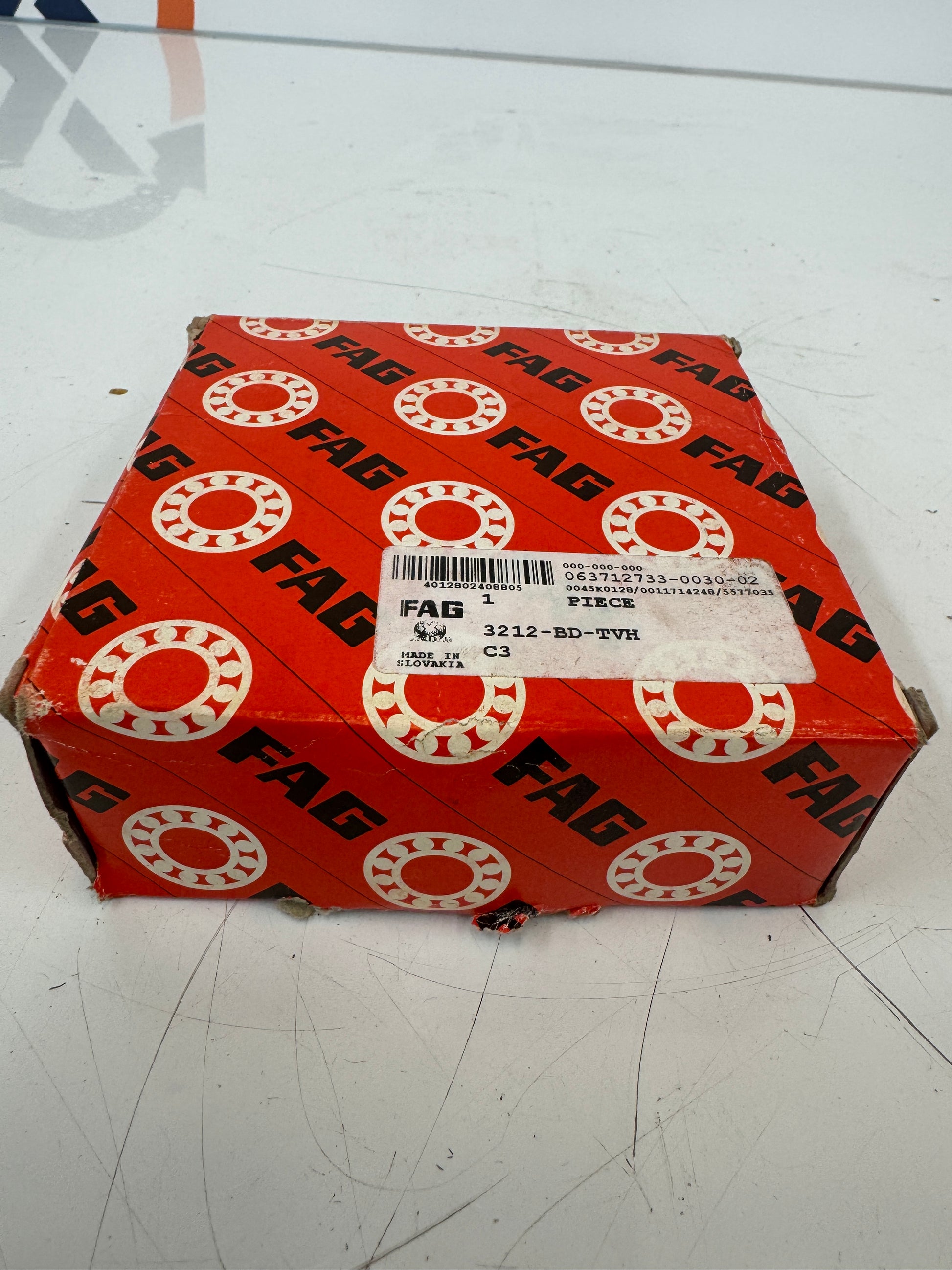

Common applications for 32 series double row angular contact ball bearings include machine tool spindles, gearboxes, pumps, fans, agitators, and general industrial drive assemblies where simultaneous radial and bidirectional axial load capacity is required in a compact width. The bearing is supplied in the original FAG carton as shown.
Dimensional values listed above are sourced from manufacturer published specifications rather than direct measurement. Buyers should verify clearance class, cage type, and dimensions against their application before installation.
Stock # 0226-168
