FAG 6310.2RSR.C3 Deep Groove Ball Bearing – 50mm ID x 110mm OD x 27mm Width – New
FAG 6310.2RSR.C3 Deep Groove Ball Bearing – 50mm ID x 110mm OD x 27mm Width – New
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: 6310.2RSR.C3
Stock #: 0226-00173

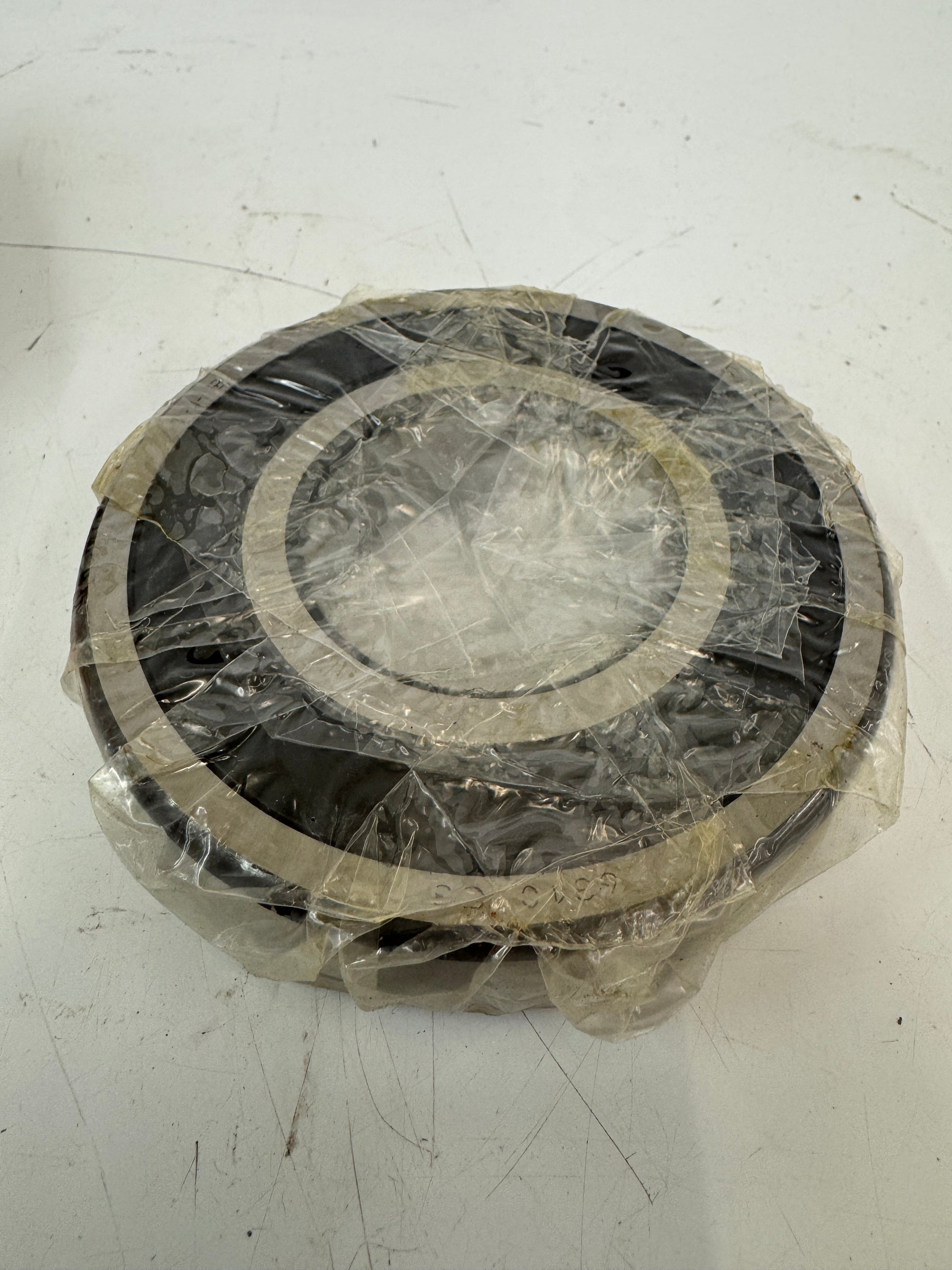

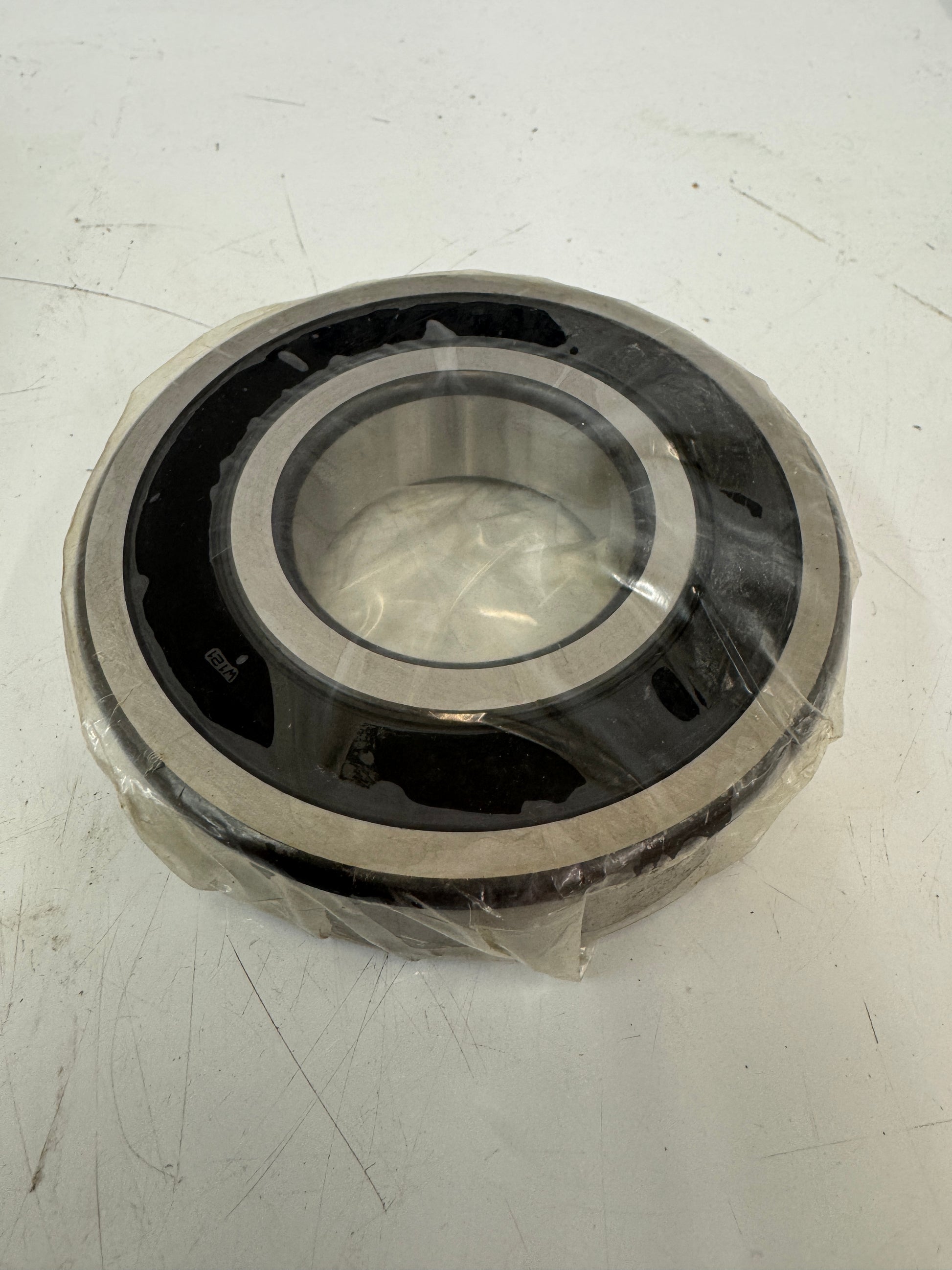

The FAG 6310.2RSR.C3 is a single row deep groove ball bearing with rubber contact seals on both sides and C3 internal clearance. Dimensions per manufacturer published specifications are 50 mm bore, 110 mm outside diameter, and 27 mm width. The 2RSR seal designation indicates rubber sealing on each side of the bearing, providing protection against contaminants and helping retain factory grease lubrication. The C3 suffix denotes a radial internal clearance greater than the Normal class, suitable for applications involving elevated operating temperatures, interference fits on the shaft or housing, or higher rotational speeds where additional internal clearance accommodates thermal expansion.

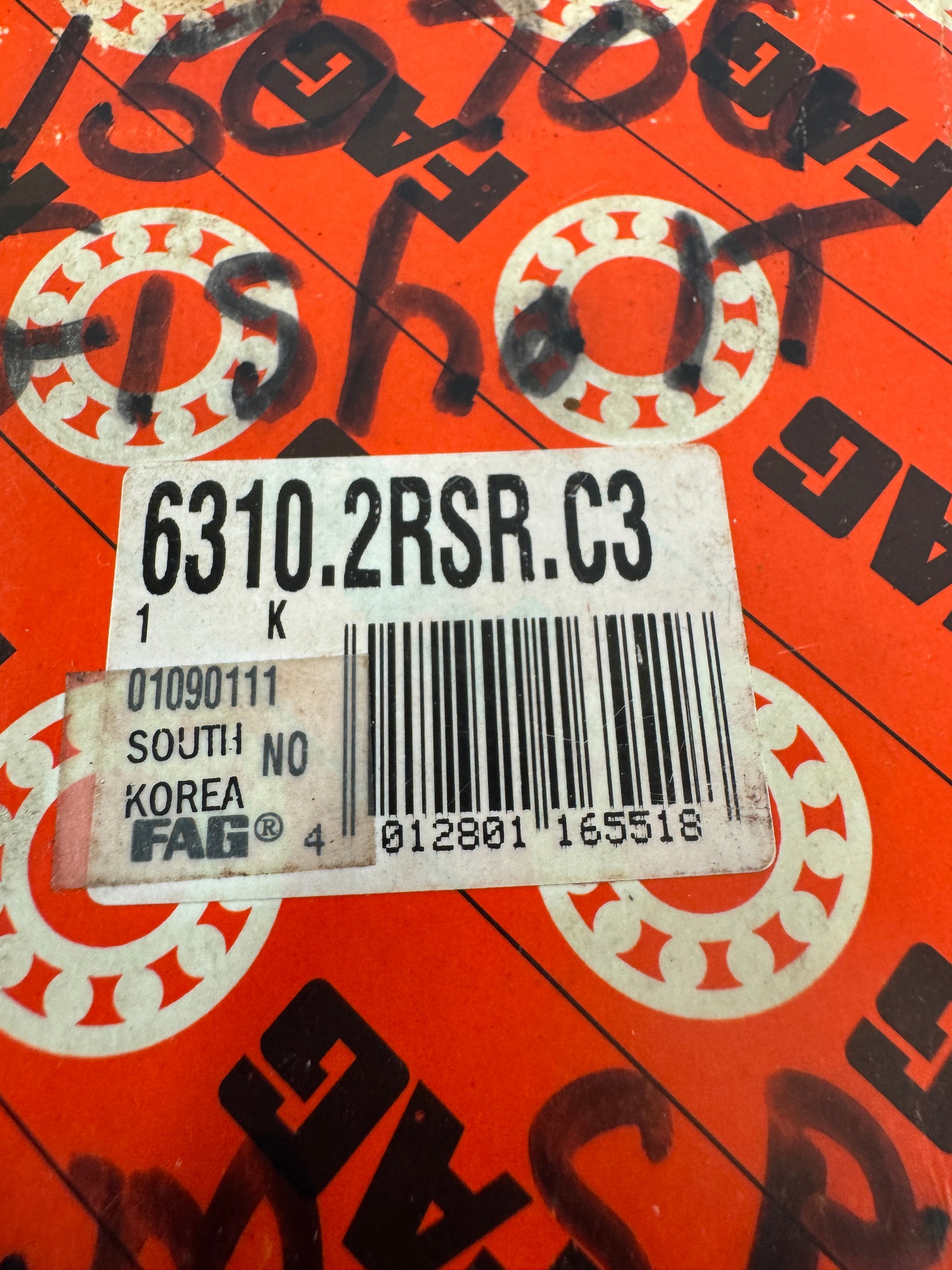

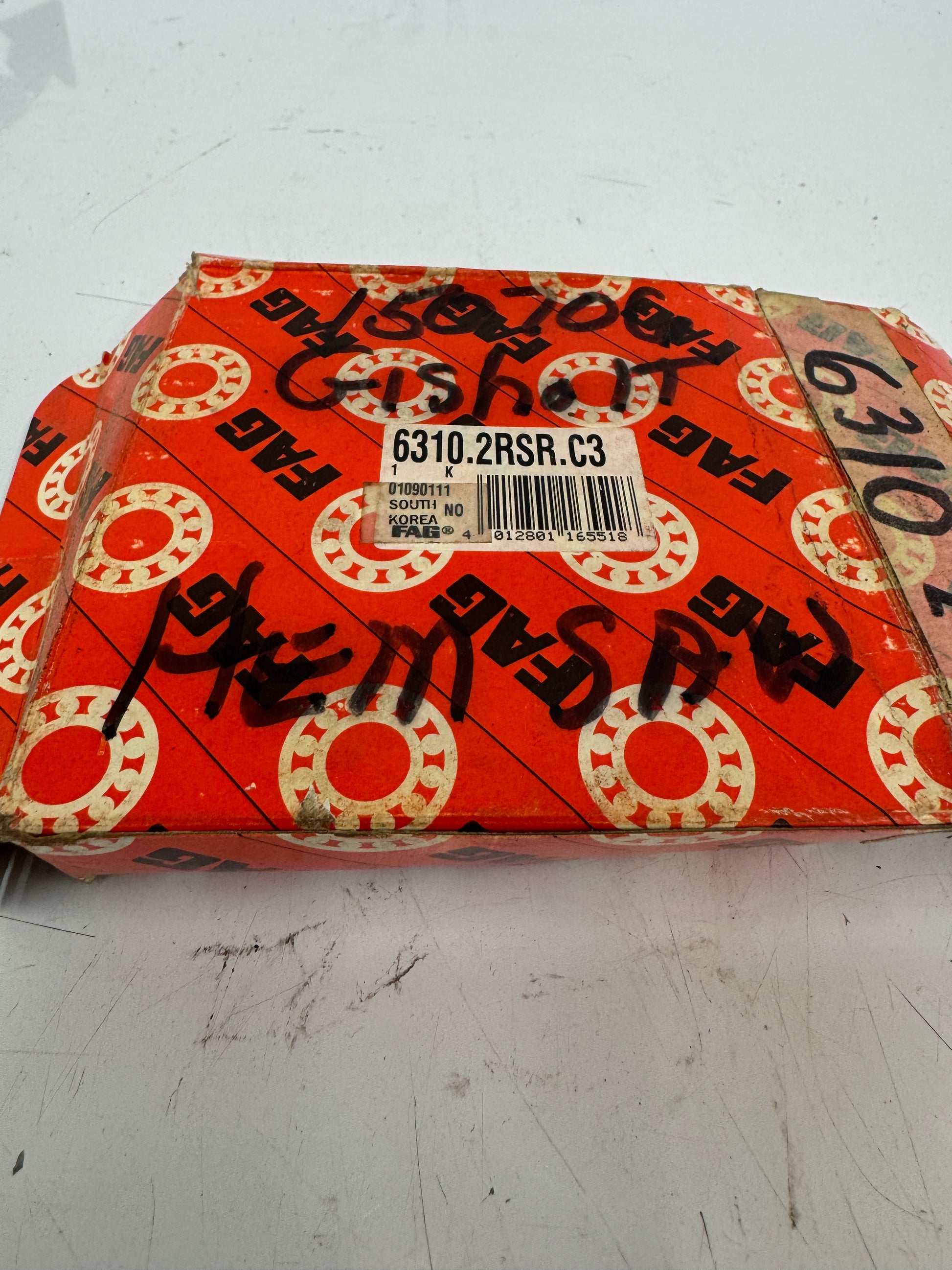

Marked 6310.2RSR.C3 with manufacturing code 01090111 and country of origin South Korea. Branded with the FAG logo, part of the Schaeffler Group. Barcode 4012801165518 is present on the package label.
This medium series 6300 family bearing is widely used in electric motors, gearboxes, pumps, fans, conveyors, agricultural machinery, and general industrial power transmission applications. The deep groove geometry supports radial loads and limited axial loads in both directions, making it a versatile choice for shaft support in rotating equipment. The sealed design reduces the need for relubrication during service life. Cross reference designations commonly associated with this part include 6310 2RS C3, 6310 2RSR C3, and 63102RSRC3. Buyer is responsible for verifying specifications and suitability for the intended application before installation.
Stock # 0226-173
