FANUC A03B-0819-C011 (AIF01A) 24 VDC I/O Interface Module
FANUC A03B-0819-C011 (AIF01A) 24 VDC I/O Interface Module
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

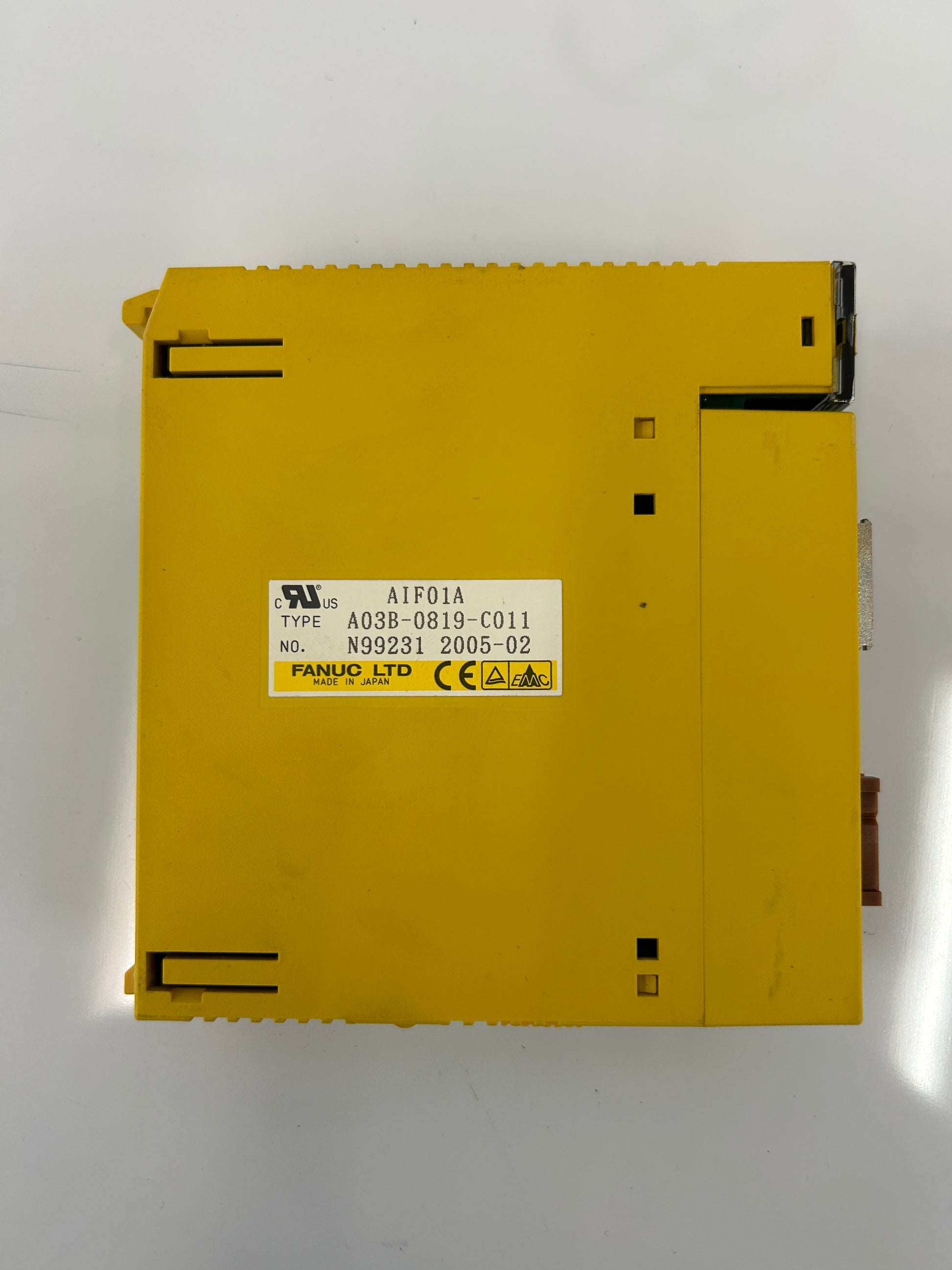

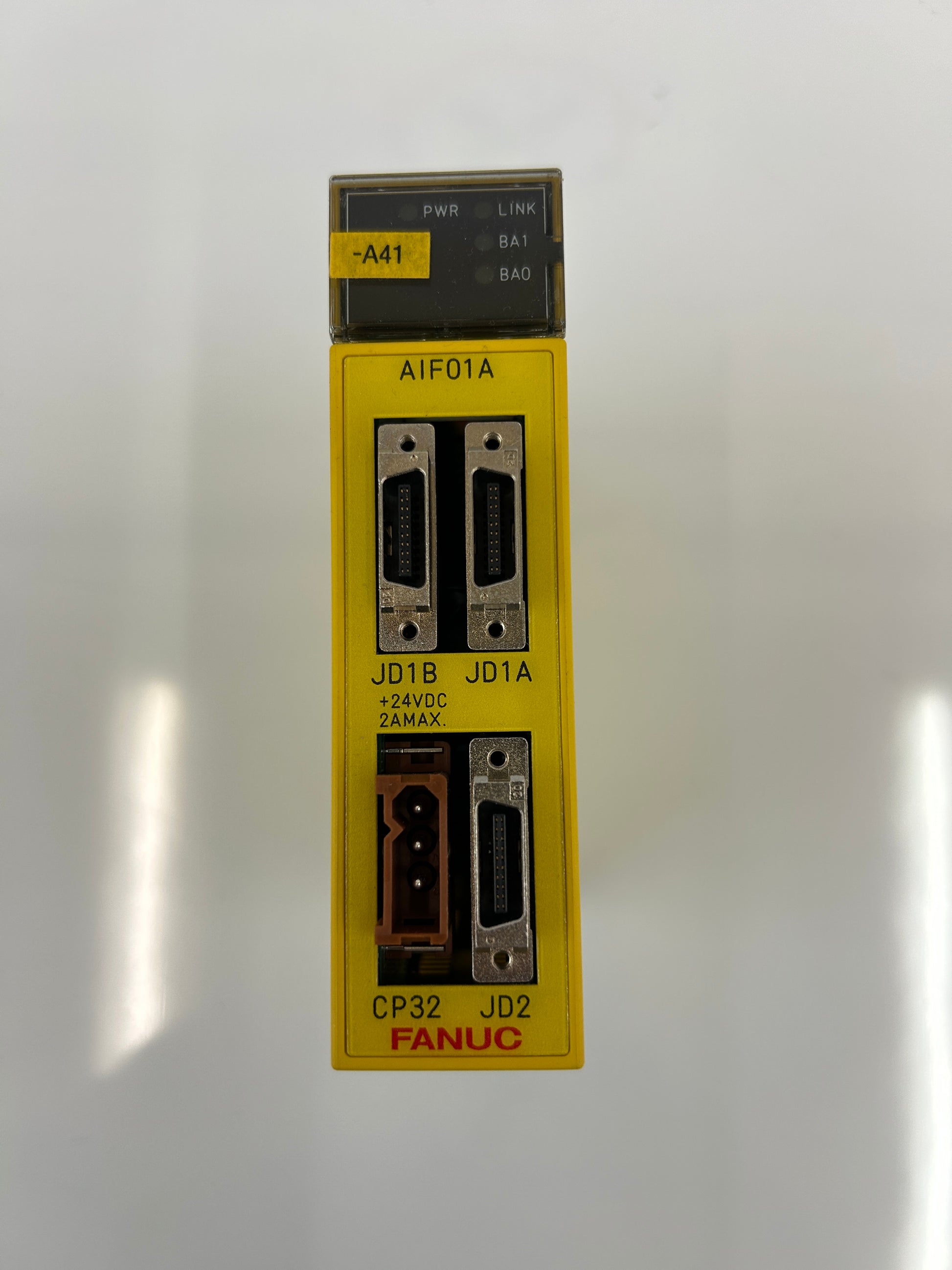

The Fanuc A03B-0819-C011 is an I/O interface module identified on the nameplate as AIF01A. It is part of the Fanuc I/O Unit MODEL A series, used as the interface command module that connects I/O modules to the host CNC or PMC system via the Fanuc I/O Link. The unit operates on 24 VDC with a maximum draw of 2 A and provides the electrical interface that allows other I/O modules within the rack to switch under PMC ladder control. The module shown carries serial number N99231 and a 2005 02 date code, with UL and CE compliance markings present on the rating plate. It is manufactured in Japan and is commonly installed in Fanuc CNC platforms including the Series 16, 18, 21, 0i, 30i, 31i, and 32i, as well as Fanuc robot controllers and various FA equipment using the I/O Link protocol. The AIF01A is also referenced as a functional replacement for the earlier A03B-0807-J011 and A03B-0807-C011 interface modules. Typical companion modules in the same rack family include the A03B-0819-C001 ten slot backplane and the A03B-0819-C002 and A03B-0819-C003 five slot backplanes, along with associated input, output, and analog modules. Specifications noted above are based on the visible nameplate data and Fanuc published documentation for this part number.
Stock # 0226-029
