FANUC A03B-0819-C156 (AOD32D1) 12/24V DC Output Module
FANUC A03B-0819-C156 (AOD32D1) 12/24V DC Output Module
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

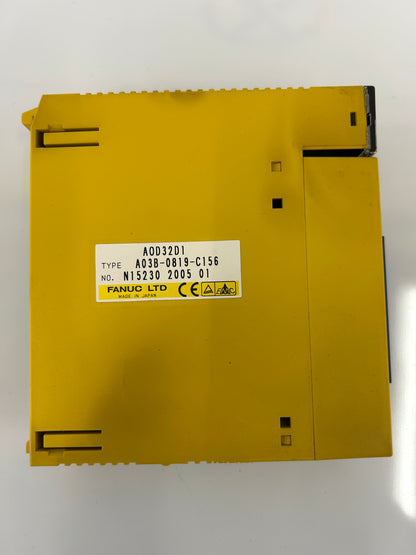

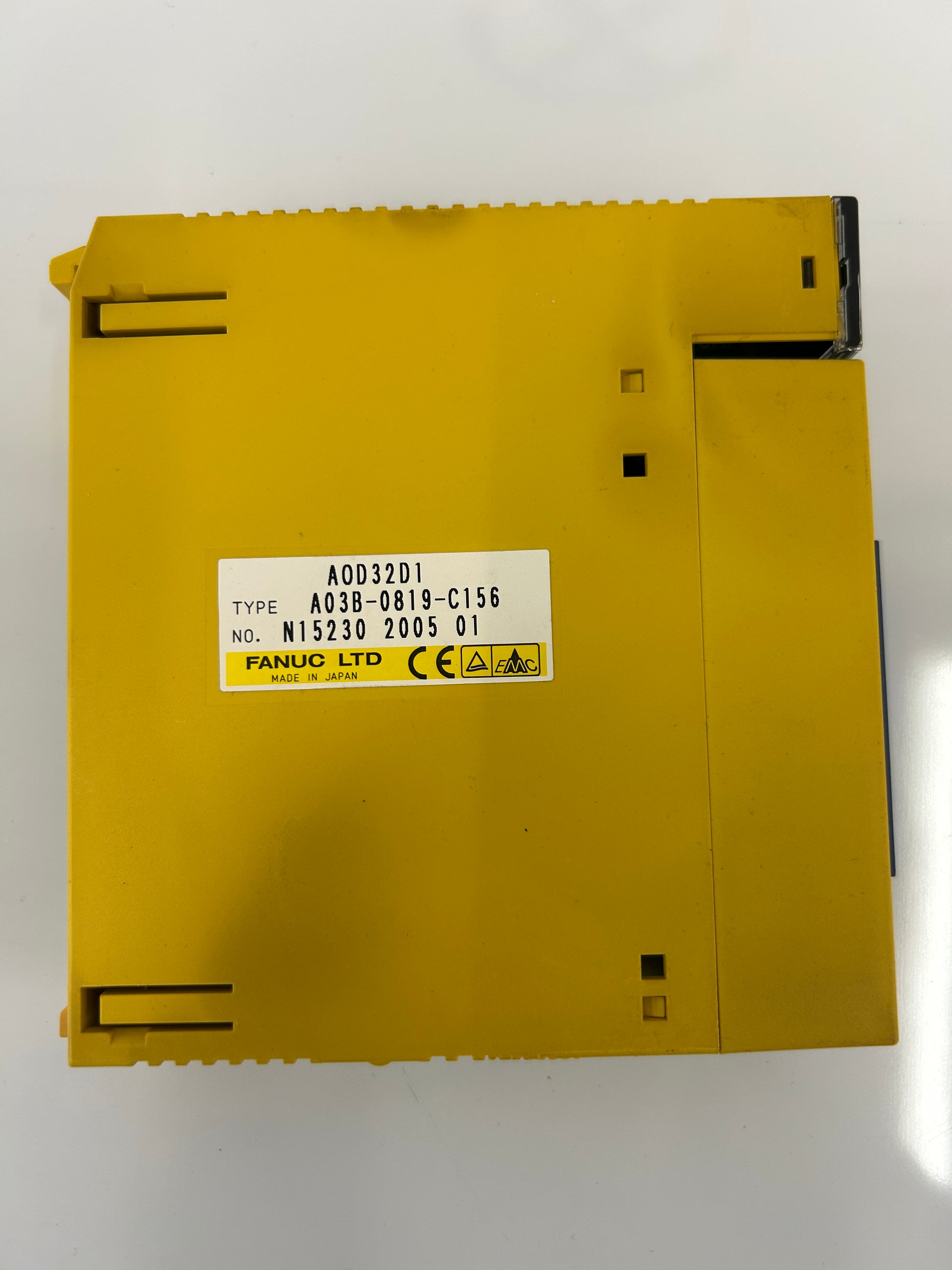

The Fanuc A03B-0819-C156 is a 32 point DC output module identified by the model designation AOD32D1. It operates on 12/24V DC and provides 32 digital output points for use in Fanuc CNC and automation I/O assemblies. The unit carries serial number N15230 and date code 2005 01, with CE and EMC compliance markings present on the nameplate. Manufactured by Fanuc Ltd. in Japan, this module is part of the A03B-0819 series of I/O components designed to integrate with Fanuc 5 slot and 10 slot I/O base units. The module connects through standard Fanuc I/O backplane interfaces and is commonly deployed in machine tool control cabinets, robotic cells, and factory automation systems where 32 channels of low voltage DC output switching are required. Each output channel handles direct current load switching at the rated 12V or 24V DC supply. Compatible base units in the same product family include the A03B-0819-C002 5 slot base and the A03B-0819-C011 power supply module. The AOD32D1 is referenced in Fanuc documentation as a successor lineage to the earlier A03B-0807-C156 platform, sharing the same AOD32D1 designation across product generations. Typical applications include solenoid valve control, indicator lamp drive, relay coil energization, and general purpose digital signaling within Fanuc Series 0, 16, 18, 21, 30, 31, and 32 control architectures. Nameplate markings include the type code, serial number, date code, and country of manufacture.
Stock # 0226-028
