Fanuc A06B-0147-B075#7008 AC Servo Motor 5 HP 2000 RPM

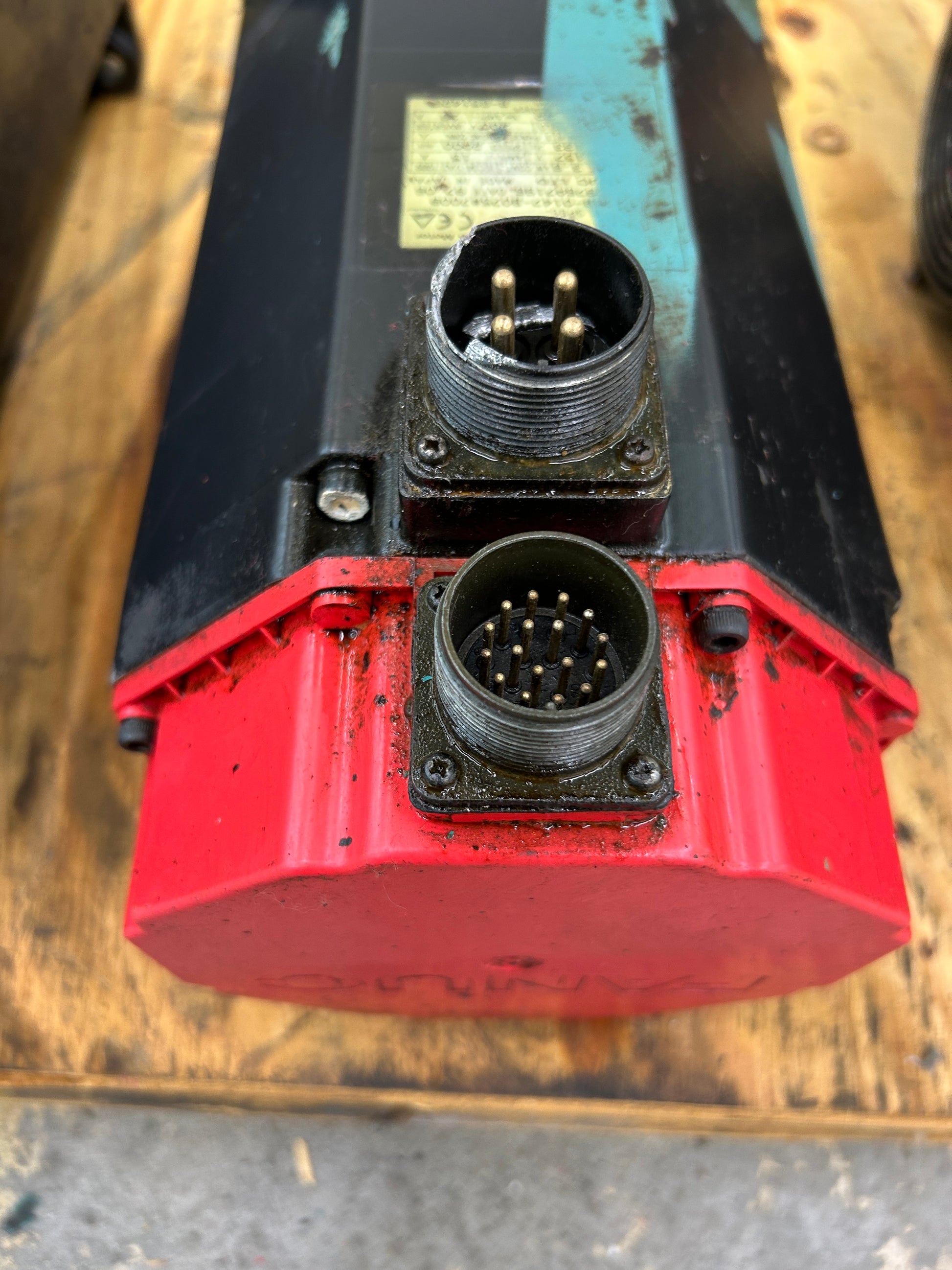

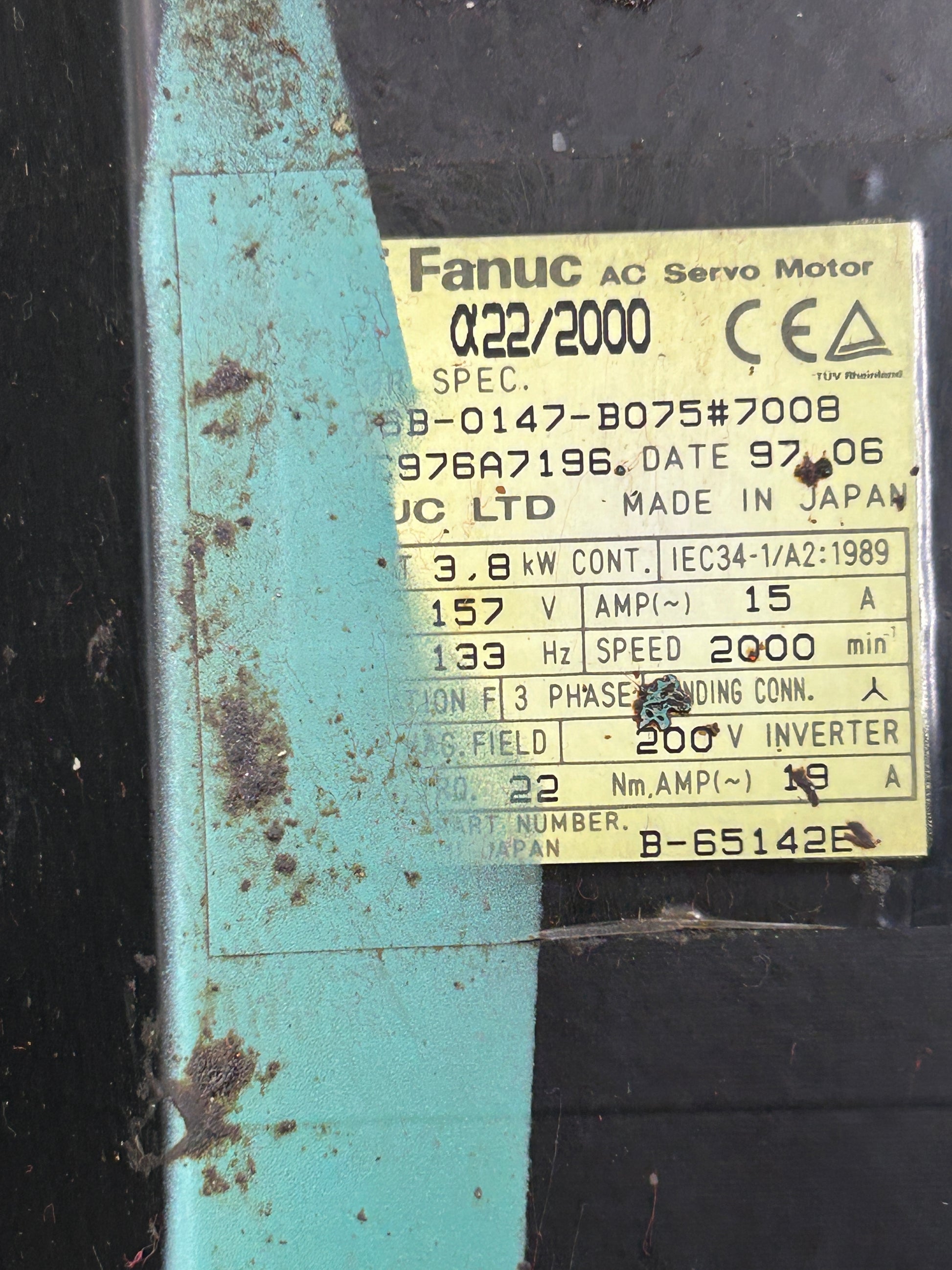

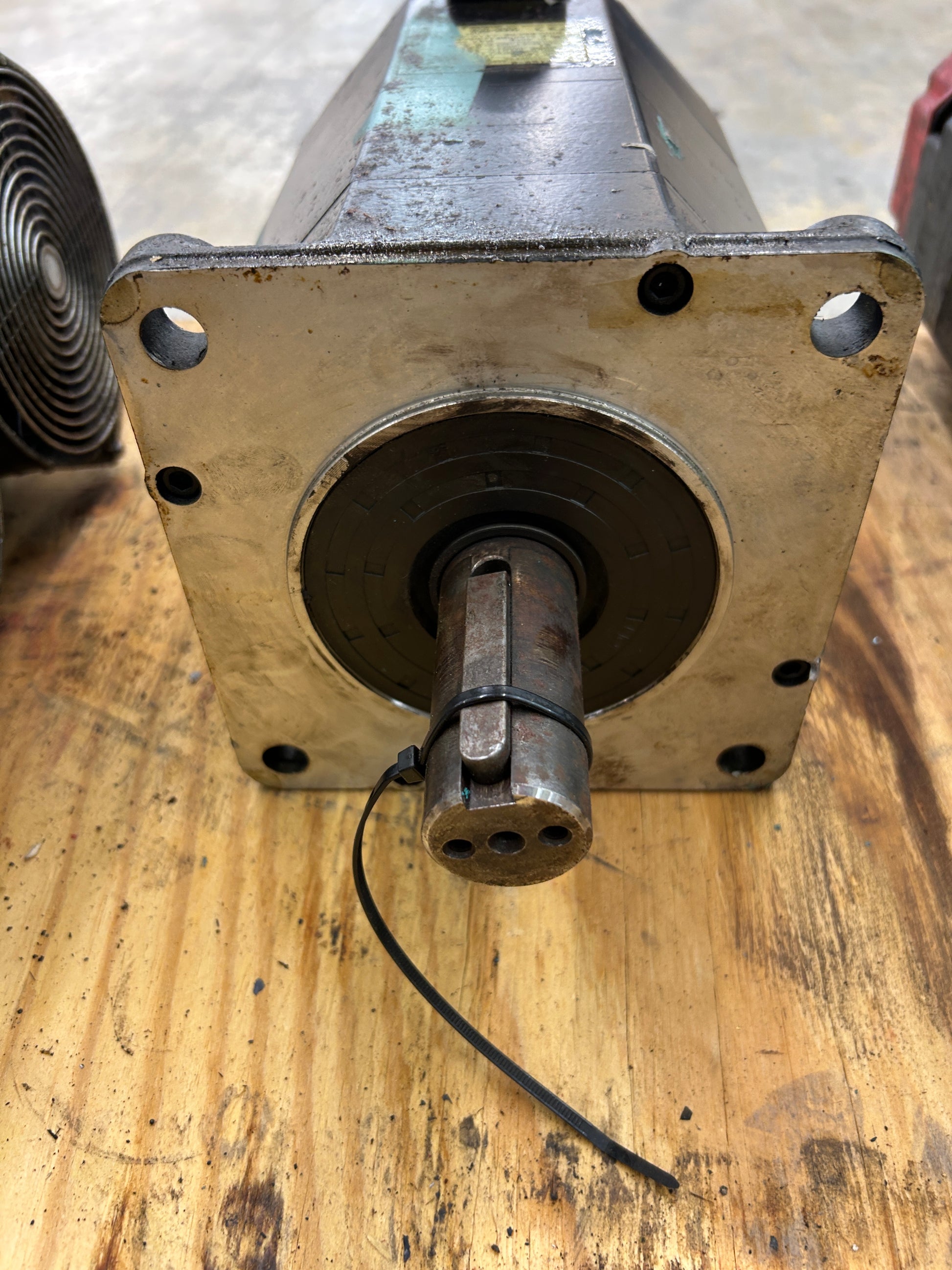

The Fanuc A06B-0147-B075#7008 is an Alpha series AC servo motor, model α22/2000, designed for use in CNC machine tools and industrial automation systems. The nameplate identifies a continuous output rating of 3.8 kW with a rated current of 15 amps and a maximum current of 19 amps. Input is three phase at 157 V AC, 133 Hz, with a 200 V inverter drive source. Rated speed is 2,000 RPM and rated torque is 22 Nm. The motor features a straight shaft with key and is fitted with an A64 absolute pulse encoder for position feedback. Construction is per IEC34 1/A2:1989, with insulation class F and IP rated housing. The unit carries CE marking with TÜV Rheinland certification and was manufactured in Japan. Date code on the nameplate reads 97 06. Serial number 976A7196 is present on the rating plate. Two threaded conduit entries provide separate power and feedback connections, with a four pin power connector and a multi pin feedback connector visible on the rear housing. The Fanuc Alpha 22/2000 platform is commonly used on small and medium sized CNC lathes, machining centers, and turning centers as a spindle or axis drive motor. Cross reference variants in the A06B-0147-B075 family include suffixes #7000, #0008, and #0000, which differ primarily in shaft configuration, sealing, and brake options. The MPN A06B-0147-B075#7008 should be matched exactly to the original equipment configuration when sourcing a replacement.

Stock # 0226-101
