GE Fanuc A06B-0858-B075#7000 AC Spindle Motor 10 HP 1500 RPM

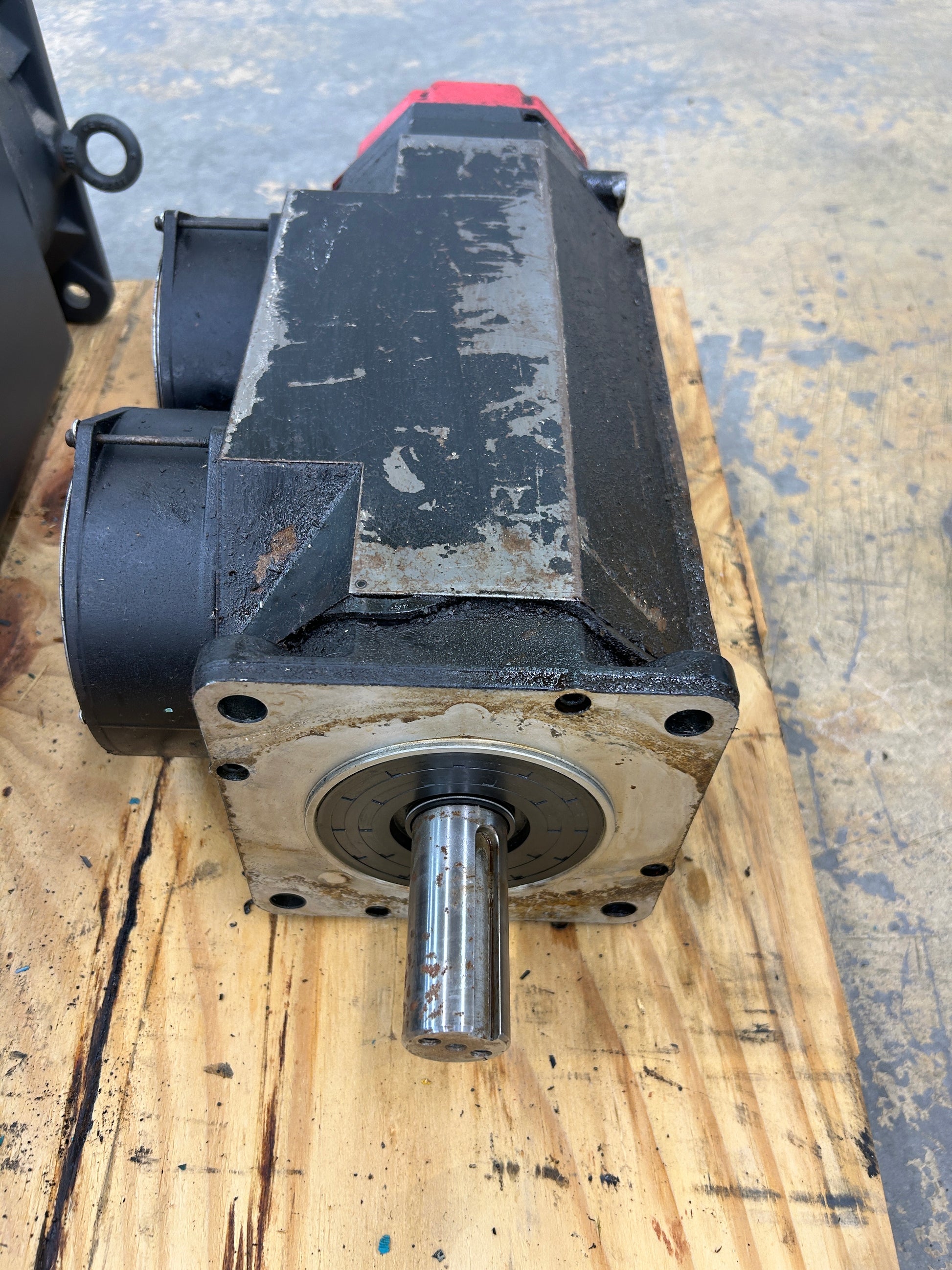

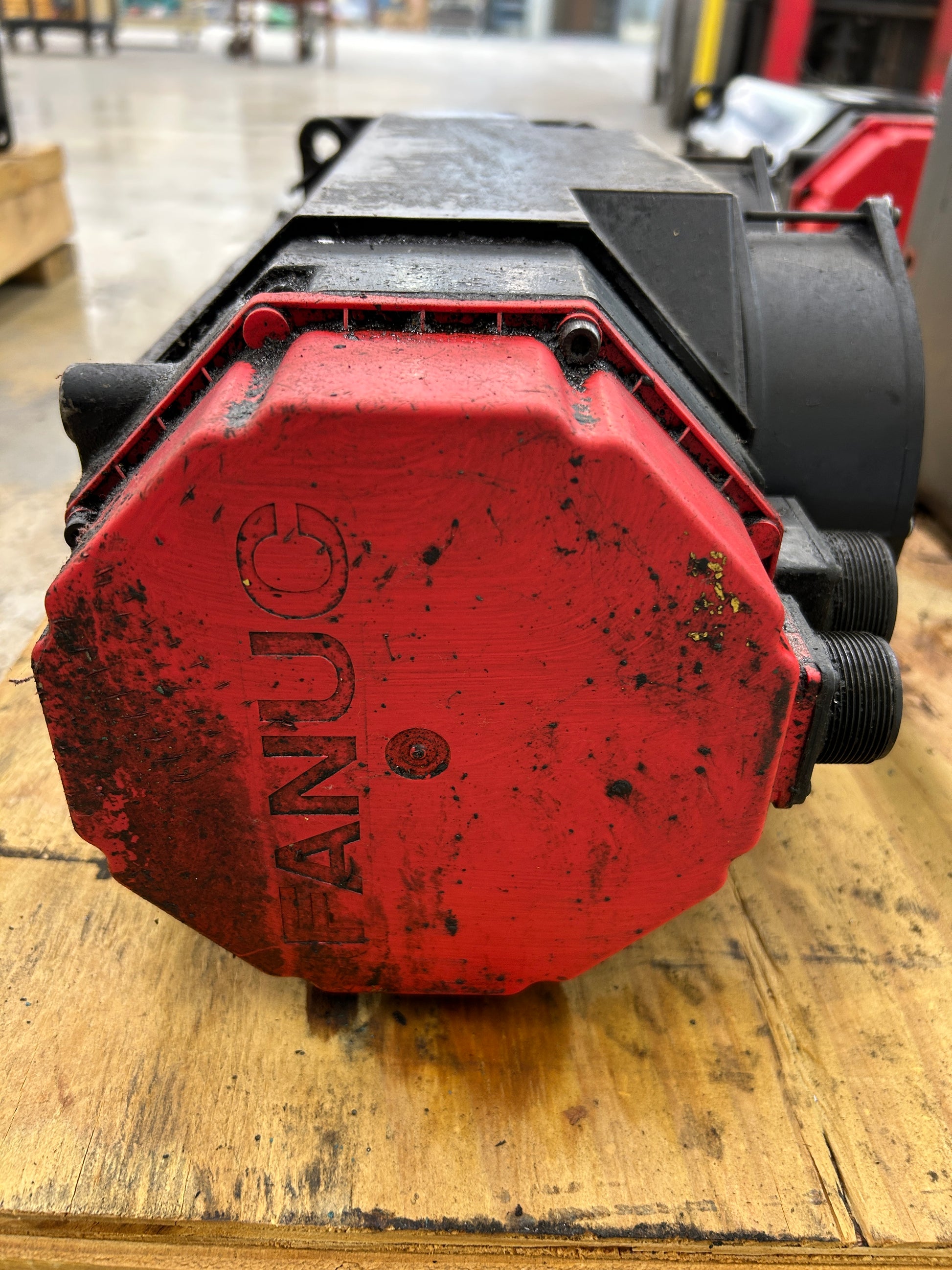

The GE Fanuc A06B-0858-B075#7000 is an AC spindle motor from the Fanuc Alpha series, model designation 040/2000 (Alpha 18). This three phase induction motor is rated at 7.3 kW continuous output, 184 volts, 133 Hz, with Class F insulation. The motor utilizes the A18 frame size with foot mount construction and a keyed cylindrical output shaft. A position feedback sensor is integrated at the rear of the motor for closed loop spindle control, accessed through a separate sensor connector housing. The main power terminal box is mounted to the rear of the stator housing for three phase power connection. This motor is commonly used as a main spindle drive in CNC machining centers, turning centers, and grinding machines that operate with Fanuc spindle amplifier modules and Fanuc CNC controls. The A06B-0858 series is part of the Alpha (α) spindle motor family designed to provide constant power across a wide speed range with rapid acceleration and deceleration characteristics. Compatible drive systems include Fanuc Series 0, 15, 16, 18, 20, 21, and Power Mate controls when paired with the appropriate spindle amplifier module from the A06B-6078, A06B-6088, or A06B-6102 series. Specification A06B-0858-B075#7000 indicates the foot mount configuration with key on the front shaft and the standard sensor option. Serial number C975G0055 is recorded on the nameplate. Sold as removed surplus.

Stock # 0226-103
