FANUC A06B-0269-B200#0100 Alpha iS 30/4000HV AC Servo Motor 6 kW 3000 RPM
FANUC A06B-0269-B200#0100 Alpha iS 30/4000HV AC Servo Motor 6 kW 3000 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

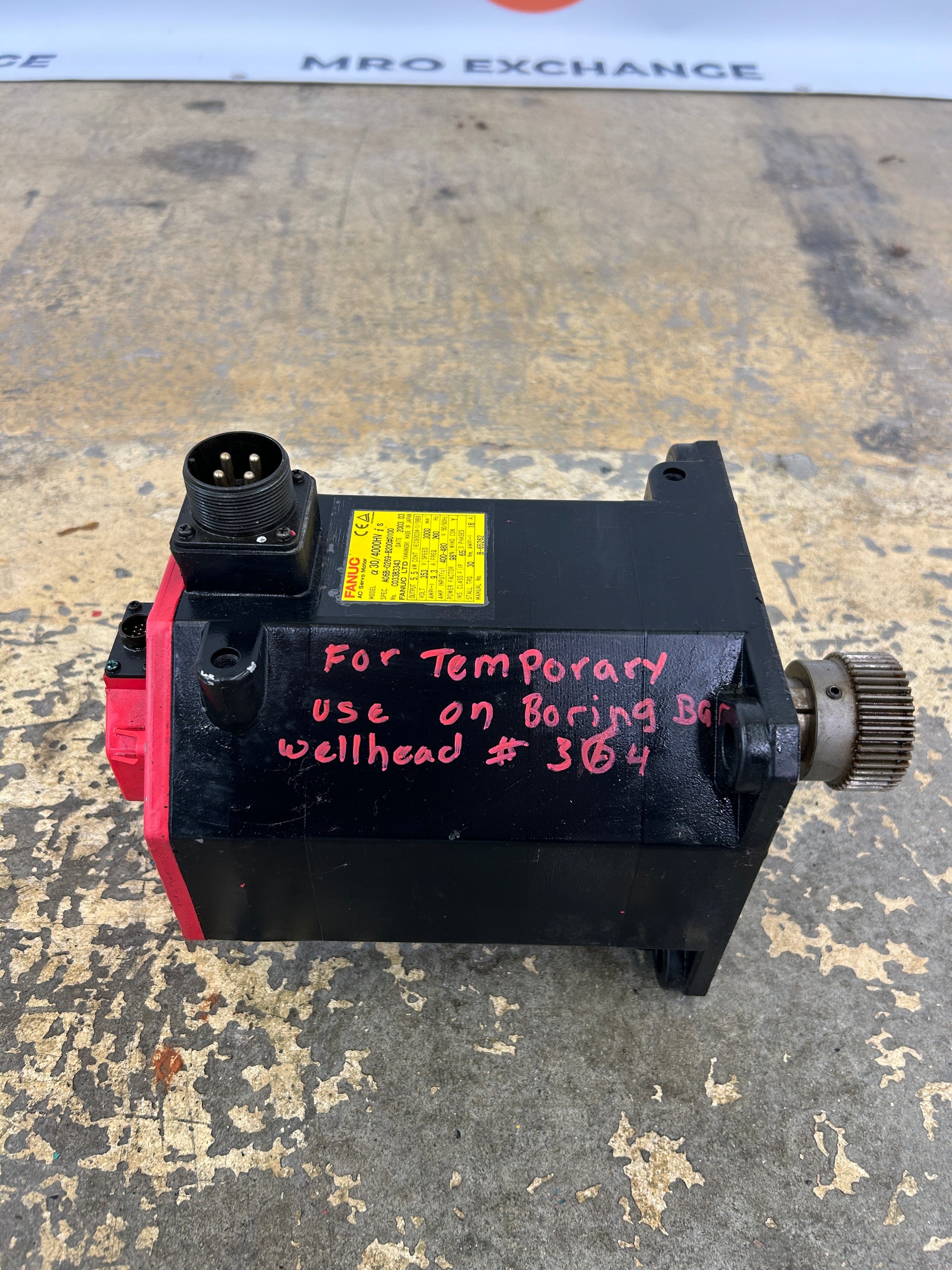

The Fanuc A06B-0269-B200#0100 is an AC servo motor from the Alpha iS series, identified on the rating plate as model Alpha iS 30/4000HV. Manufactured by Fanuc Ltd. in Yamanashi, Japan, this unit carries serial number C033B3343 and a date code of 2003.03. It is commonly applied to spindle axes and large feed axes on CNC machining centers, turning centers, and other industrial automation systems that use Fanuc Alpha iS series servo amplifiers and control platforms.

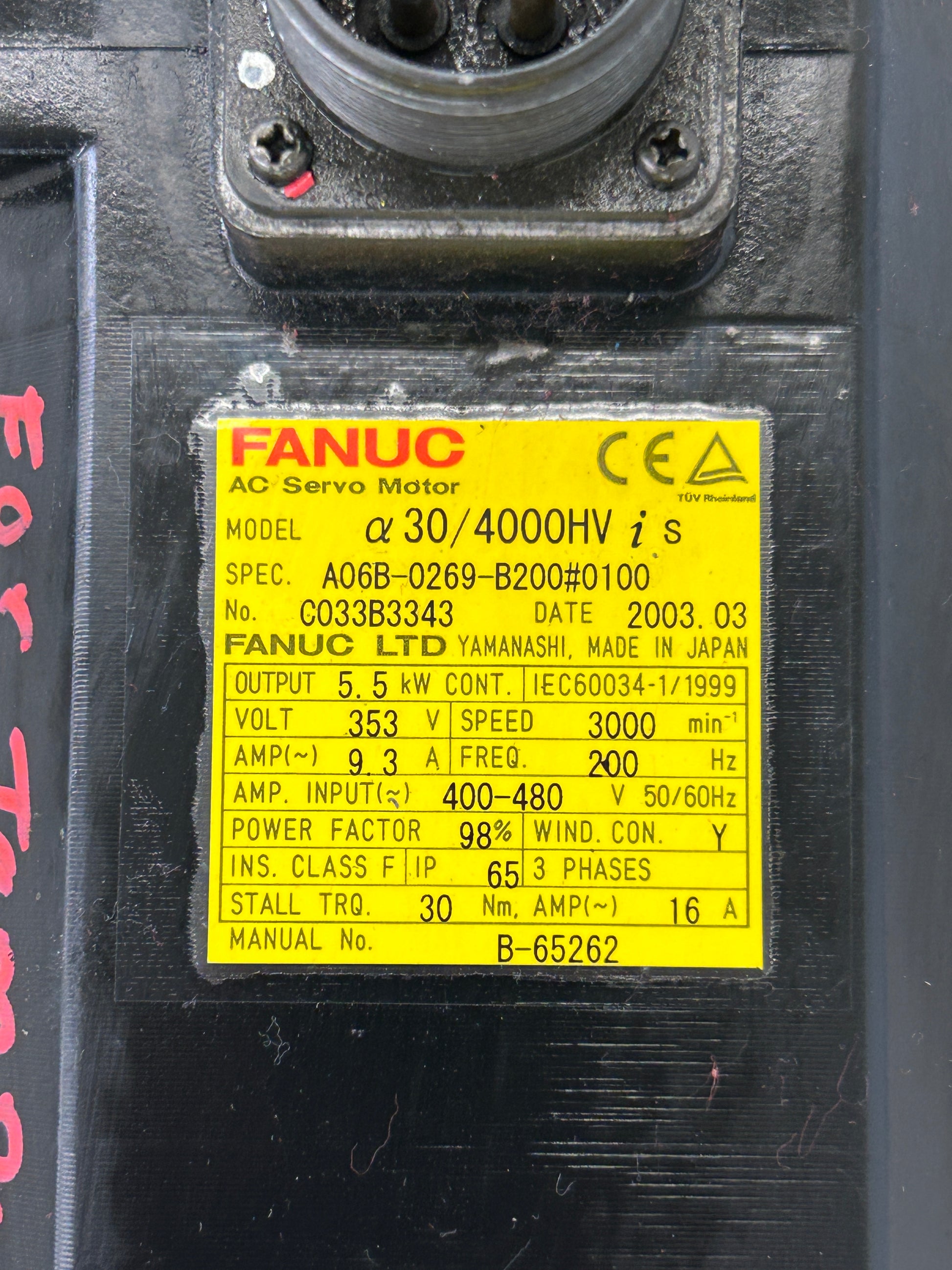

Rating plate data confirms a continuous output of 5.5 kW, rated voltage of 353 V, rated current of 9.3 A, and a rated speed of 3,000 min to the negative one. Amplifier input is listed as 400 V to 480 V at 50/60 Hz, with a rated frequency of 200 Hz across 3 phases. Stall torque is rated at 30 Nm with a stall current of 16 A. The power factor is 98 percent, the winding connection is Y, and the insulation class is F with an IP65 enclosure rating. The motor complies with IEC 60034 1/1999 and carries CE and TUV Rheinland markings.

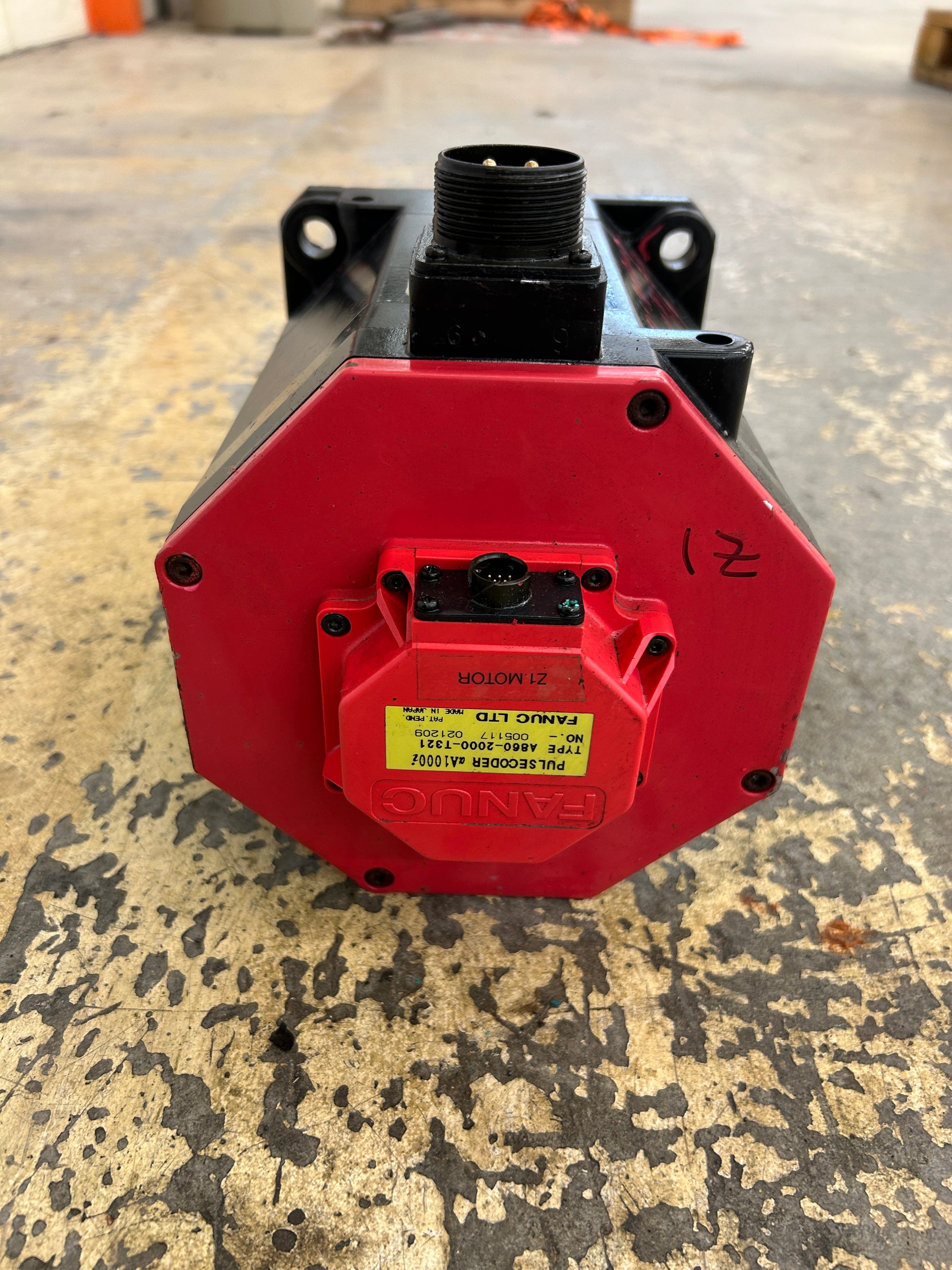

Reference documentation is Fanuc manual B 65262. The unit is built around a high resolution serial pulse coder consistent with the Alpha iS feedback platform and is intended for use with compatible Fanuc Alpha iSV series servo amplifiers. MPN A06B-0269-B200#0100 is the OEM identifier used in active US market listings for this specific configuration.
Stock # 0226-098
