FANUC A06B-0269-B200#0100 Model Alpha iS 30/4000HV AC Servo Motor 5.5 kW 7 HP 3000 RPM
FANUC A06B-0269-B200#0100 Model Alpha iS 30/4000HV AC Servo Motor 5.5 kW 7 HP 3000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

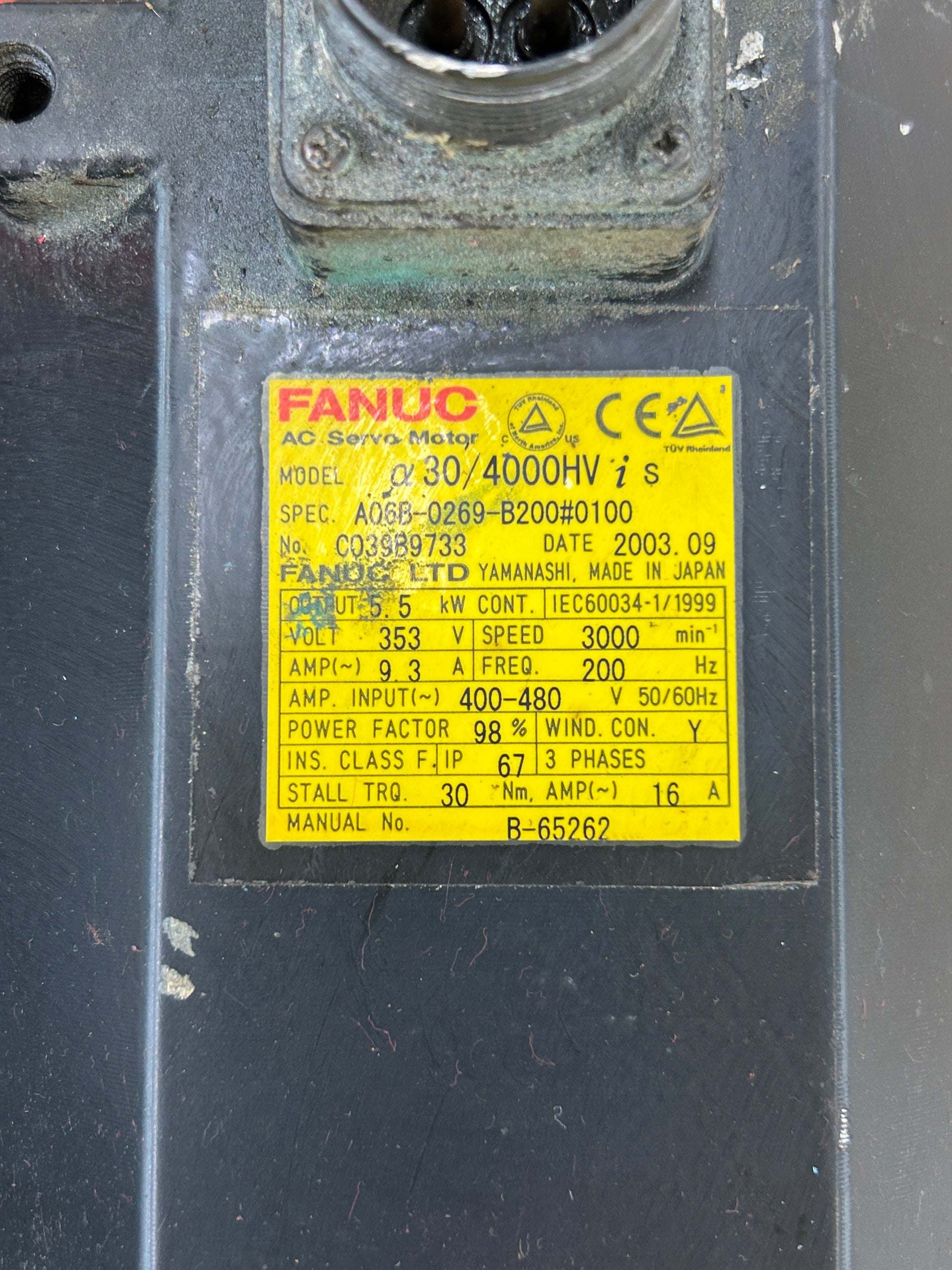

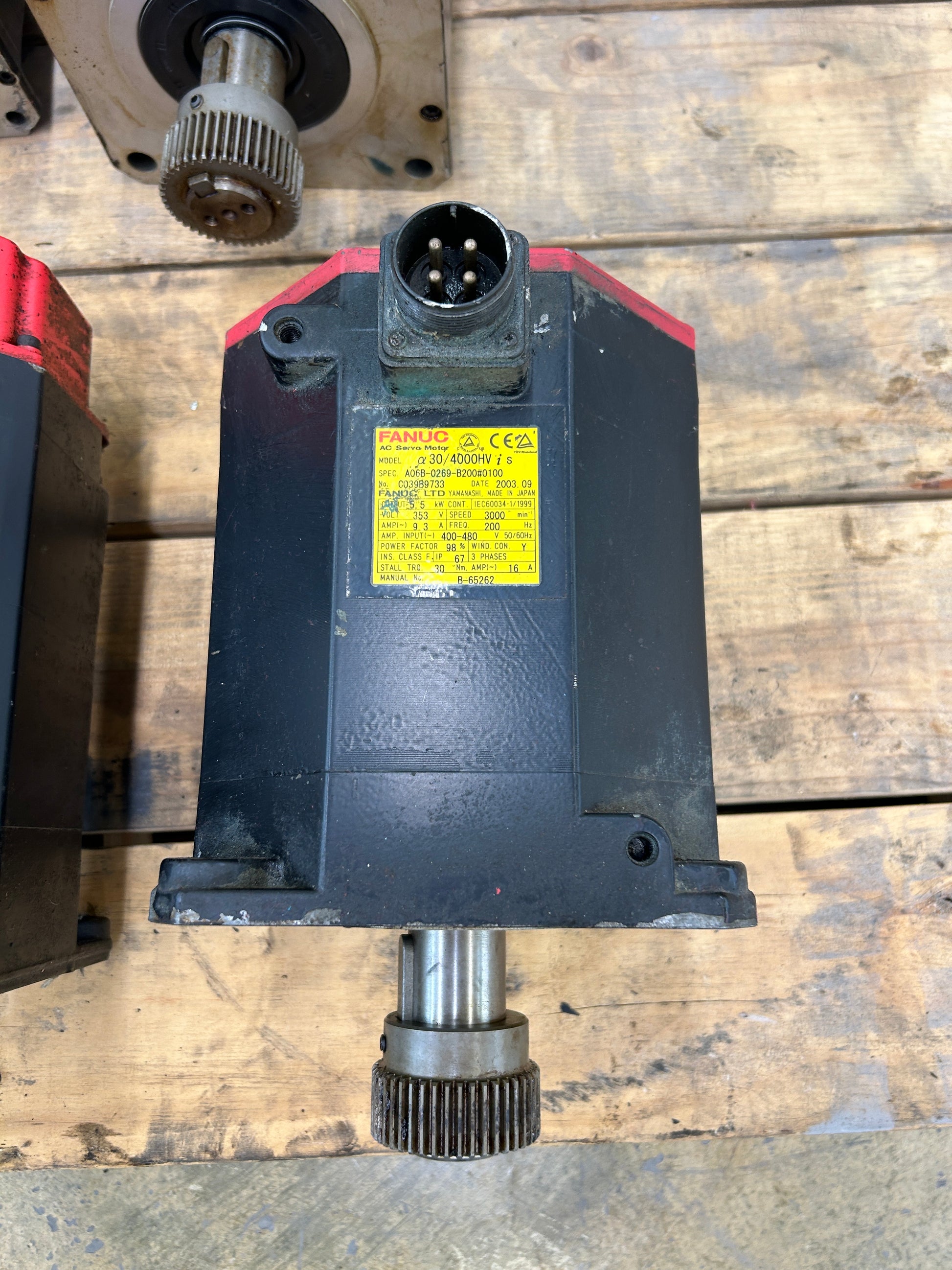

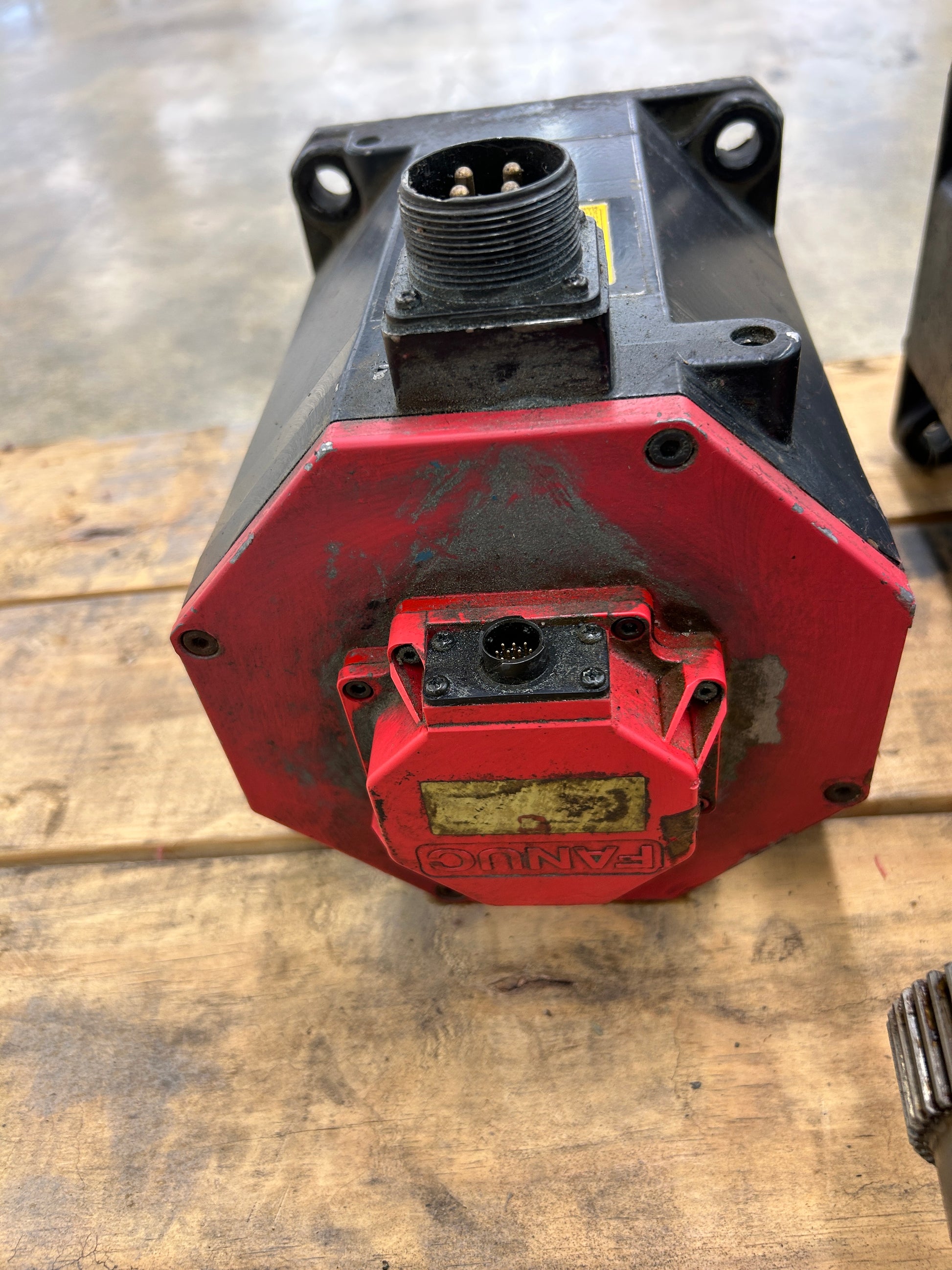

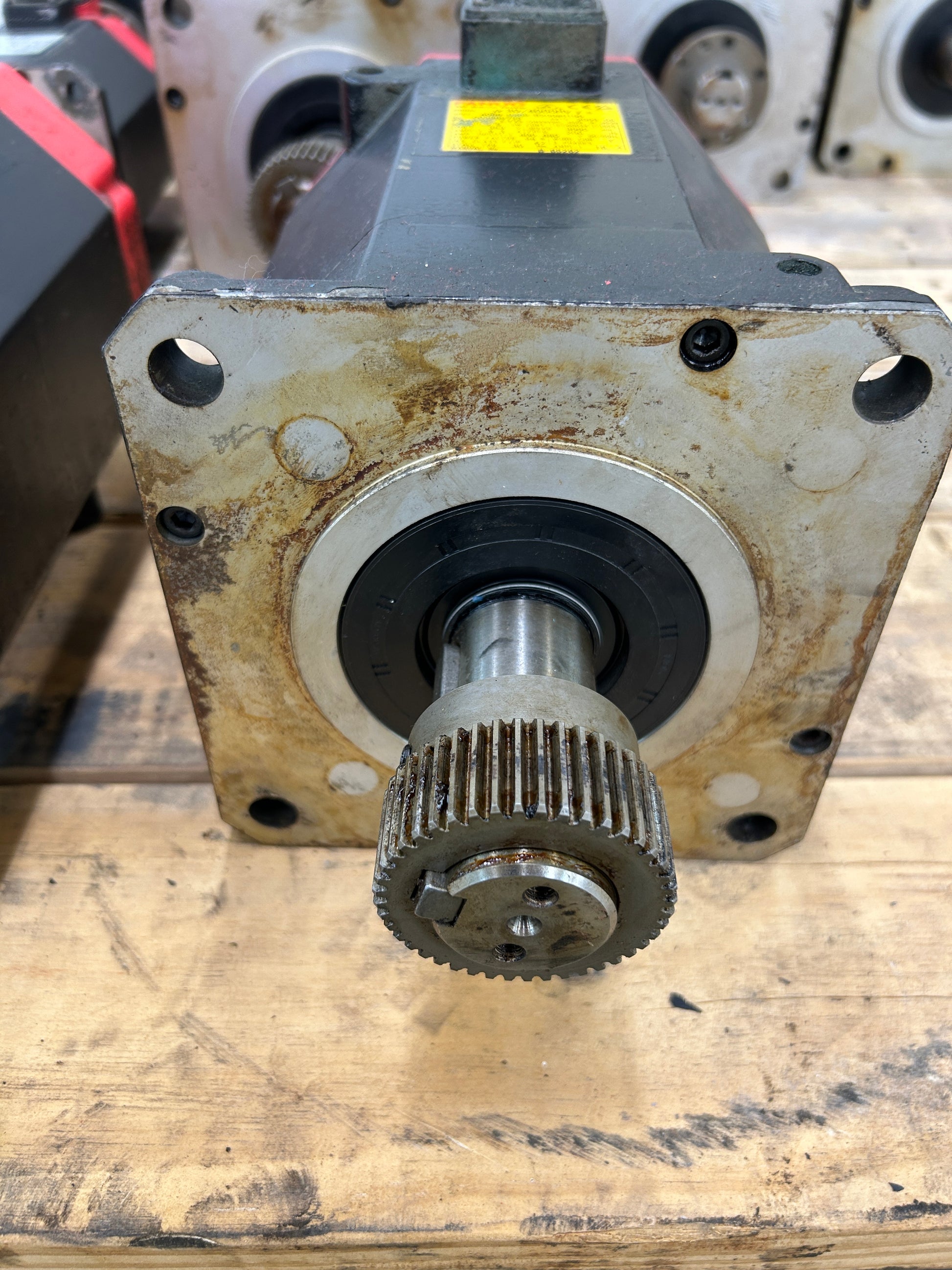

The Fanuc A06B-0269-B200#0100 is an AC servo motor from the Alpha iS series, model designation a30/4000HV iS, manufactured in Yamanashi, Japan. The nameplate identifies serial number C039B9733 with a manufacture date of 2003.09 and references manual number B-65262. Rated continuous output is 5.5 kW per IEC 60034 1/1999, with a rated speed of 3000 min, rated voltage of 353 V, rated current of 9.3 A, and a base frequency of 200 Hz. The motor accepts an input supply of 400 to 480 V at 50/60 Hz, 3 phases, with a power factor of 98 percent and a Y winding connection. Stall torque is rated at 30 Nm with a stall current of 16 A. Insulation class is F and the enclosure carries an IP67 ingress protection rating. The Alpha iS 30/4000HV is designed for high voltage CNC servo axis applications including machining centers, turning centers, large gantry systems, and other high power feed axis drives where elevated bus voltages are used to reduce current draw. The motor is built around a straight shaft with keyway form factor and integrates a Fanuc serial pulse coder feedback device. CE and TUV Rheinland certifications are marked on the nameplate. The A06B-0269-B200#0100 MPN is the OEM Fanuc identifier and is interchangeable with units listed as Alpha iS 30/4000HV with straight keyed shaft and aiA1000 encoder configuration.
Stock # 0226-105
