Fanuc A06B-0273-B200#0100 AC Servo Motor 8 HP 3000 RPM
Fanuc A06B-0273-B200#0100 AC Servo Motor 8 HP 3000 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

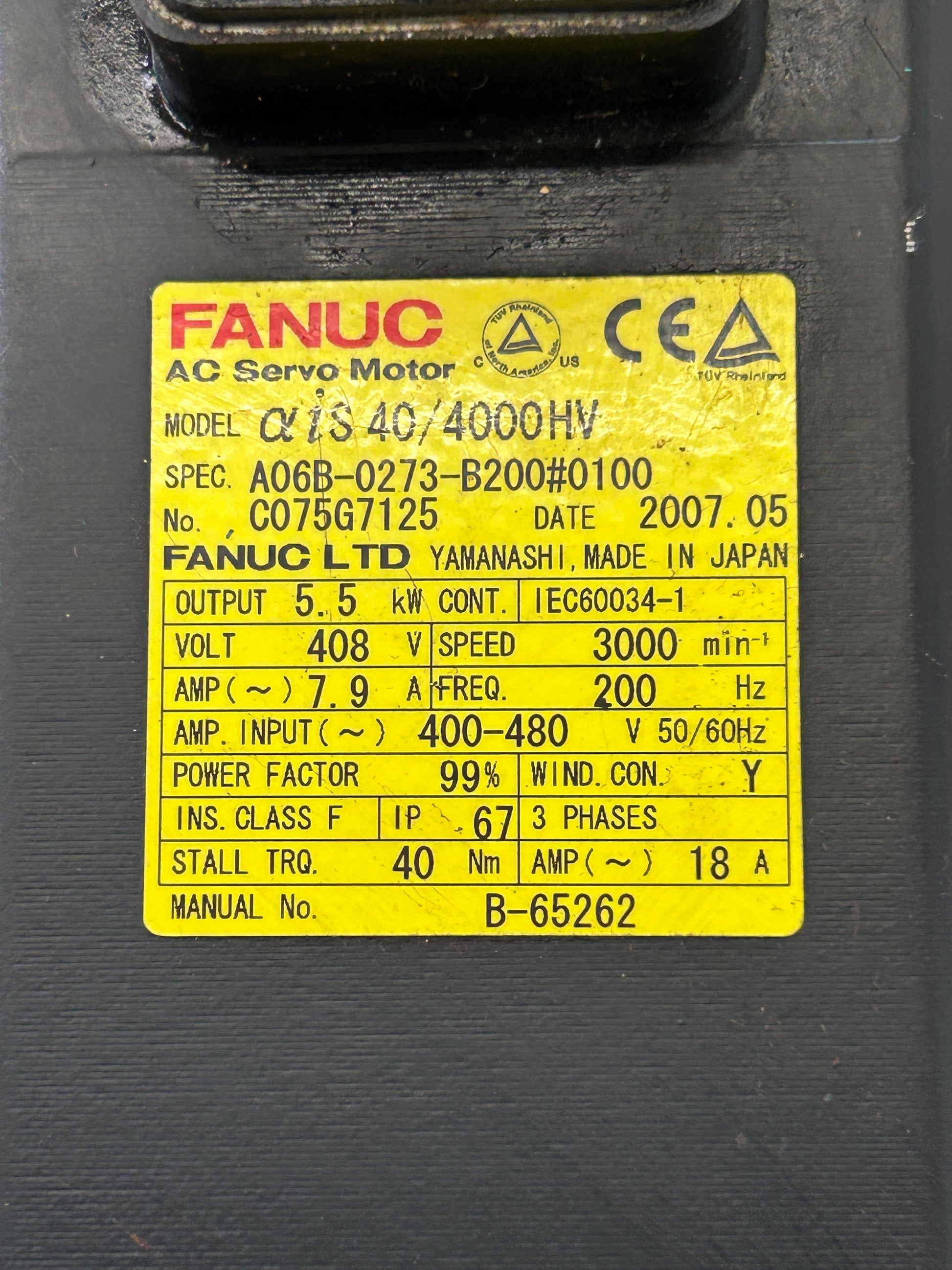

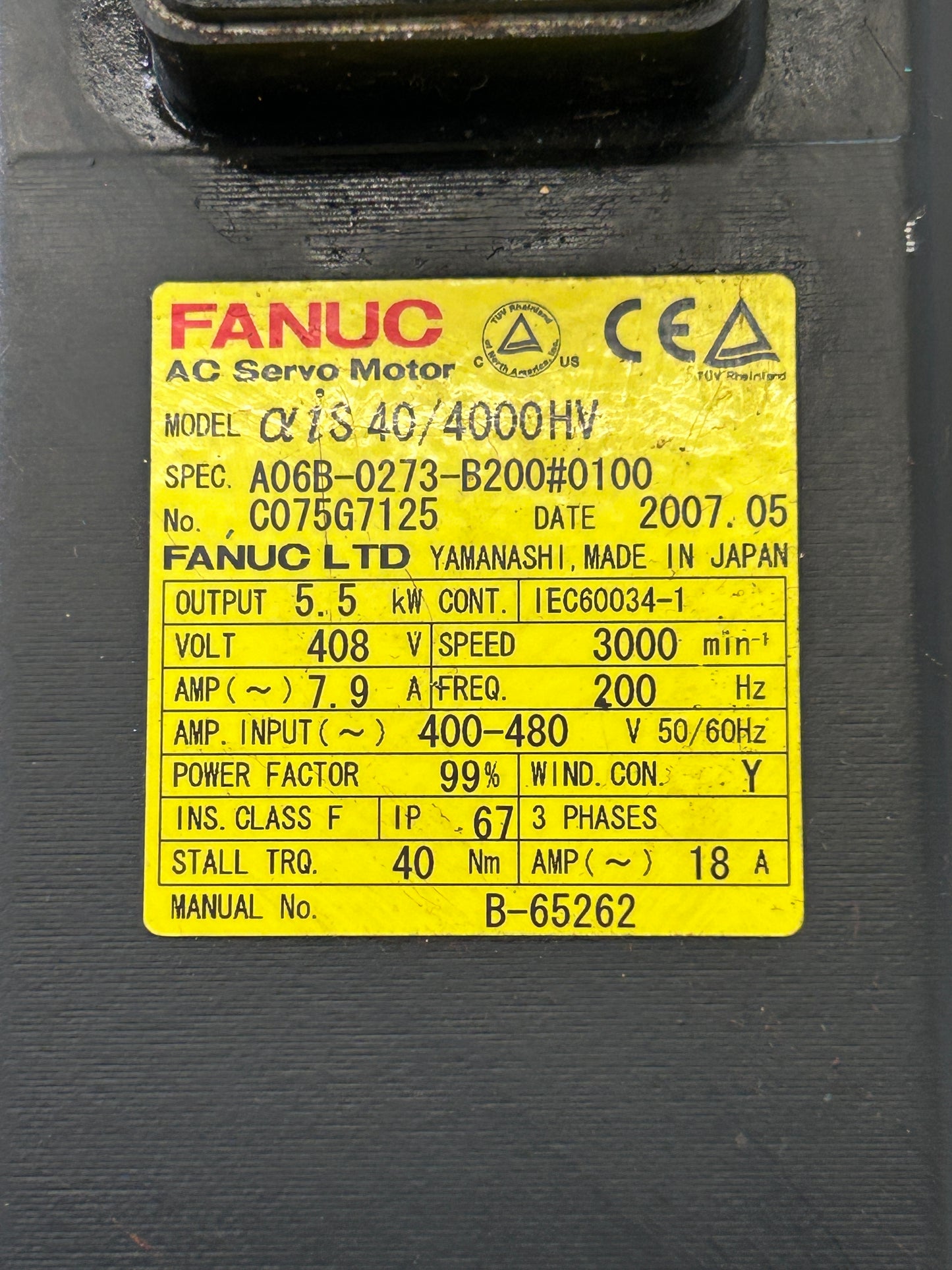

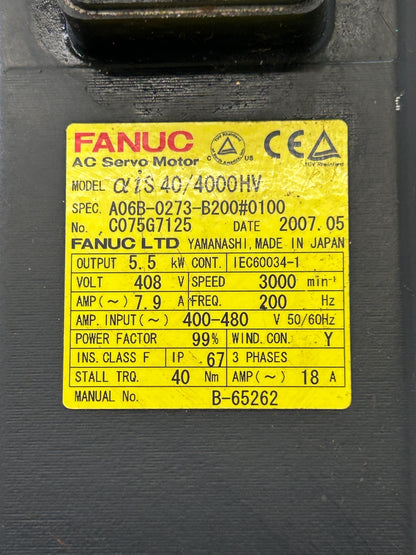

The Fanuc A06B-0273-B200#0100 is an alpha iS series AC servo motor, model aiS 40/4000HV, manufactured by Fanuc Ltd in Yamanashi, Japan. Nameplate data confirms a continuous output rating of 5.5 kW per IEC60034 1, with rated voltage of 408 V and rated speed of 3000 min one. Rated current is 7.9 A at a frequency of 200 Hz, drawn from a 3 phase amplifier input of 400 to 480 V at 50 or 60 Hz. Stall torque is rated at 40 Nm with a stall current of 18 A. The motor carries a power factor of 99 percent, Class F insulation, Y winding connection, and IP67 environmental protection. Date code on the nameplate reads 2007.05 with serial number C075G7125. Manual reference is B 65262. This motor is part of the Fanuc 400 VAC high voltage alpha iS family commonly paired with Fanuc alpha i series spindle and servo amplifier modules on CNC machining centers, turning centers, and high performance industrial automation systems. The aiS 40/4000HV designation indicates a frame size suitable for medium to large axis drive applications where high torque density and accurate closed loop position feedback are required. The motor is equipped with an integrated absolute pulse coder for position and velocity feedback compatible with Fanuc CNC controls. Markings include TUV Rheinland North America US and CE certification.
Stock # 0226-093
