Fanuc A06B-0273-B500#0100 AC Servo Motor 6 kW 3000 RPM
Fanuc A06B-0273-B500#0100 AC Servo Motor 6 kW 3000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

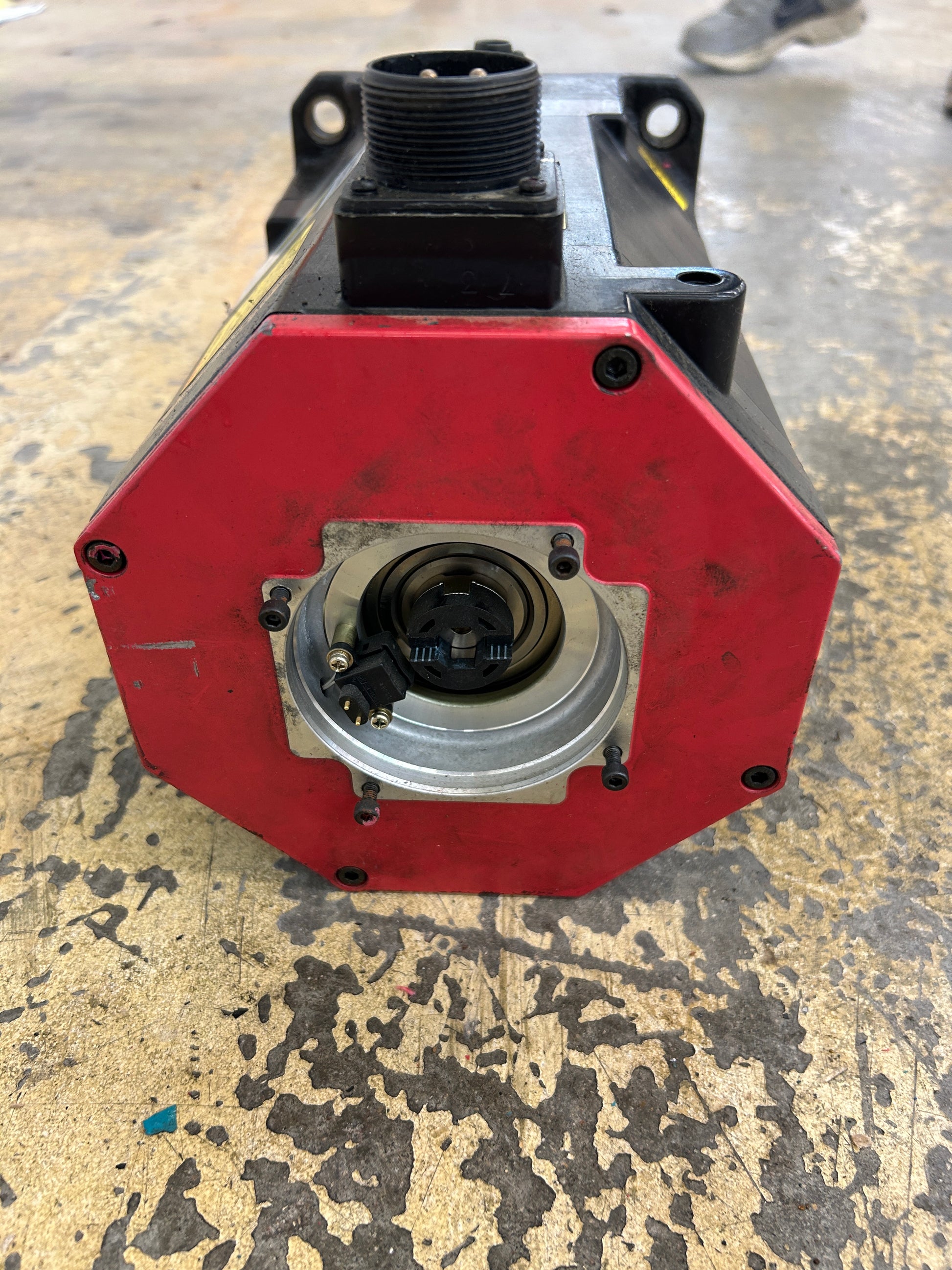

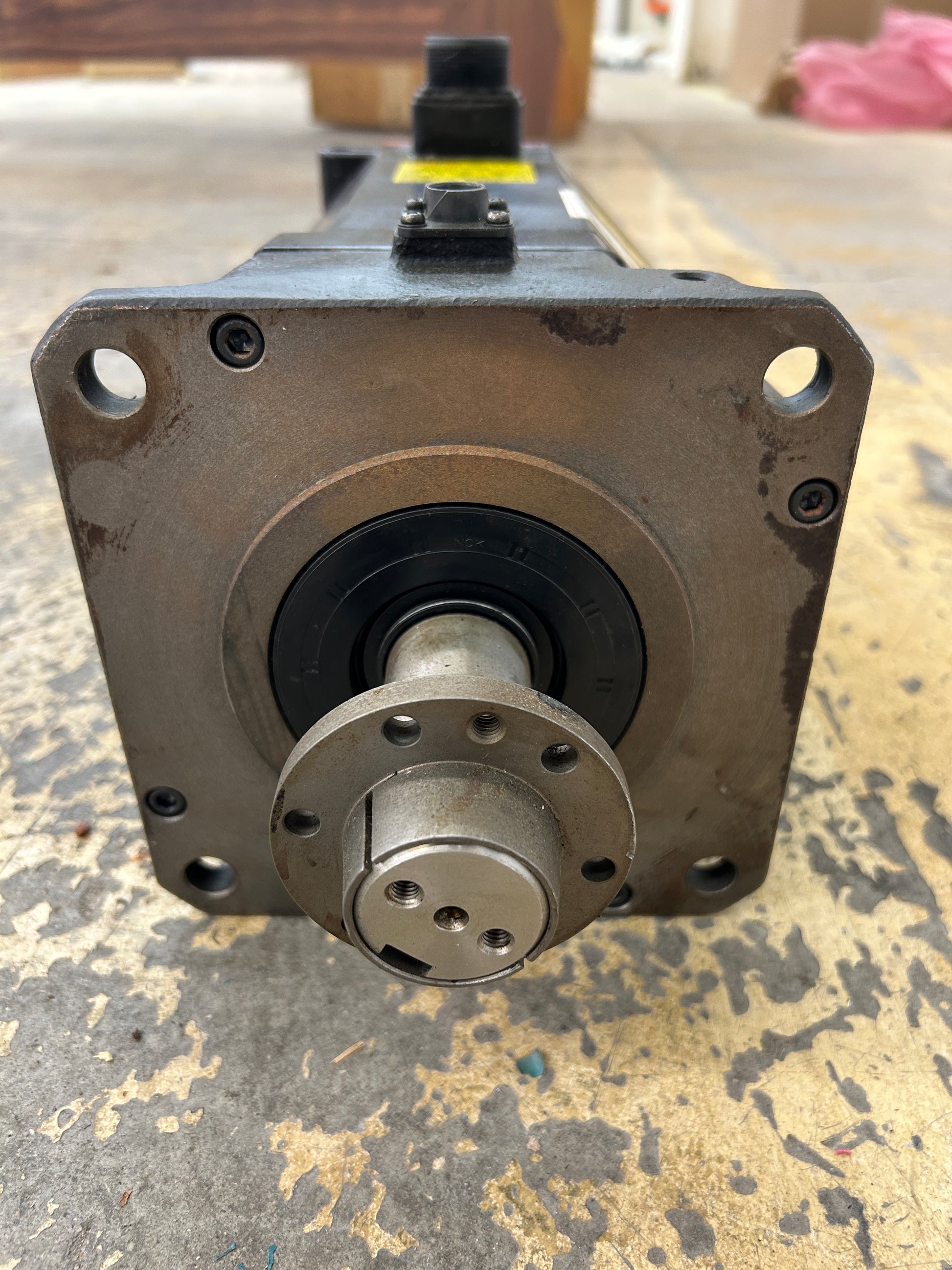

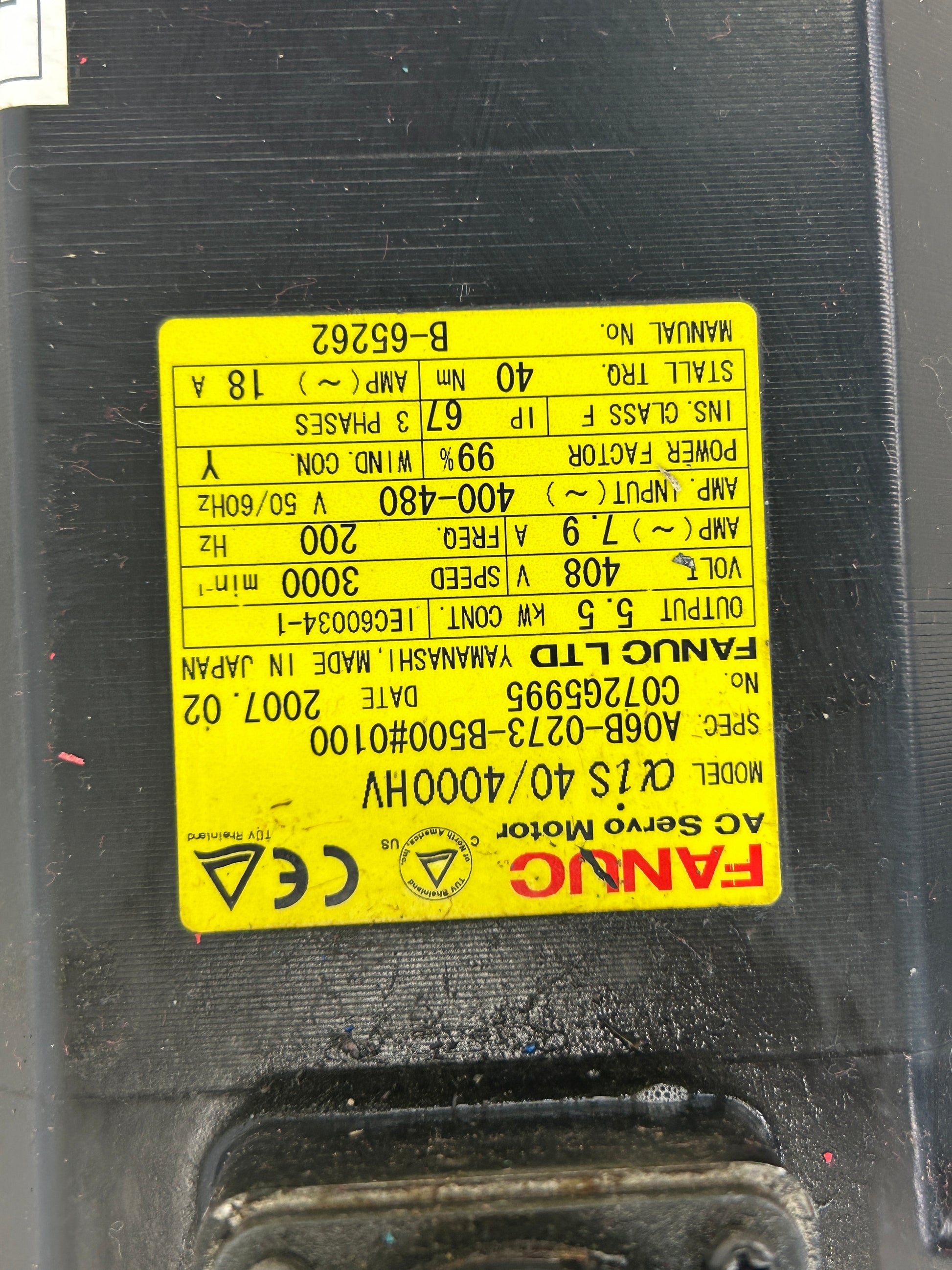

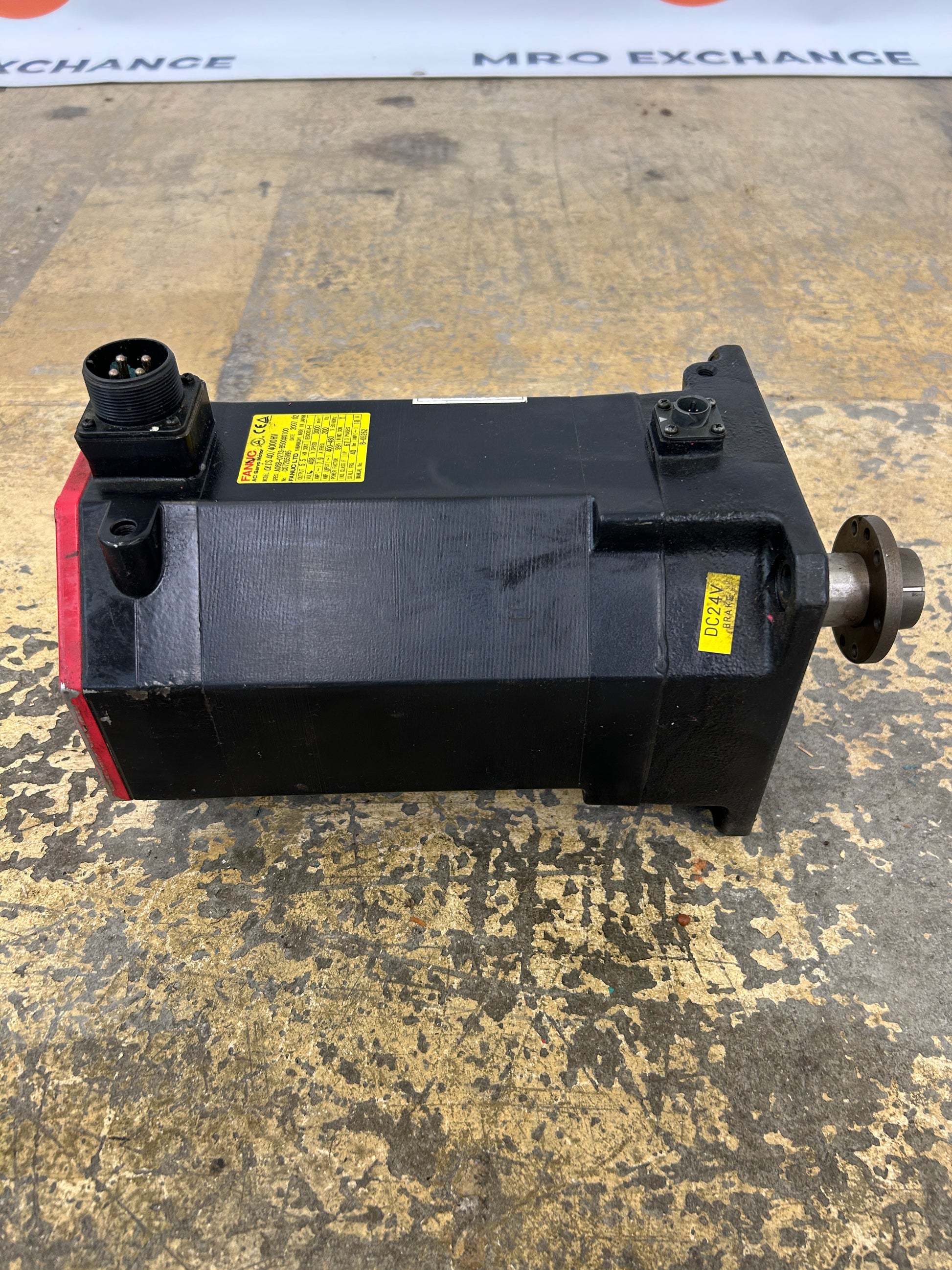

The Fanuc A06B-0273-B500#0100 is a sealed AC servo motor from the alpha i series, model designation aiS 40/4000HV. Rated at 5.5 kW continuous output with a stall torque of 40 Nm and a stall current of 18 A, this unit is configured for high voltage 400-480V three phase input at 50/60 Hz, drawing 7.9 A at 200 Hz. Maximum rated speed is 3000 RPM and the motor uses a Y wind configuration with a power factor of 99 percent and Class F insulation. The IP67 sealed housing is suitable for environments with exposure to coolant mist, dust, and debris. The motor is fitted with a straight shaft with keyway, a 24 VDC holding brake, and the alpha i 1000 (aiA 1000) absolute serial pulsecoder for closed loop position feedback. Manual number B-65262 corresponds to the alpha i HV series descriptions documentation. SPEC number A06B-0273-B500#0100, manufacturing date 2007.02, made in Yamanashi, Japan. CE marked and TUV Rheinland certified for North American use. Commonly applied as a spindle or large axis drive motor on CNC machining centers, turning centers, and large frame mills paired with Fanuc alpha i HV series servo amplifiers. Compatible with Fanuc 16i, 18i, 21i, 30i, 31i, and 32i series CNC controls when matched with the appropriate aiSV HV amplifier module. Serial number C072G5995.
Stock # 0226-091
