Fanuc A06B-6079-H106 Servo Amplifier Module Untested Surplus 01469
Fanuc A06B-6079-H106 Servo Amplifier Module Untested Surplus 01469
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: A06B-6079-H106
Stock #: 0626-01469
Product Specifications
- Manufacturer: Fanuc
- MPN / Model: A06B-6079-H106
- Product Type: Servo Amplifier Module
- Series: Alpha Series SVM1-130
- Rated DC Input: 283 to 325V at 9.1 kW
- Maximum Output Voltage: 230V AC
- Rated Output Current (L Axis): 52.2A
- Interface: PWM
- Front Panel Connectors: JX5, JX1A, JX1B, PWM11/JV1B, PWM21/JS1B, ENC1/JF1, CX2A, CX2B
- Serial Number: EA9707256
- Manual Reference: B-65162
- Standards Compliance: DIN VDE 0160
- Certifications: CE
- Country of Origin: Japan
Product Description

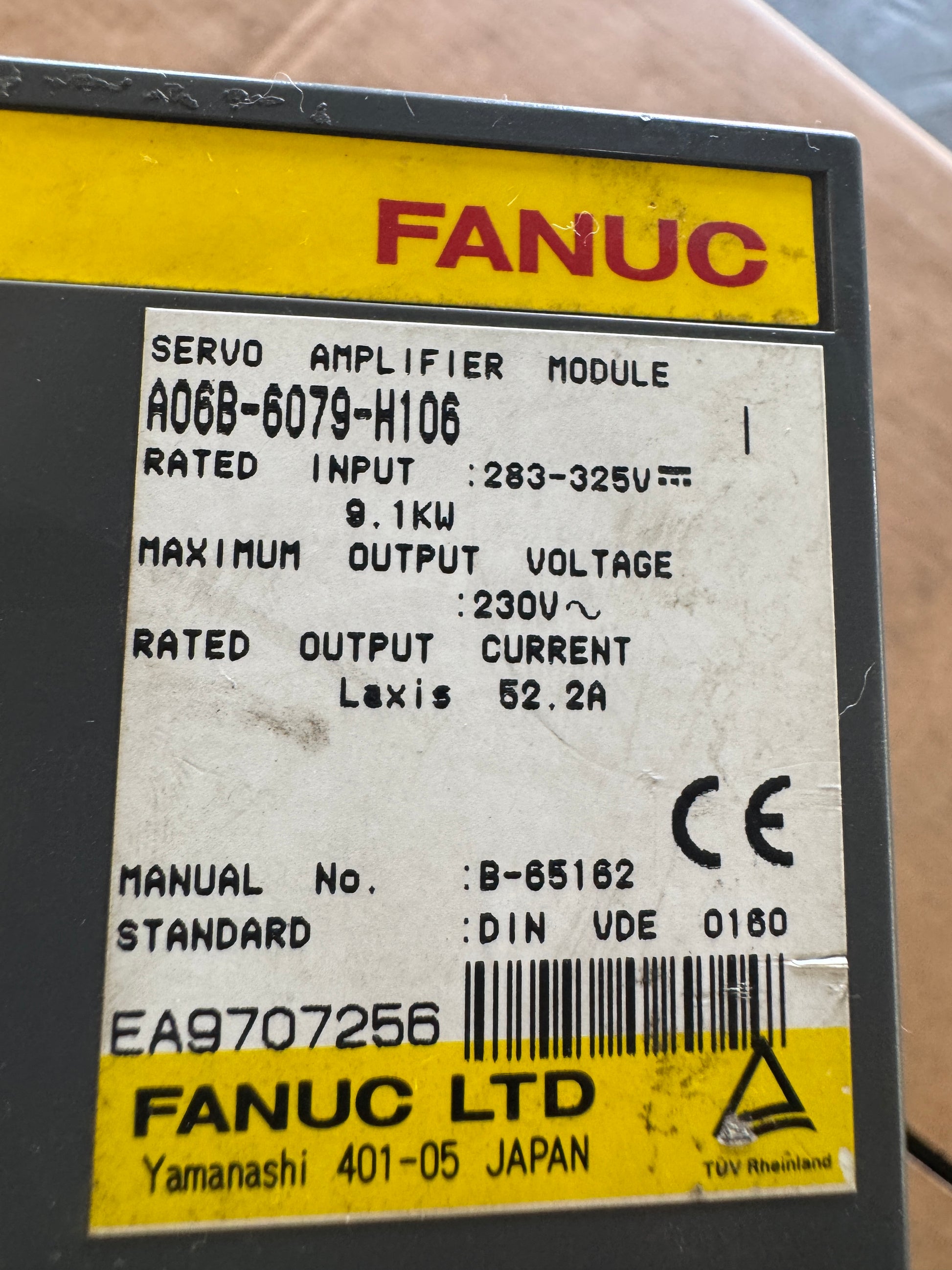

The Fanuc A06B-6079-H106 is a single-axis servo amplifier module belonging to the Alpha series SVM1-130 product line, designed for use in CNC machining centers and industrial automation systems requiring high-current axis servo control. The nameplate identifies the rated input as 283 to 325V DC at 9.1 kW, with a maximum output voltage of 230V AC and a rated L-axis output current of 52.2A. Serial number EA9707256 is visible on the nameplate label. The unit is manufactured by Fanuc Ltd, Yamanashi, Japan, and bears CE certification with compliance to DIN VDE 0160 standard. Manual reference number B-65162 is indicated on the label.

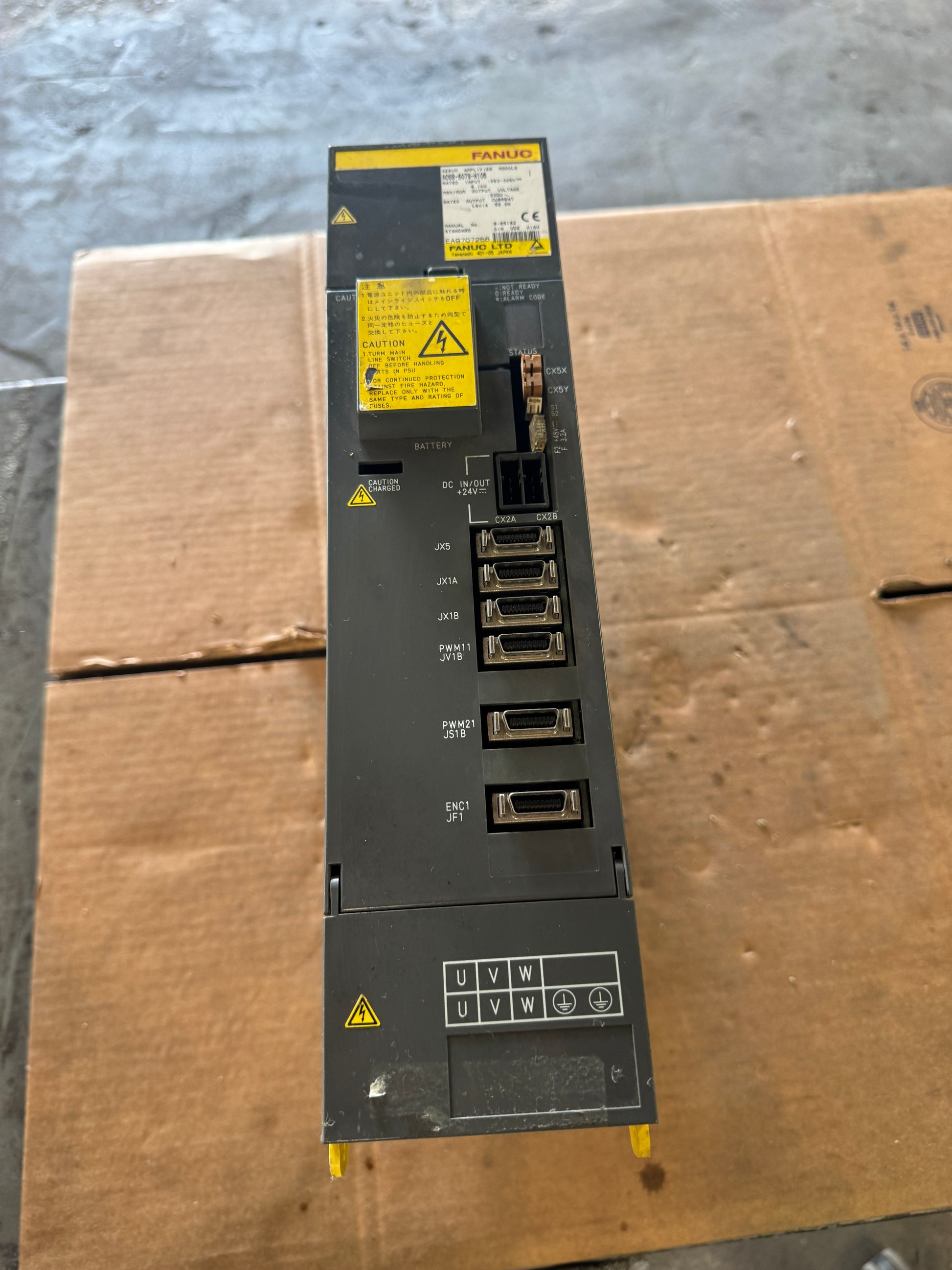

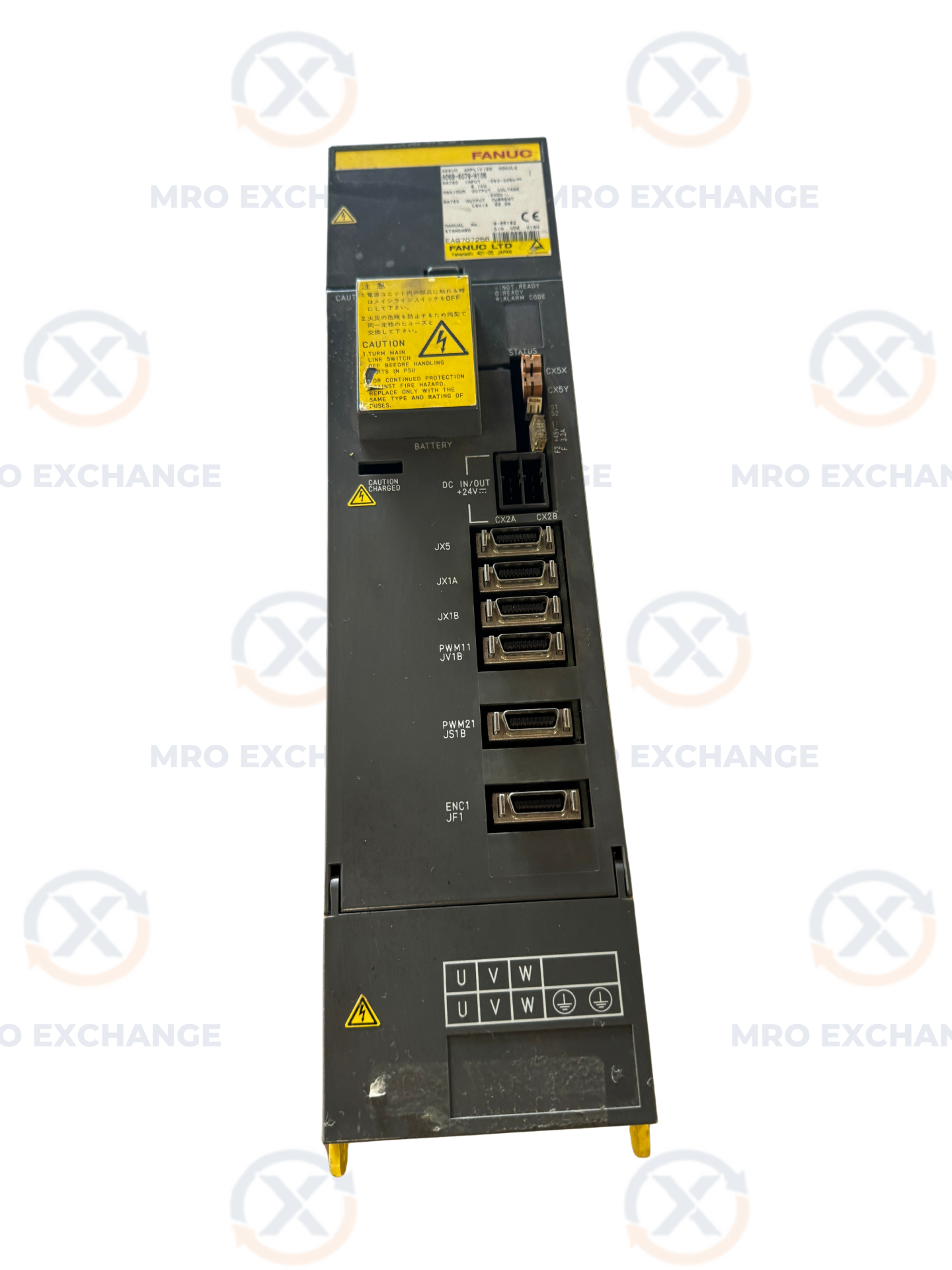

The A06B-6079-H106 is part of the A06B-6079 series of Alpha servo drives, designed for use with Alpha PSU and Alpha spindle drive configurations. Front panel connectors include JX5, JX1A, JX1B, PWM11/JV1B, PWM21/JS1B, and ENC1/JF1 interfaces, along with DC IN/OUT and CX2A/CX2B battery connections. Motor output terminals U, V, W are located on the lower front panel. This model has been discontinued by the original manufacturer. The unit shows cosmetic wear consistent with prior installation.
