FANUC A06B-6080-H303 Servo Amplifier Module Untested Surplus
FANUC A06B-6080-H303 Servo Amplifier Module Untested Surplus
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: A06B-6080-H303
Stock #: Stock # 0626-01674
Product Specifications
- Manufacturer: FANUC
- MPN / Model: A06B-6080-H303
- Product Type: Servo Amplifier Module
- Rated Input: 283 to 325V DC, 3.1 kW
- Maximum Output Voltage: 230V AC
- Rated Output Current: L axis 3.0A, M axis 5.9A, N axis 5.9A
- Axes: 3 Axis
- Manual Number: B-65162
- Standard: DIN VDE 0160
- Serial Number: EA9321944
- Country of Origin: Japan
Product Description

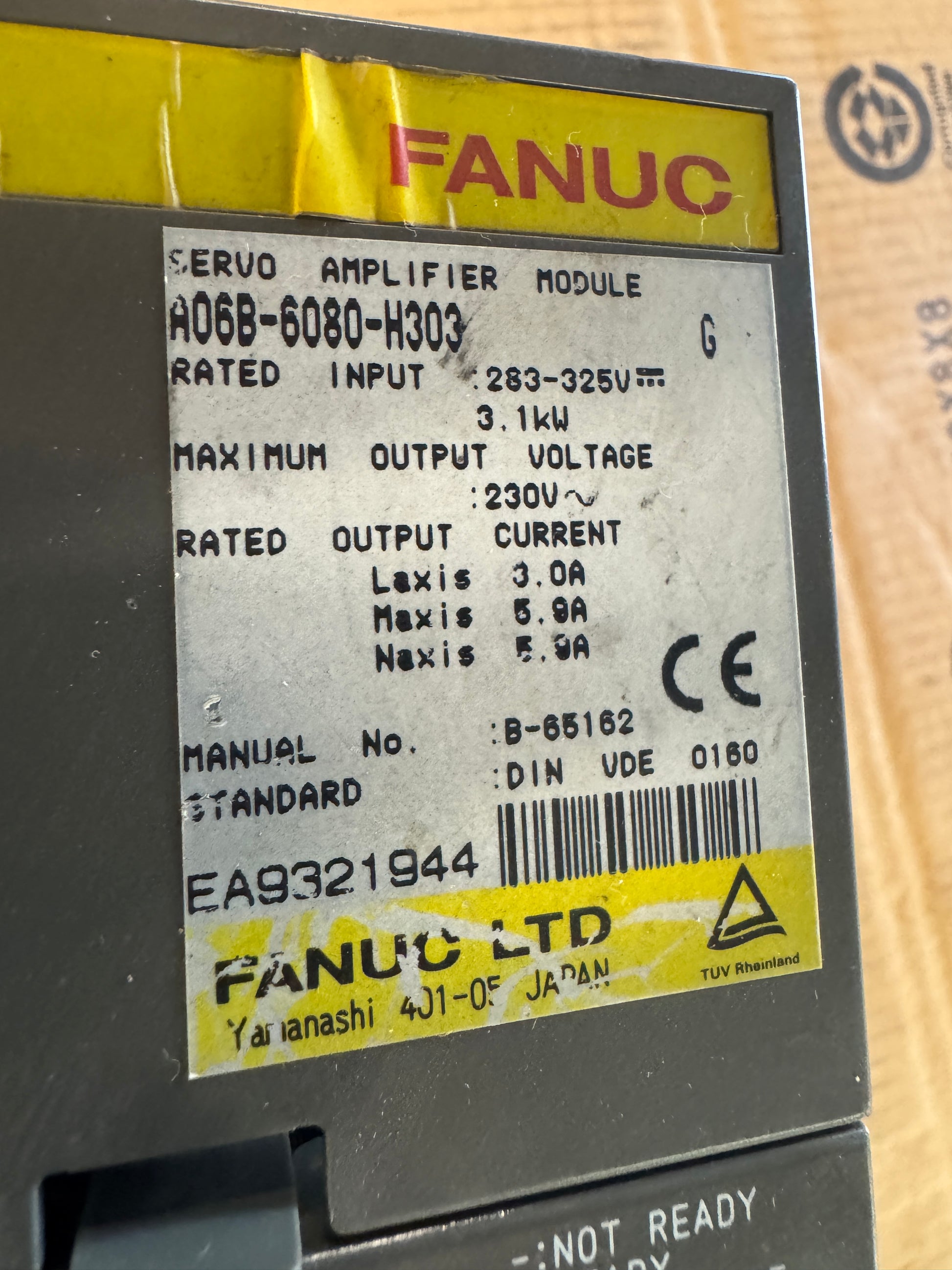

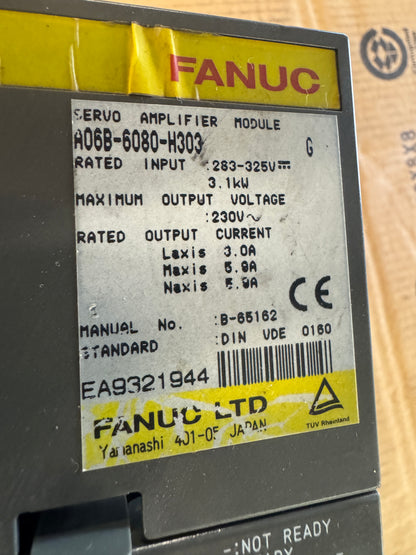

FANUC A06B-6080-H303 is a three axis Servo Amplifier Module from the FANUC Servo Amplifier line, identified by catalog number A06B-6080-H303 and serial number EA9321944. The nameplate lists a rated input of 283 to 325V DC at 3.1 kW and a maximum output voltage of 230V AC, with rated output currents of 3.0A on the L axis and 5.9A on both the M and N axes.

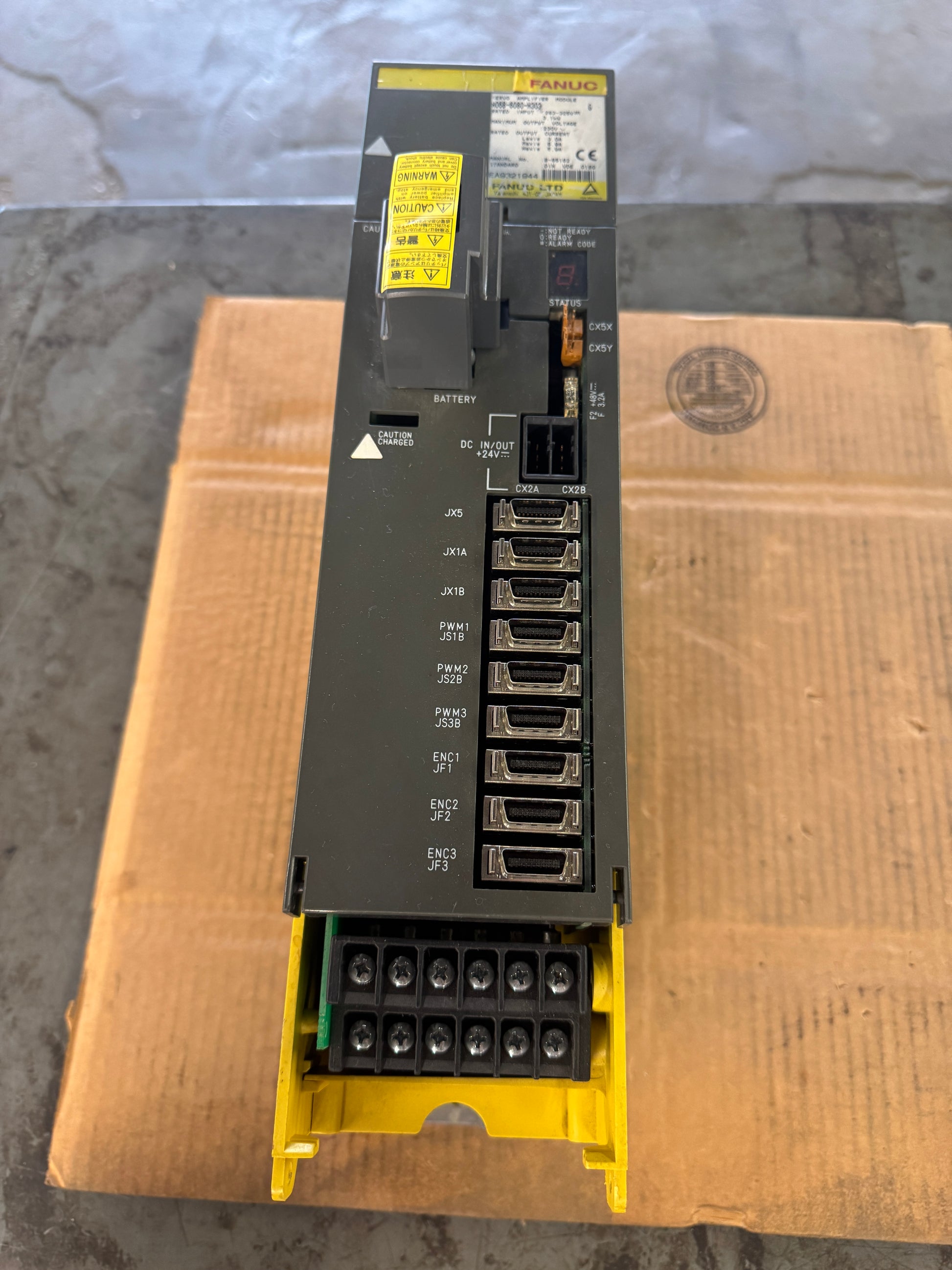

The module carries connector ports including JX5, JX1A, JX1B, PWM1/JS1B, PWM2/JS2B, PWM3/JS3B, ENC1/JF1, ENC2/JF2, and ENC3/JF3, along with CX2A and CX2B DC IN/OUT terminals and a battery holder for absolute encoder backup. Reference documentation is FANUC manual B-65162, and the unit conforms to DIN VDE 0160. This is a used surplus unit; the warranty void seal is disturbed.
Buyers matching an exact FANUC catalog number for replacement, spare inventory, or maintenance sourcing can use the MPN A06B-6080-H303 and the visible serial number to compare this module against an existing unit. Confirmed details include the manufacturer, MPN, three axis configuration, input and output ratings, and listed serial number.
