FANUC A06B-6089-H106 200 to 230V AC 3 Ph Servo Amplifier Unit
FANUC A06B-6089-H106 200 to 230V AC 3 Ph Servo Amplifier Unit
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: A06B-6089-H106
Stock #: 0226-00067

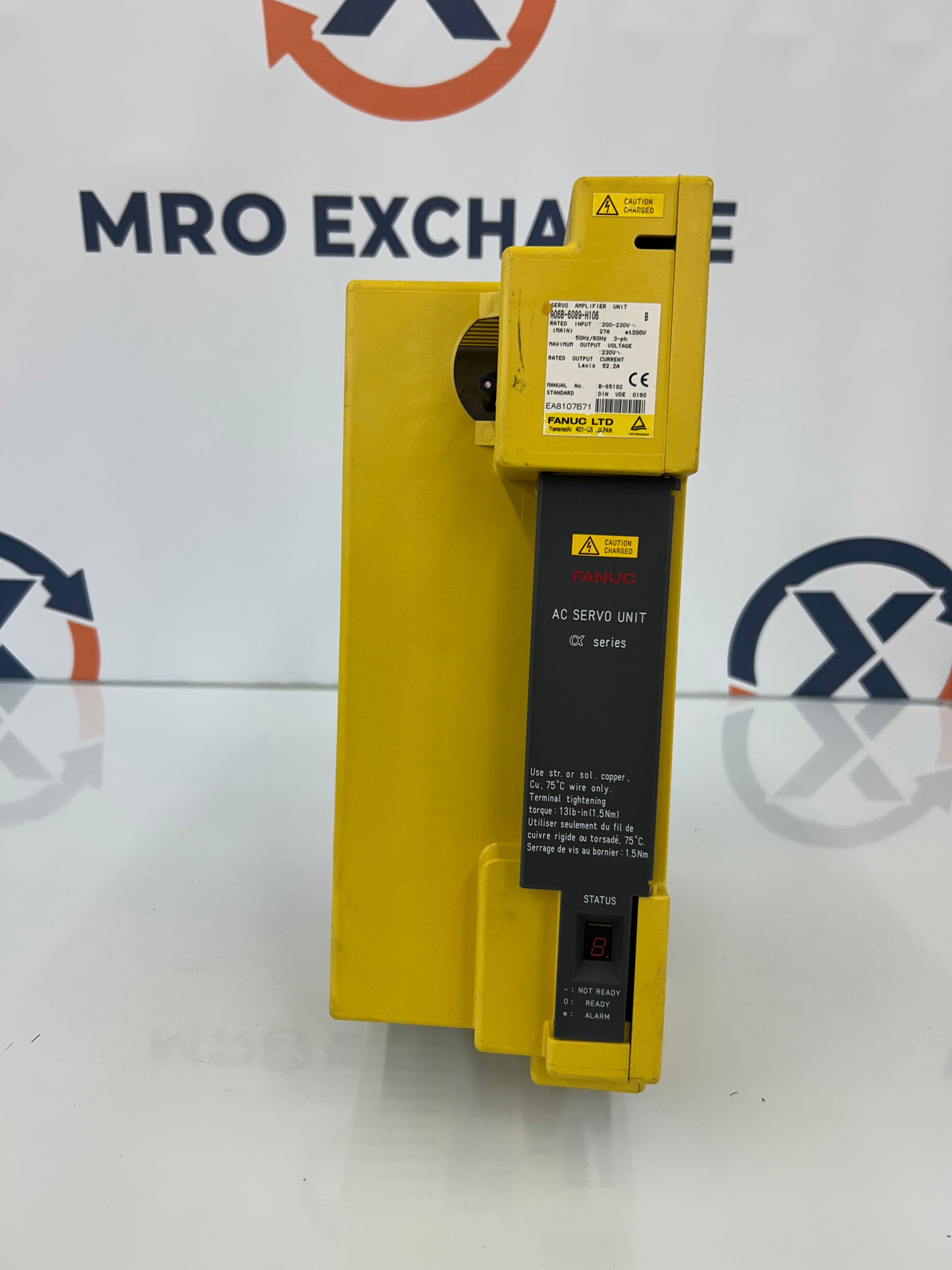

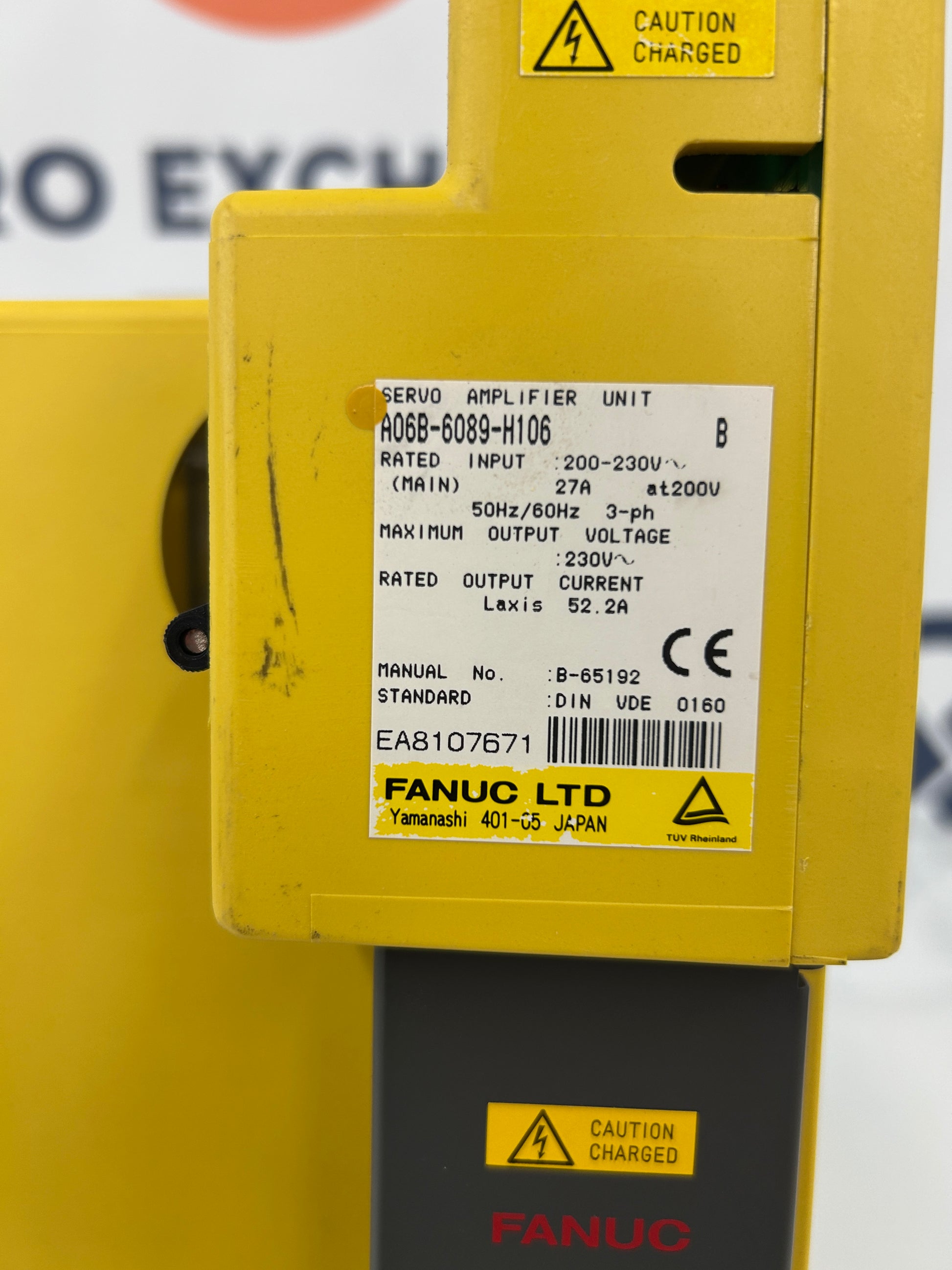

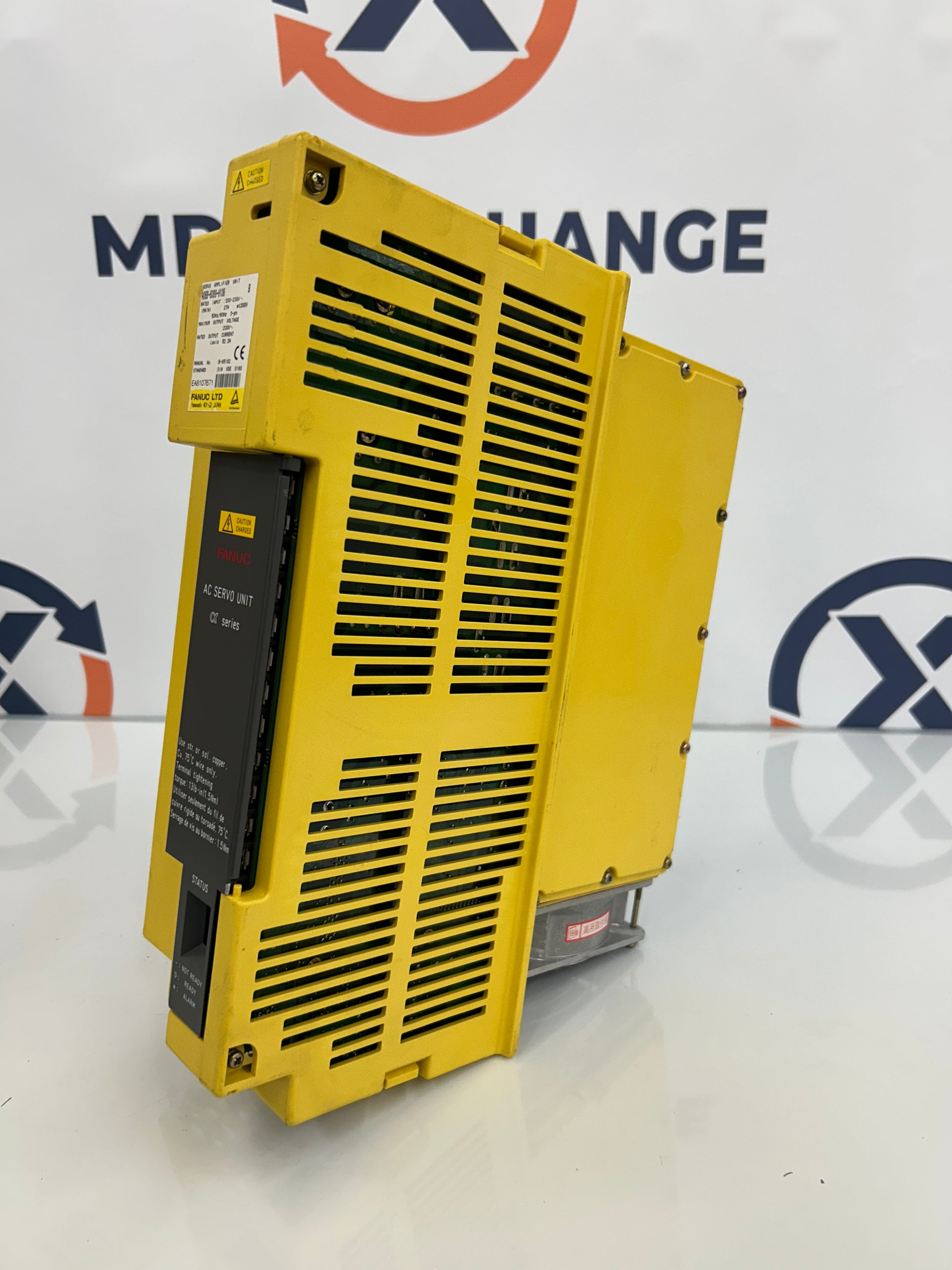

The Fanuc A06B-6089-H106 is a Servo Amplifier Unit from the Fanuc Alpha Series, designed for multi axis CNC machine tool control. The nameplate identifies it as a Servo Amplifier Unit with manual reference number B-65192 and standard compliance to DIN VDE 0160. Serial number EA8107671 is visible on the unit. Rated main input is 200 to 230V AC at 27A, 50/60Hz, 3 phase. Maximum output voltage is 230V AC. Rated output current per axis is 52.2A, configured as a 6 axis amplifier (L axis) within the H106 designation of this product family. The unit bears the CE mark and TÜV Rheinland certification, manufactured by Fanuc Ltd. in Yamanashi 401 05, Japan. The A06B-6089-H106 is commonly deployed in Fanuc 0, 15, 16, 18, and 21 series CNC controls and integrates with Fanuc Alpha series AC servo motors over the FSSB (Fanuc Serial Servo Bus) interface. Typical applications include vertical and horizontal machining centers, CNC lathes, multi axis turning centers, and industrial robotics where coordinated multi axis motion is required. The module construction features the standard yellow Fanuc enclosure with integrated heatsink and front mounted status indicators and connectors. Search relevant terms include Fanuc Alpha servo amplifier, A06B 6089 H106, 6 axis servo amp, Fanuc SVU, FSSB amplifier, and Fanuc CNC servo drive replacement.
