FANUC A06B-6111-H011#H550 283 to 339V Input, 240V Output Spindle Amplifier Module
FANUC A06B-6111-H011#H550 283 to 339V Input, 240V Output Spindle Amplifier Module
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: A06B-6111-H011#H550
Stock #: 0126-00019
FANUC A06B-6111-H011#H550 Spindle Amplifier Module – 13.2 kW
This listing is for a FANUC spindle amplifier module, part number A06B-6111-H011#H550. This unit is used in FANUC CNC systems that require a 13.2 kW spindle drive in the 283–339V input class.

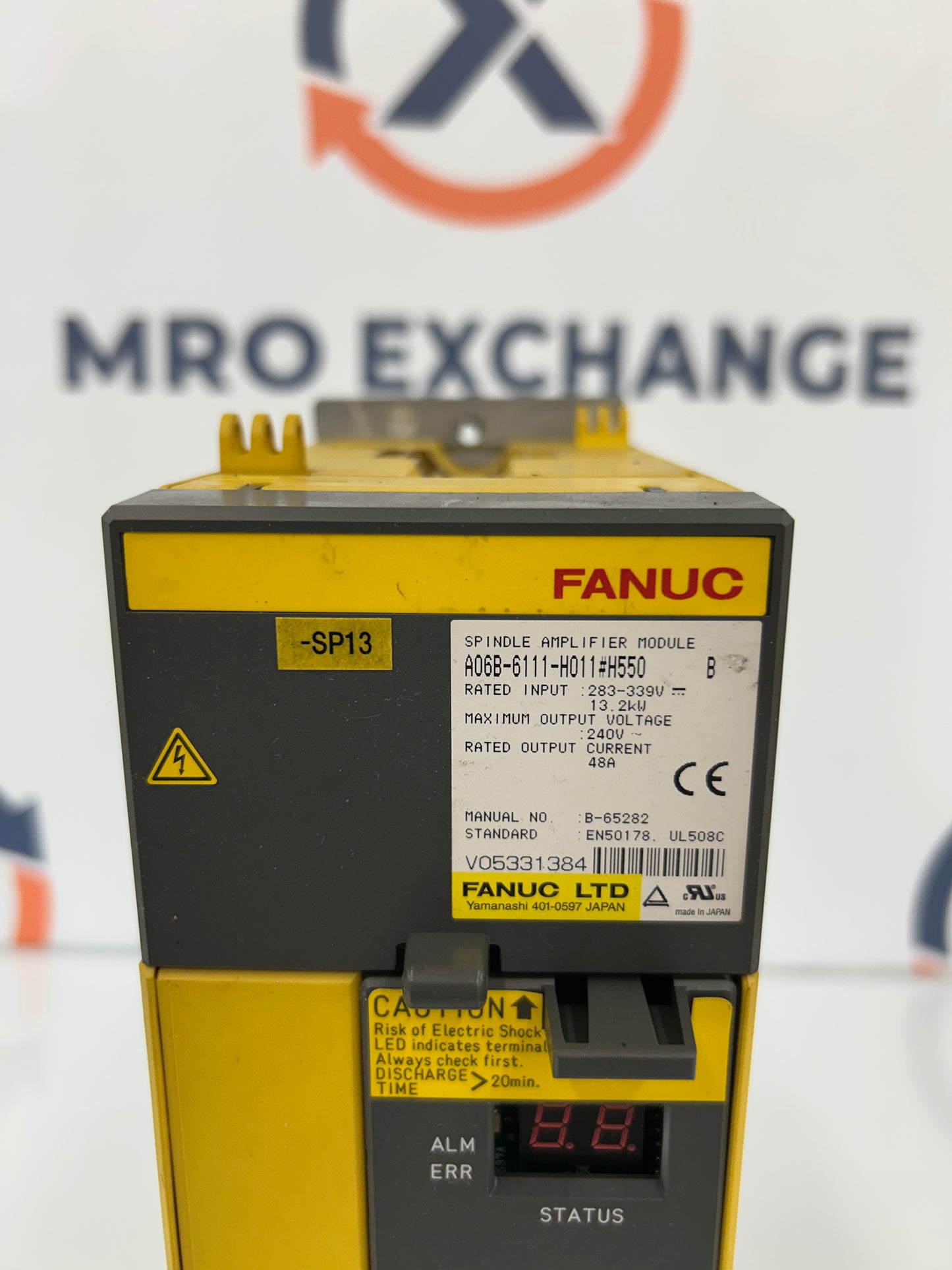

The Fanuc A06B-6111-H011#H550 is an Alpha i series spindle amplifier module designated MDL SPM-11i, used in CNC machine tool control cabinets to drive Fanuc Alpha series AC spindle motors. Nameplate data confirms a rated input of 283 to 339V DC at 13.2 kW, a maximum output voltage of 240V, and a rated output current of 48A. The unit is marked as a Series B revision, with Fanuc manual reference B 65282 and compliance with EN50178 and UL508C standards. CE certification is indicated on the rating plate. Serial number V05331384 is visible on the unit, and the assembly was manufactured by Fanuc Ltd in Yamanashi, Japan. This SPM 11i module is typically installed adjacent to the PSM power supply module within a Fanuc drive stack and provides closed loop speed and torque control for spindle motors equipped with built in feedback sensors. Common host platforms include Fanuc 16i, 18i, 21i, 30i, 31i, and 32i series CNC controls. The module integrates DC bus input from the PSM, three phase output to the spindle motor, and serial communications back to the CNC. Mounting and connector geometry conform to the standard Fanuc i series amplifier rack footprint. The part number A06B-6111-H011#H550 is the OEM identifier for this configuration. Buyers replacing a defective spindle drive in a Fanuc equipped machining center, turning center, or grinder should confirm the existing module part number and software option compatibility prior to installation.
Stock # 0226-019
