FANUC A06B-6111-H030#H550 283 to 339V DC Input, 240V AC Output Spindle Amplifier Module

FANUC A06B-6111-H030#H550 Spindle Amplifier Module

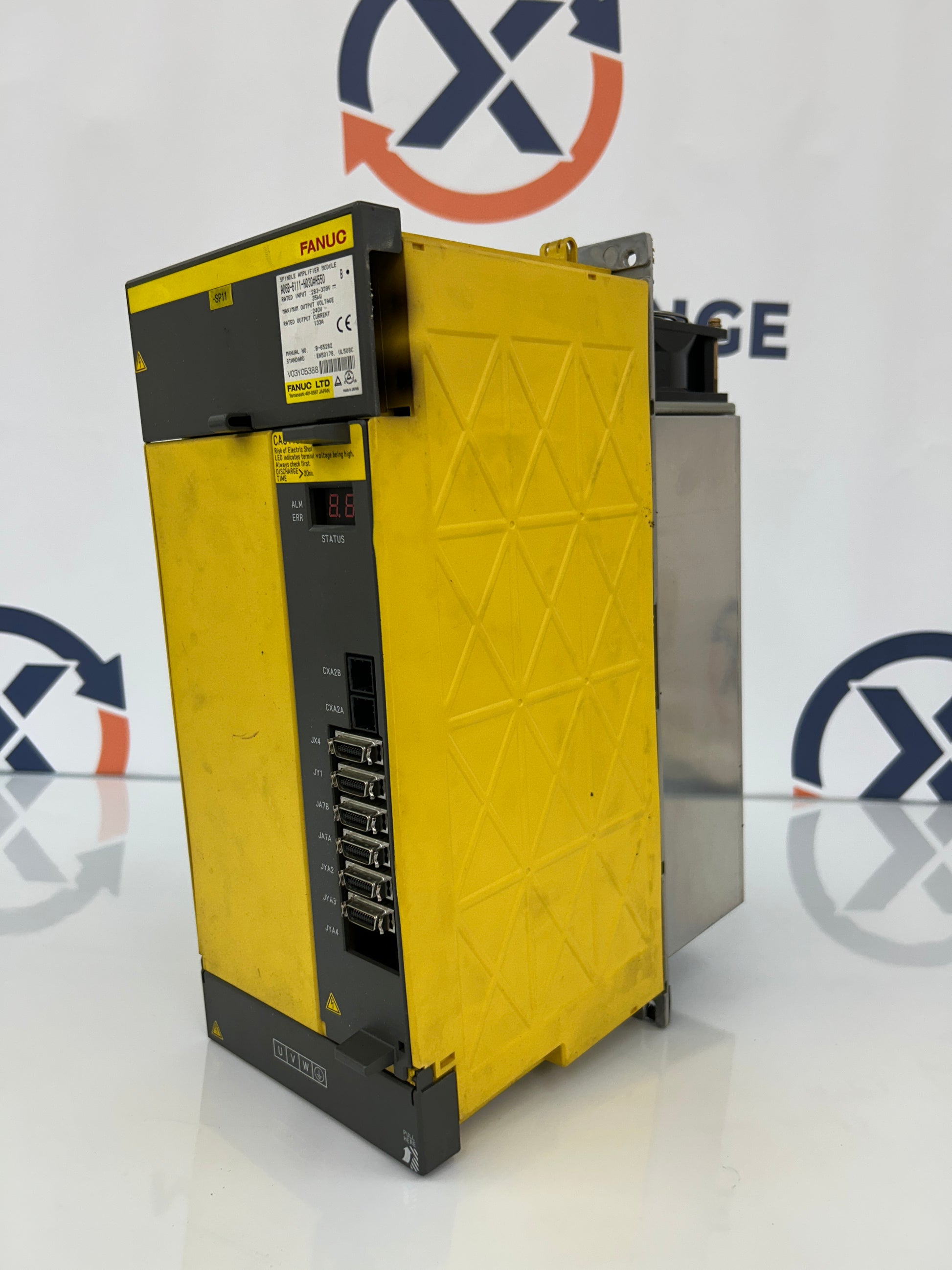

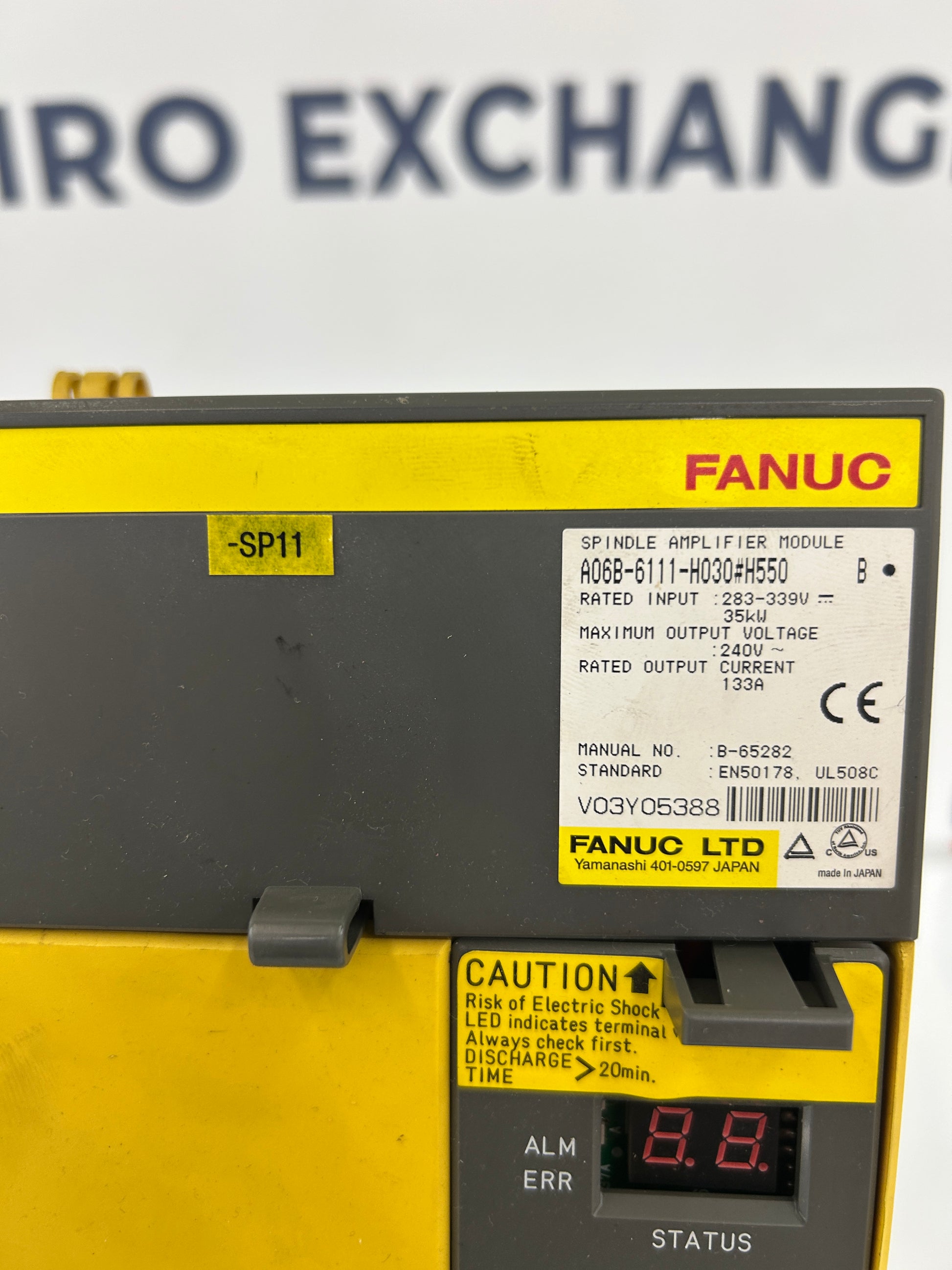

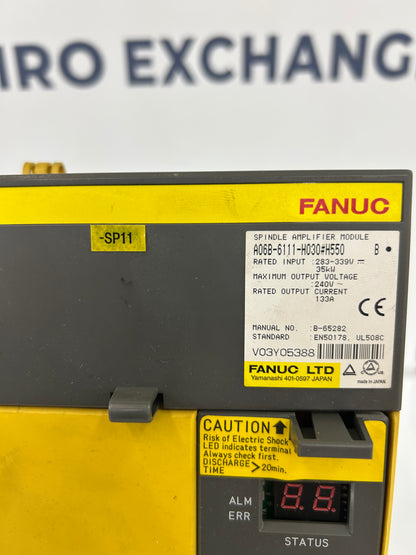

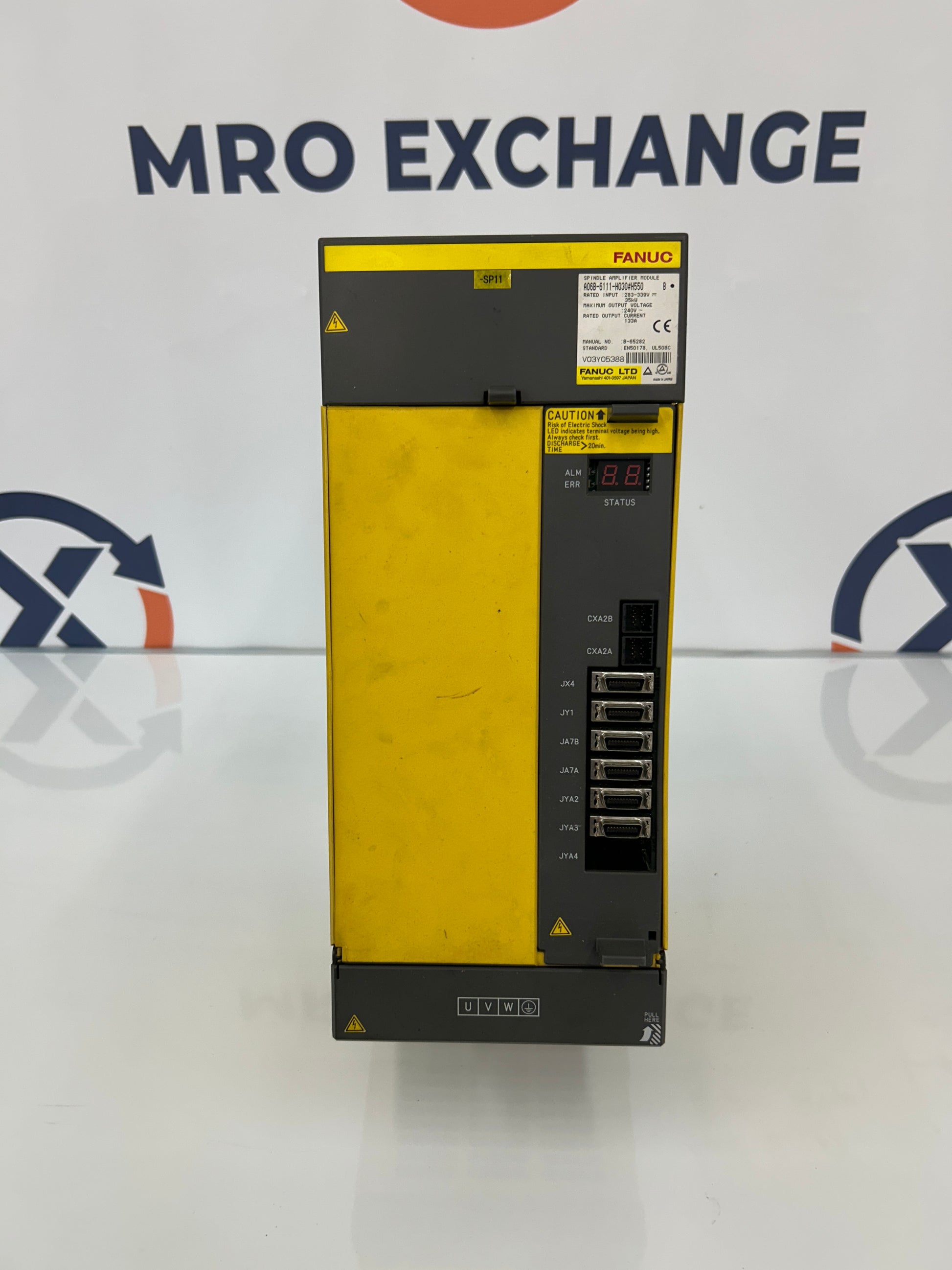

The Fanuc A06B-6111-H030#H550 is a Spindle Amplifier Module from the Alpha i SP series, identified on the rating plate as SPM-30i. This drive module is engineered to control Fanuc Alpha i spindle motors equipped with Type 1 sensor feedback and is commonly mounted adjacent to the Fanuc PSM (Power Supply Module) inside a CNC machine cabinet. Rated input is 283 to 339V DC at 35 kW, with a maximum output voltage of 240V AC and rated output current of 133A. The unit carries the H550 specification suffix, indicating the standard configuration within the H030 family. The nameplate confirms compliance with EN50178 and UL508C, and the module bears the CE marking. Manual reference number B 65282 is printed on the plate. Serial number V03Y05388 is visible. Manufactured by Fanuc Ltd in Yamanashi, Japan. This module is typically deployed in CNC machining centers, lathes, and other spindle driven equipment that utilizes the Alpha i platform. It is suited for drilling, milling, grinding, and turning applications where high power spindle control is required. Related variants in the A06B 6111 H030 family include the H553 and H570, which carry differing functional options and are not interchangeable. Internal cooling is provided via fan assembly A90L 0001 0511, and external cooling is supplied by A90L 0001 0509. The model has been discontinued by the manufacturer and is sourced through the surplus channel.

Stock # 0226-016
