FANUC A06B-6114-H105 283 to 339V DC Input, 240V AC Max Output Servo Amplifier Module
FANUC A06B-6114-H105 283 to 339V DC Input, 240V AC Max Output Servo Amplifier Module
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

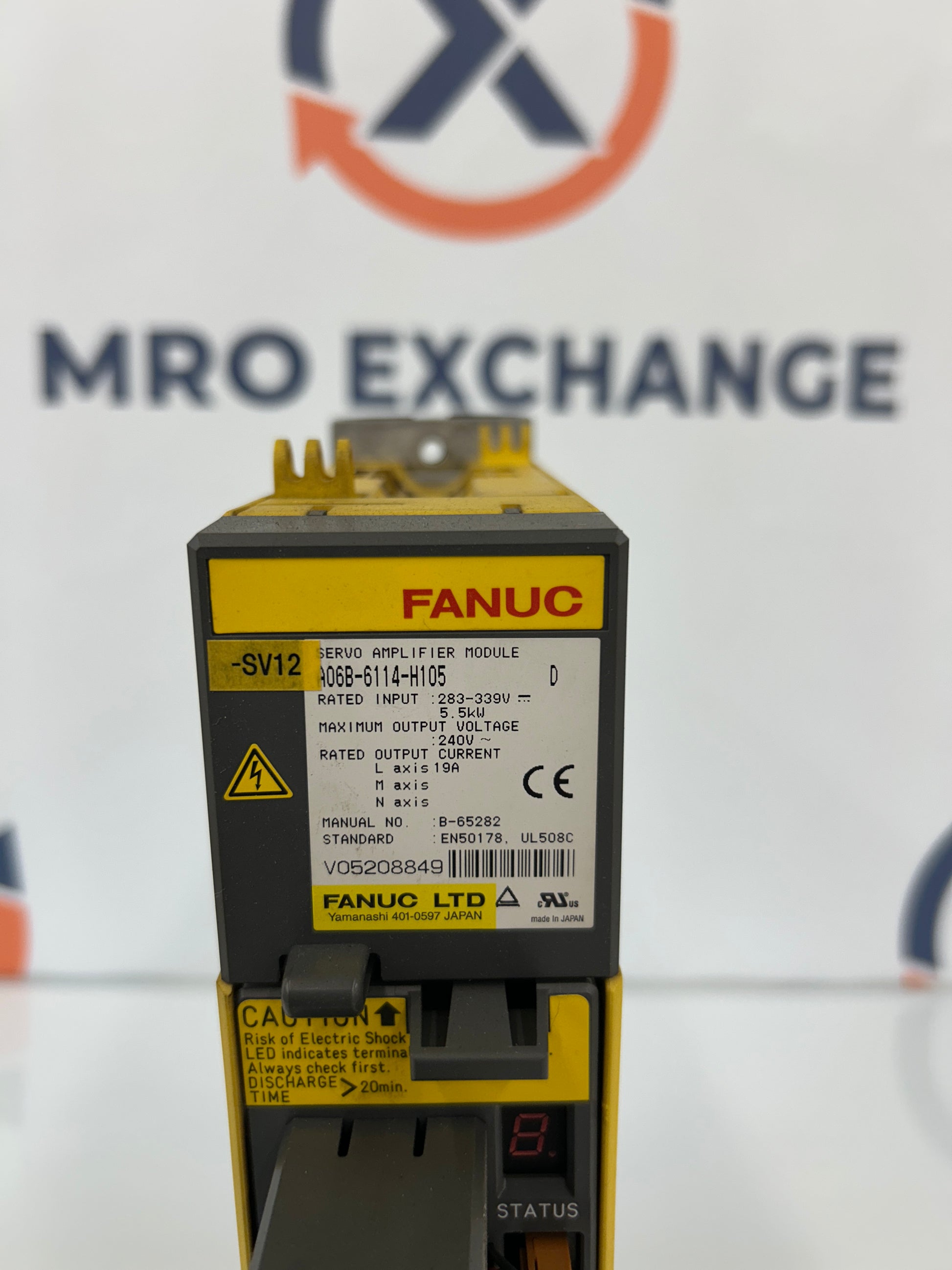

The Fanuc A06B-6114-H105 is a Series D Servo Amplifier Module from the Alpha i (αi) SV series, identified on the nameplate as model SV12 with the designation aiSV1 80i. This single axis servo amplifier is rated for a DC link input of 283 to 339V and delivers a maximum output voltage of 240V AC, with a continuous L axis rated output current of 19 A and 5.5 kW power capacity. Manual reference number B 65282 is printed on the nameplate, and the unit carries CE marking along with UL 508C and EN 50178 compliance.
Engineered for use with Fanuc Alpha i series CNC systems, this 60 mm wide single axis FSSB interface module is commonly paired with αiS 8/4000, αiS 8/6000, αiS 12/4000, αiF 12/3000, and αiF 22/3000 servo motors. The module integrates with Fanuc αiPS power supply modules and αiSP spindle amplifier modules to form a complete Alpha i drive system on Fanuc 0i, 16i, 18i, 21i, 30i, and 31i series CNC controls. The design uses intelligent power module (IPM) technology and supports power regeneration to return motor regeneration energy to the source.
Country of origin is Japan. Serial number V05208849 is recorded from the nameplate. Manufactured by Fanuc Ltd, Yamanashi 401 0597 Japan.
Stock # 0226-018
