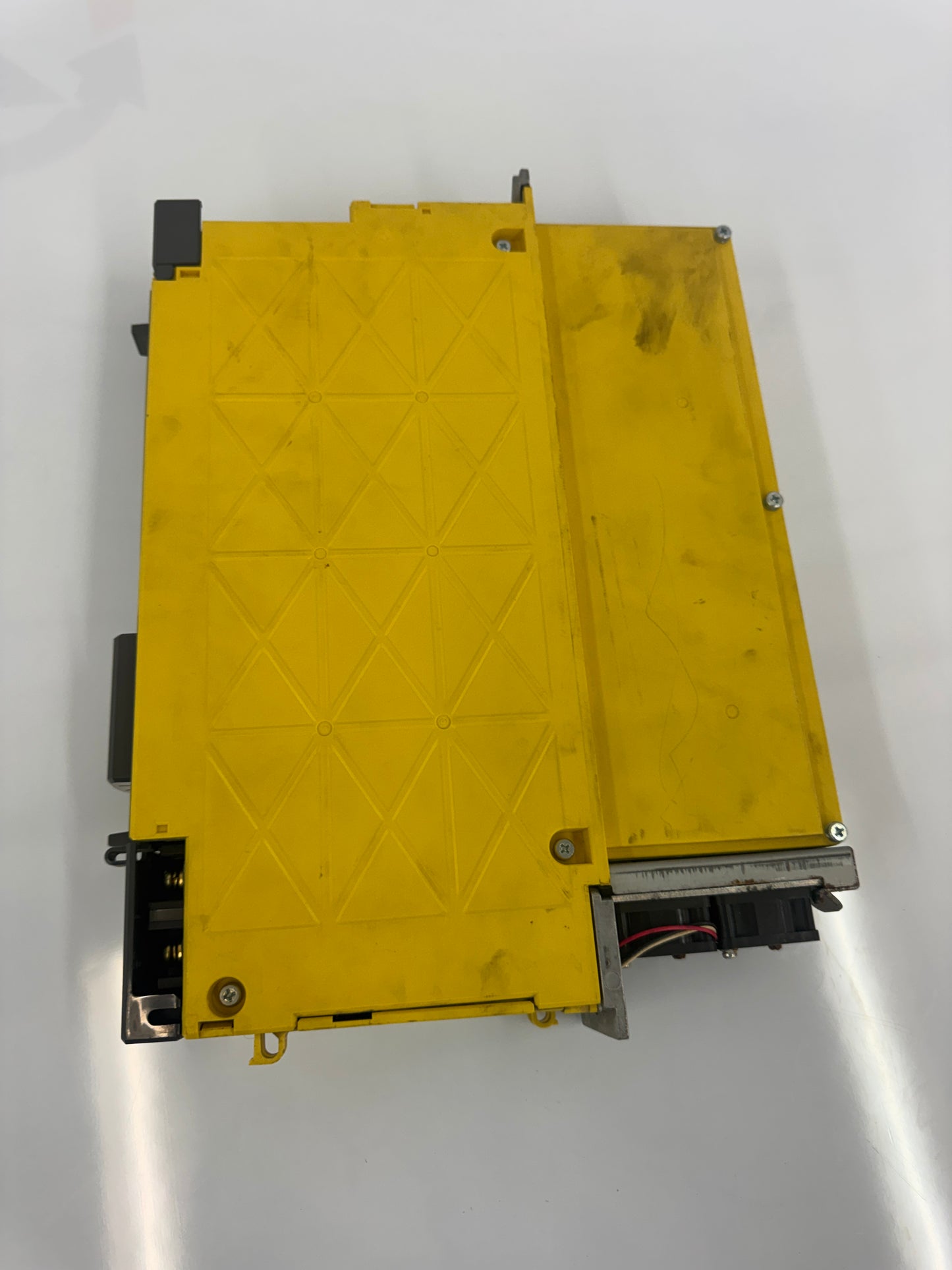

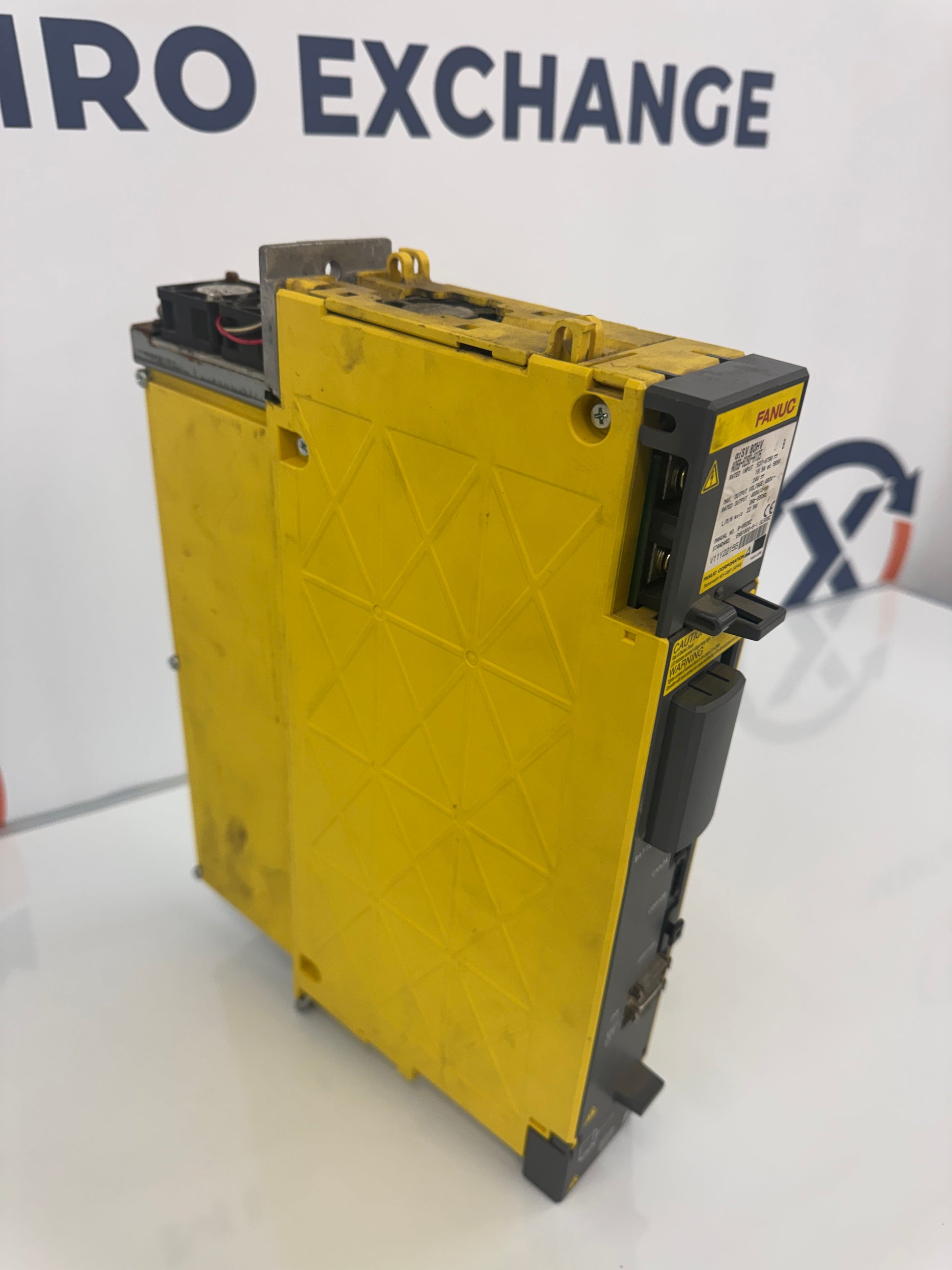

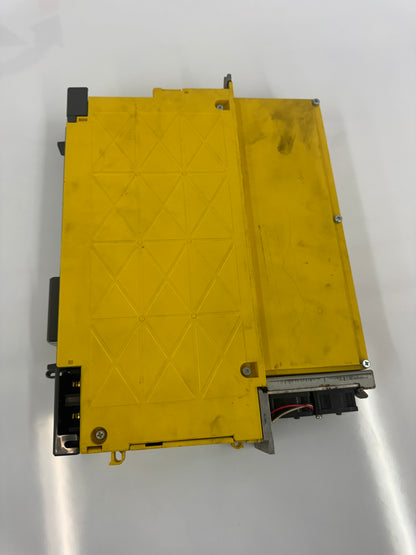

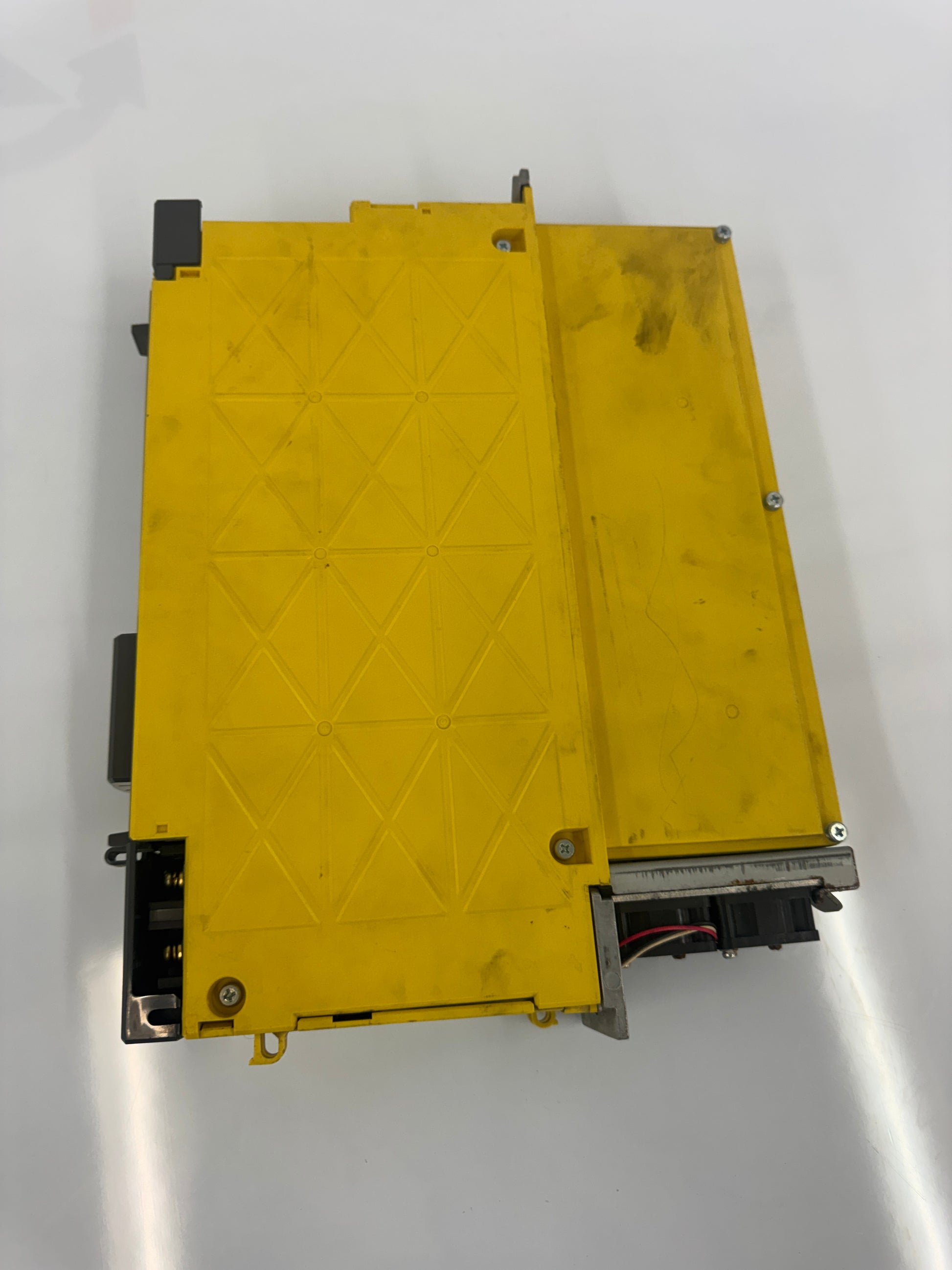

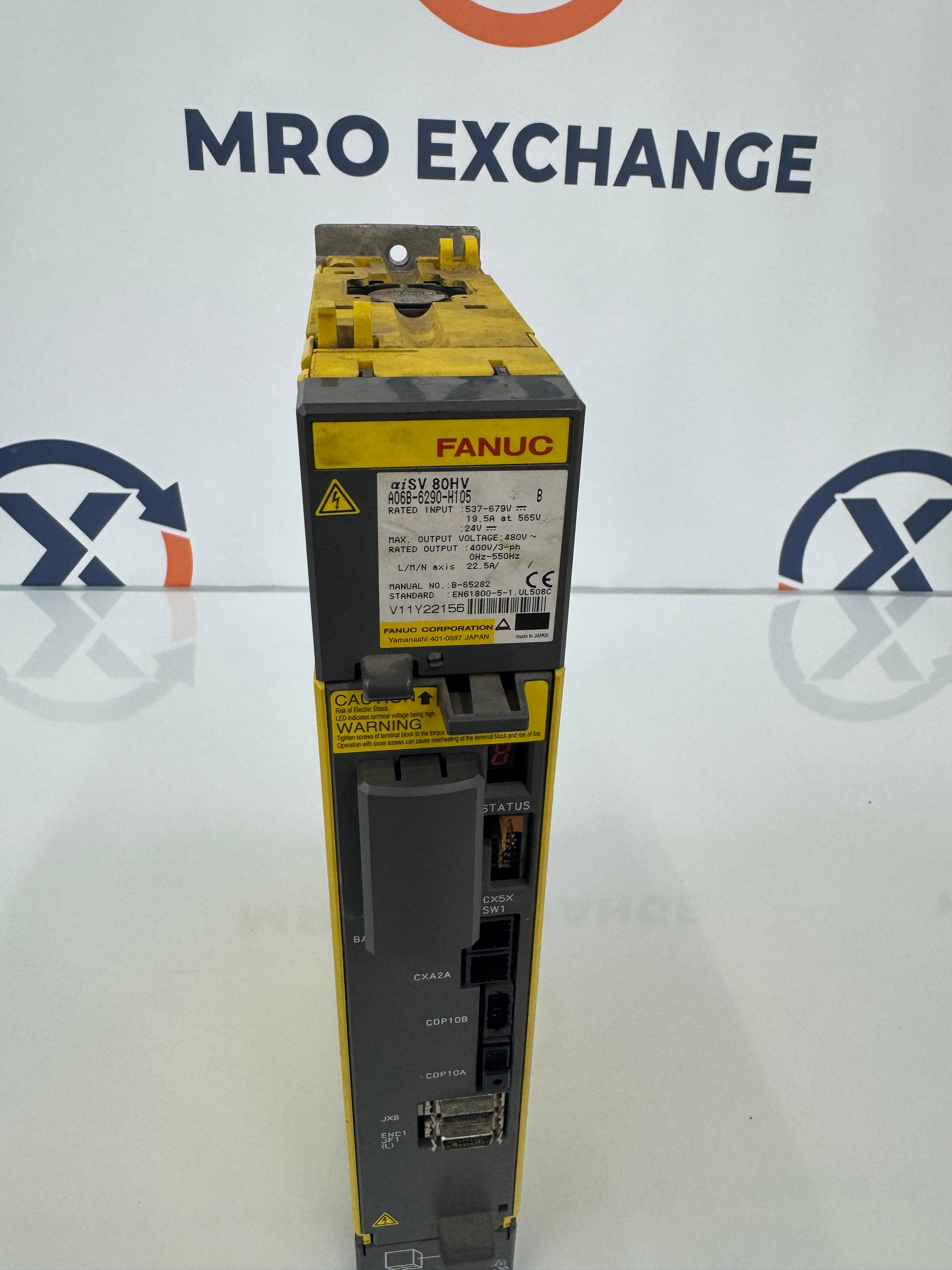

Fanuc A06B-6290-H105 480V Servo Amplifier Module
Fanuc A06B-6290-H105 480V Servo Amplifier Module
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

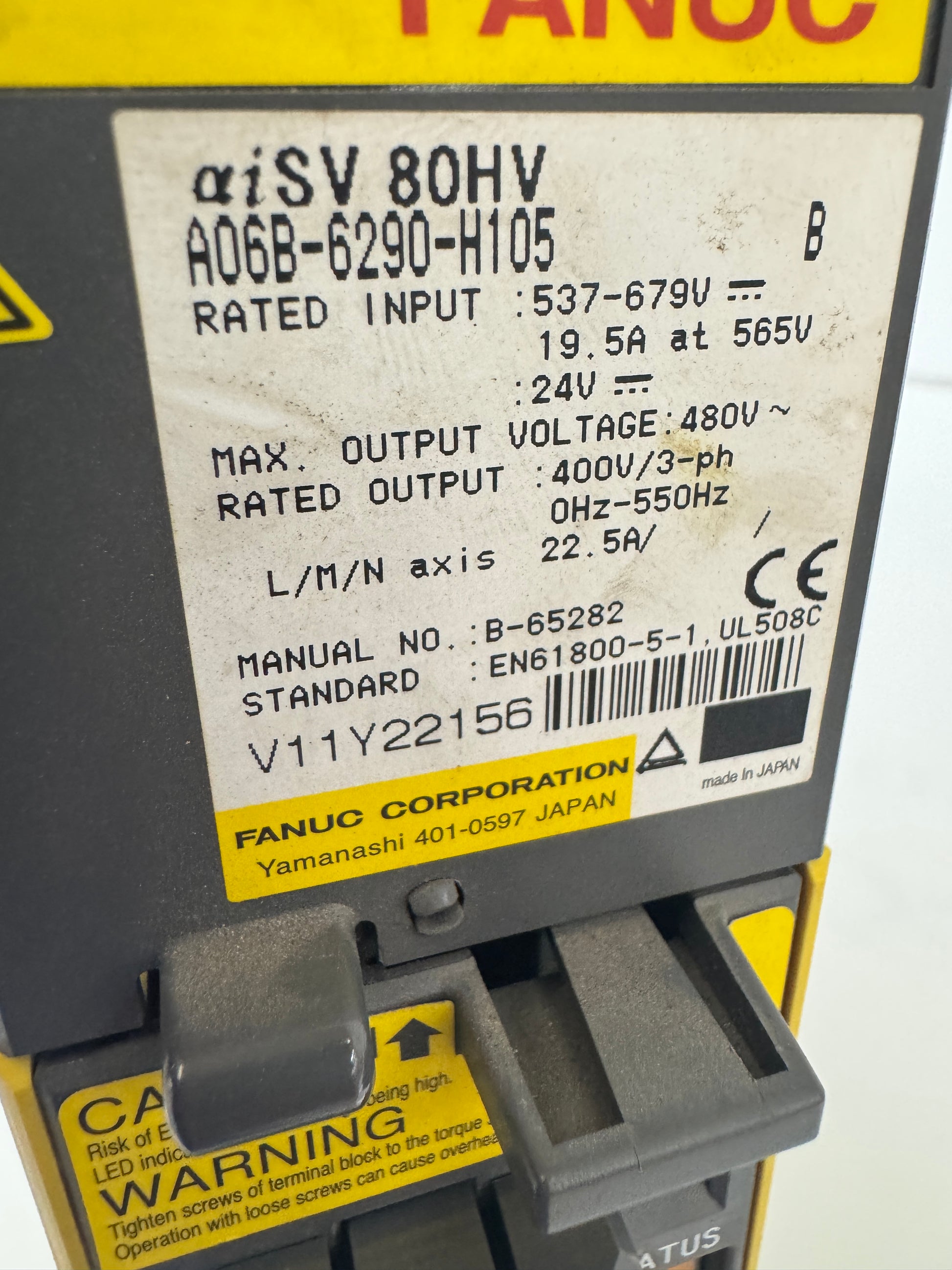

The Fanuc A06B-6290-H105 is a single axis servo amplifier module from the Alpha i SV 80HV-B series, designed for high voltage 400V class CNC machine tool applications. This unit drives a single Fanuc alpha i series servo motor and is part of the 62xx generation of FSSB interface amplifiers used with Fanuc 0i-D, 0i-F, 30i, 31i, and 32i series control systems. Nameplate data confirms a rated input of 537 to 679V DC at 19.5A (measured at 565V), with a 24V control input. Maximum output voltage is 480V AC, with a rated three phase output of 400V at 0Hz to 550Hz and 22.5A on the L, M, or N axis. The unit carries CE marking and complies with EN61800 5 1 and UL508C standards. Manual number B 65282 applies to this revision B assembly. Serial number V11Y22156 is recorded from the nameplate. Manufactured by Fanuc Corporation in Yamanashi, Japan. Typical applications include machining centers, lathes, and multi axis CNC equipment where a 400V class power supply (aiPS HV) and matching spindle module (aiSP HV) are integrated within an Alpha i drive bus. The H105 designation identifies this as the smaller frame single axis configuration within the 6290 family. Buyers should confirm compatibility with their existing FSSB control configuration and verify firmware compatibility before installation.
Stock # 0226-048
