FANUC AC Motor A06B-0501-B005 - Variable 2000 RPM
FANUC AC Motor A06B-0501-B005 - Variable 2000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: A06B-0501-B005
Stock #: 0226-00138

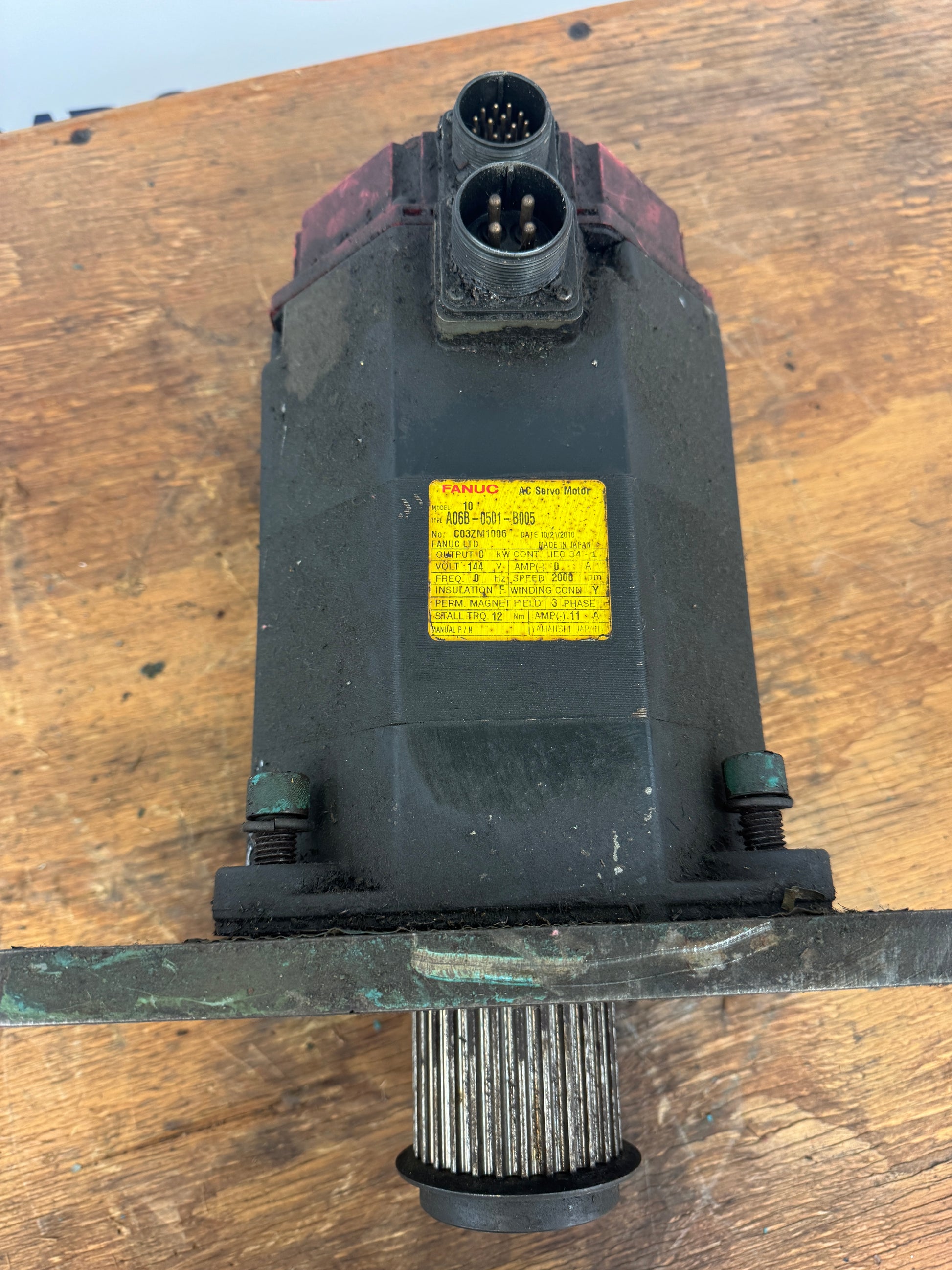

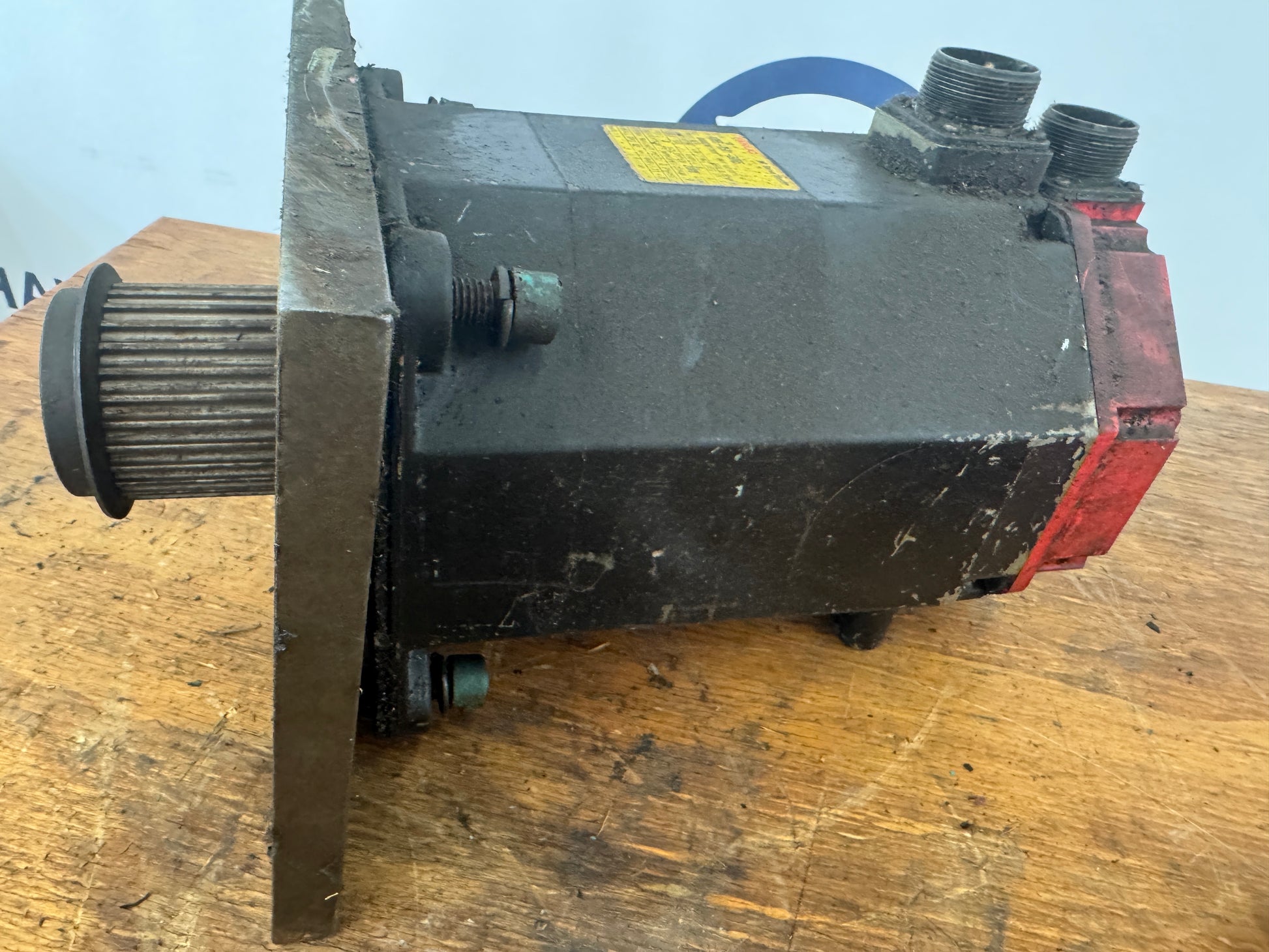

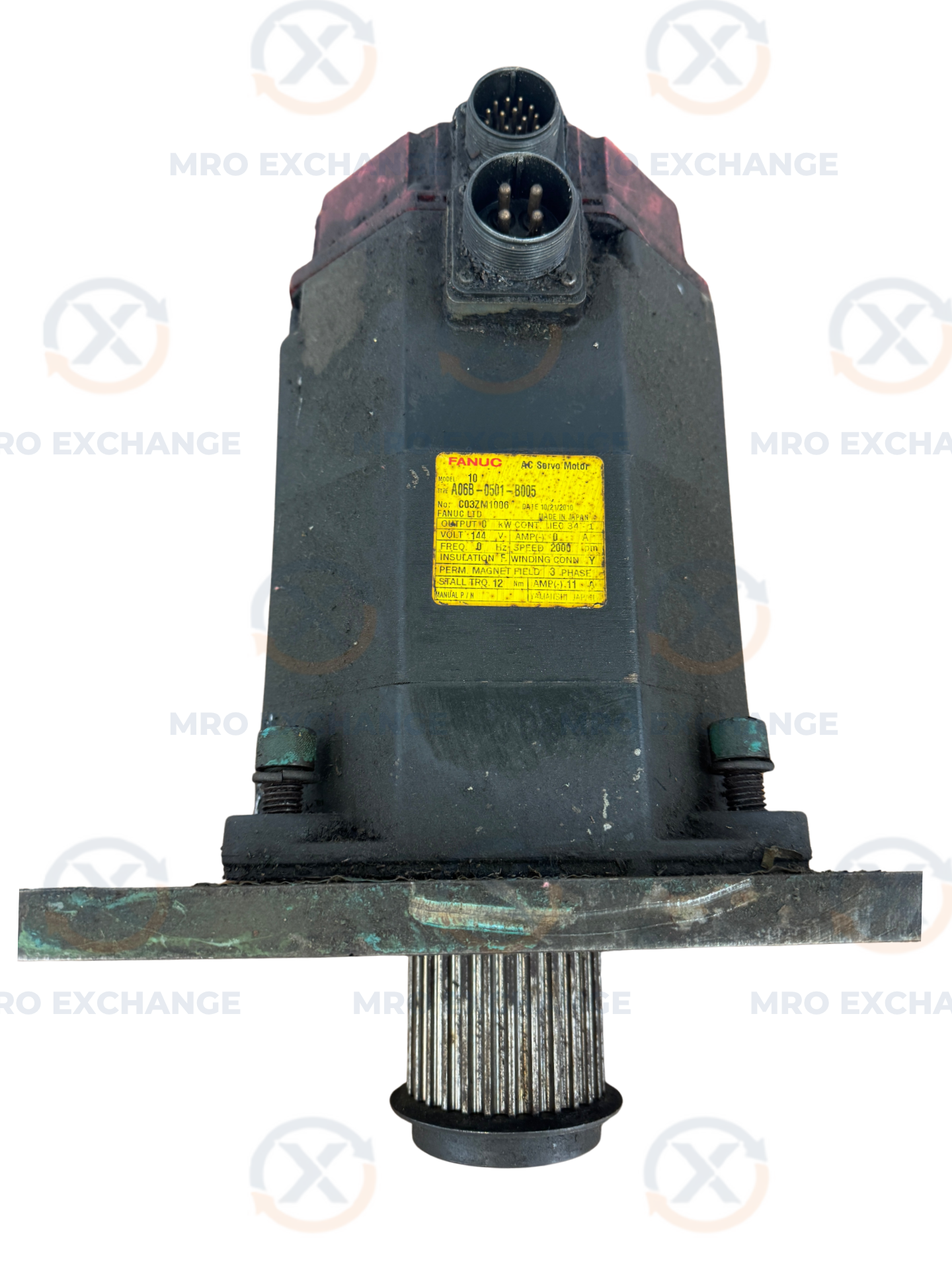

The Fanuc A06B-0501-B005 is an AC servo motor Model 10 manufactured by Fanuc Ltd. in Japan. The nameplate identifies it as part of the Fanuc Model 10 servo family, with type designation A06B-0501-B005 and serial number C03ZM1006, date stamped 10/21/2010. It is rated for 144 volts, 3 phase operation, with a rated speed of 2000 RPM. Stall torque is listed as 12 Nm with a stall current of 11 A. The motor uses Class F insulation, Y winding connection, and a permanent magnet field. It conforms to IEC 34 1 standards.
This Model 10 servo is commonly used in Fanuc CNC machine tools, machining centers, lathes, and industrial automation systems requiring closed loop motion control. The A06B-0501 series motors are widely deployed across feed axis and rotary axis applications on Fanuc controlled equipment, and the B005 variant is referenced in the U.S. MRO and CNC spares market as a replacement and surplus part.

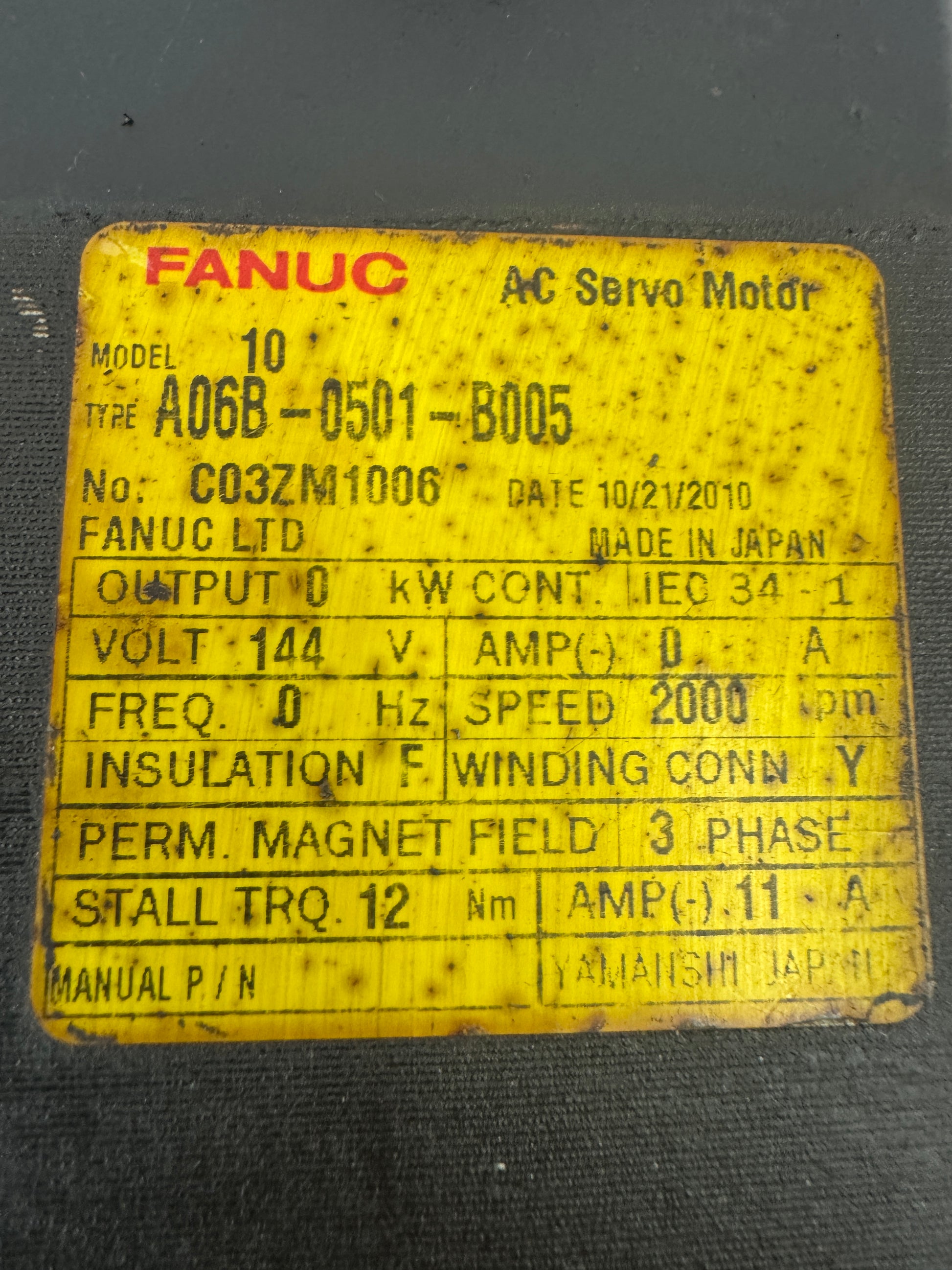

Identifiers visible on the nameplate include MODEL 10, TYPE A06B-0501-B005, No. C03ZM1006, and the Fanuc Ltd. Made in Japan marking. Output rating field on the nameplate is partially illegible and shows 0 kW continuous. Frequency and amp continuous values on the plate are also shown as 0, consistent with typical Fanuc Model 10 nameplate formatting where stall values are the primary reference. Refer to photos for additional condition detail and nameplate verification.
Stock # 0226-138
