FANUC AC Servo Motor A06B-0075-B203 - 1 kW 2000 RPM
FANUC AC Servo Motor A06B-0075-B203 - 1 kW 2000 RPM
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition: Surplus - Untested
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: A06B-0075-B203
Stock #: Stock # 0626-01628
Product Specifications
- Manufacturer: FANUC
- MPN / Model: A06B-0075-B203
- Model Designation: BiS 8/3000
- Product Type: AC Servo Motor
- Stall Torque: 7 Nm
- Output: 1.2 kW Continuous
- Speed: 2000 min-1
- Frequency: 133 Hz
- Motor Input: 153 V
- Power Factor: 97 %
- Amplifier Input: 200 to 240 V
- Current: 6 A, 4.9 A Continuous
- Poles: 8
- Phases: 3
- Winding Connection: Y
- Ambient Temperature: 0 to 40 C
- Enclosure Rating: IP65
- Insulation Class: F
- Standard: IEC60034-1
- Weight: 7.4 kg
- Pulsecoder Type: BiA128
- Pulsecoder Part Number: A860-2020-T301
- Serial Number: C181W0D90
Product Description
FANUC A06B-0075-B203 is an AC servo motor from the BiS 8/3000 series, identified by model designation BiS 8/3000 and rated for 1.2 kW continuous output with a stall torque of 7 Nm at 2000 min-1. This three phase, eight pole motor carries a motor input rating of 153 V with an amplifier input range of 200 to 240 V and a continuous current of 4.9 A. The motor is fitted with a FANUC BiA128 pulsecoder, part number A860-2020-T301, mounted to the rear of the unit.

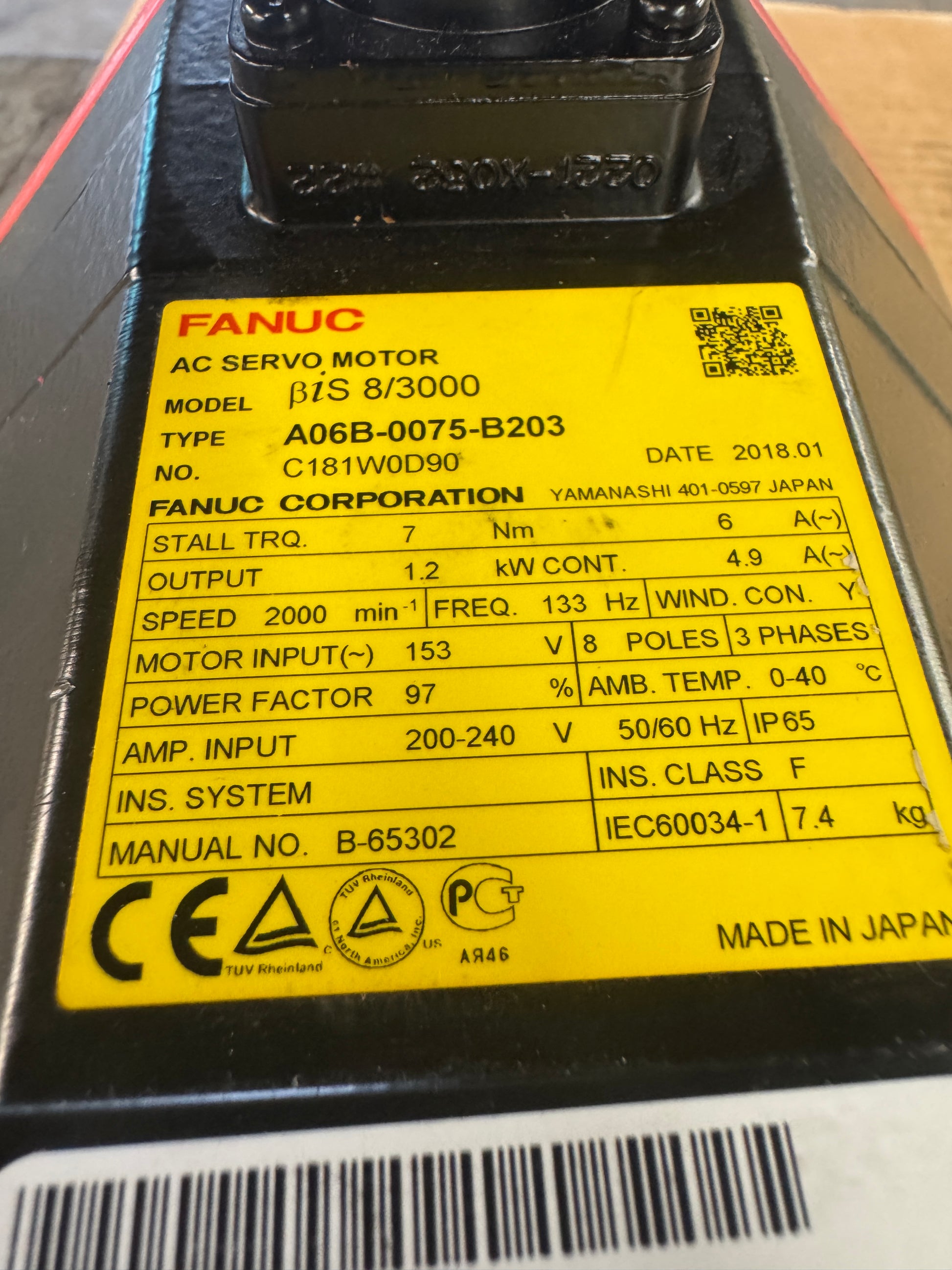

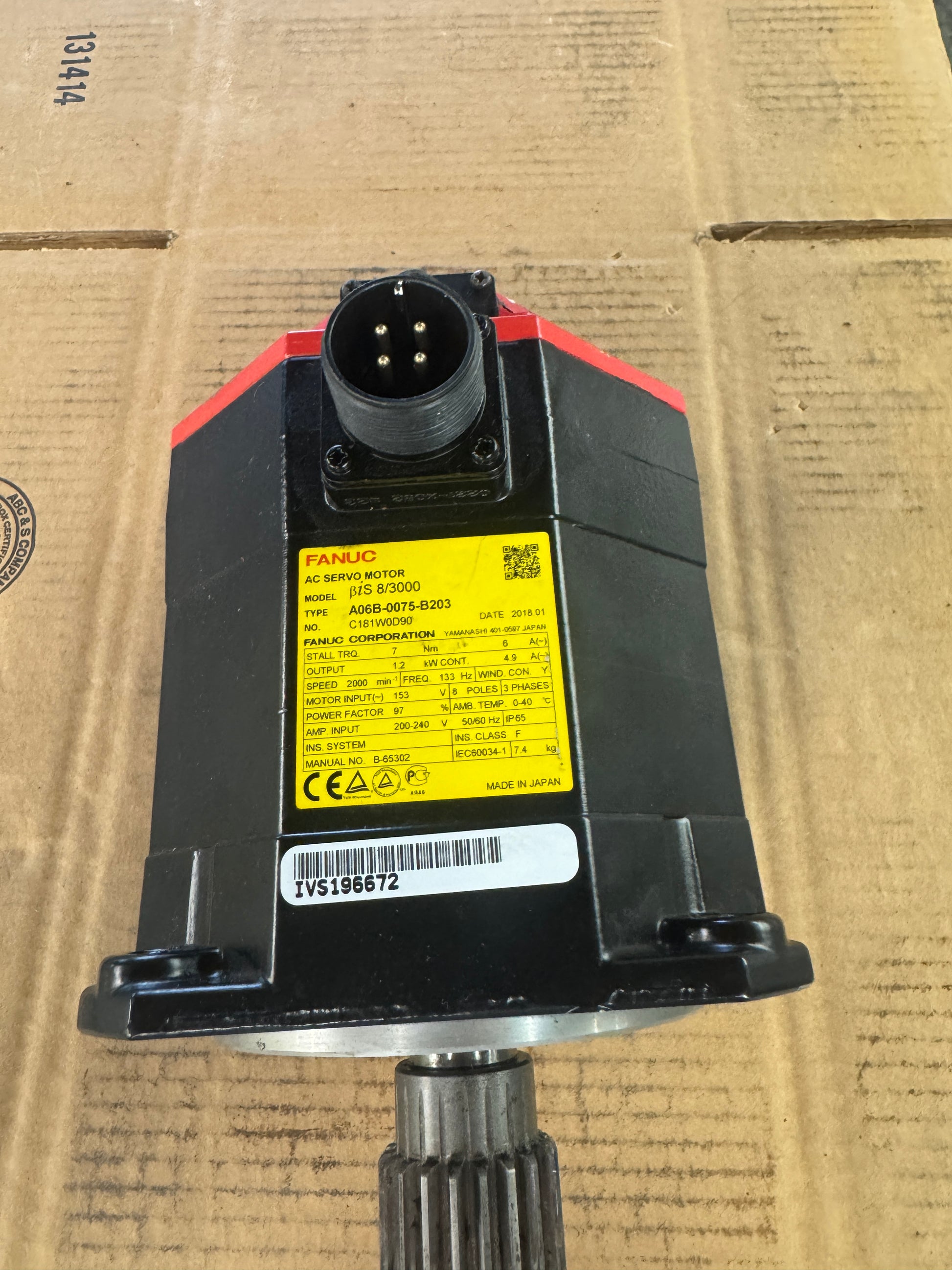

Confirmed nameplate identifiers include MPN A06B-0075-B203, serial number C181W0D90, IP65 enclosure rating, insulation class F, and a unit weight of 7.4 kg. Buyers matching an exact FANUC catalog number for spindle, axis, or rotary applications can use the visible nameplate data and the attached pulsecoder model to confirm the part against existing equipment or maintenance sourcing requirements.
