Fanuc AC Spindle Motor A06B-0729-B102 - 11 kW 1500 RPM
Fanuc AC Spindle Motor A06B-0729-B102 - 11 kW 1500 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
MPN: A06B-0729-B102
Stock #: 0226-00604

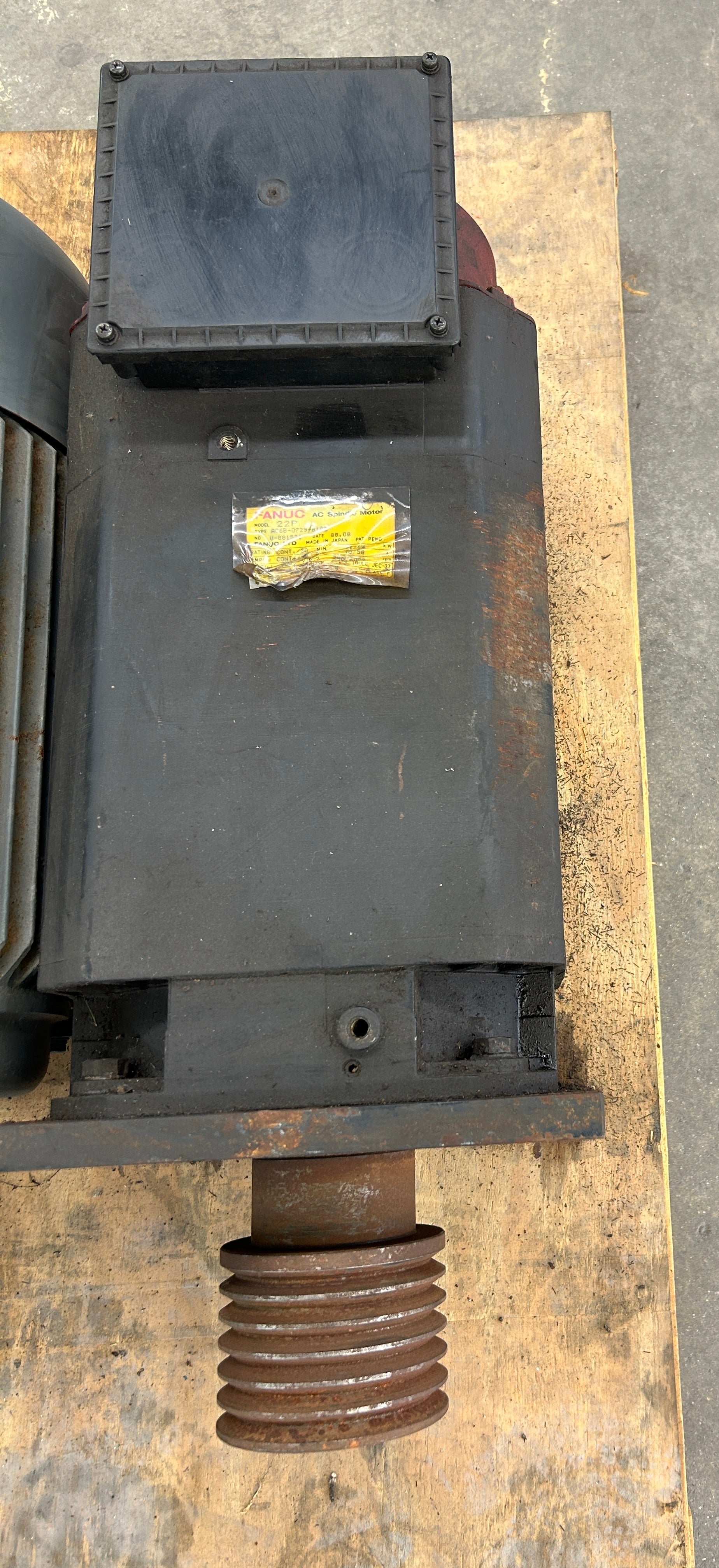

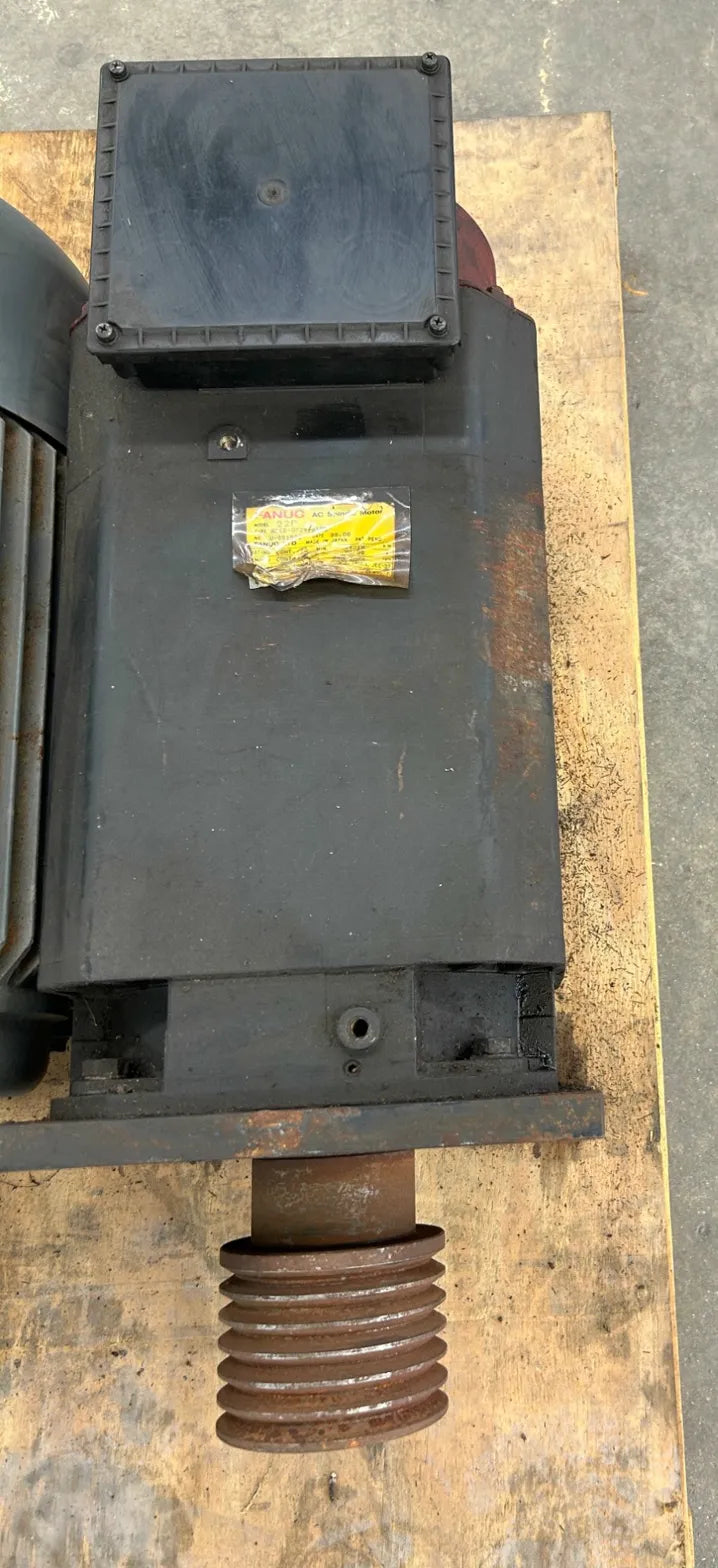

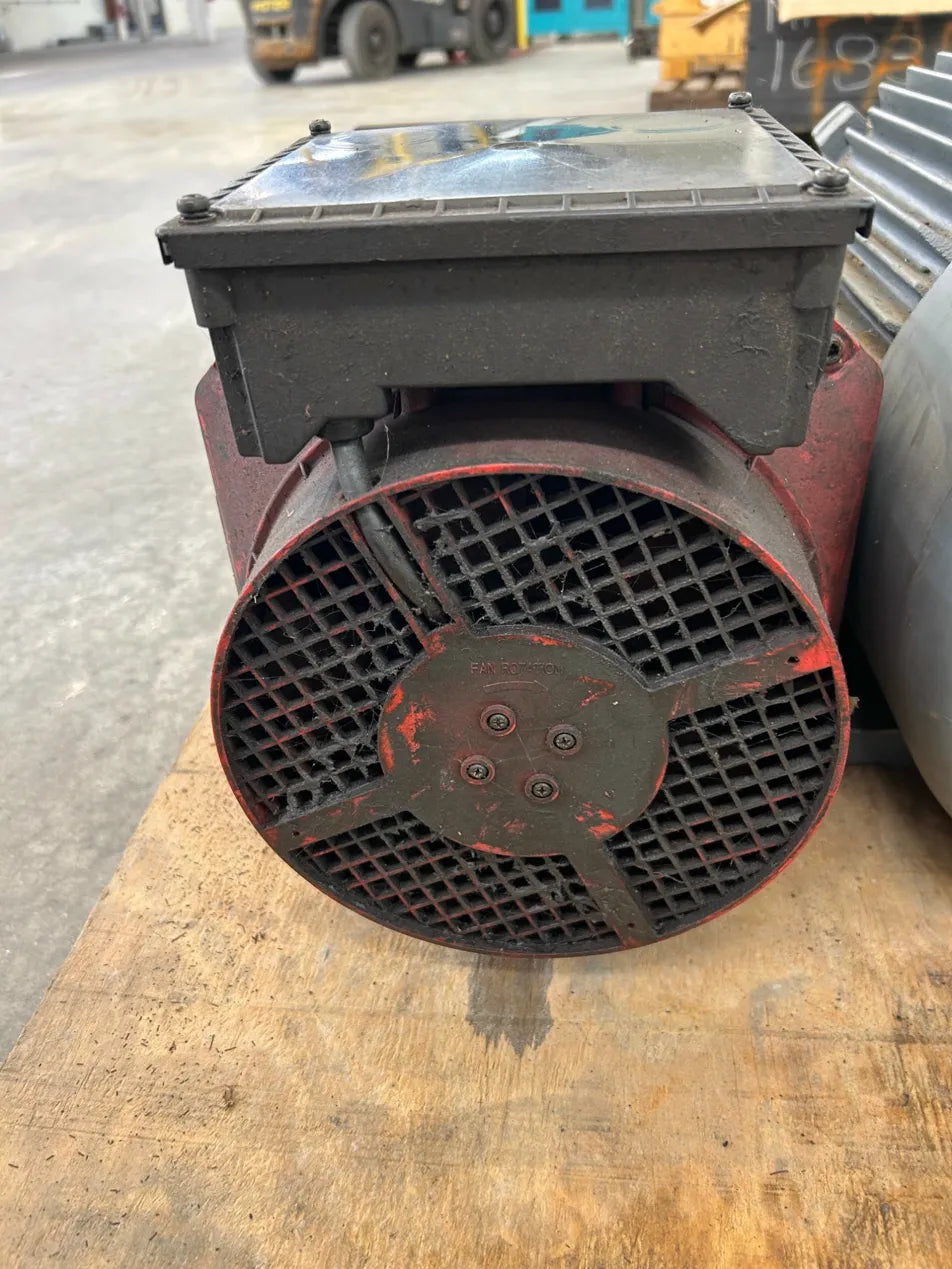

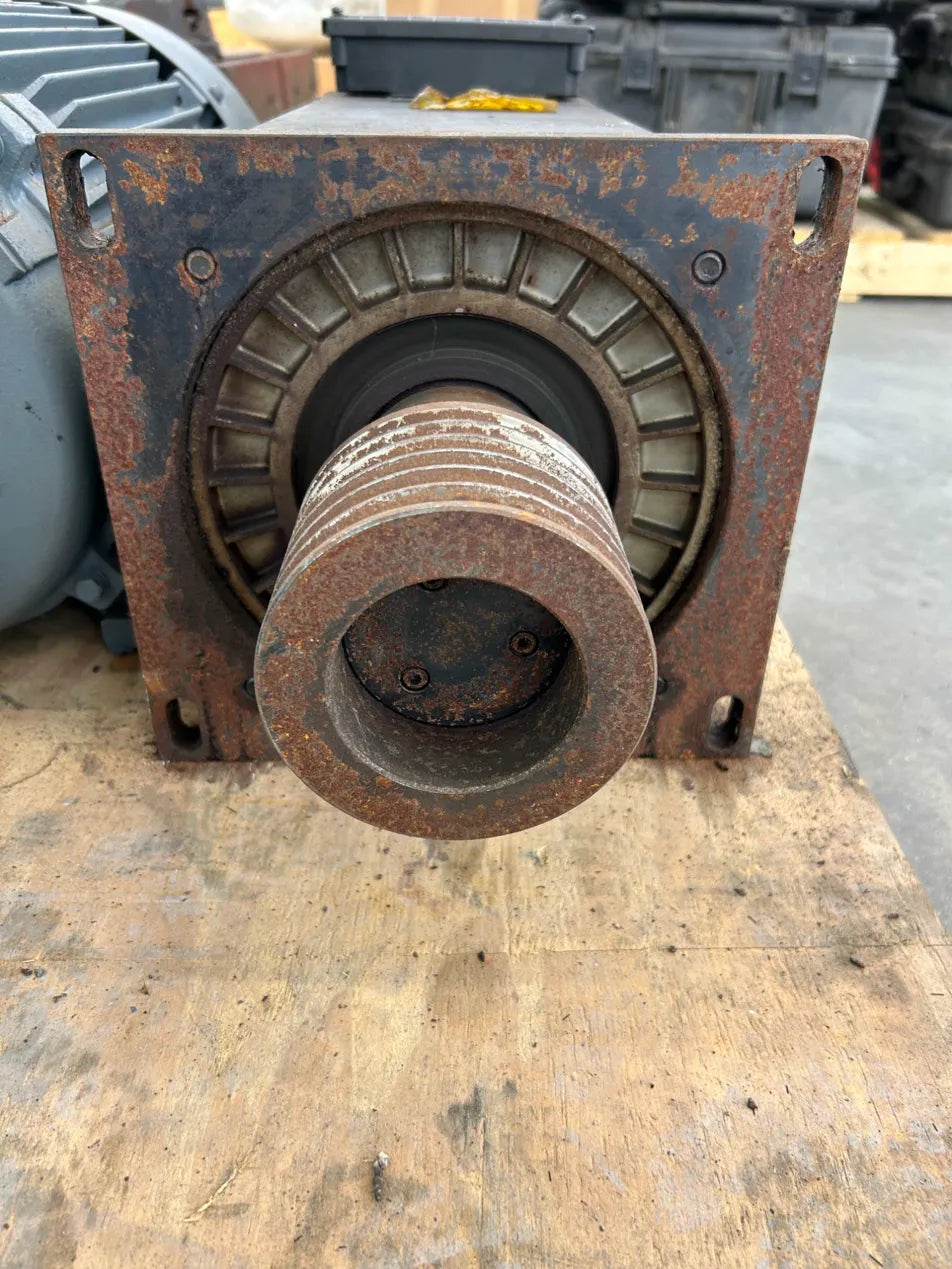

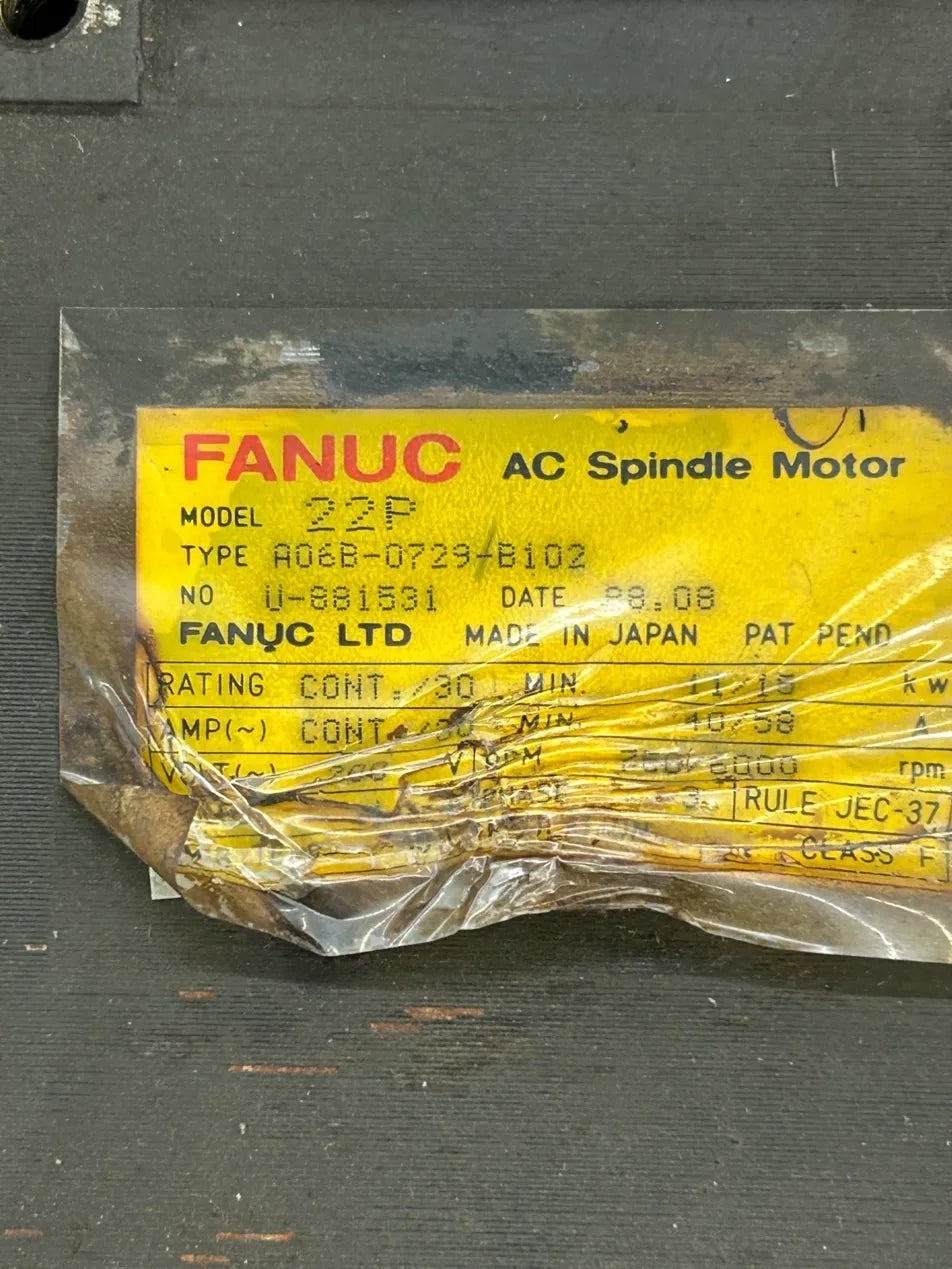

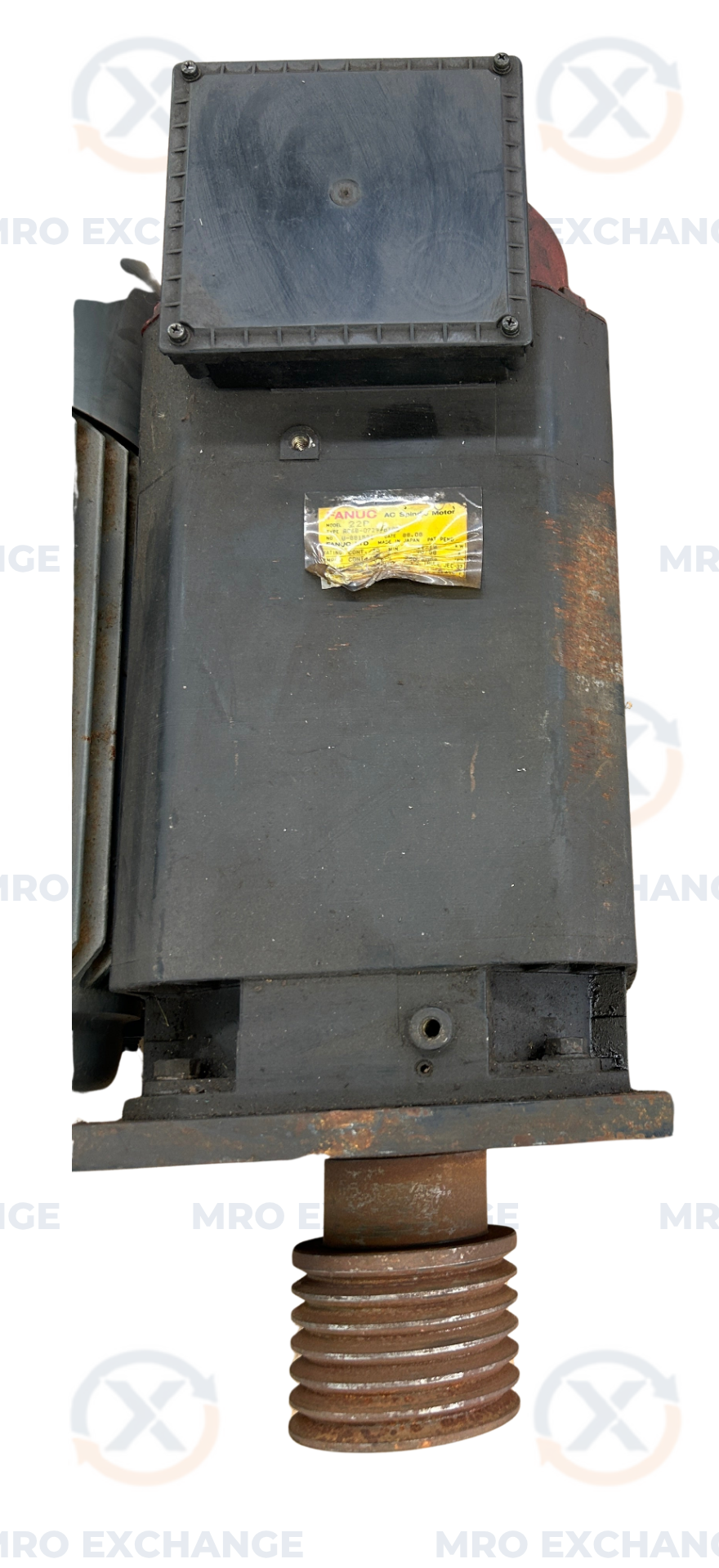

The Fanuc Model 22P AC Spindle Motor, part number A06B-0729-B102, is a three-phase spindle motor manufactured by Fanuc Ltd in Japan. The nameplate identifies a continuous power rating of 11 kW with a 30-minute rating of 15 kW, and a variable speed range of 1500 to 6000 RPM. Amperage is listed at continuous and 30-minute values of approximately 40 and 58 amps respectively. The motor carries Class F insulation per Rule JEC-37 and serial number U-881531, dated 98.08. The unit features a ribbed cast housing with an integral cooling fan at the rear and a flanged face-mount output end with a multi-groove pulley installed on the shaft. A separate terminal box is mounted on top of the motor body. The A06B-0729-B102 is compatible with Fanuc spindle drive systems and is commonly found in CNC machining centers and turning centers requiring AC spindle drive capability. The motor frame construction is heavy-duty cast iron. Pulley is included as shown in photos.
Stock # 0226-604
