Fanuc Model 30S AC Servo Motor A06B-0590-B074 - 5 kW 1200 RPM
Fanuc Model 30S AC Servo Motor A06B-0590-B074 - 5 kW 1200 RPM
The shipping fee at checkout covers handling and loading only.
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

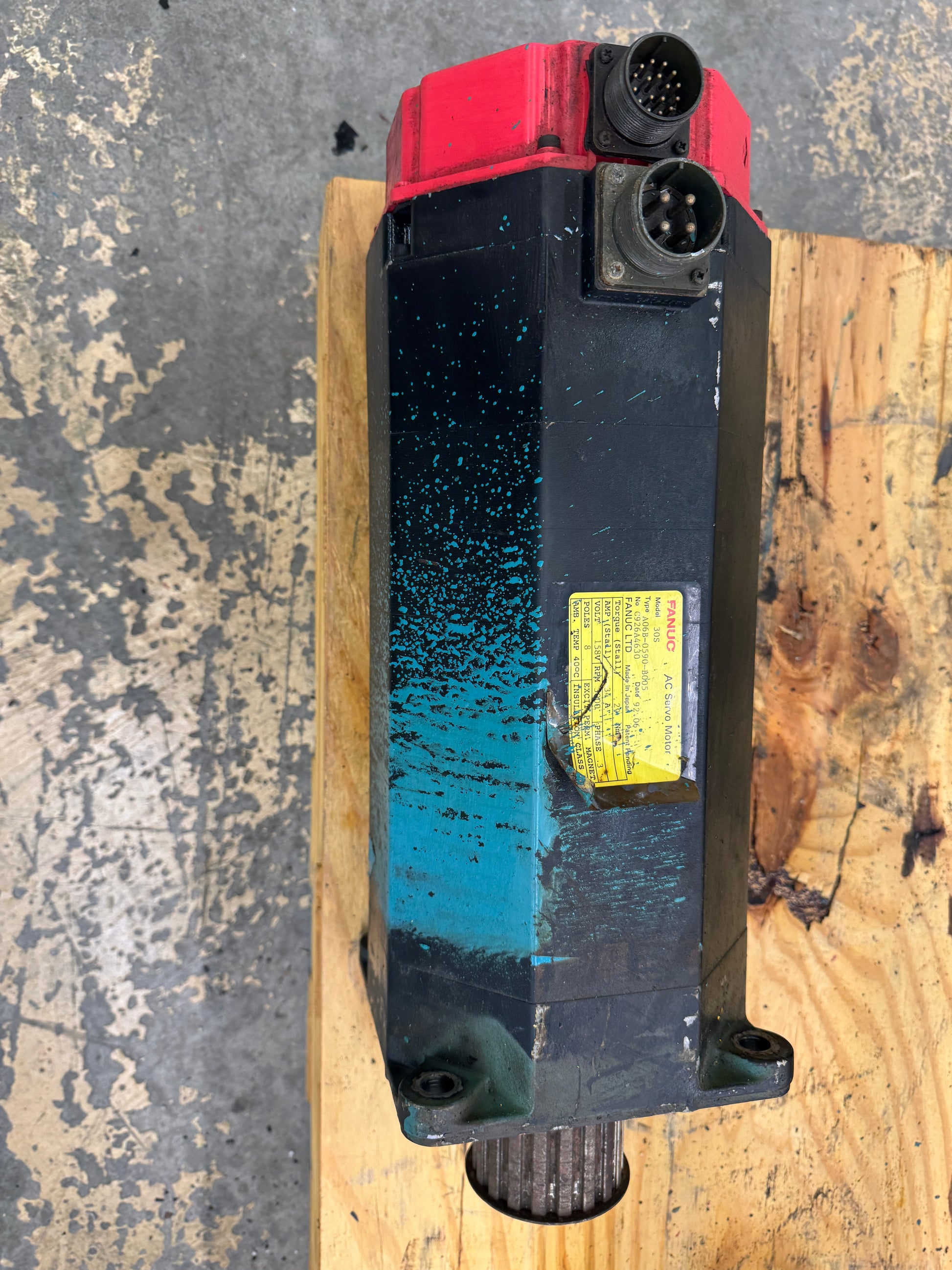

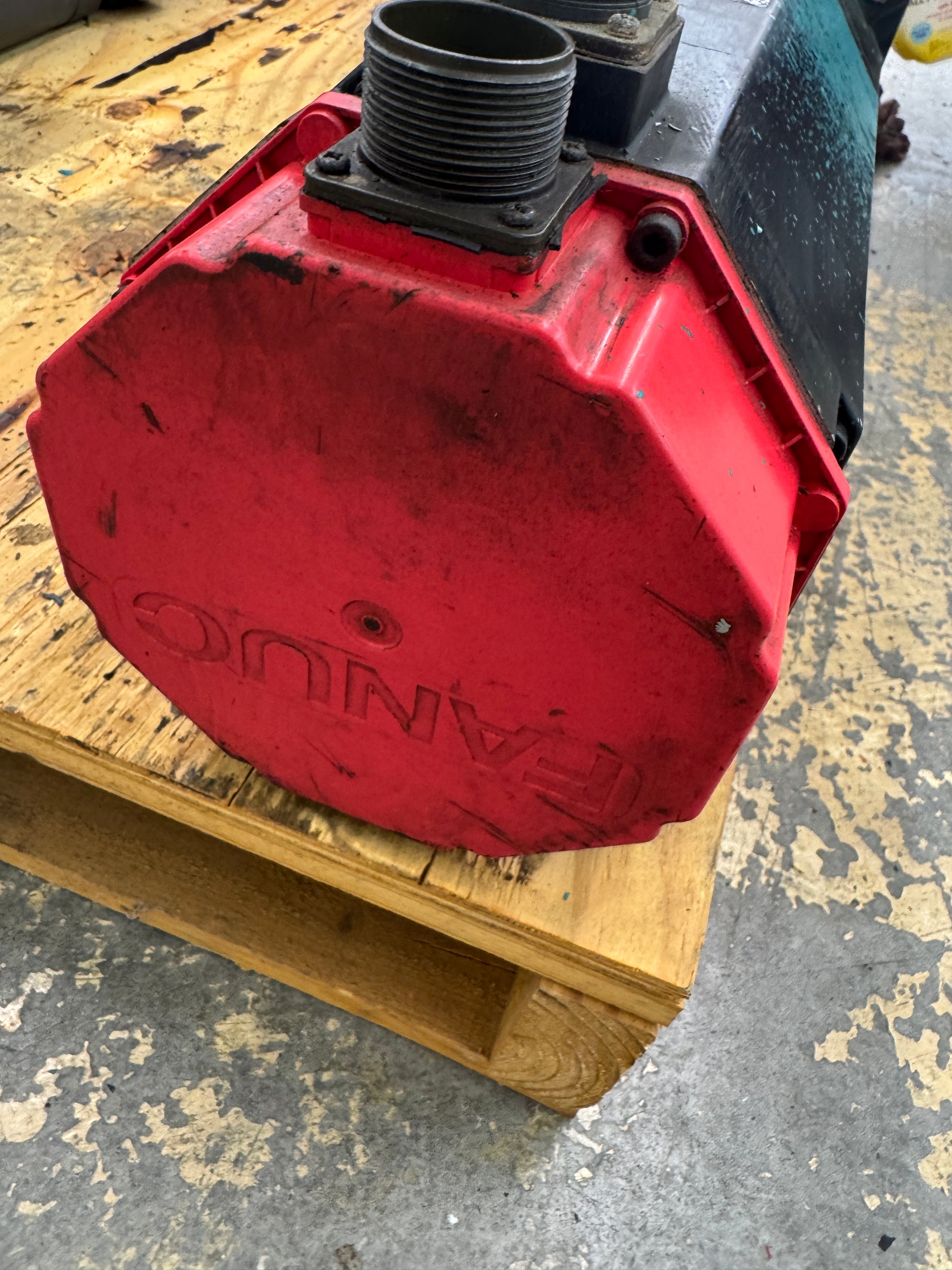

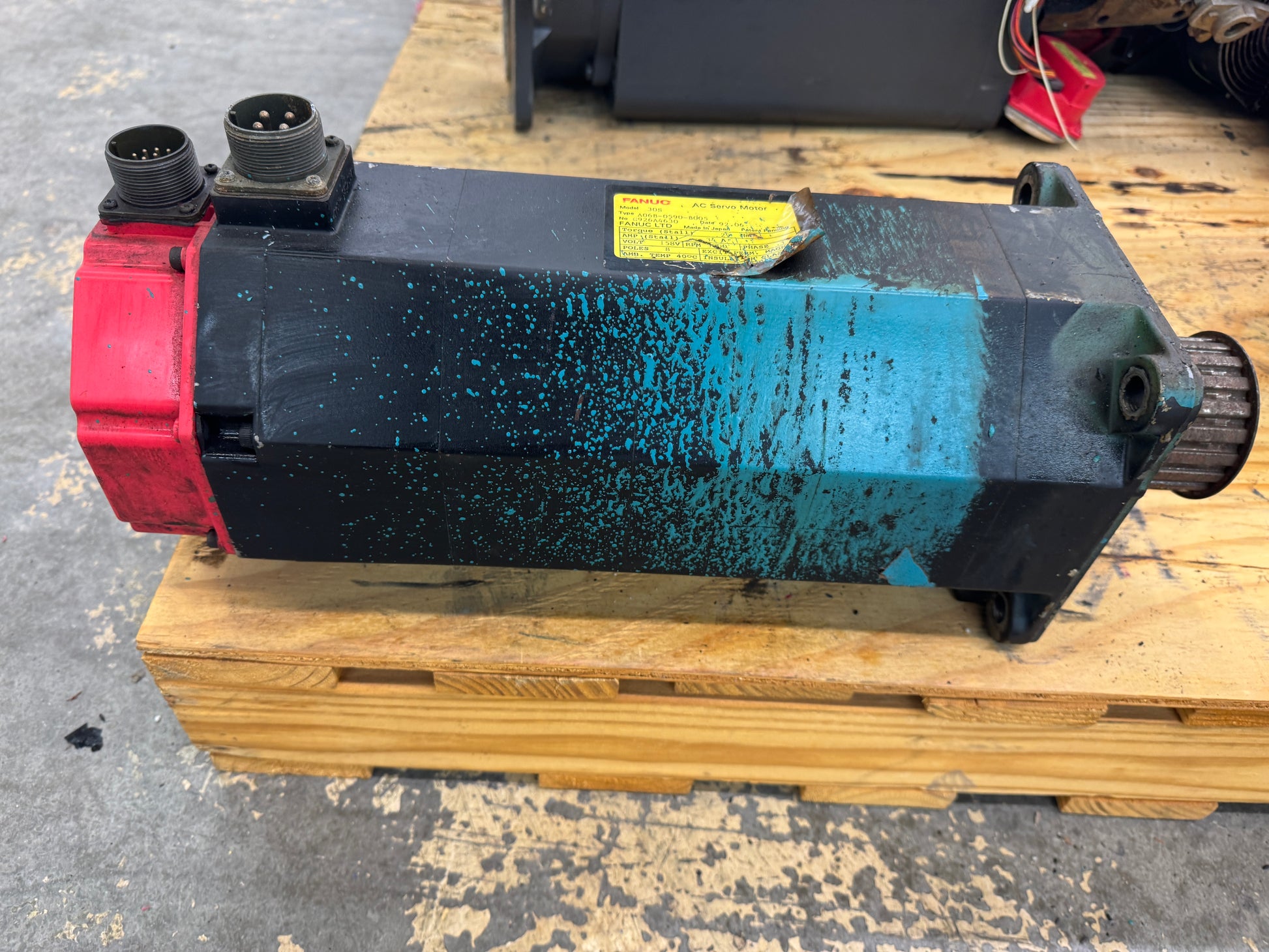

The Fanuc Model 30S AC servo motor, type A06B-0590-B074, is a three phase permanent magnet servo motor built by Fanuc Ltd in Japan and used in CNC machine tools and industrial automation systems. The nameplate identifies the unit as an AC Servo Motor, Model 30S, with a stall torque rating of 37 Nm, a rated voltage of 156V, three phase input, and a rated speed of 1200 RPM. The motor carries Fanuc's red end cap design typical of the S series and is constructed with a permanent magnet rotor and Class F insulation. The output shaft is a straight, splined configuration suitable for direct coupling to ball screws, gearboxes, or belt drives in machine tool feed axes. The motor features two connector ports on the housing for power and feedback wiring, consistent with separately cabled pulse coder feedback used across the Fanuc S series platform. The cast aluminum frame includes four through bolt mounting points at the flange end for standard face mounting. Manufactured by Fanuc Ltd in Japan with a date code in the 1992 production range. Compatible with Fanuc servo amplifier modules from the A06B-6058, A06B-6066, and A06B-6079 families when matched to the correct feedback and current rating. Part number A06B-0590-B074 is commonly referenced for replacement and spare applications in legacy Fanuc CNC systems. The final digit of the type suffix is partially obscured on the rating plate and should be verified against the unit's serial tag prior to installation.
Stock # 0326-096
