Condition: Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

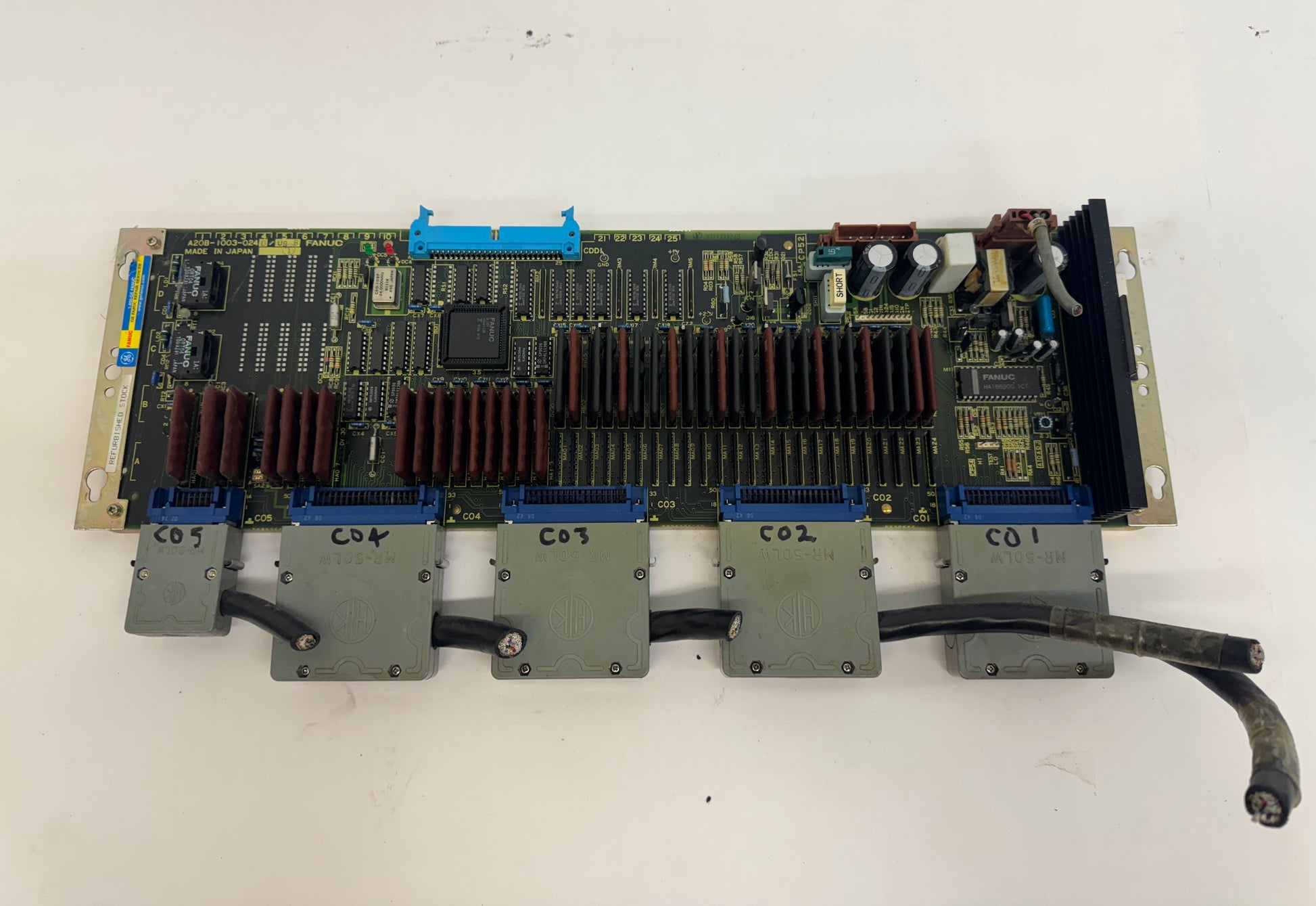

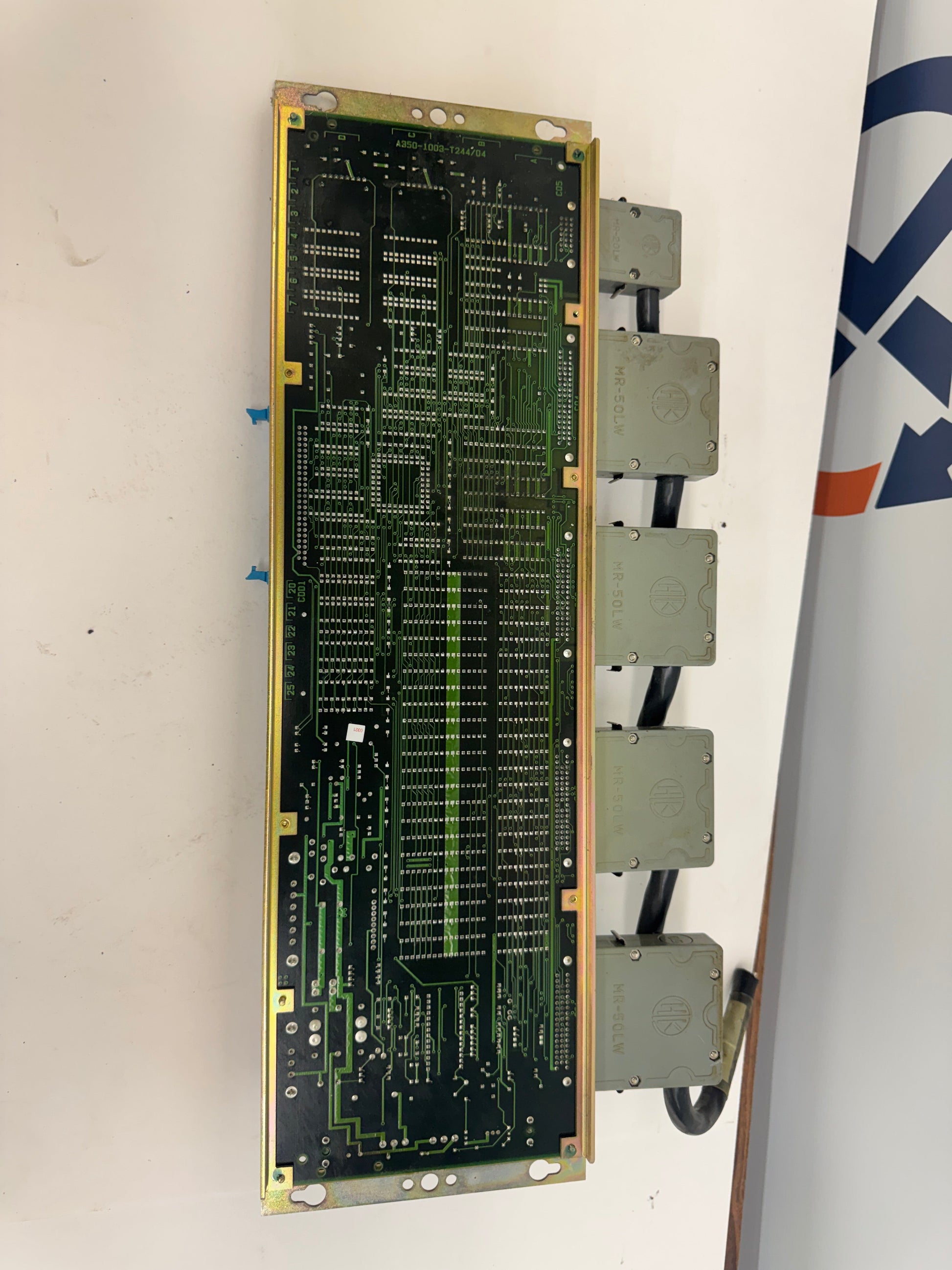

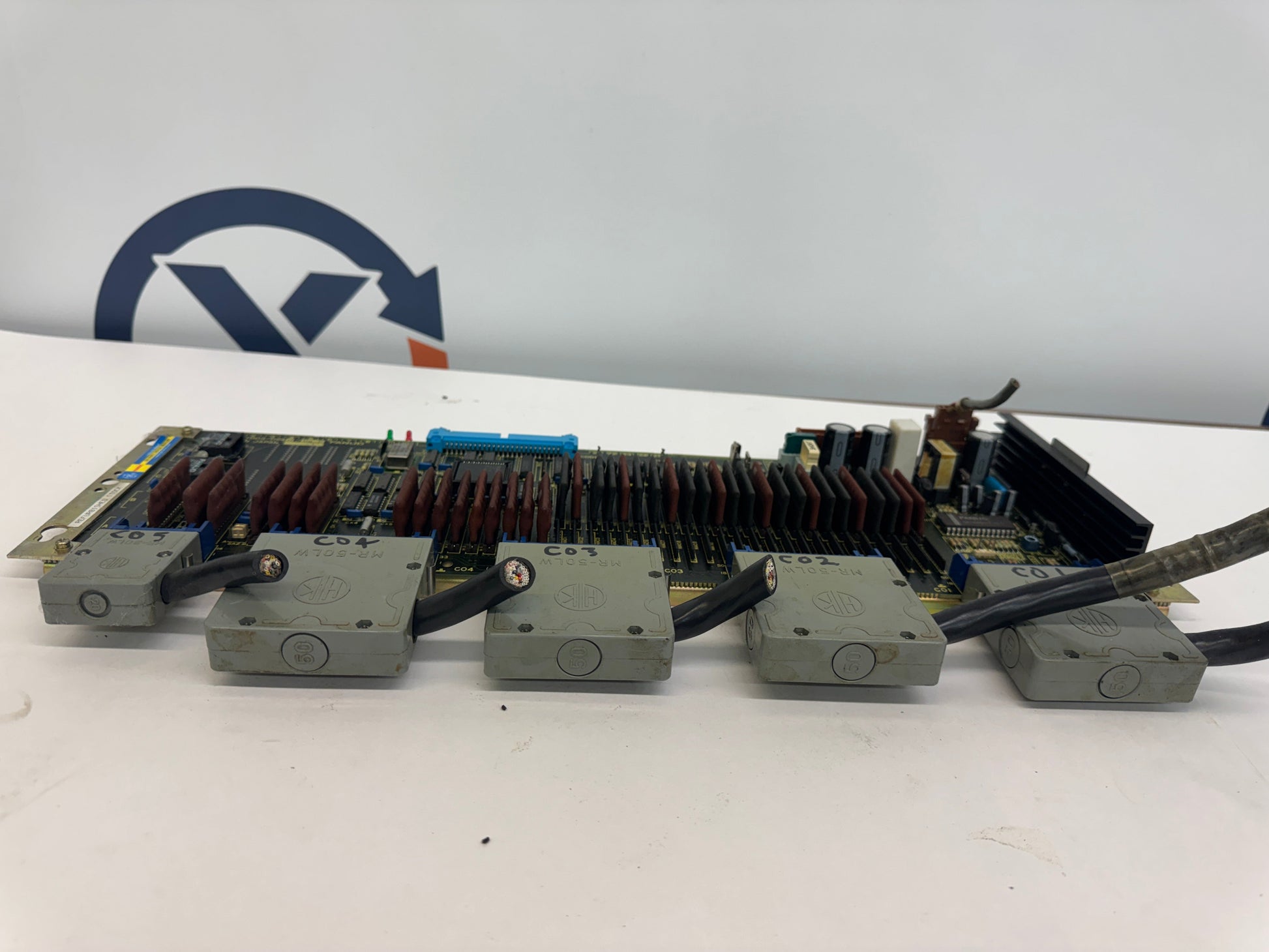

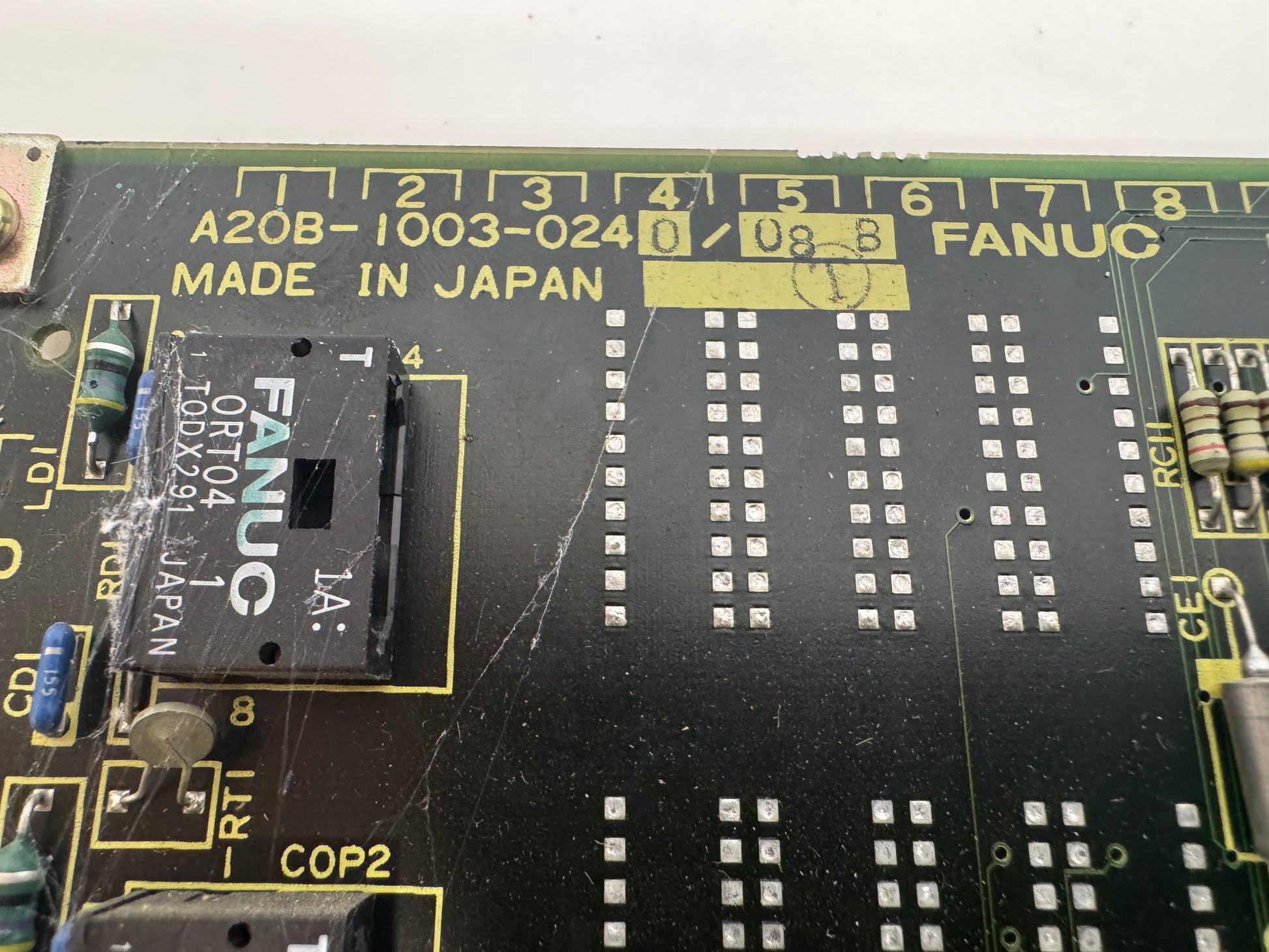

Used in Fanuc Series 15A CNC control systems, the A20B-1003-0240 is the I/O Connection Unit 2 board responsible for routing discrete input and output signals between the CNC controller and machine peripherals. The board supports 96 inputs and 64 outputs, accommodating the high I/O density required by large-format machining centers and transfer lines running under Fanuc 15A control. Five external connector modules labeled CO1 through CO5 are attached to the front edge of the board, each carrying multi-conductor cables that interface with field devices such as limit switches, solenoids, and auxiliary relays. The PCB silkscreen reads A20B-1003-0240 / 08B, with revision suffix 08B indicating a later revision of the base part number A20B-1003-0240. Manufactured in Japan by Fanuc, the board carries the Fanuc logo and country of origin marking directly on the PCB surface. The reverse side silkscreen shows A950-1003-T244704, a Fanuc internal board assembly reference. The board is a full-length rack-mount card constructed on a green substrate with a gold-plated edge frame, populated with a mix of through-hole and surface-mount components including Fanuc-branded ICs, film capacitors, and passive components. A heat sink assembly is present on the right side of the component face. This part number is compatible with Fanuc 15A, 15-MA, 15-TA, 15-TF, and related control variants requiring a second I/O connection unit.
