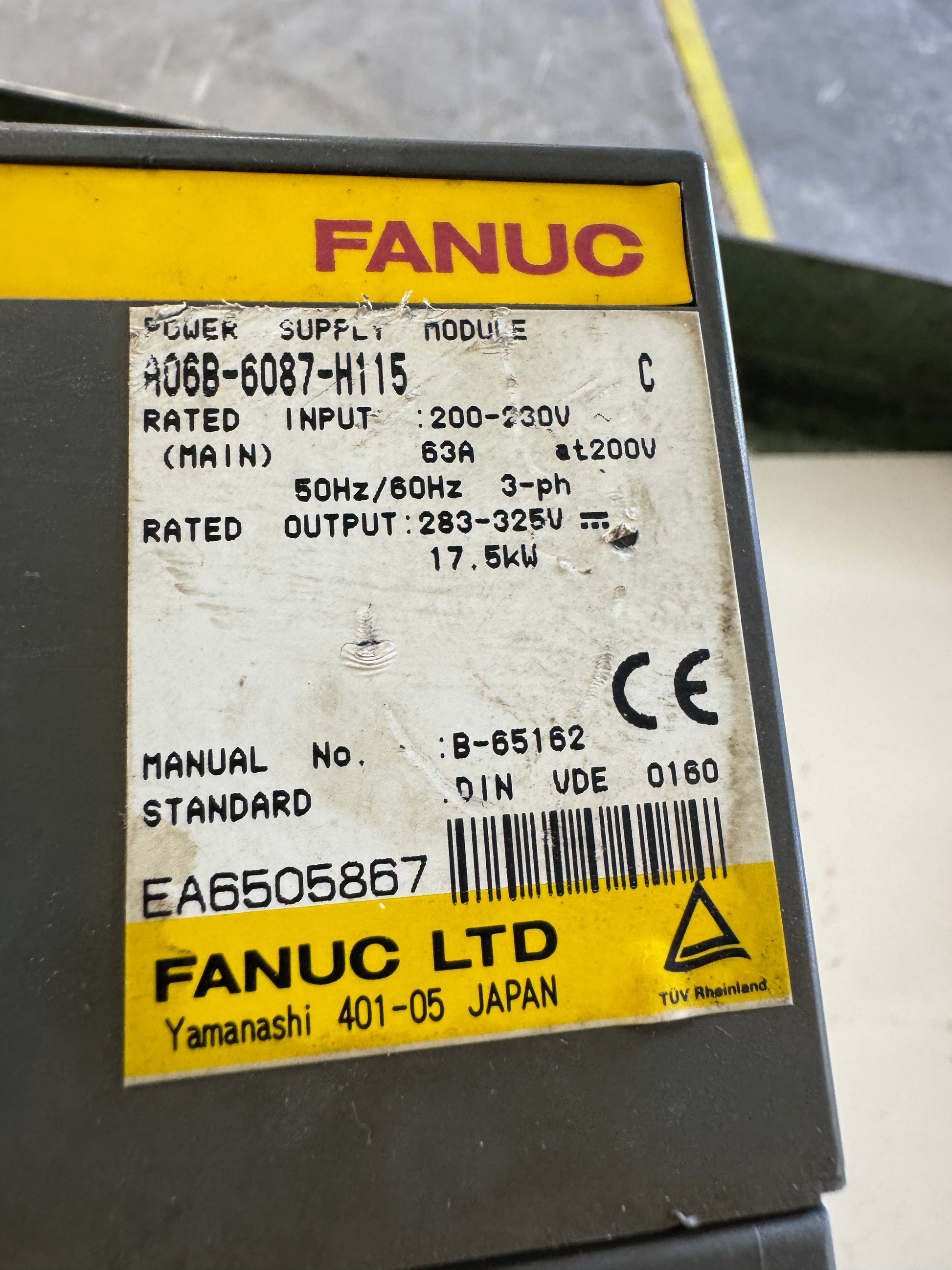

The FANUC A06B-6087-H115 is an Alpha series Power Supply Module, model designation PSM-15, manufactured by FANUC LTD in Yamanashi, Japan. It carries a rated input of 200 to 230V AC, 3-phase, 50/60 Hz, with a main input current of 63A at 200V. Rated DC output is 283 to 325V at 17.5 kW. Series revision is C, as indicated on the nameplate. The serial number EA6505867 is visible on the label.

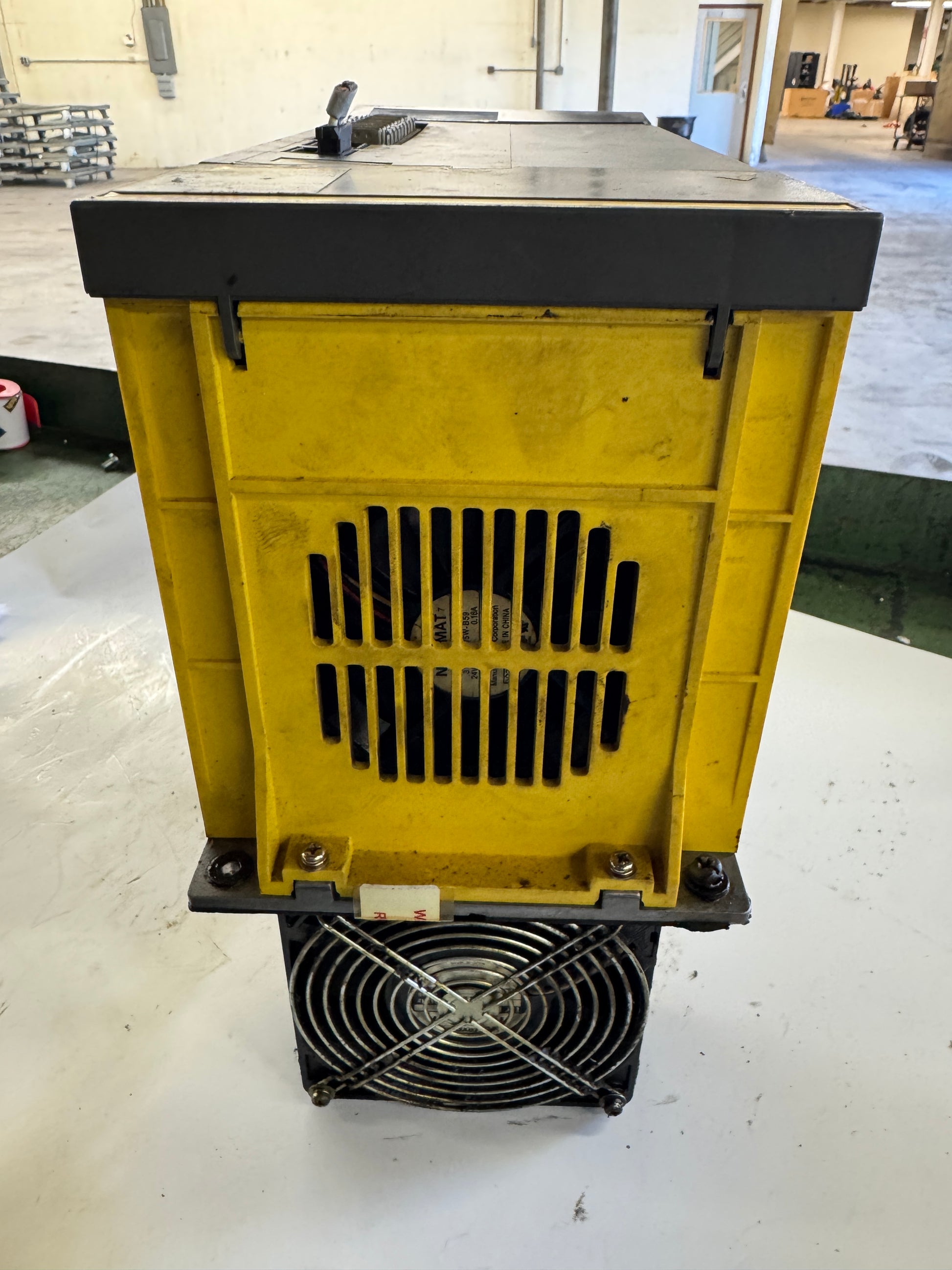

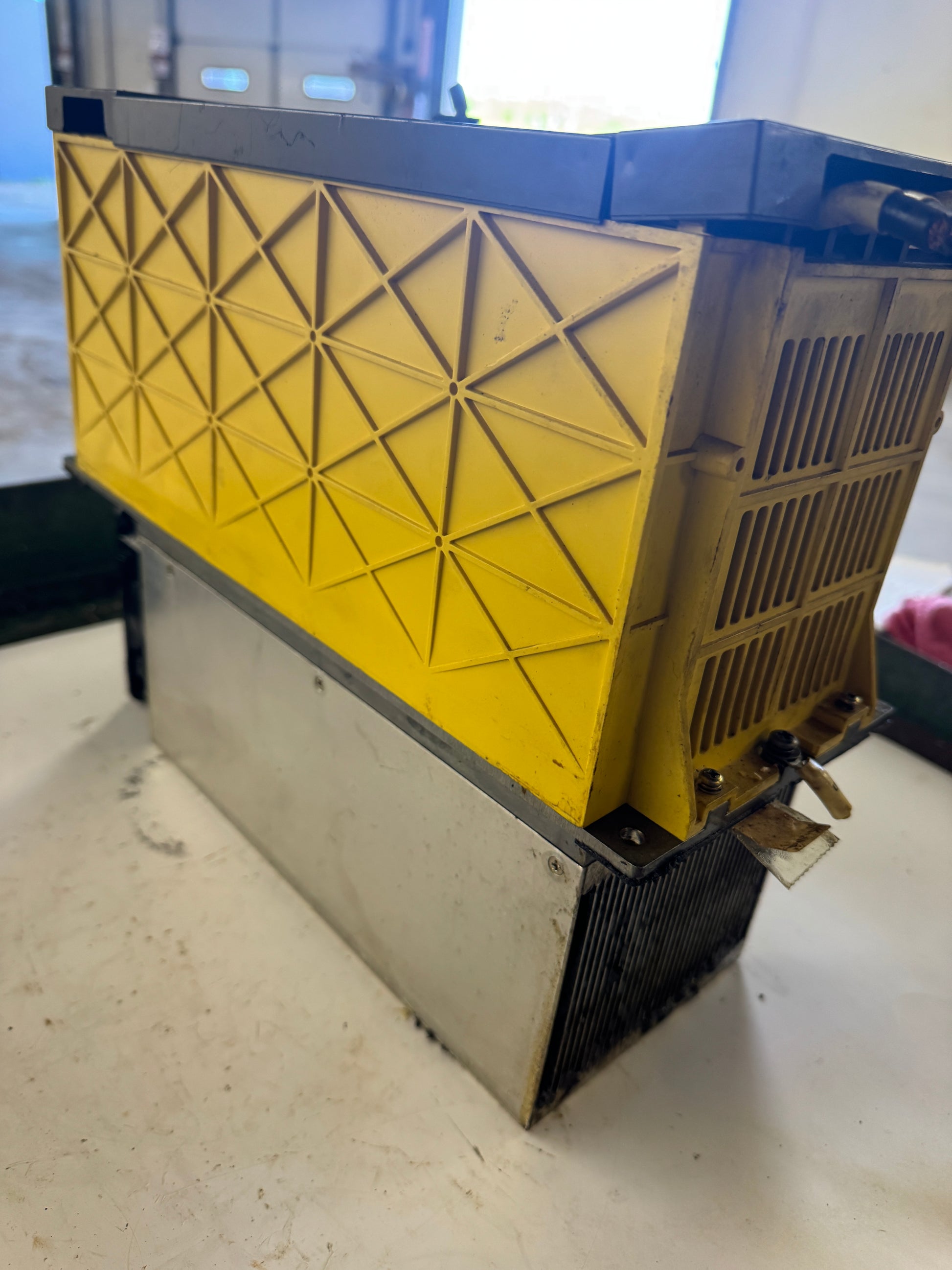

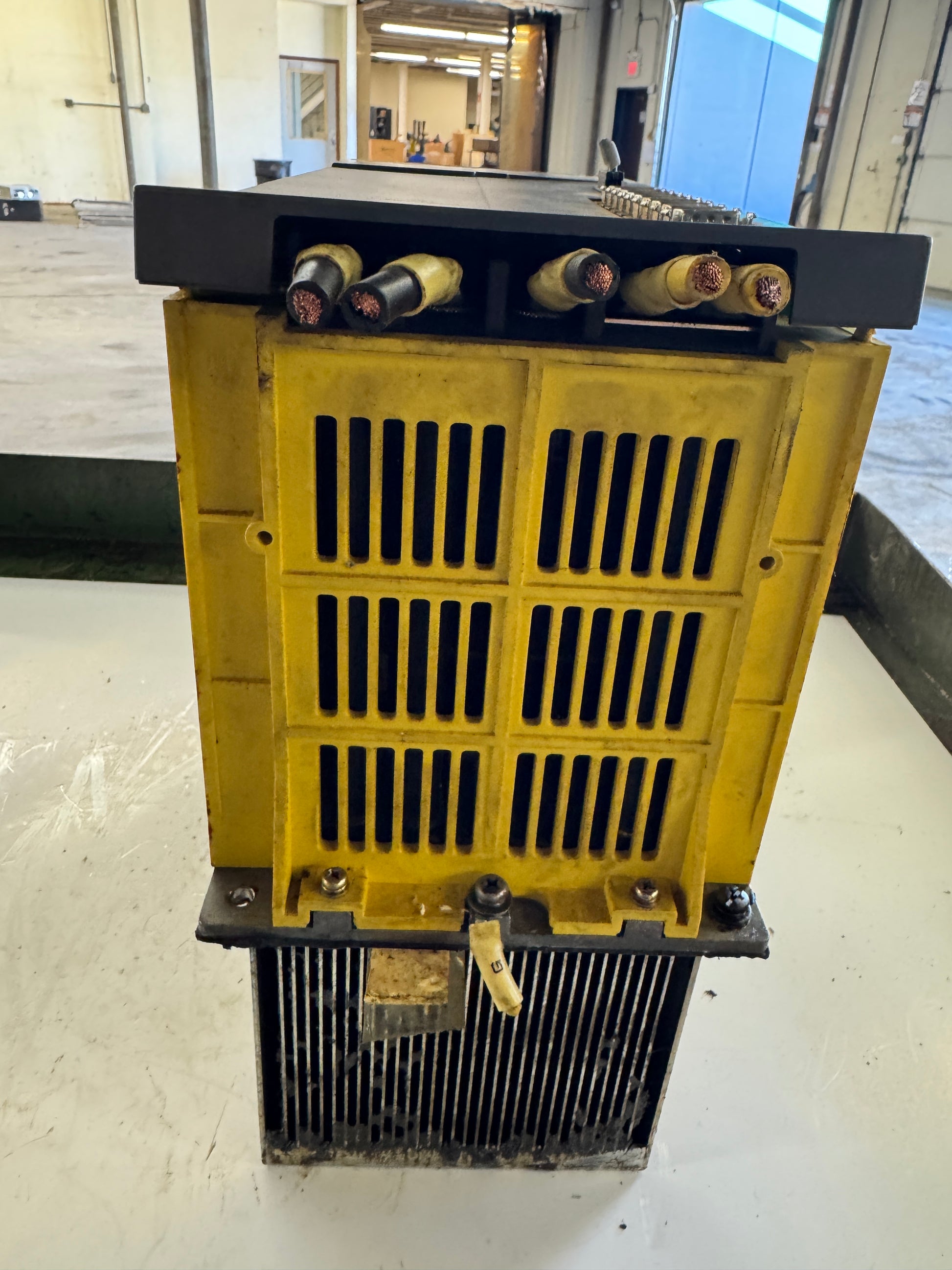

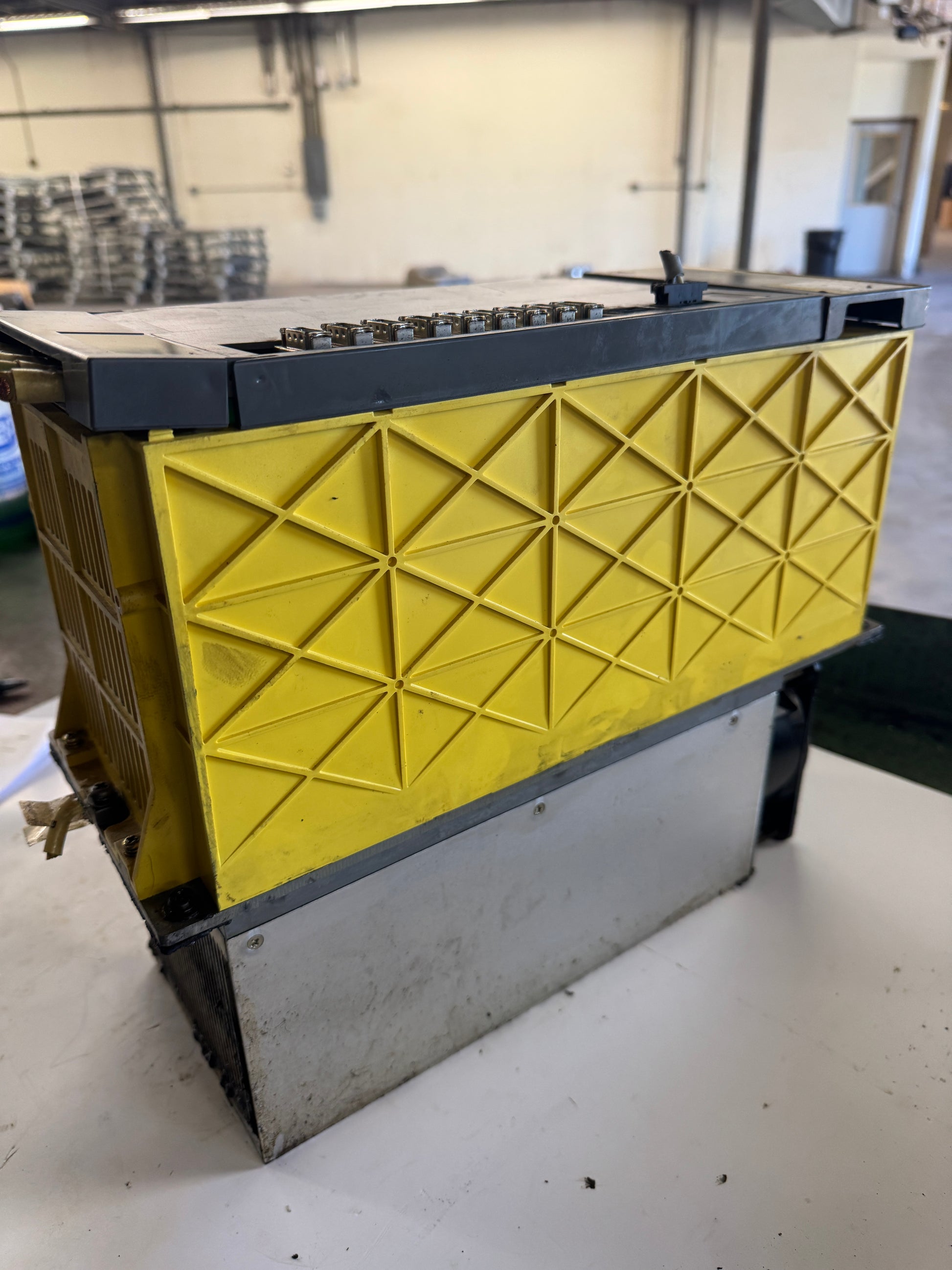

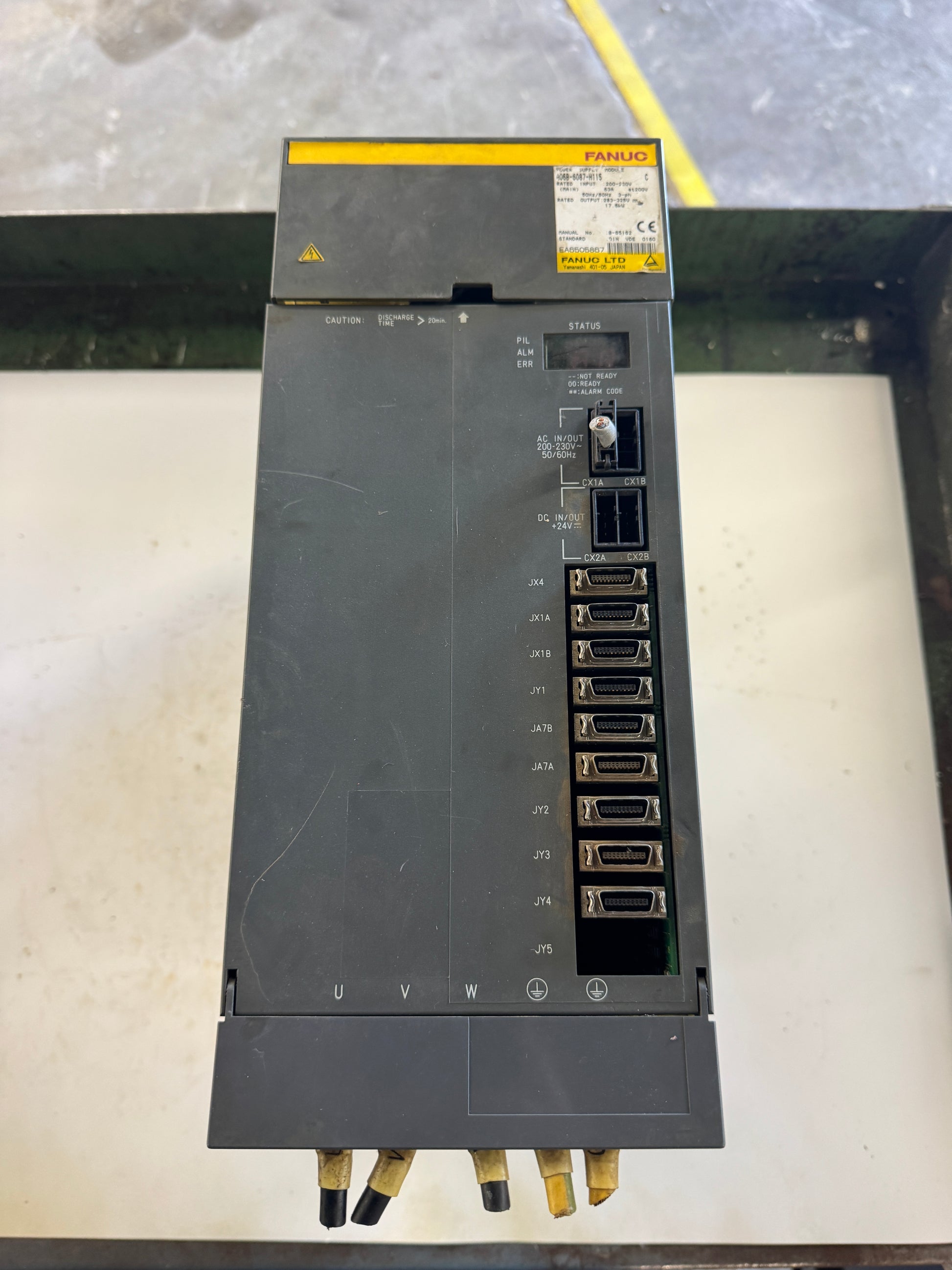

This module is designed for use with FANUC Alpha series CNC drive systems, supplying DC bus power to connected servo and spindle amplifier modules. It is compatible with FANUC control systems including the 16i, 18i, and 21i series, and is commonly found in machining centers, turning centers, and multi-axis CNC machines from manufacturers such as Mori Seiki and Mazak. The unit incorporates an external heatsink assembly and integrated cooling fan. Status indicator LEDs and a two-digit alphanumeric alarm display are present on the front panel. Control connector ports labeled CX1A, CX1B, CX2A, and CX2B are visible, along with multiple JX and JY series signal connectors. The front panel also includes labeled AC IN/OUT and DC IN/OUT terminal sections. Manual reference number B-65162 and standard DIN VDE 0160 compliance are shown on the nameplate. TUV Rheinland certification mark is present.
