Fanuc Servo Amplifier Module A06B-6079-H206
Fanuc Servo Amplifier Module A06B-6079-H206
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

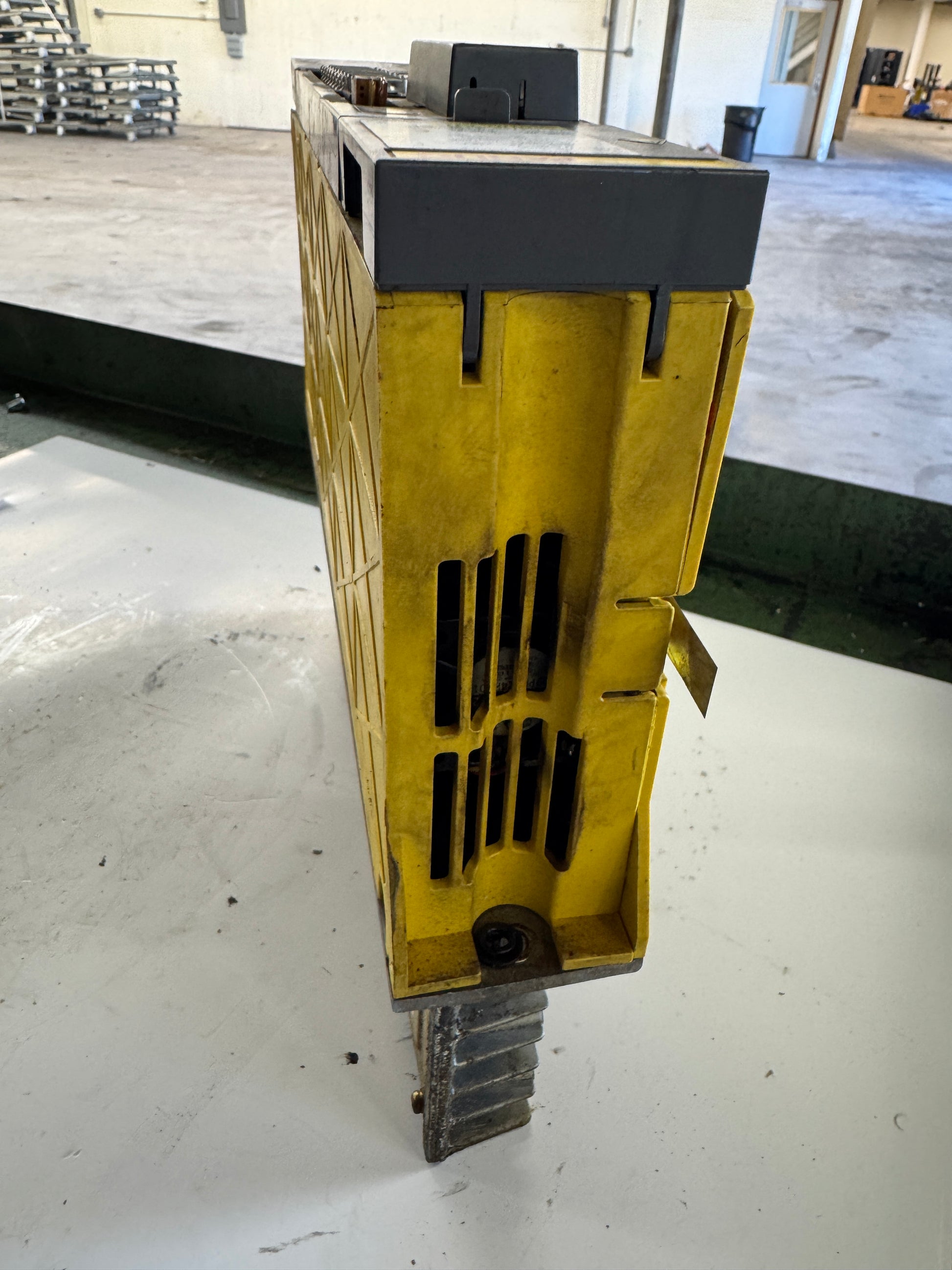

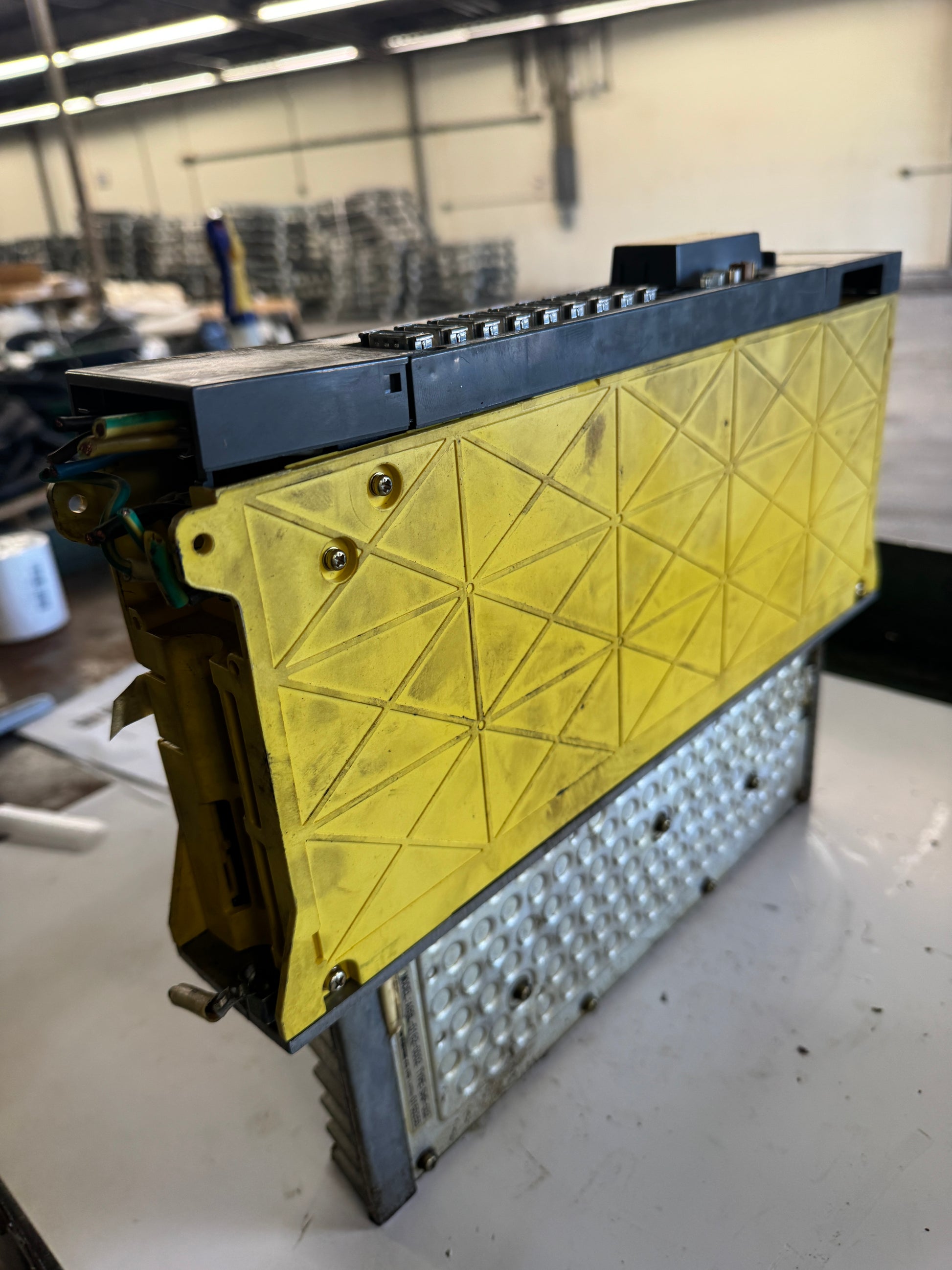

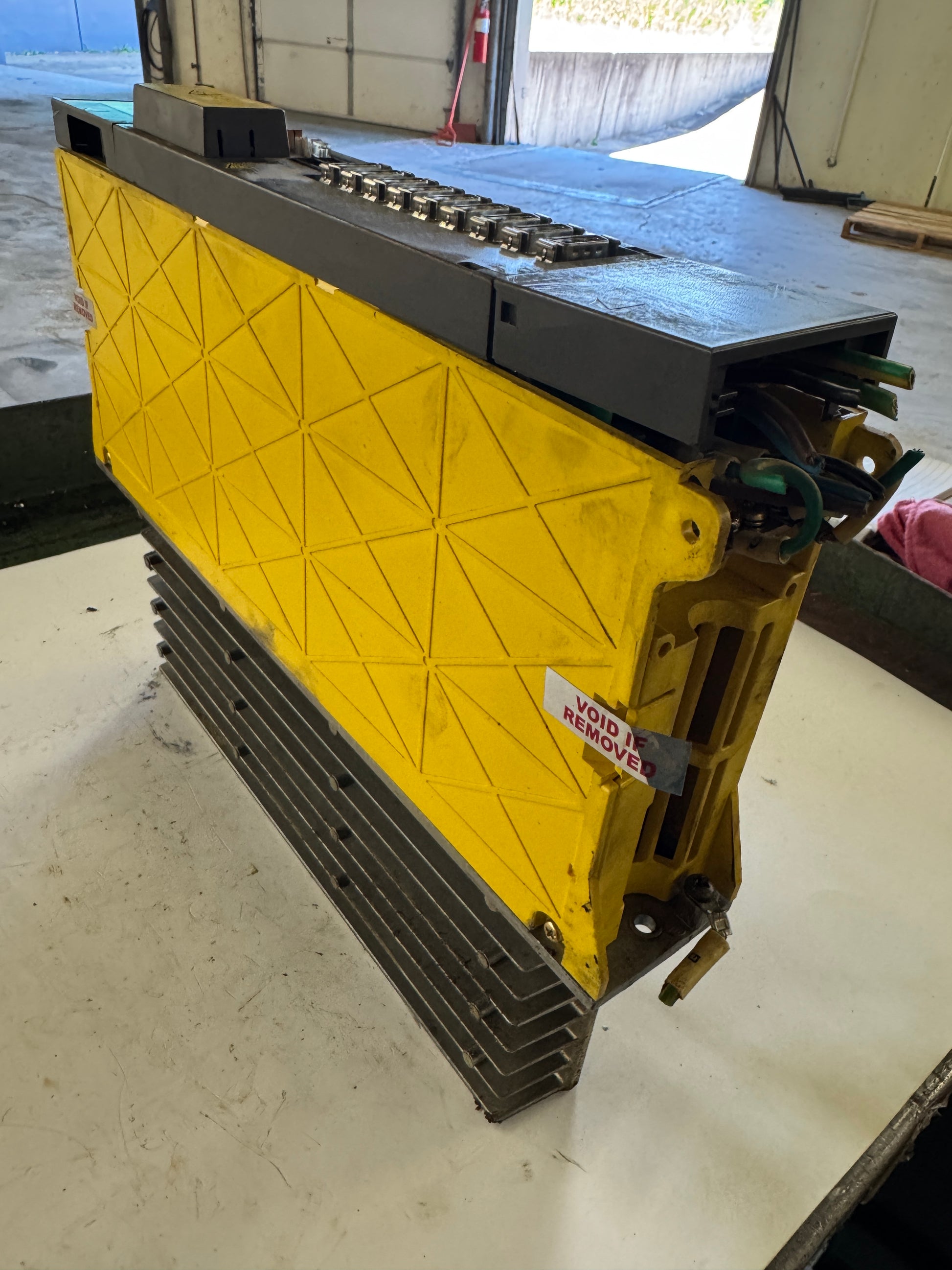

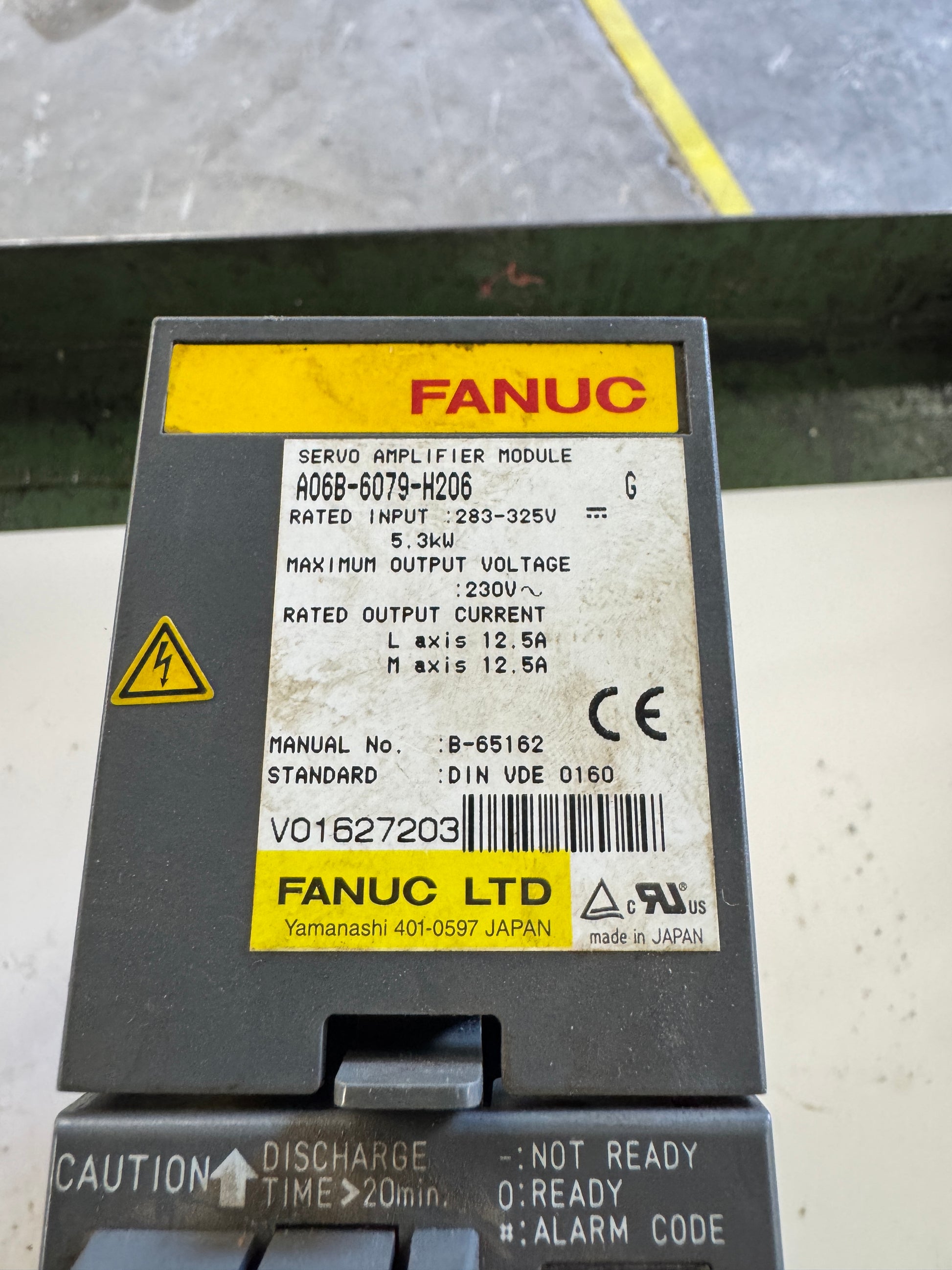

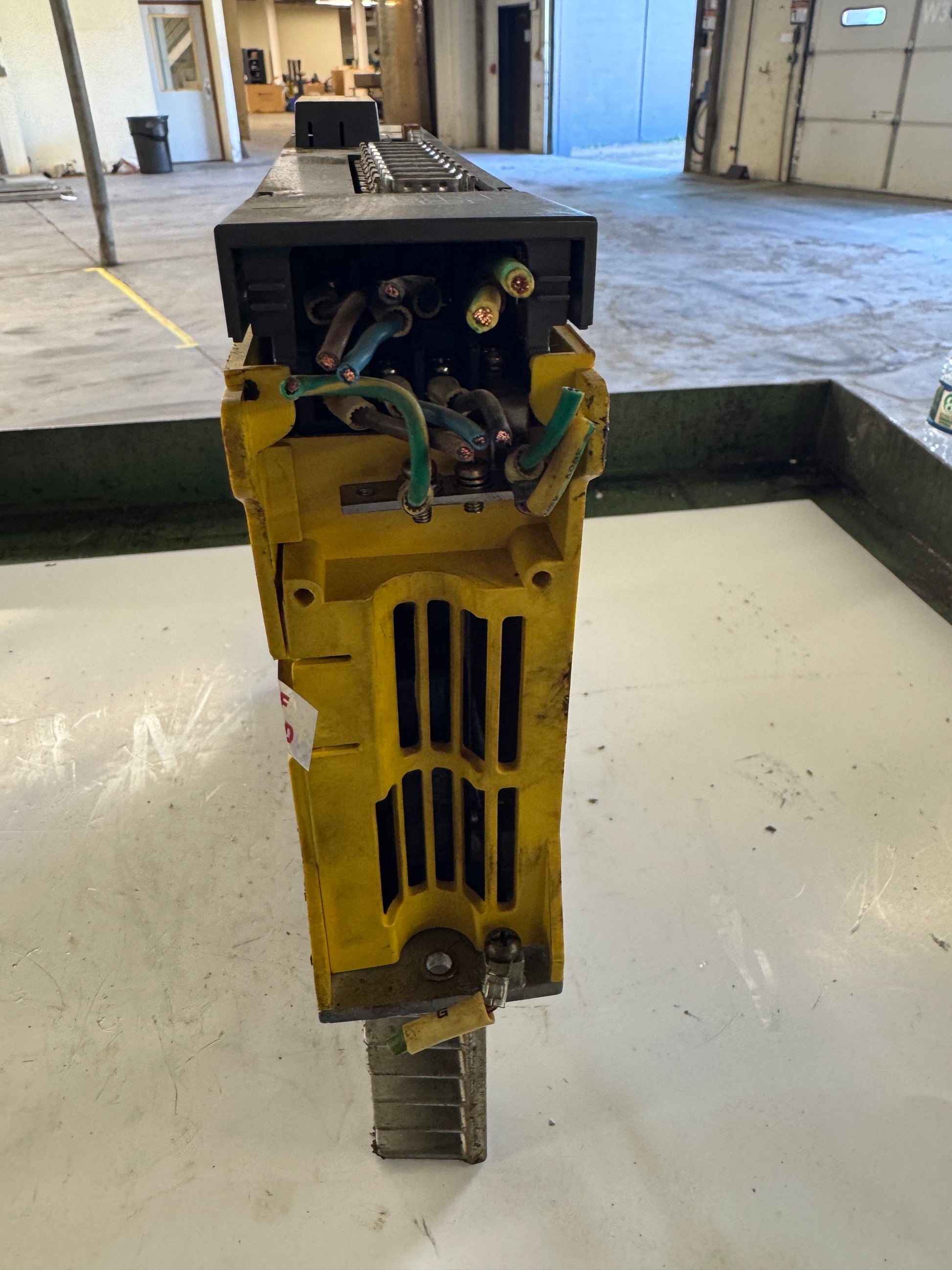

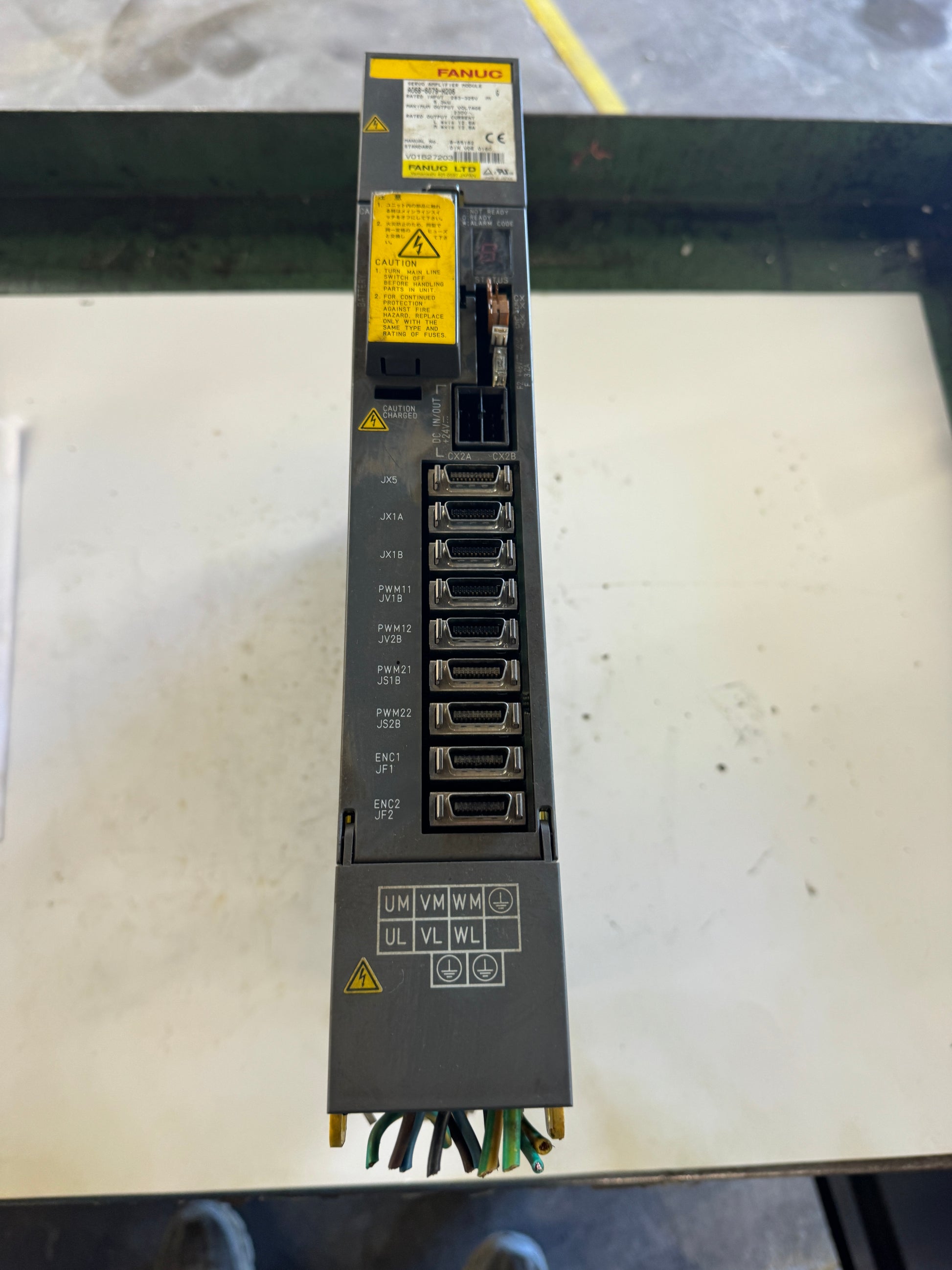

The Fanuc A06B-6079-H206 is a dual-axis servo amplifier module from the Alpha Series, designed for use in Fanuc CNC machining centers and automated machine tool systems. It operates on a rated DC input of 283 to 325V at 5.3 kW and delivers a maximum output voltage of 230V AC. Rated output current is 12.5A on both the L axis and M axis, making it suitable for powering two servo axes simultaneously. This is a Type A (non fiber optic interface) module in the A06B-6079 series, compatible with Fanuc Alpha Series servo motors. The unit carries serial number V01627203 and is marked revision G on the nameplate. Certification markings include CE and UL (cULus), with compliance to standard DIN VDE 0160. Manual reference B-65162 applies. The module features a cast yellow housing with integral heatsink fins, multiple low-voltage connector ports along the front face including JX5, JX1A, JX1B, PWM11 / JV1B, PWM12 / JV2B, PWM21 / JS1B, PWM22 / JS2B, ENC1 / JF1, and ENC2 / JF2, as well as CX2A and CX2B DC link connections at the top. Motor power output terminals UM, VM, WM, UL, VL, and WL are located at the base of the front panel. The unit is offered as removed surplus and shows cosmetic wear consistent with prior installation. Residual wiring is present on the unit as photographed.
Stock # 0426-02061
