Fanuc Servo Amplifier Module A06B-6096-H106
Fanuc Servo Amplifier Module A06B-6096-H106
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:
Used in CNC machining centers and machine tool applications, the FANUC A06B-6096-H106 is a single-axis servo amplifier module belonging to the Alpha SVM1-130 series. This module is part of the A06B-6096 family, which utilizes an FSSB optical fiber interface for communication with compatible FANUC CNC control systems including the Series 30i, 31i, and 32i.

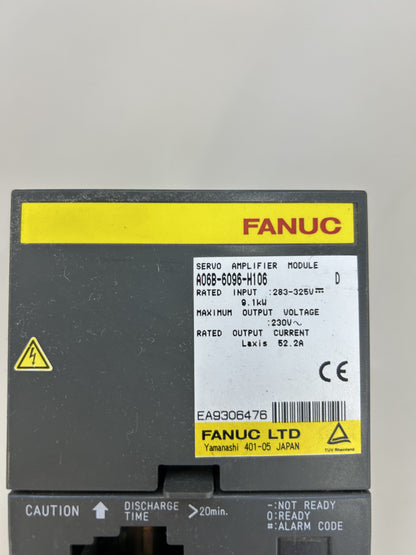

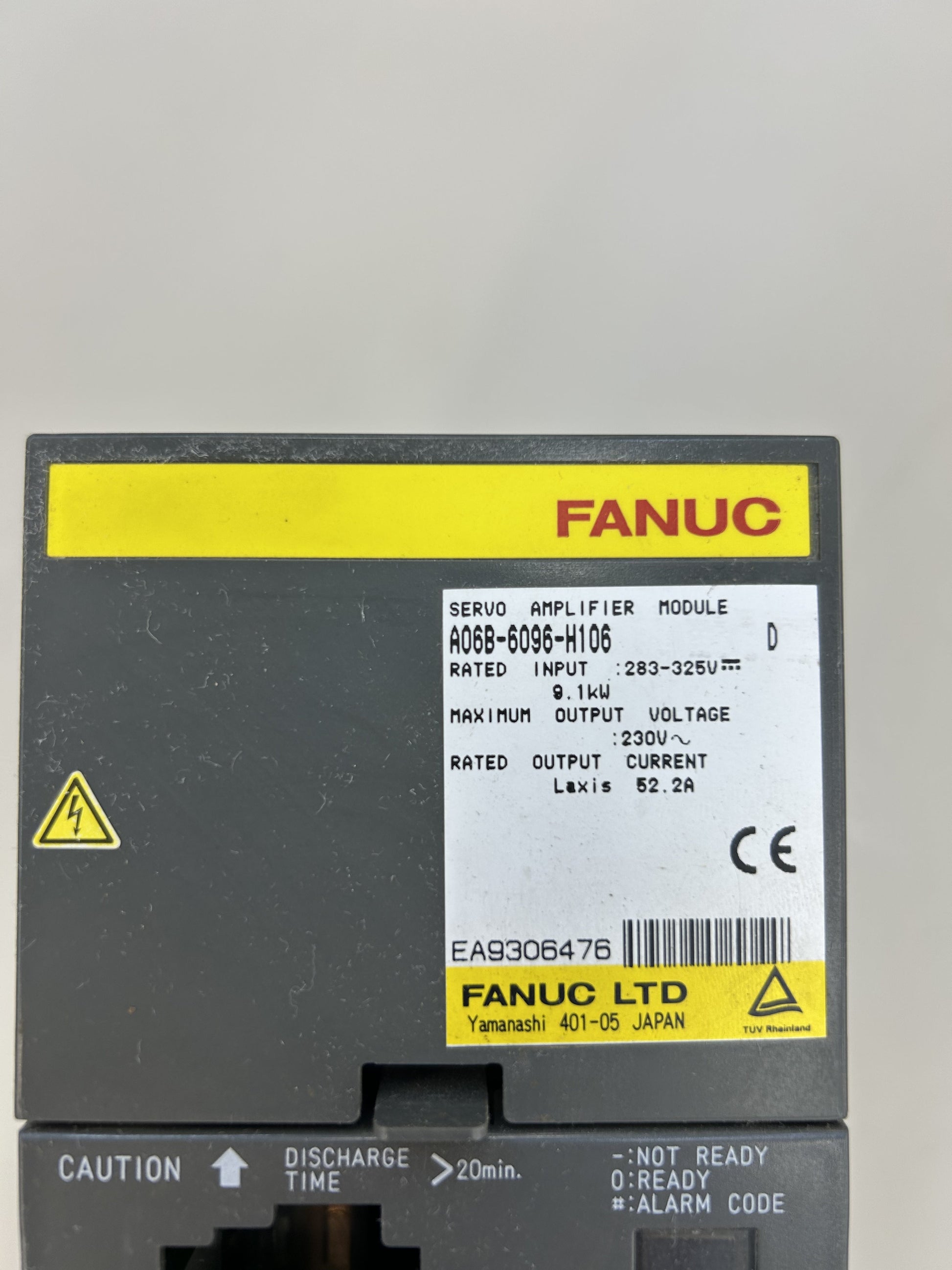

The nameplate identifies rated DC input at 283 to 325V with a power rating of 9.1 kW. Maximum AC output voltage is 230V, and rated output current for the L axis is 52.2A. The unit is manufactured by FANUC LTD in Yamanashi, Japan, and carries CE marking. Serial number EA9306476 and revision level D are visible on the nameplate label. A secondary internal identifier, A280-0514-X005, is visible on the underside of the input terminal cover.

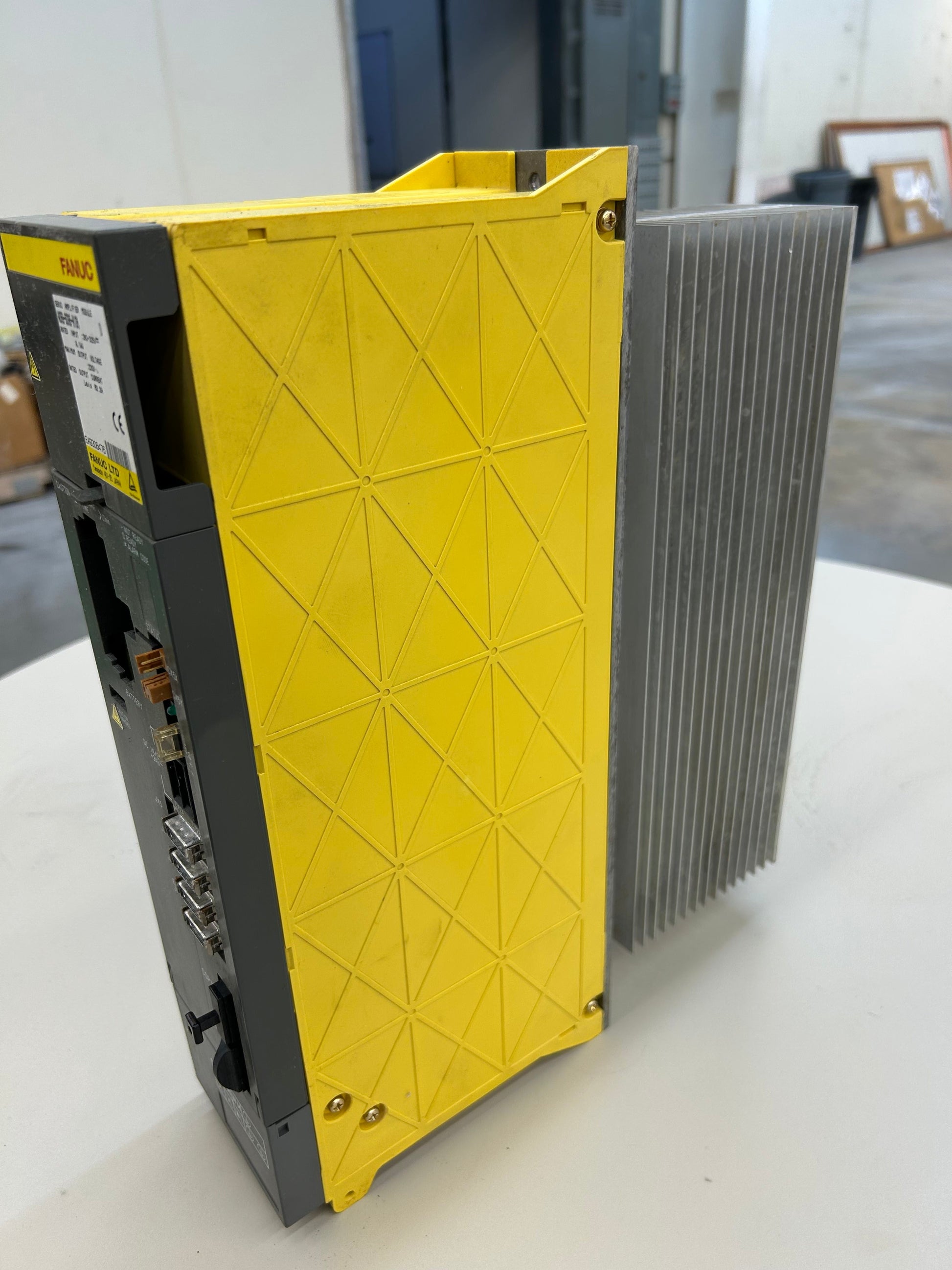

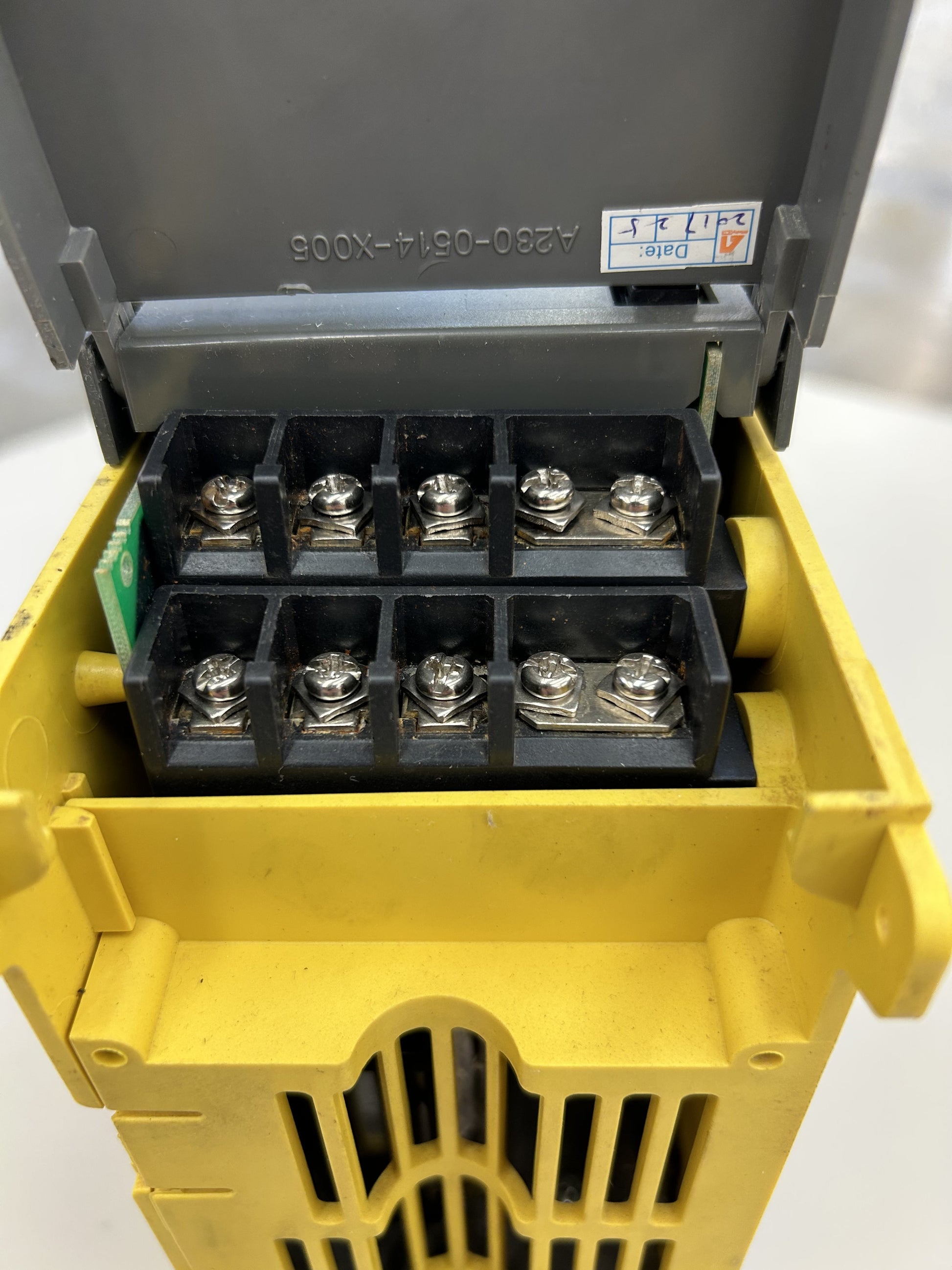

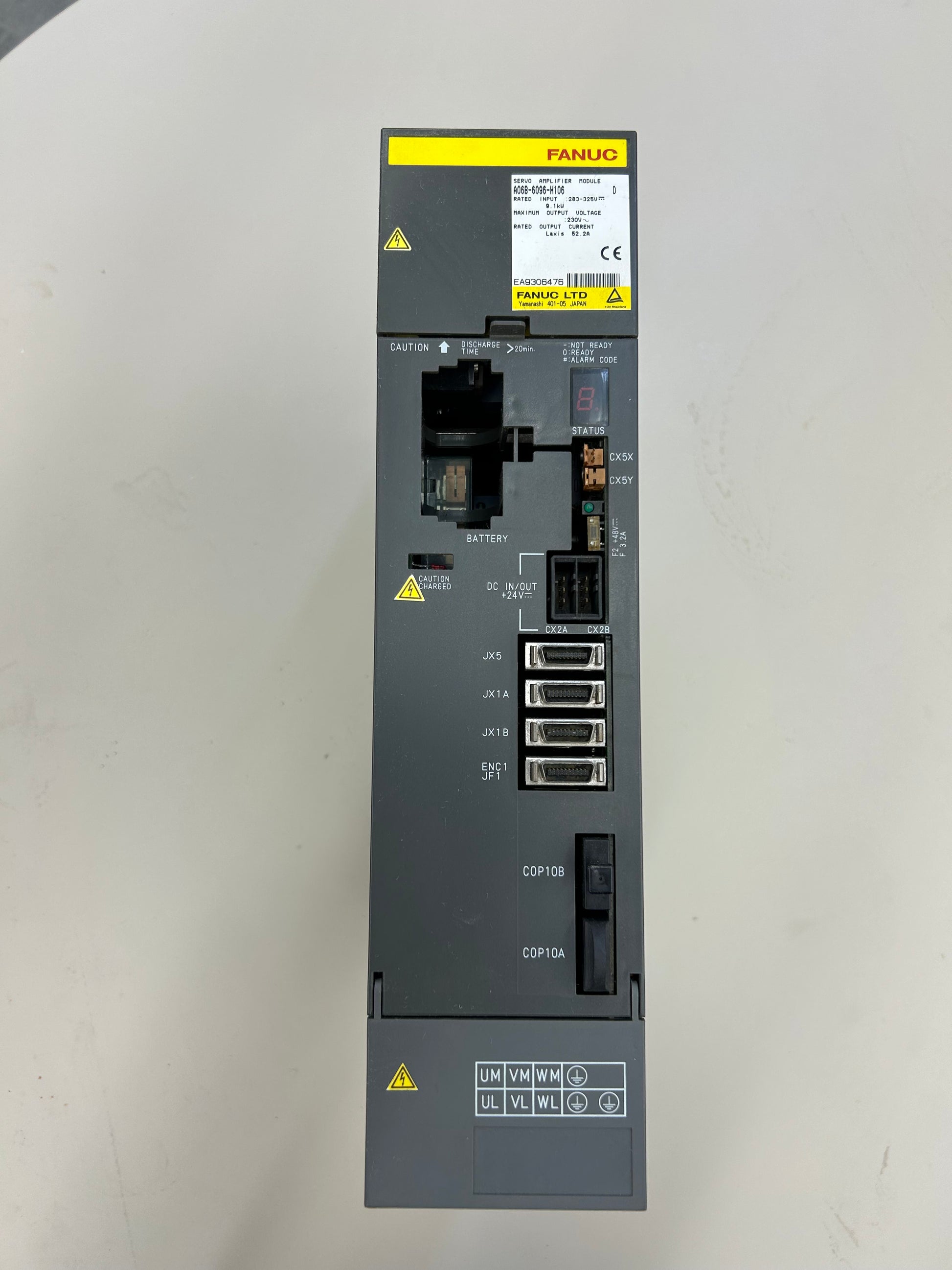

The module features a seven-segment LED status display, COP10A and COP10B fiber optic connectors, JX5, JX1A, JX1B, and ENC1/JF1 feedback and communication connectors, CX5X and CX5Y connectors, and DC IN/OUT at plus 24V via CX2A and CX2B. The yellow cover over the input terminal block houses dual rows of heavy-duty screw terminals for motor power connections at the UM, VM, WM and UL, VL, WL positions. A large aluminum heat sink is mounted to the rear of the unit for thermal management. A battery holder for position data retention is also present on the front face.
Stock # 0326-001
