Fanuc Servo Amplifier Module A06B-6290-H104 400V AC
Fanuc Servo Amplifier Module A06B-6290-H104 400V AC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

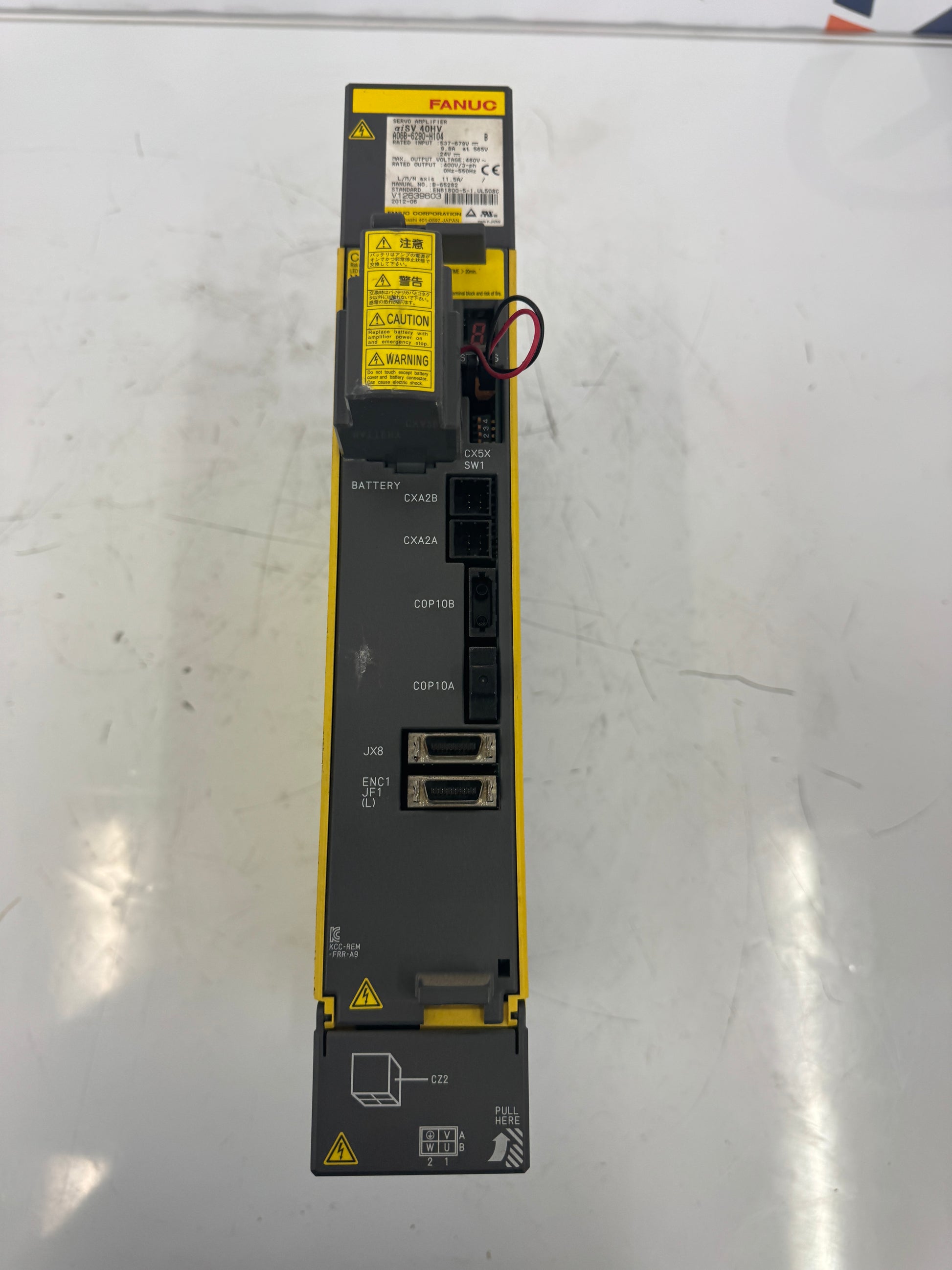

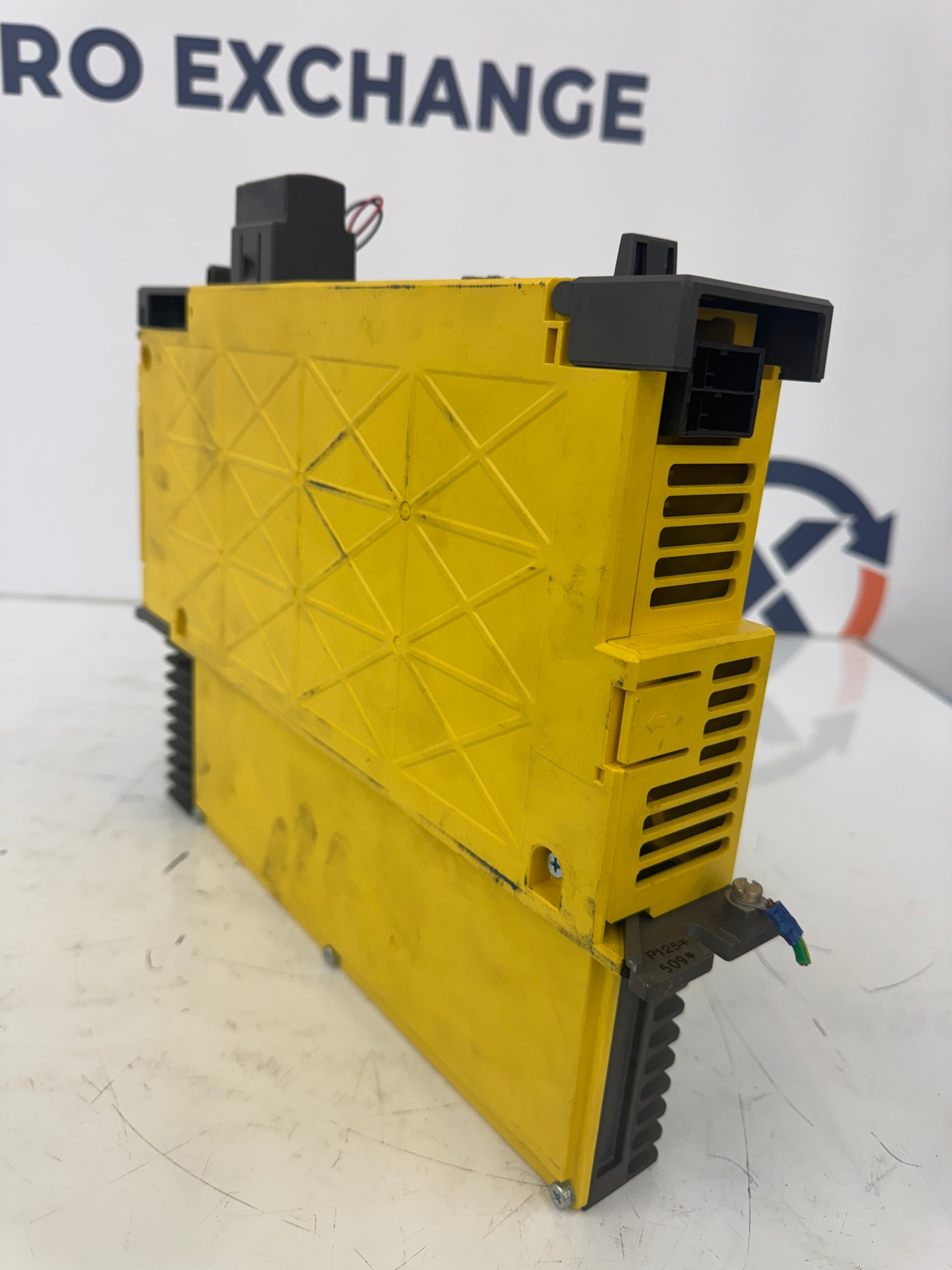

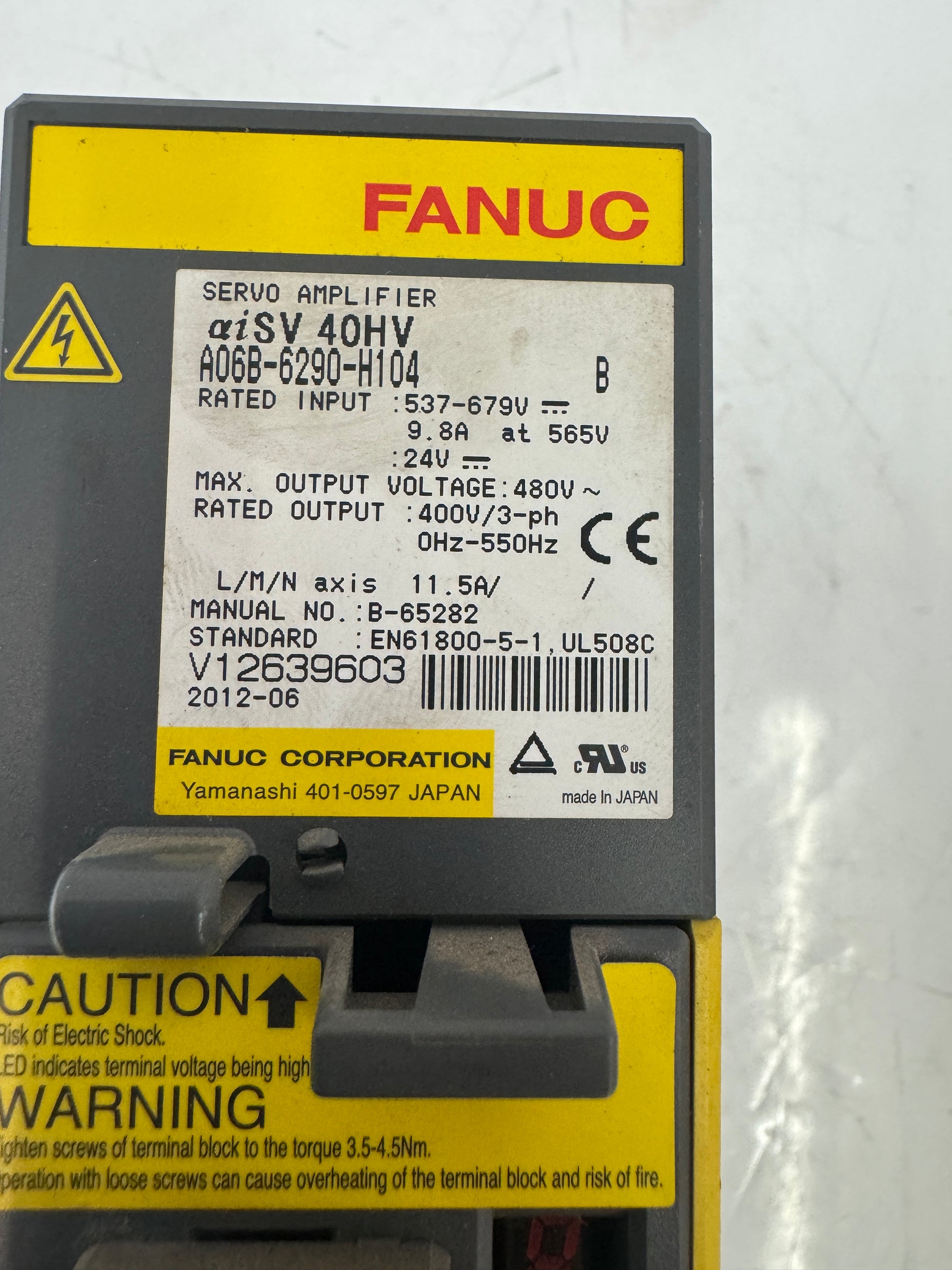

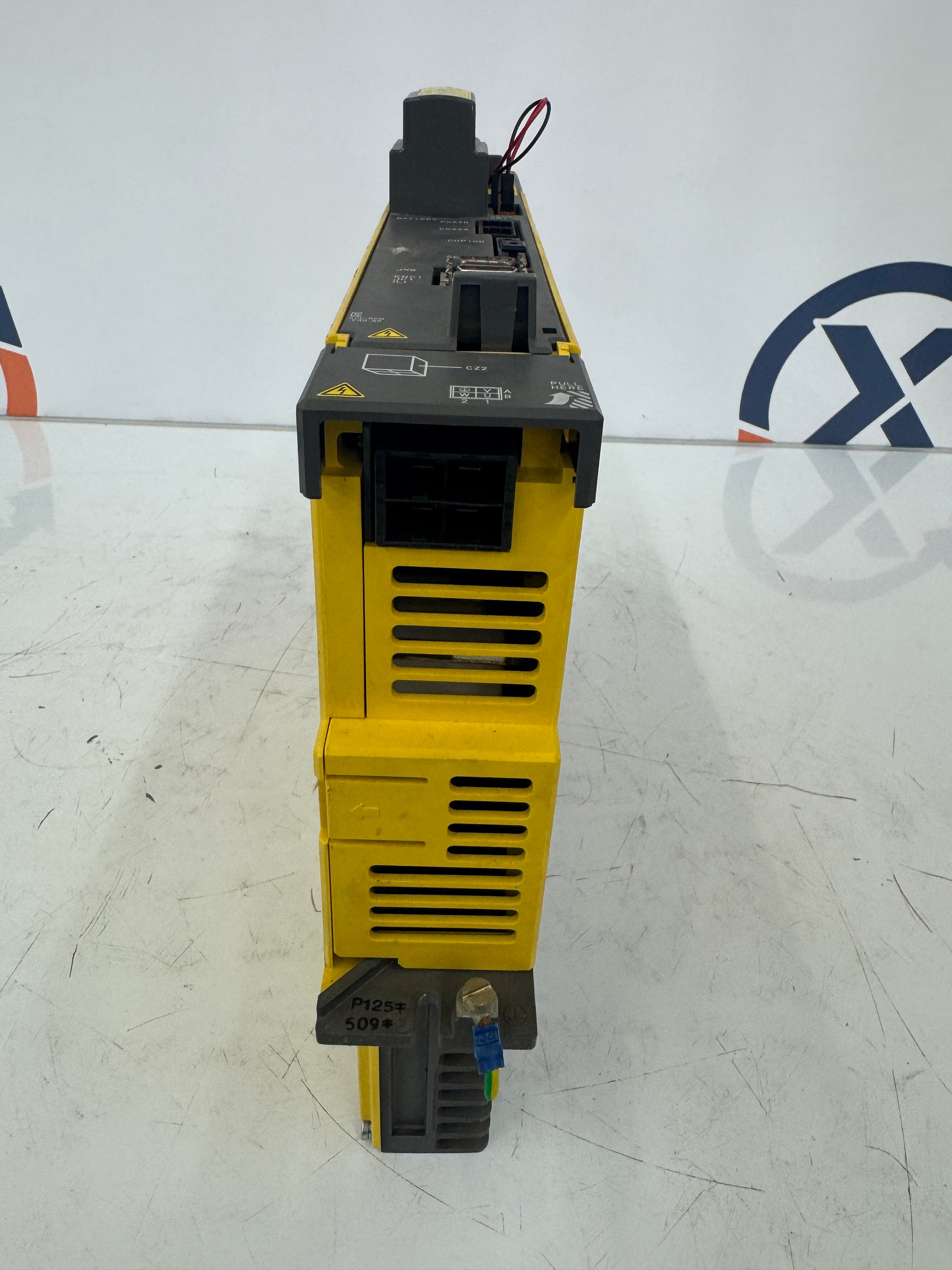

This is a Fanuc A06B-6290-H104 Alpha iSV 40HV-B servo amplifier module, a single-axis drive in the Fanuc alphai SV-B high-voltage series designed for use in Fanuc 30i, 31i, and 32i series CNC control platforms. The unit accepts a DC bus input of 537 to 679V at 9.8A (rated at 565V) and a 24V DC control supply. Maximum output voltage is 480V AC with a rated three-phase output of 400V AC at 0 to 550Hz. The L axis current rating is 11.5A, making this a 40-amp class single-axis amplifier suitable for driving Fanuc alphai series servo motors in high-voltage 400V input configurations. The module carries revision B designation and serial number V12639603, with a manufacture date of June 2012. Standards compliance markings include CE, UL508C, and EN61800-5-1. The unit was manufactured by Fanuc Corporation in Yamanashi, Japan. Manual reference is B-65282. This module is a direct replacement for failed or degraded alphai SV 40HV-B single-axis servo drives in CNC machining center, turning center, and multi-axis applications utilizing the Fanuc alphai PS HV series power supply bus.
Stock # 0226-480
