FANUC Servo Amplifier Unit 220-240V AC
FANUC Servo Amplifier Unit 220-240V AC
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

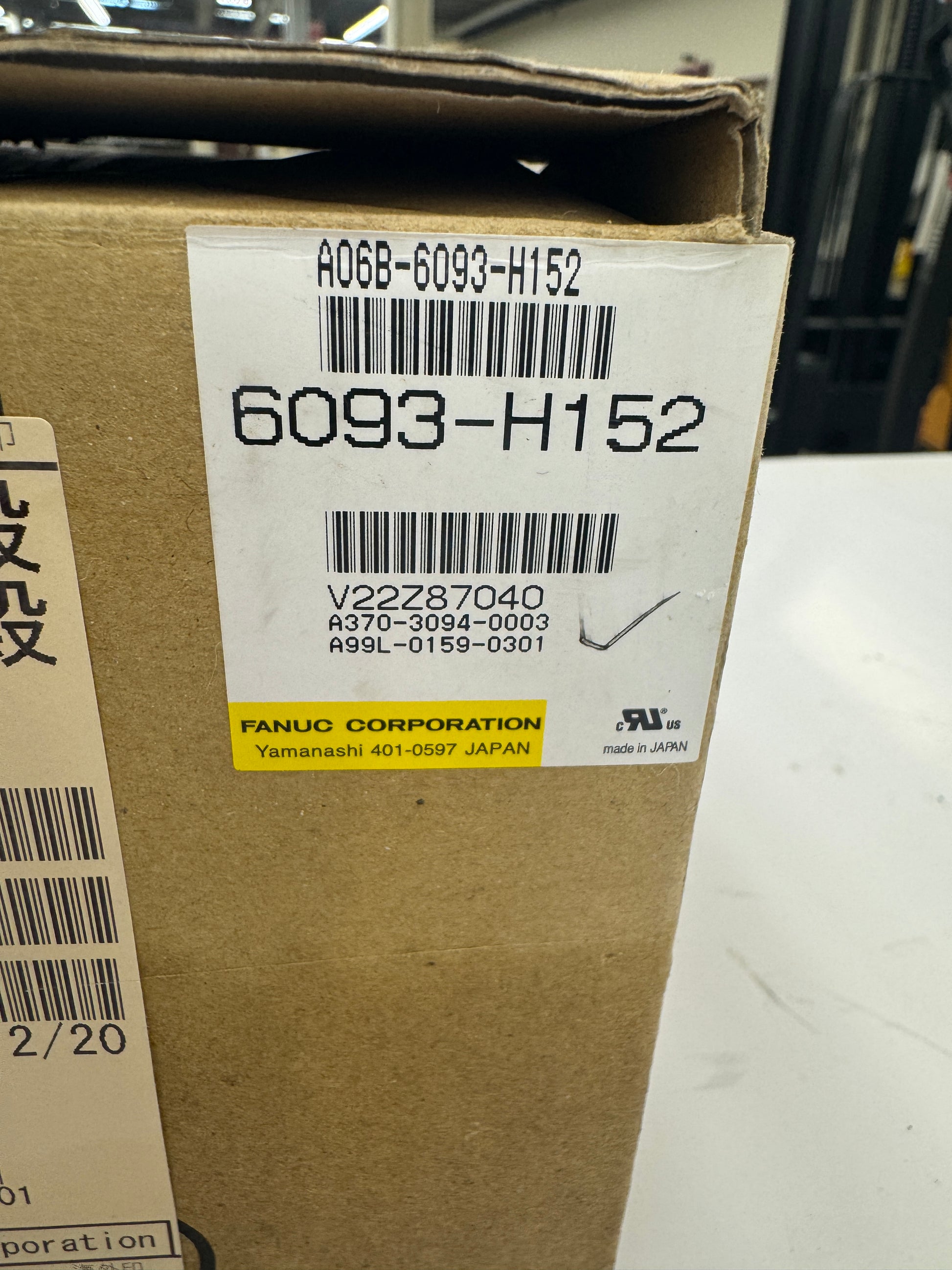

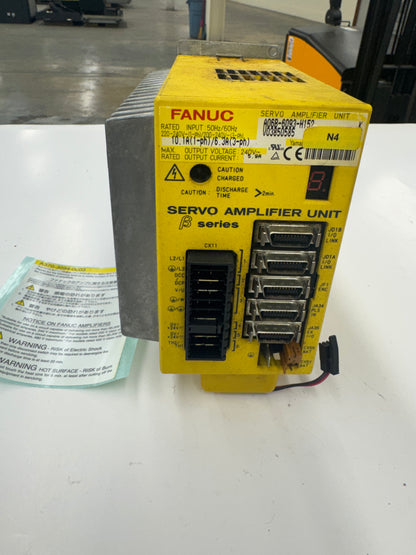

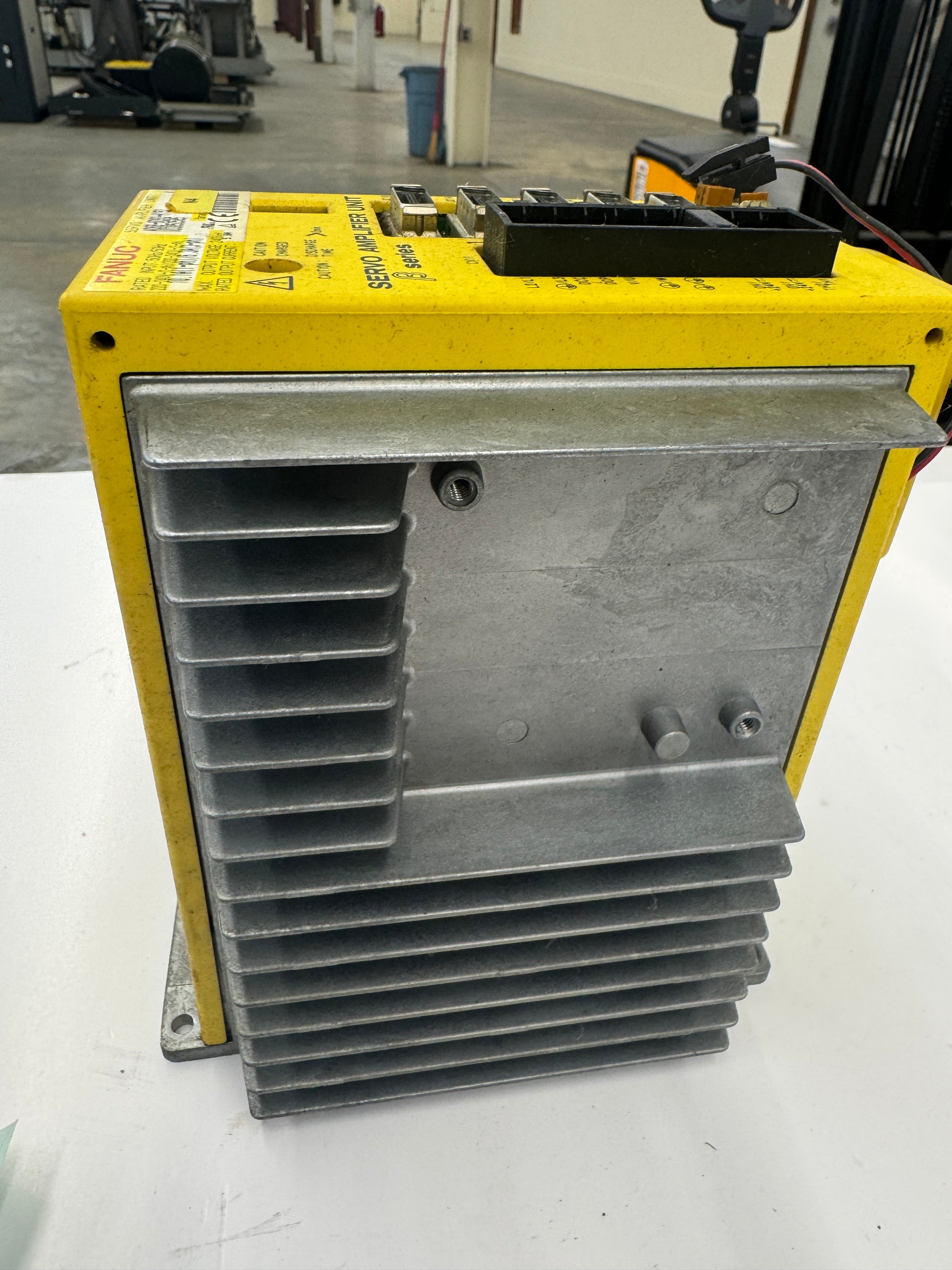

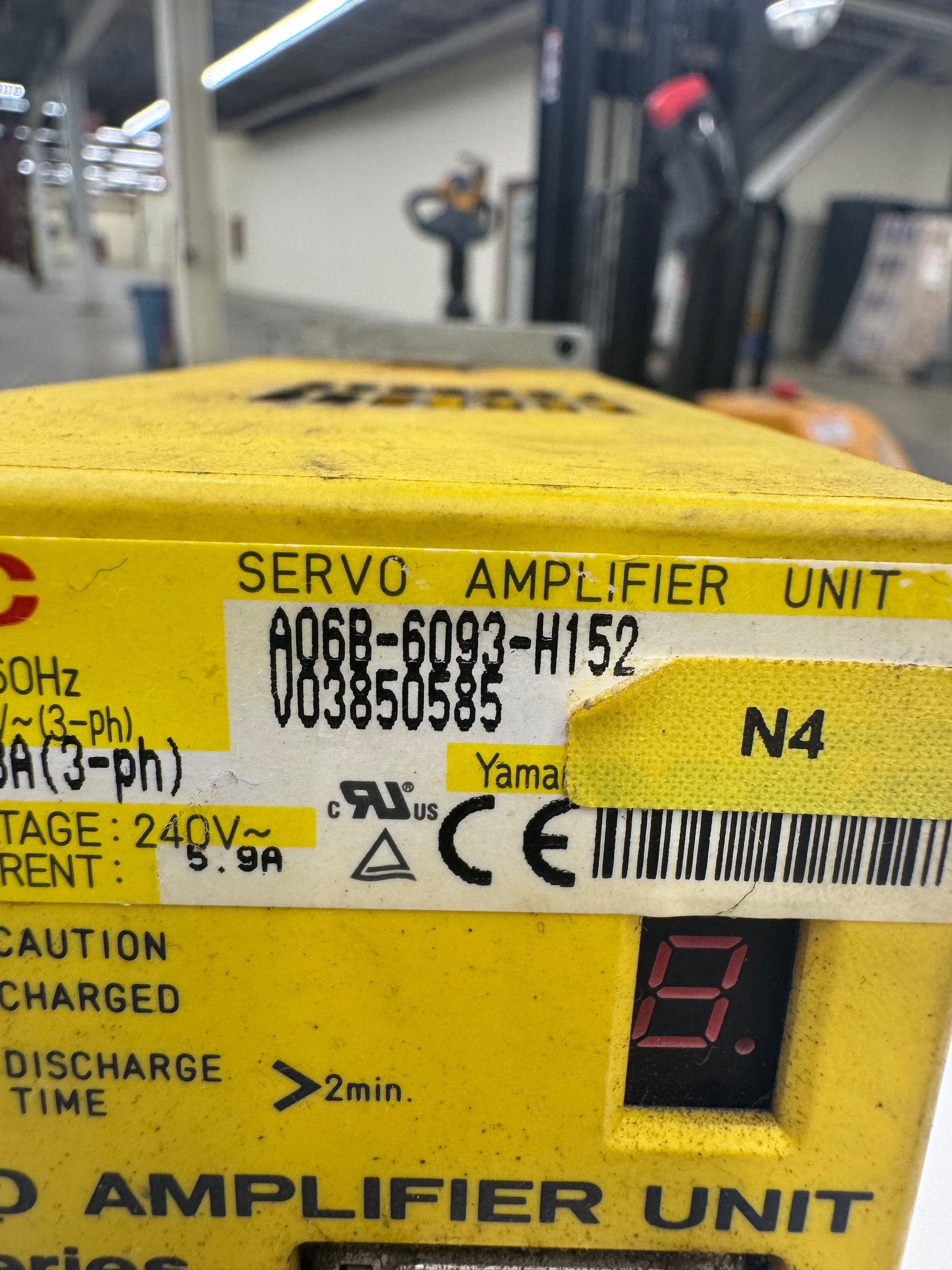

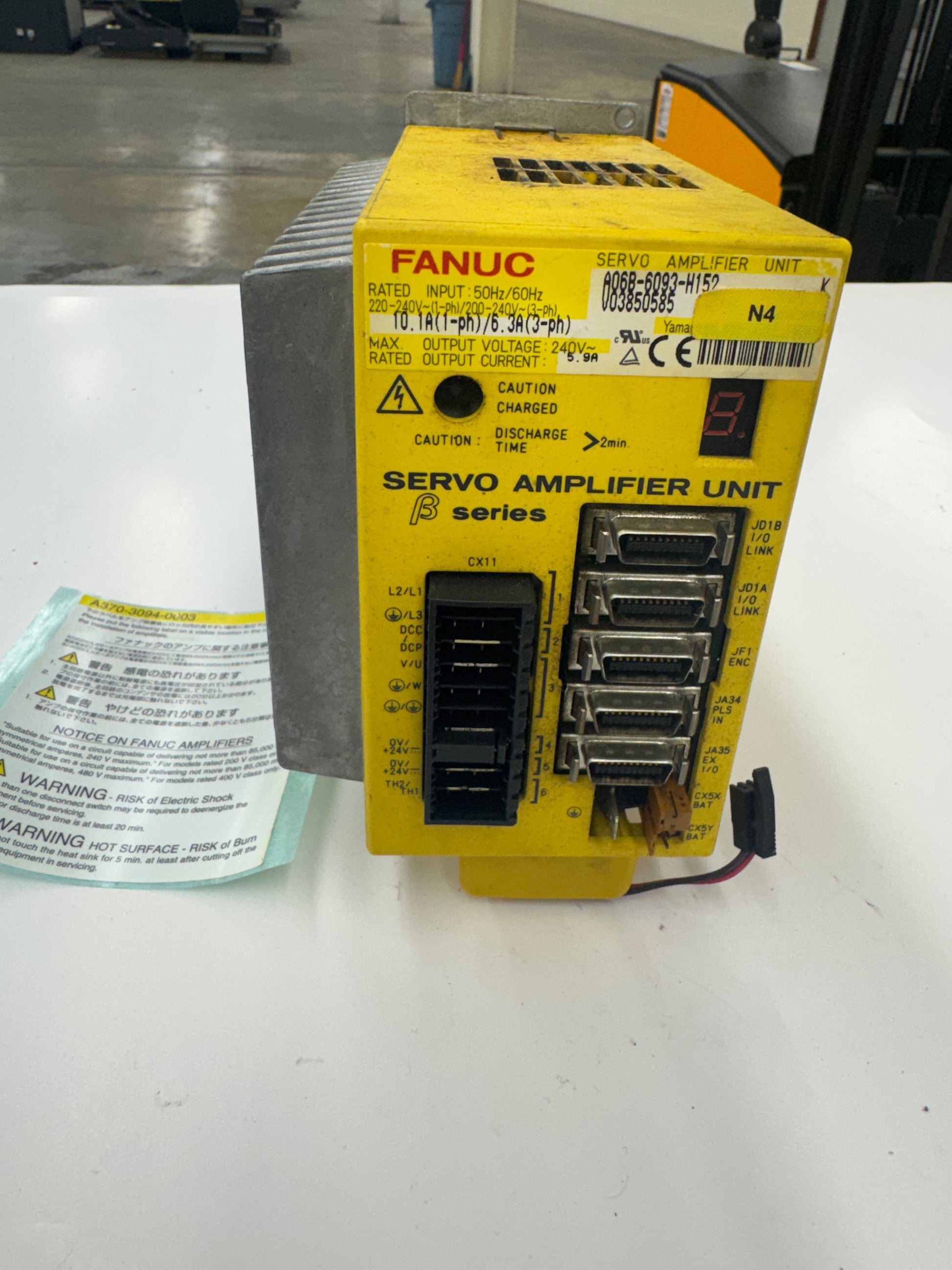

The FANUC A06B-6093-H152 is a Beta Series Servo Amplifier Unit designed for use in FANUC CNC systems and automated machine tool applications. The nameplate confirms a rated input of 220 to 240V AC at 50/60Hz, with single-phase input current of 10.1A and three-phase input current of 6.3A. Maximum output voltage is rated at 240V AC with a rated output current of 5.9A. The unit serial number is V03850585 and carries CE and cULus markings, indicating compliance with applicable safety standards. The front panel features a seven-segment LED status display along with multiple connector ports including CX11 power input, JD1A and JD1B I/O Link connectors, JF1 encoder feedback port, JA34 pulse input, JA35 external I/O, and CX5X/CX5Y battery connectors. The yellow sheet metal housing incorporates an integral aluminum fin heat sink on the rear. The unit also carries an A370-3094-0003 safety notice label referencing FANUC amplifier installation requirements. Additional reference numbers visible on the original packaging include V22Z87040, A370-3094-0003, and A99L-0159-0301. Manufactured by FANUC Corporation in Yamanashi, Japan. Compatible with FANUC Beta Series servo drive systems used across a range of CNC turning, machining, and motion control platforms.
Stock # 0426-02163
