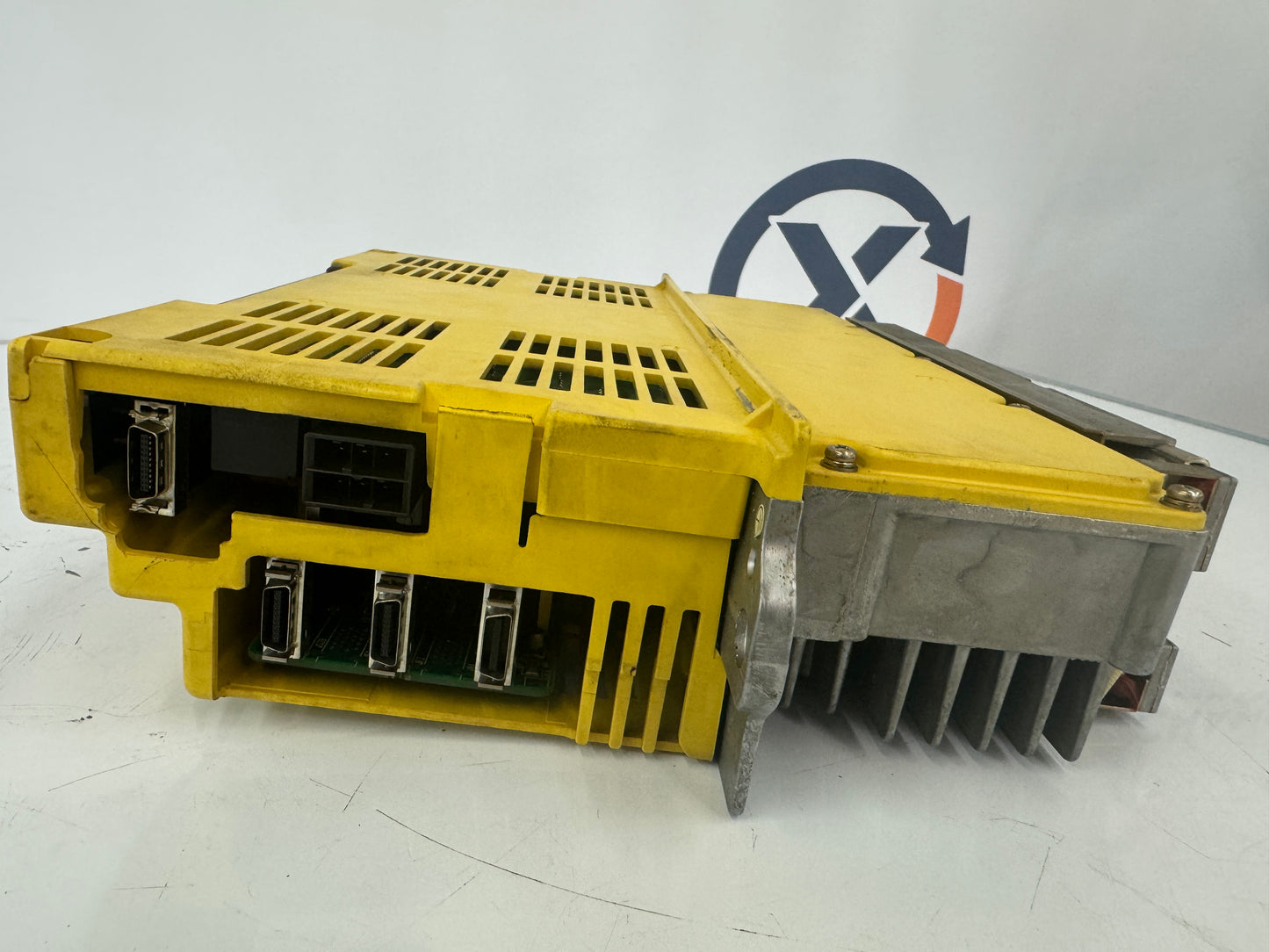

Fanuc Servo Drive A06B-6089-H104
Fanuc Servo Drive A06B-6089-H104
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

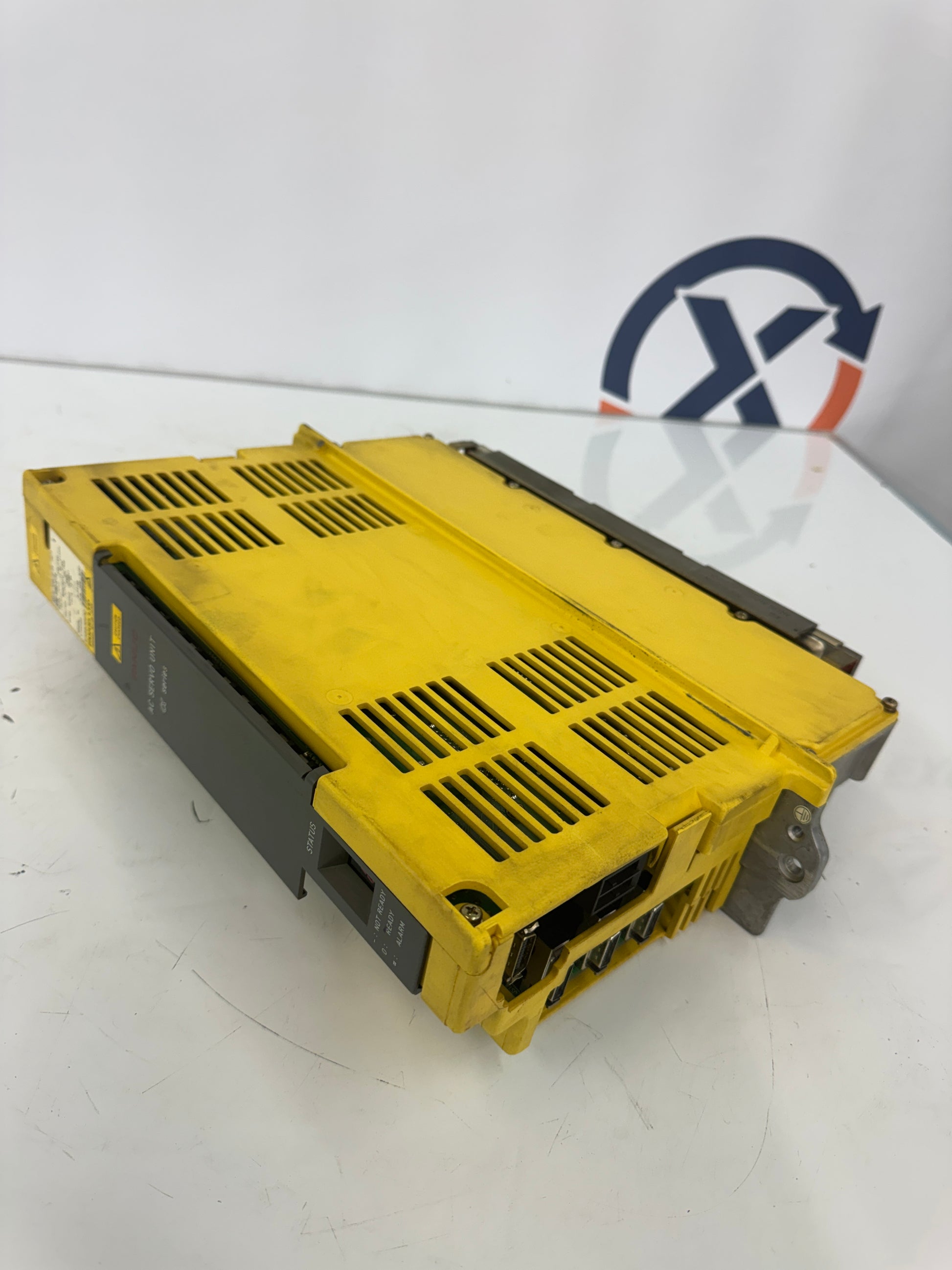

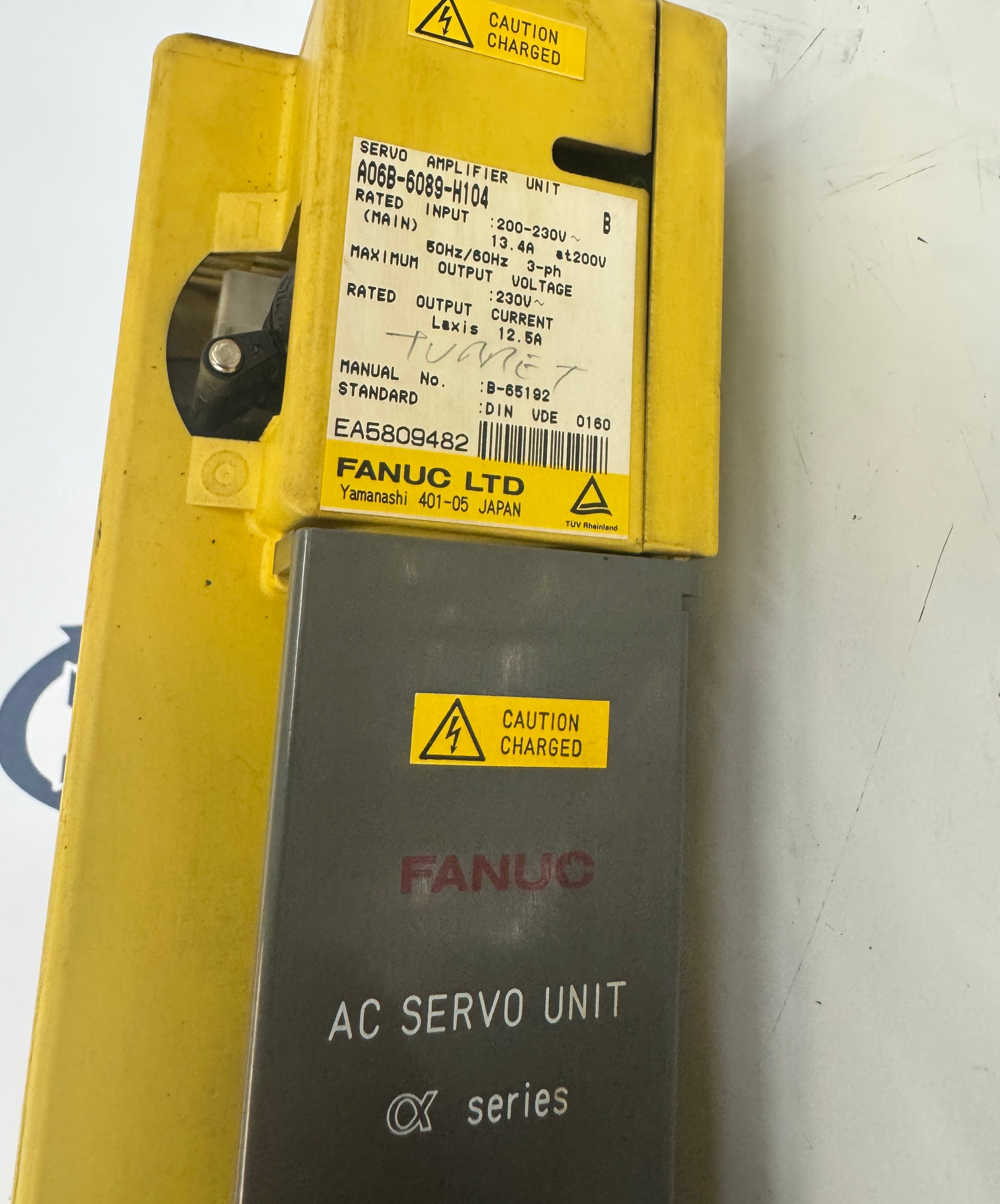

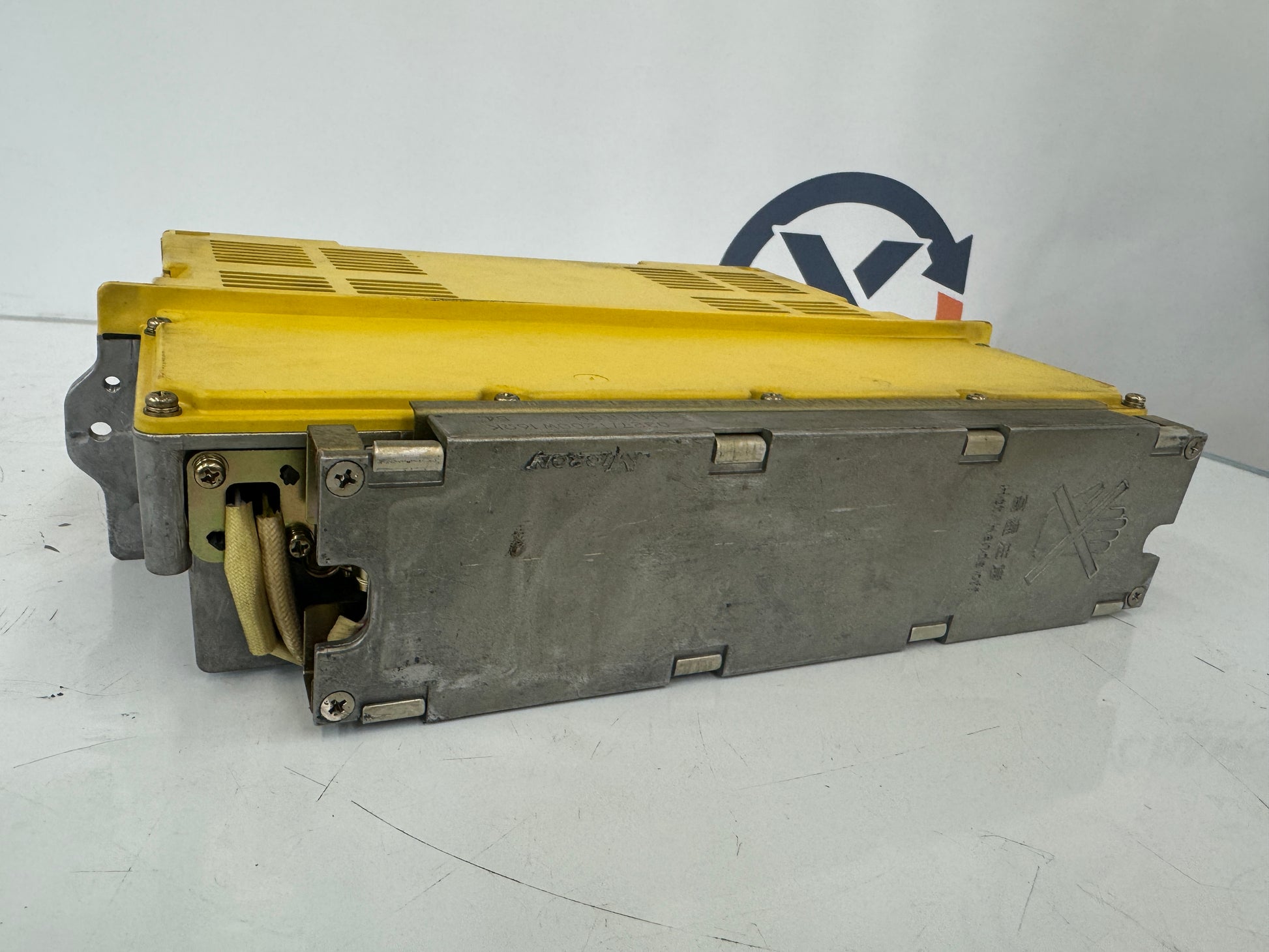

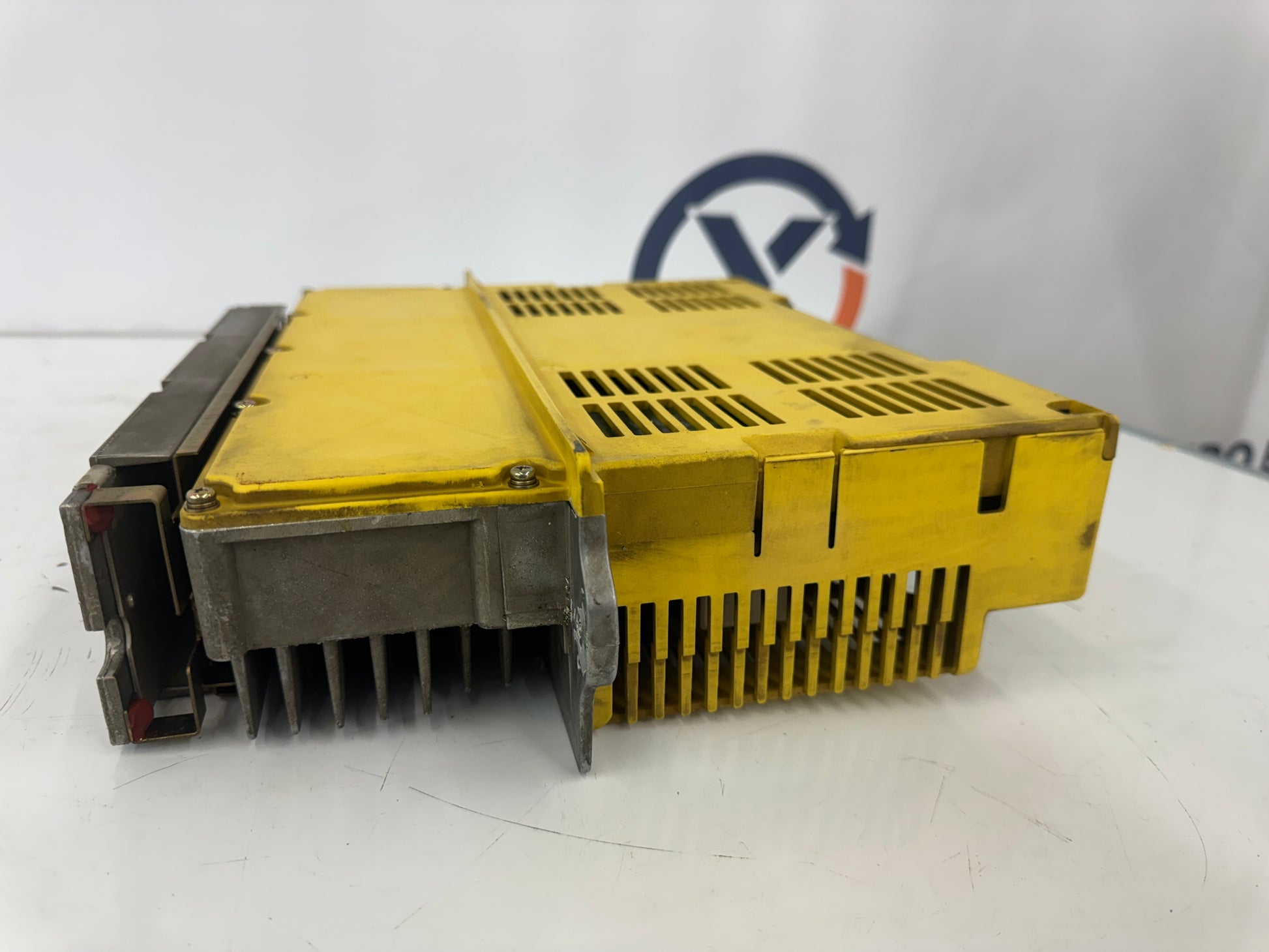

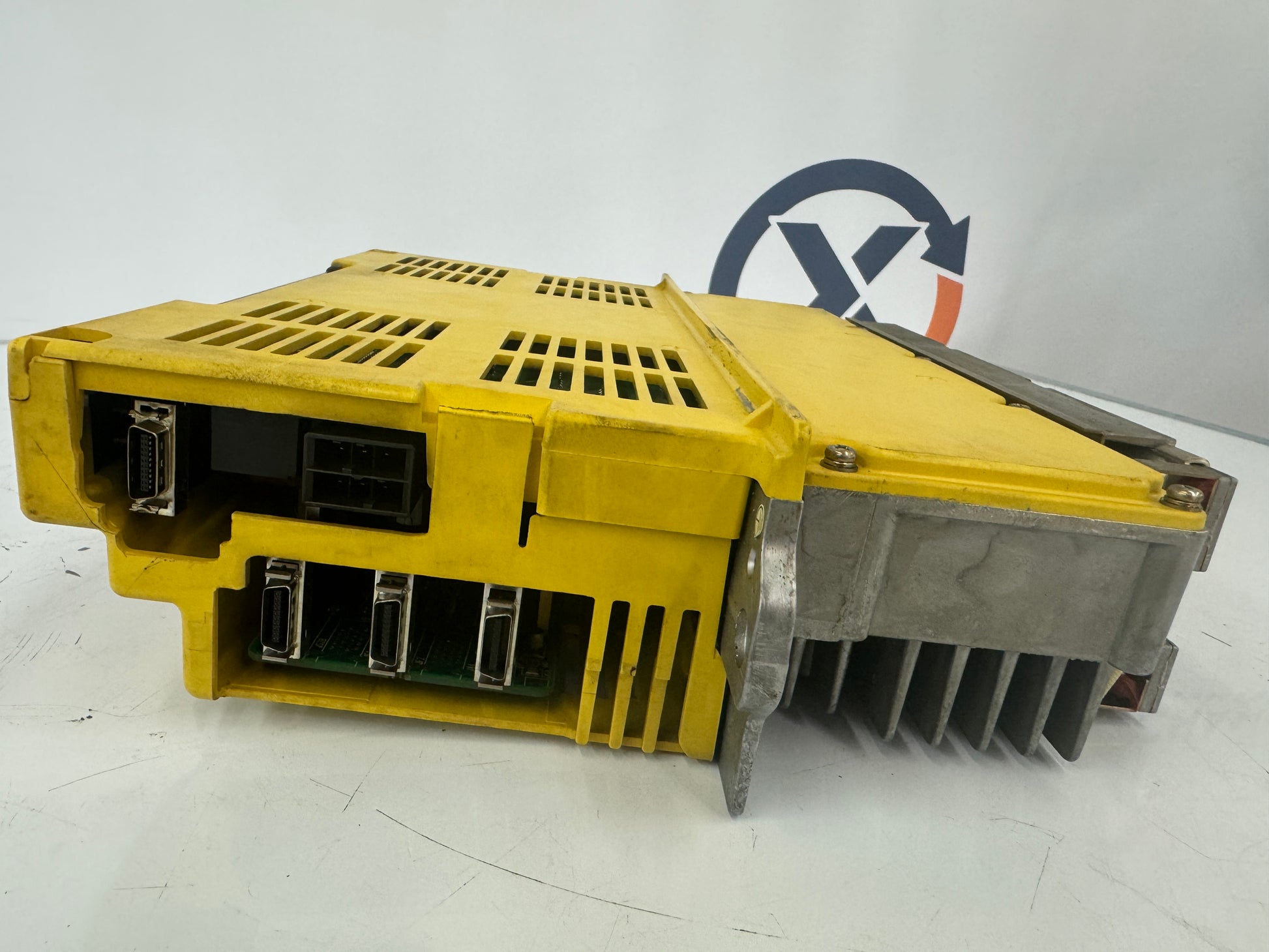

The Fanuc A06B-6089-H104 is an Alpha series SVU1-40 AC servo amplifier unit manufactured by Fanuc Ltd in Yamanashi, Japan. The nameplate designates this unit as series B. It belongs to the A06B-6089 Alpha SVU series of single-axis servo amplifiers with a built-in power supply section, designed for use with Fanuc Series 0, 16, and 18 CNC controls utilizing a PWM type B axes interface. The nameplate specifies a rated main input of 200 to 230V AC at 13.4A at 200V, three-phase, 50Hz or 60Hz. Maximum output voltage is 230V AC. Rated output current for the L axis is 12.5A. The unit is housed in the characteristic Fanuc yellow enclosure and features a grey front cover labeled AC SERVO UNIT Alpha series with a CAUTION CHARGED warning label. The serial number on the barcode label is EA5809482. Manual reference is B-65192 and the unit meets DIN VDE 0160 standard as noted on the nameplate. A handwritten notation is visible on the label but does not alter or override any nameplate specifications. The SVU1-40 is the smallest capacity unit in the SVU series, positioned below the H105 SVU1-80 and H106 SVU1-130 variants, making it well suited for driving smaller Fanuc Alpha series servo motors in CNC machine tool and automation system retrofit and maintenance applications. This part is discontinued by the manufacturer.
Stock # 0226-473
