Fanuc Servo Drive A06B-6089-H105
Fanuc Servo Drive A06B-6089-H105
Couldn't load pickup availability
- U.S. shipping, securely packaged. Ships in 1-2 Days
- Questions? Real support team available before purchase
- Secure checkout with trusted payment methods
Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.
Stock #:

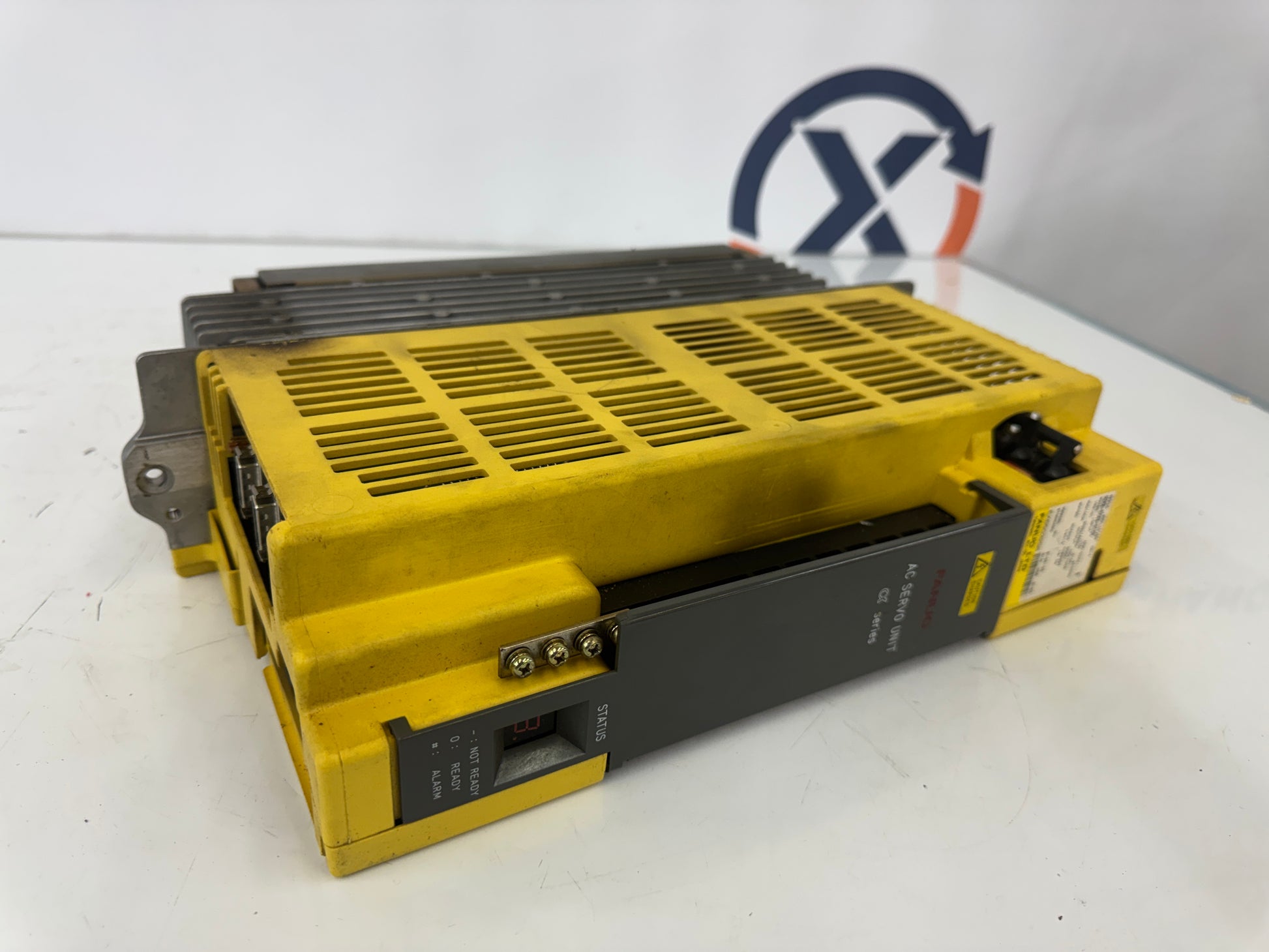

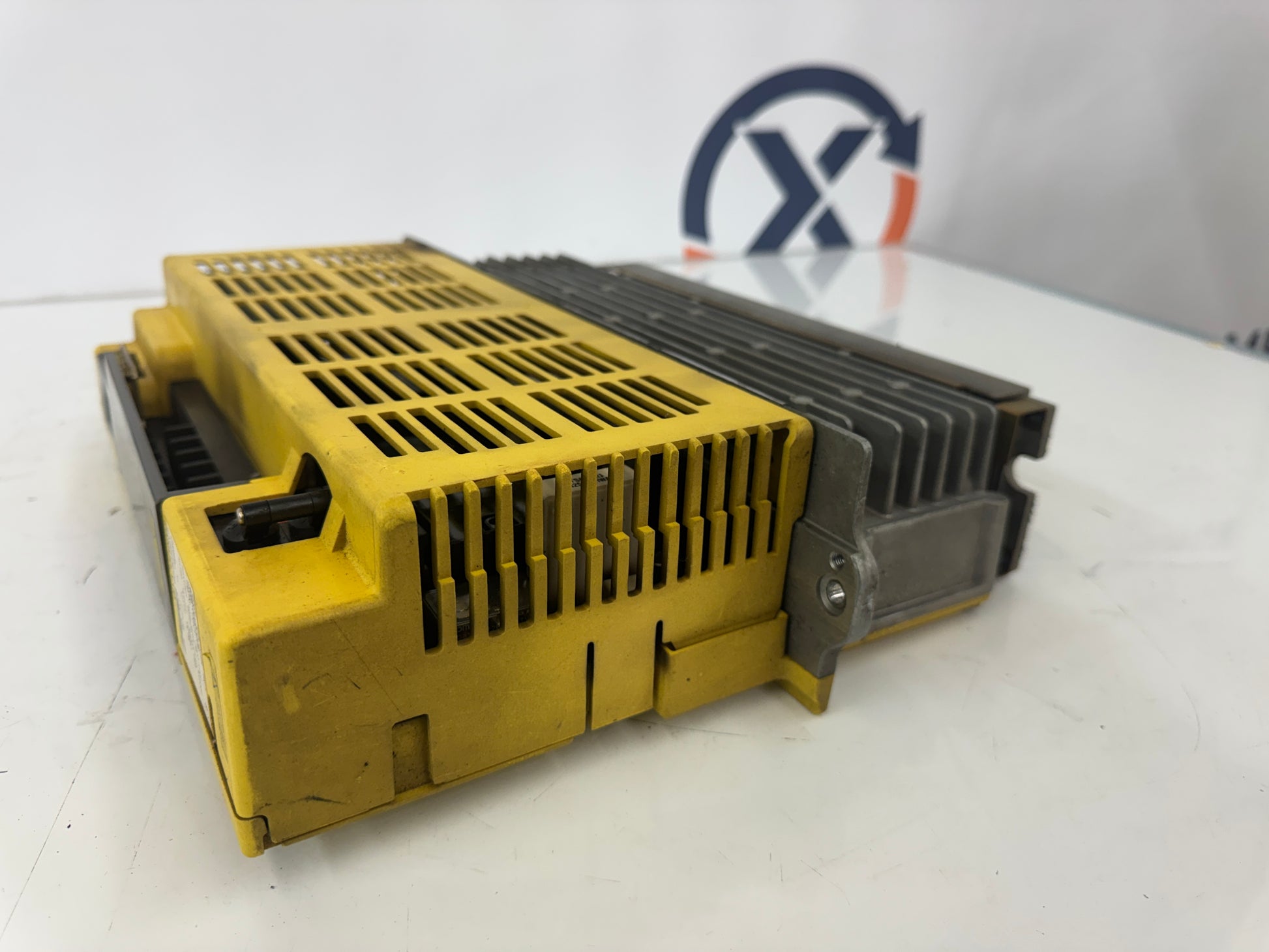

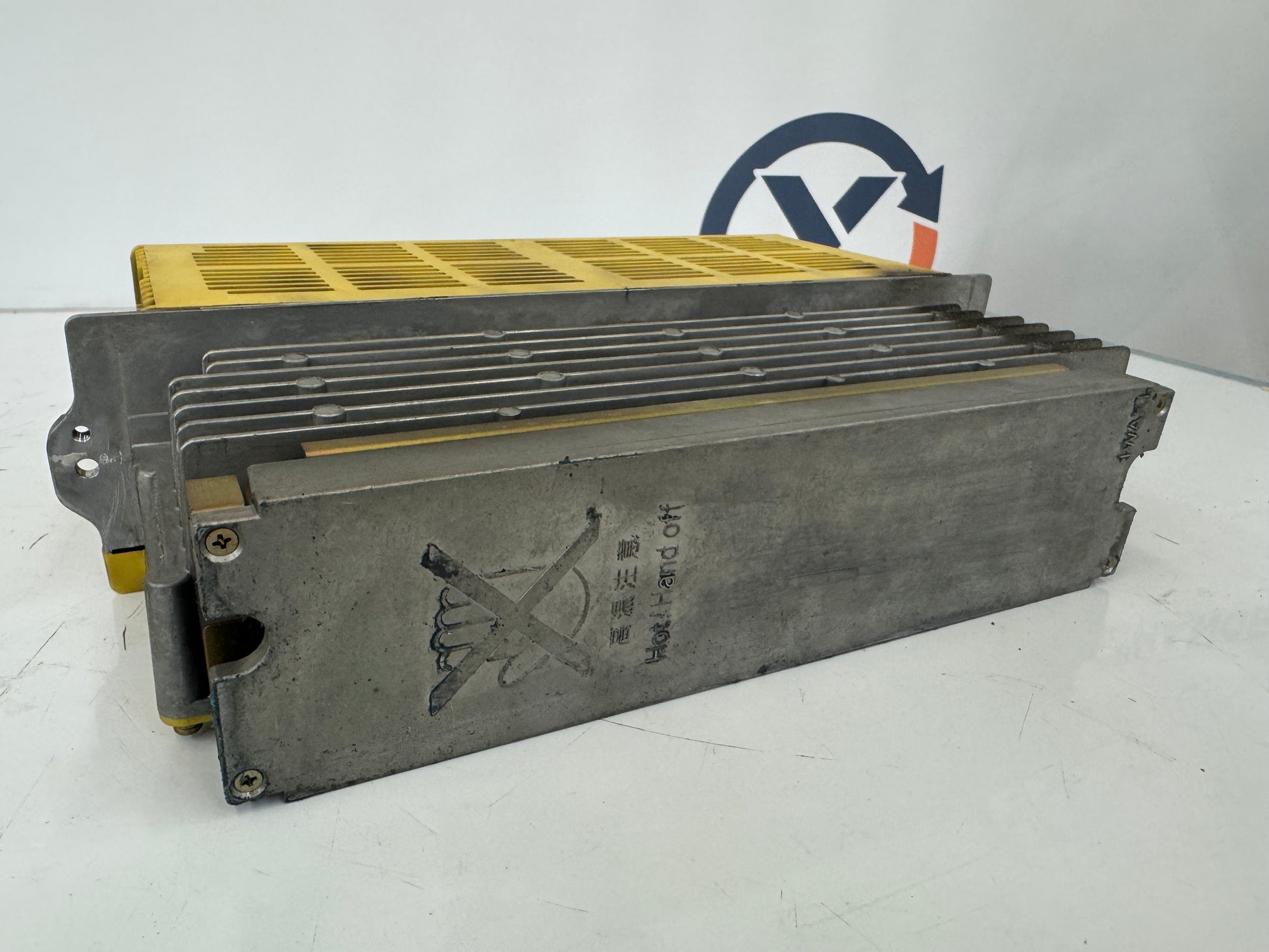

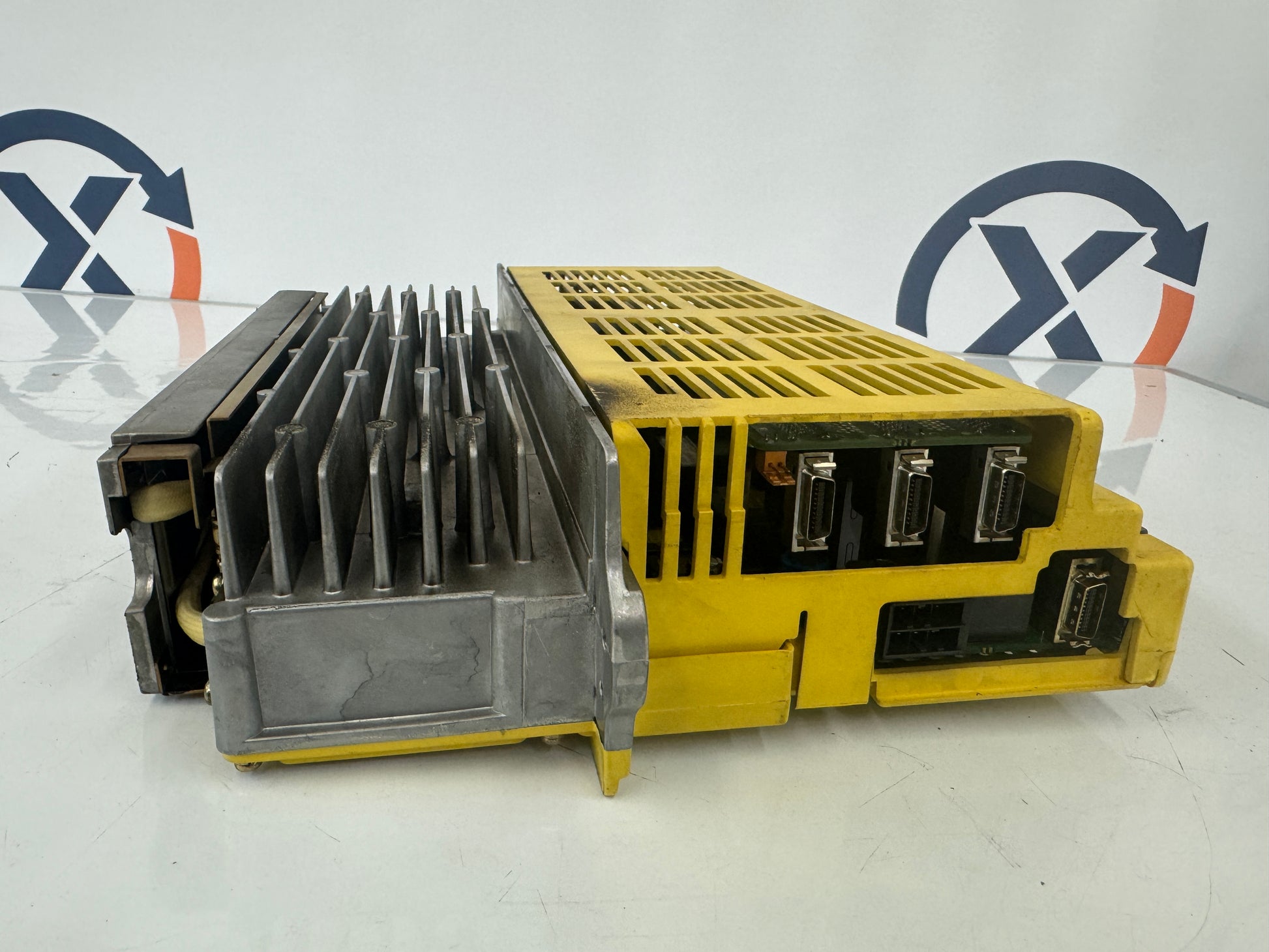

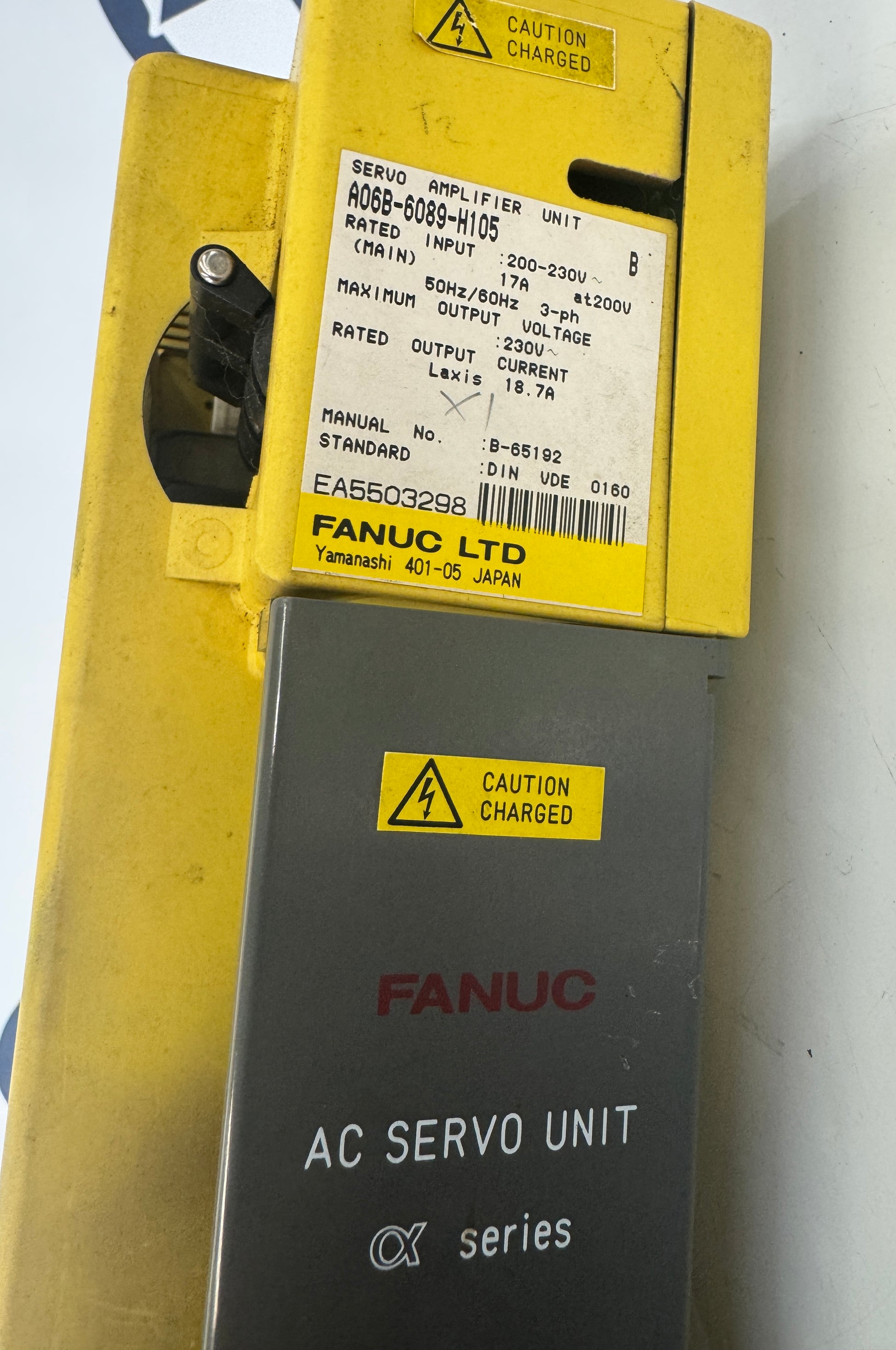

The Fanuc A06B-6089-H105 is an Alpha series SVU1-80 AC servo amplifier unit manufactured by Fanuc Ltd in Yamanashi, Japan. The nameplate designates this unit as series B. It is designed for use with Fanuc Series 0 CNC controls equipped with a PWM type B axes interface. The nameplate specifies a rated main input of 200 to 230V AC at 17A at 200V, three-phase, 50Hz or 60Hz. Maximum output voltage is 230V AC. Rated output current for the L axis is 18.7A. The unit is housed in the characteristic Fanuc yellow enclosure with a large aluminum finned heat sink assembly. The front panel includes a STATUS indicator with NOT READY, READY, and ALARM states visible on the label. A grey front cover labeled AC SERVO UNIT Alpha series is present and shown in photos. The serial number visible on the barcode label is EA5503298. Manual reference is B-65192 and the unit meets DIN VDE 0160 standard as noted on the nameplate. This SVU1-80 is the mid-range capacity unit within the SVU series, positioned below the H106 SVU1-130 variant. It is a discontinued Fanuc product, making surplus availability the primary sourcing channel for CNC machine tool maintenance and repair applications requiring single-axis servo control on older generation Fanuc Alpha series systems.
Stock # 0226-474
