Fanuc Servo Drive A06B-6089-H105 200-230VAC

$579.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

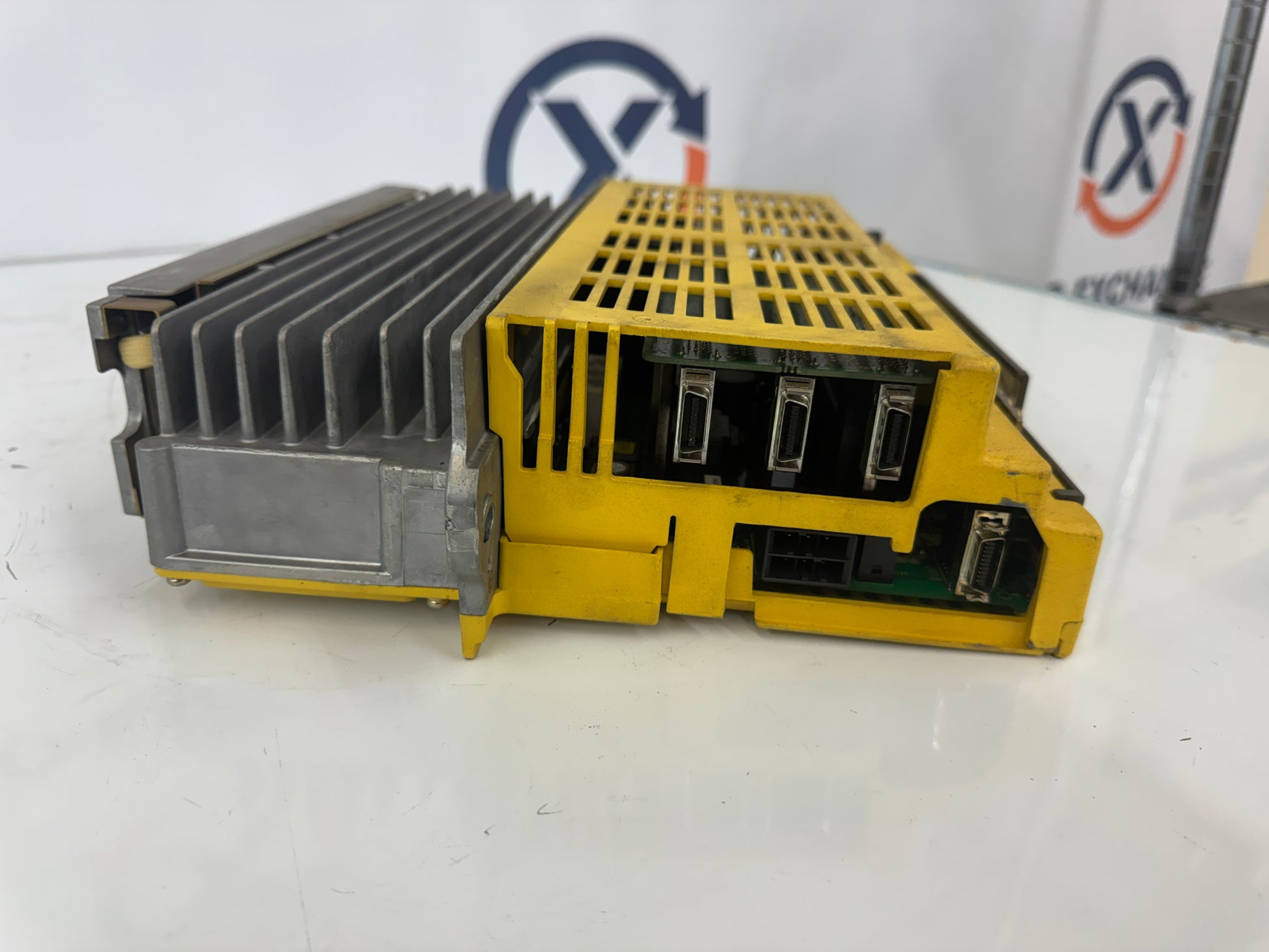

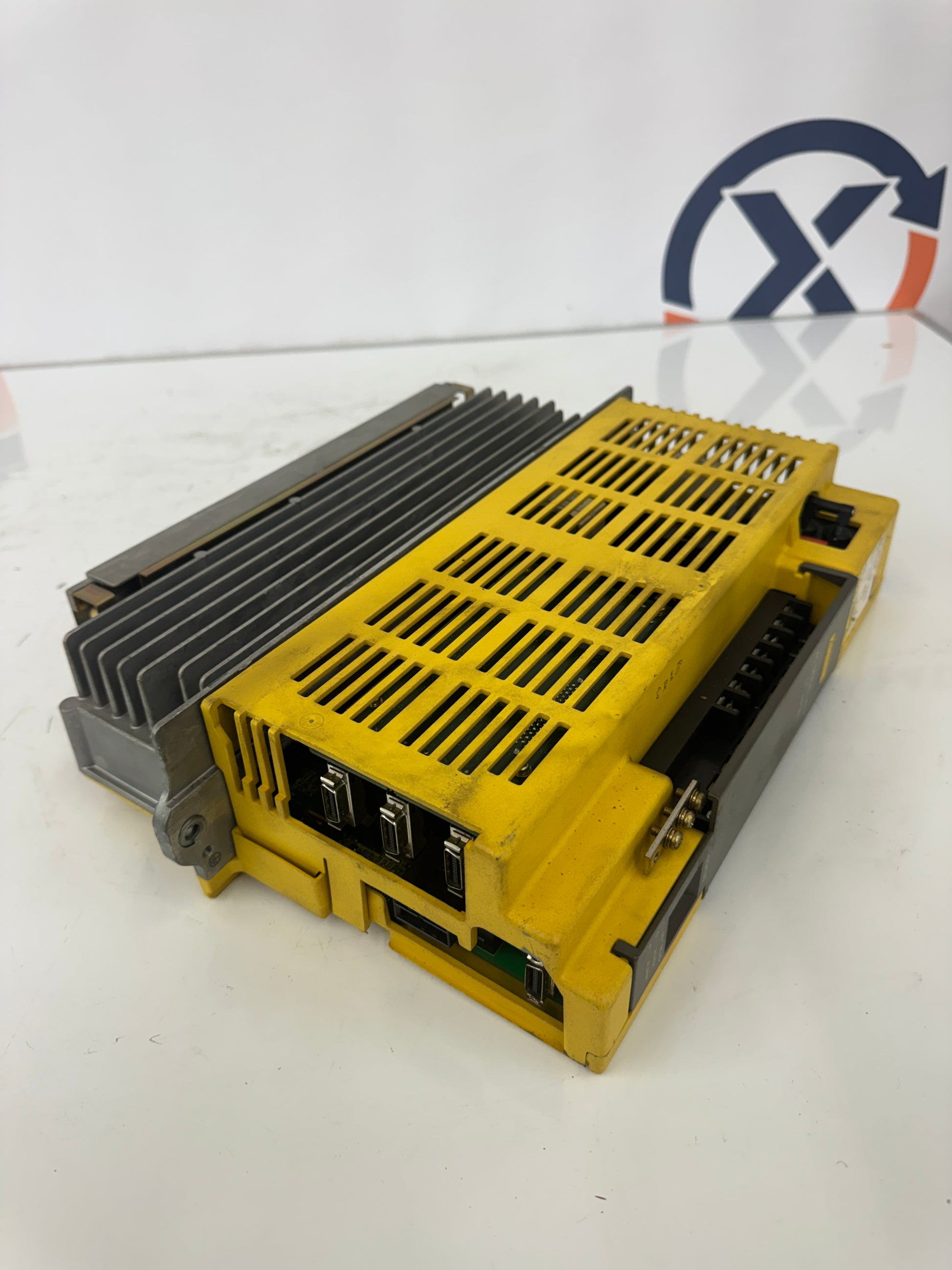

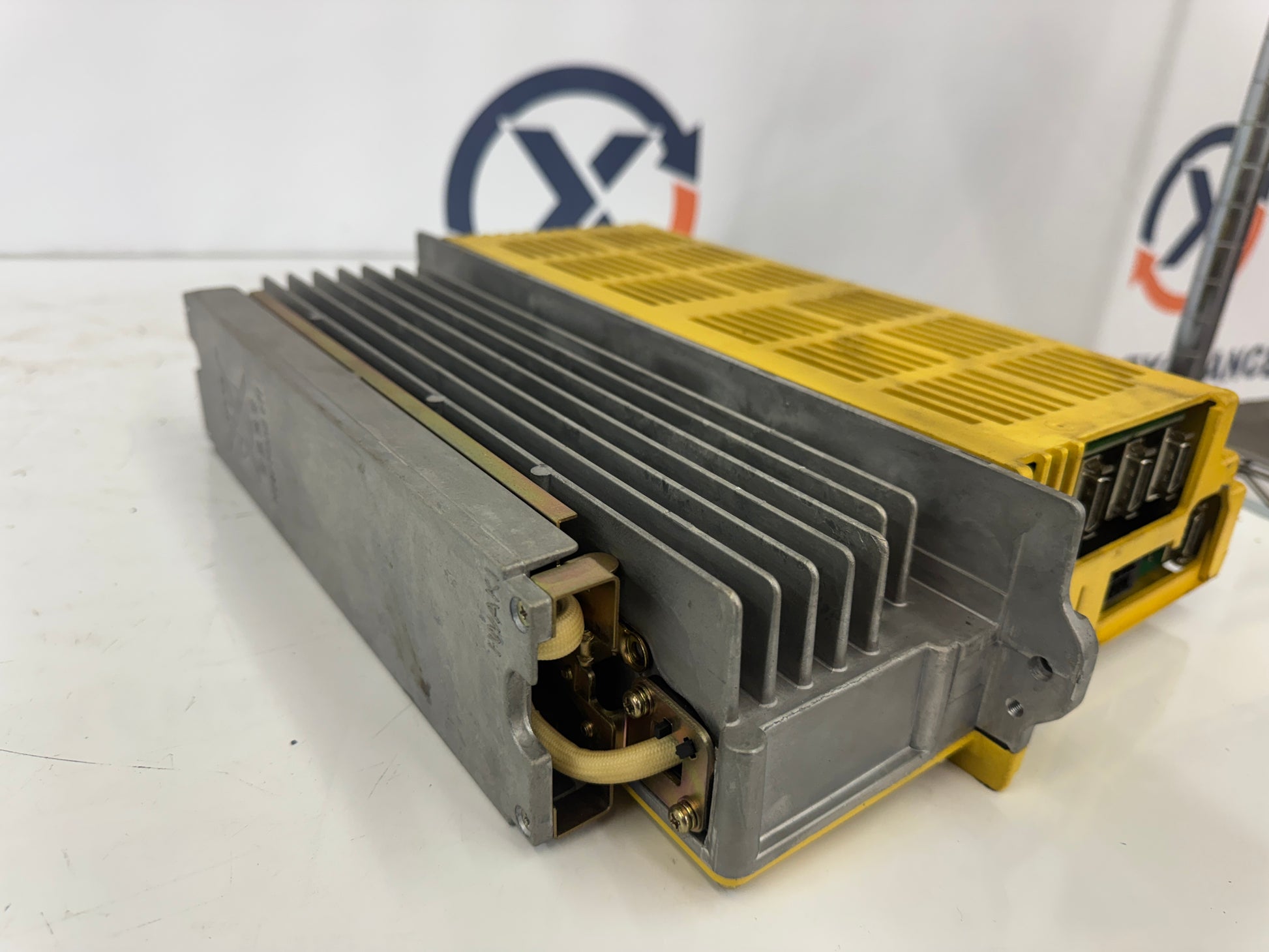

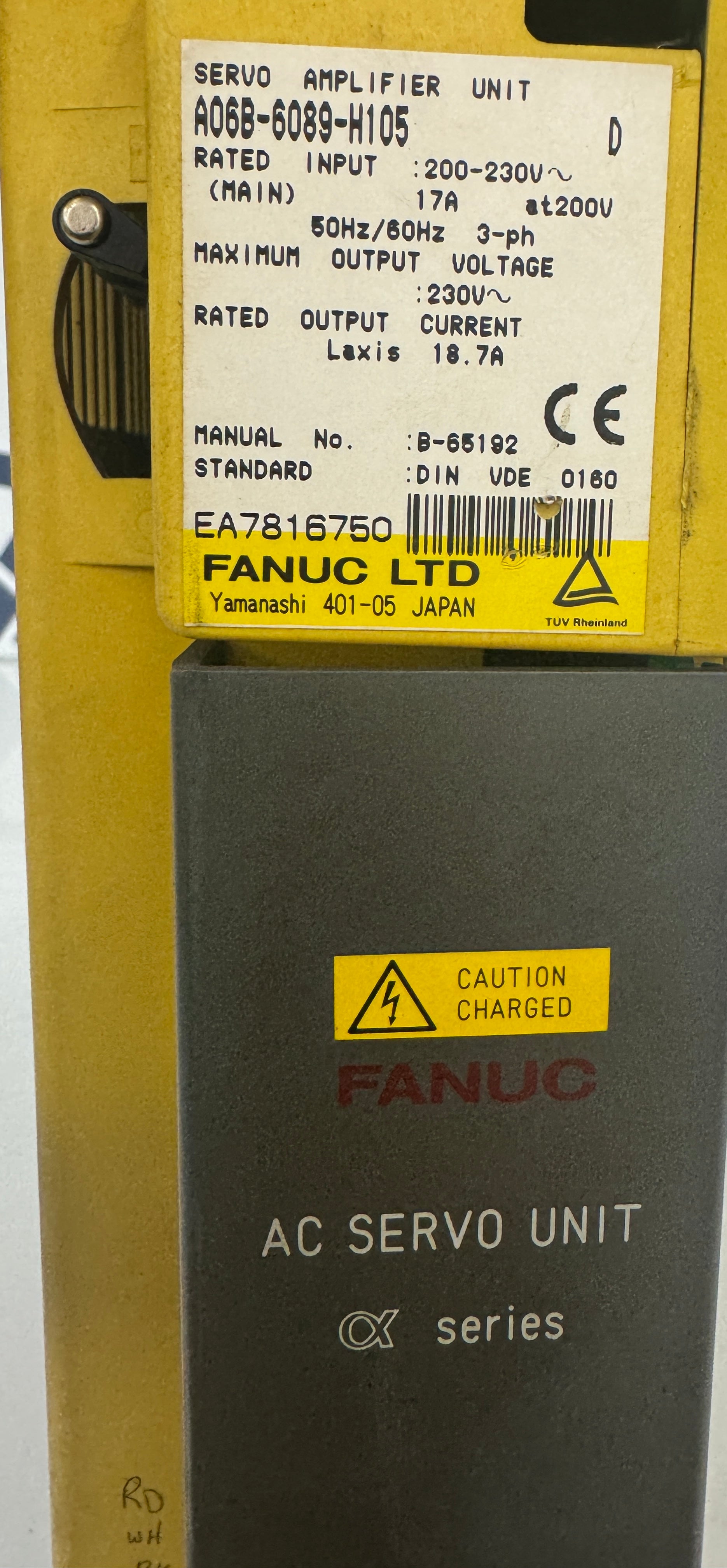

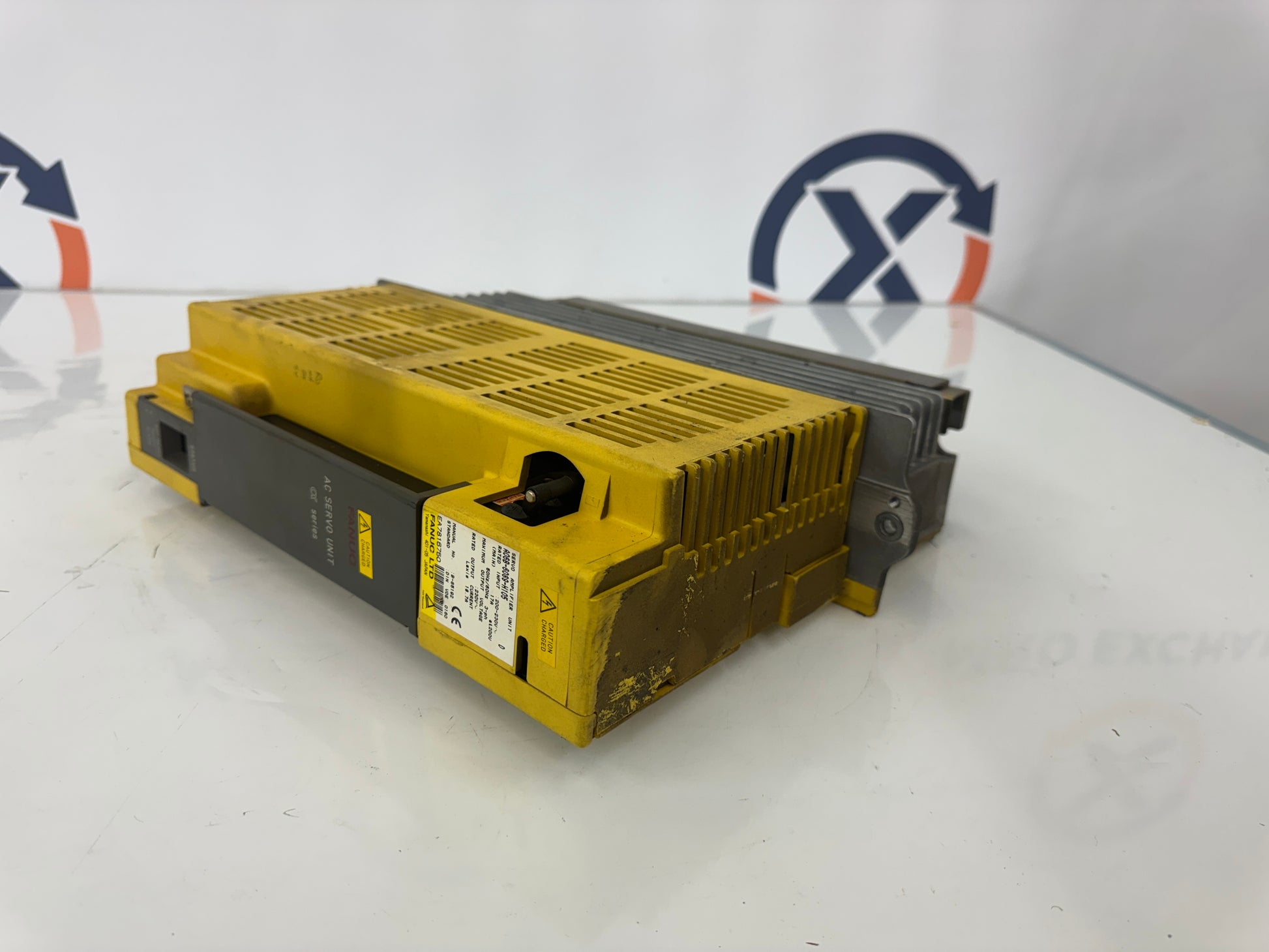

Fanuc A06B-6089-H105 Series D Servo Amplifier Unit, Alpha series SVU 1-80. Servo Amplifier Unit designation confirmed on nameplate. Rated input 200-230VAC, 17A at 200V, 50Hz/60Hz, 3-phase. Maximum output voltage 230VAC. Rated output current L axis 18.7A. Manual reference B-65192. Compliant with DIN VDE 0160. CE marked. TUV Rheinland certified. Serial number EA7816750. Made in Japan by Fanuc Ltd, Yamanashi 401-05. Compatible with Fanuc CNC systems using the type B interface including Series 0C, 15A, 15B, 16A, 16B, 18A, and 21TA. Single-axis Alpha series amplifier with built-in power supply section. Control board specification A20B-2002-0031 and wiring board A20B-2002-0041 per manufacturer documentation. Features an integral capacitor bank with discharge caution labeling and finned yellow heatsink chassis. Designed for single-axis servo motor control in CNC machine tool applications. The H105 designation identifies this as the high-power variant of the SVU 1-80 series within the Fanuc Alpha family of standalone servo amplifier units.

Stock # 0226-472
