Fanuc Servo Drive A06B-6127-H105 480 VAC

$989.00 USD

Sale Sold out

U.S. shipping, securely packaged. Ships in 1-2 Days
Questions? Real support team available before purchase
Secure checkout with trusted payment methods

Condition:
Photos reflect the item’s current condition and details. If the item arrives in a condition that differs from what is shown or described, it may be eligible for return or refund. Please review our product condition guide prior to purchasing.

Stock #:

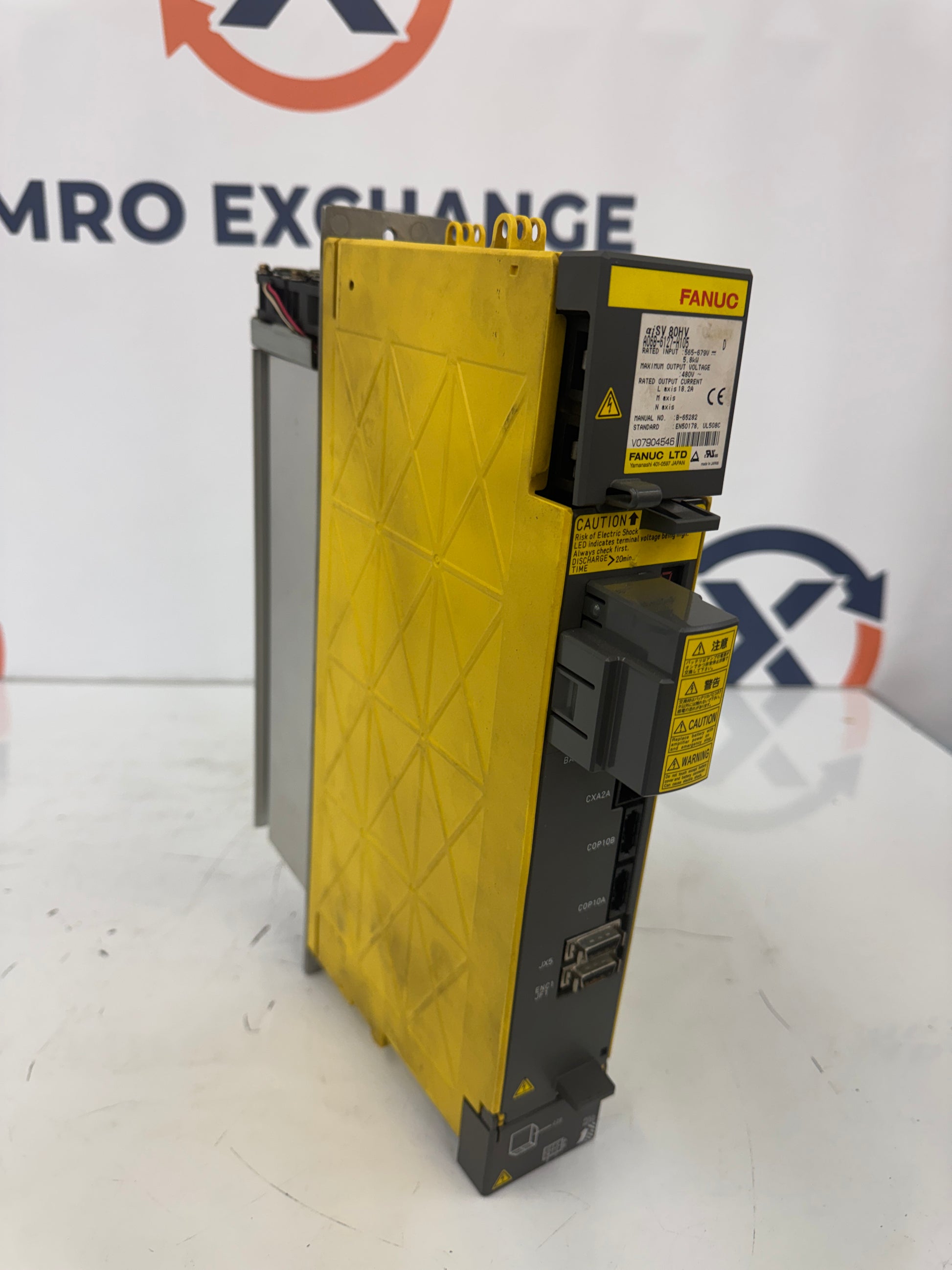

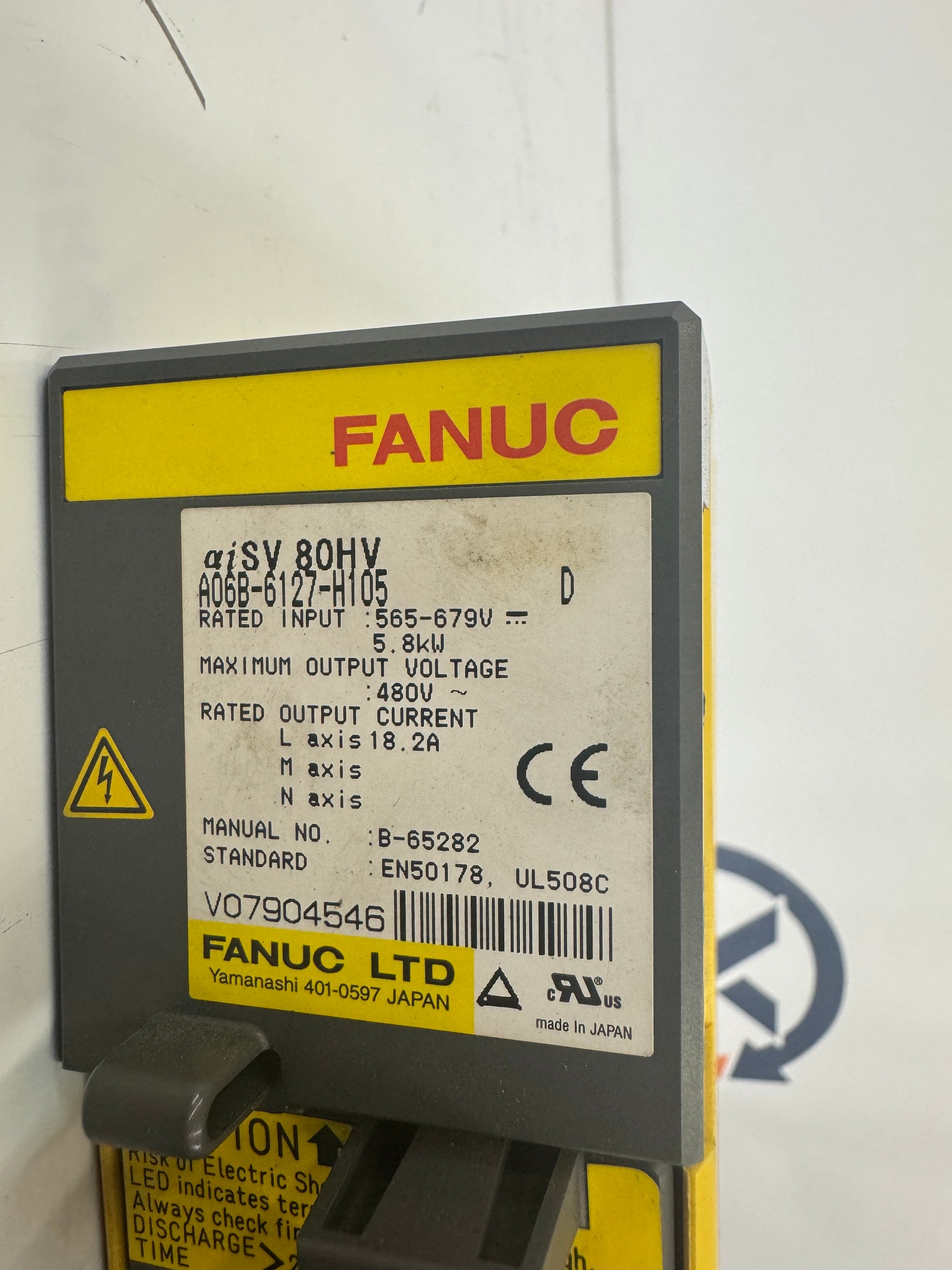

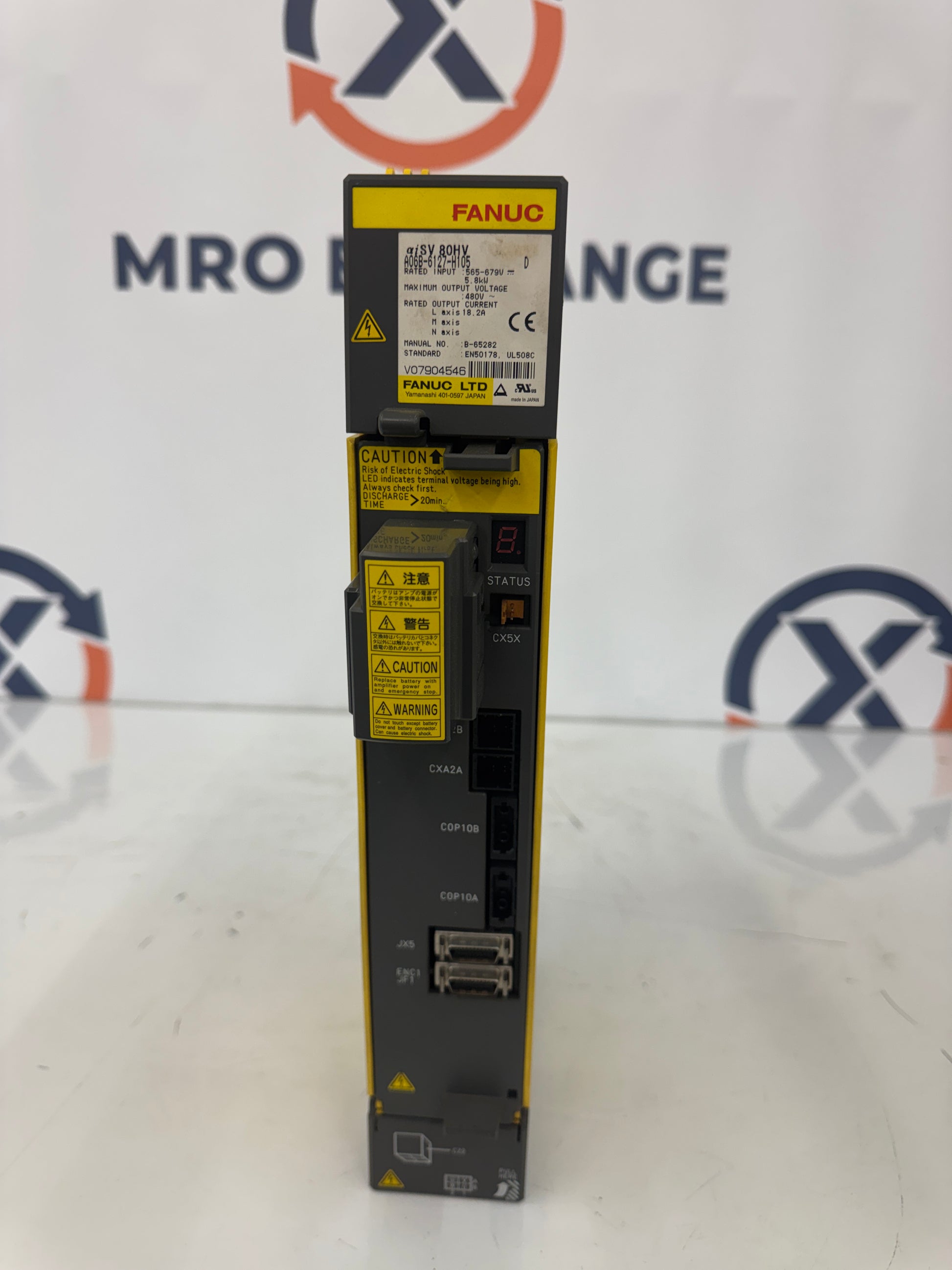

Fanuc A06B-6127-H105 Series D Alpha iSV 80HV Servo Amplifier Module. Model designation aiSV 80HV, part of the Fanuc Alpha i series high-voltage servo drive family. Rated input 565-679VDC at 5.8kW. Maximum output voltage 480VAC. Rated output current L axis 18.2A. M axis and N axis output current values not visible on nameplate. Compatible with Fanuc CNC systems including Series 30i, 31i, 32i, and 35i model A. Designed for single-axis or multi-axis configurations within Fanuc Beta and Alpha i amplifier systems. Front panel features STATUS indicator, CX5X connector, CXA2A connector, COP10B and COP10A fiber optic connectors, JX5 connector, and battery holder with associated caution labeling. Compliant with EN50178 and UL508C standards. CE marked. UL listed. Serial number V07904546 visible on nameplate. Made in Japan by Fanuc Ltd, Yamanashi 401-0597. Manual reference B-65282. This unit is the HV (high-voltage) variant of the aiSV 80 series, distinct from the standard 200-240VAC input versions, and is intended for machines supplied with high-voltage bus power from a compatible Fanuc PSM or PSMHV power supply module.

Stock # 0226-470

View full details
